CHAUVET-DJ

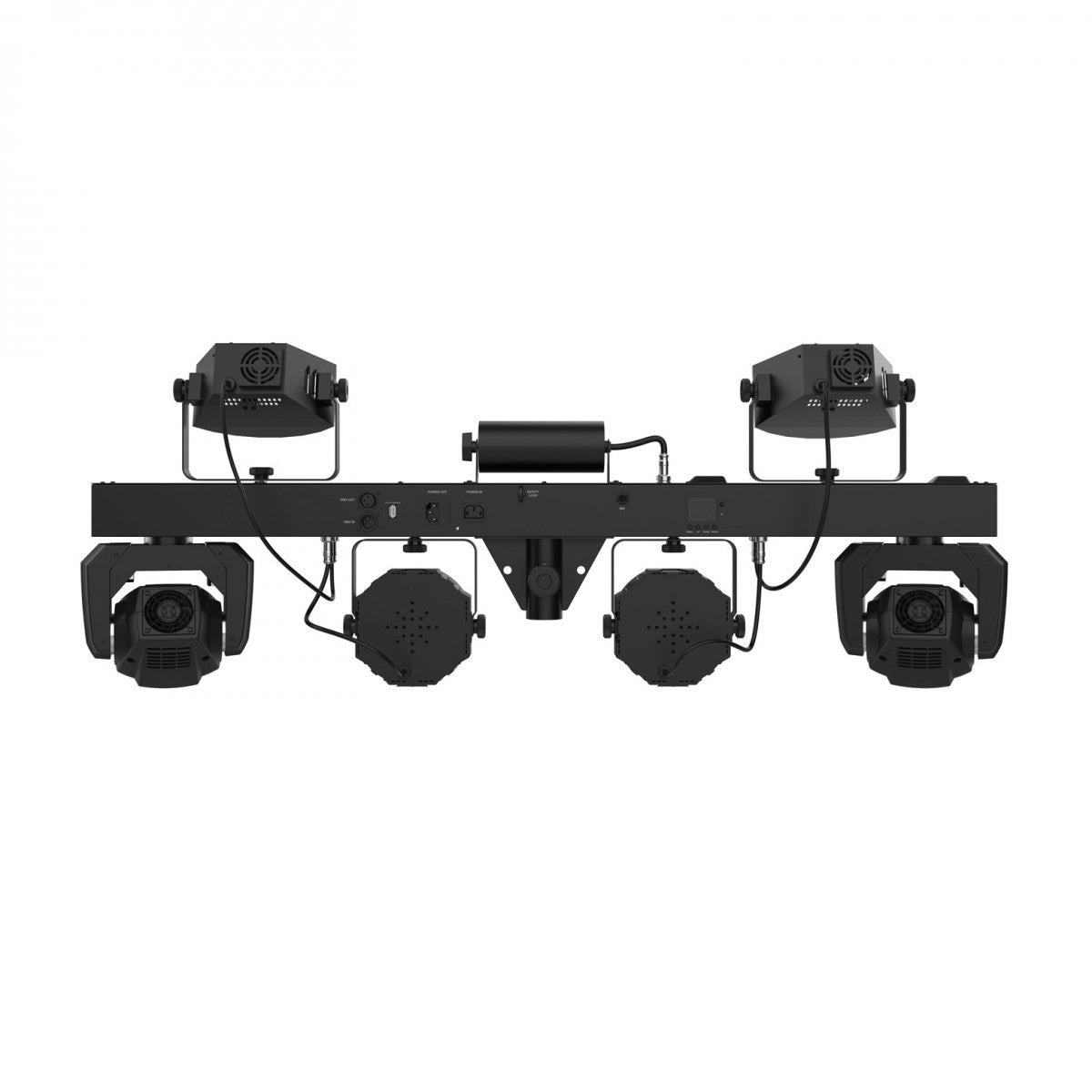

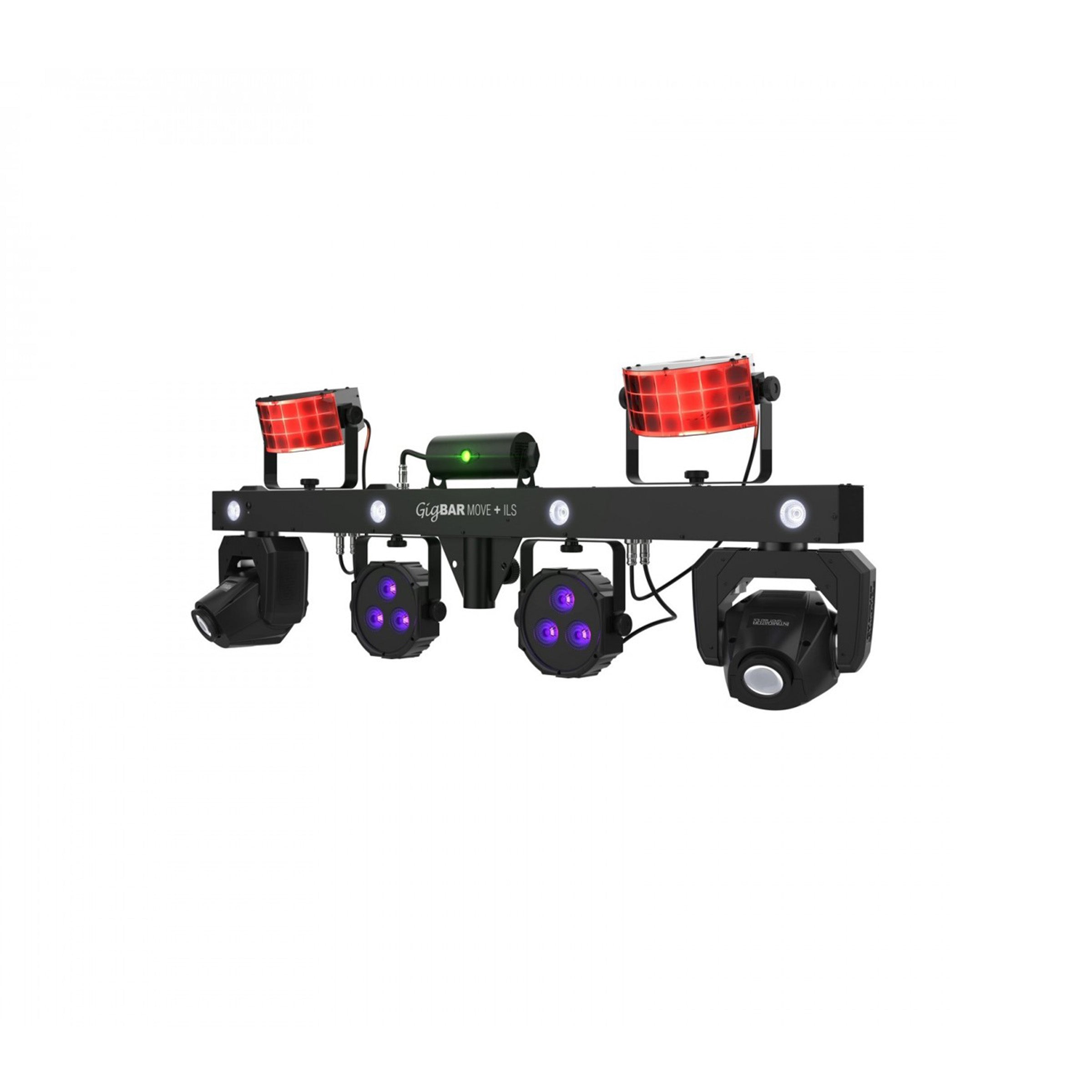

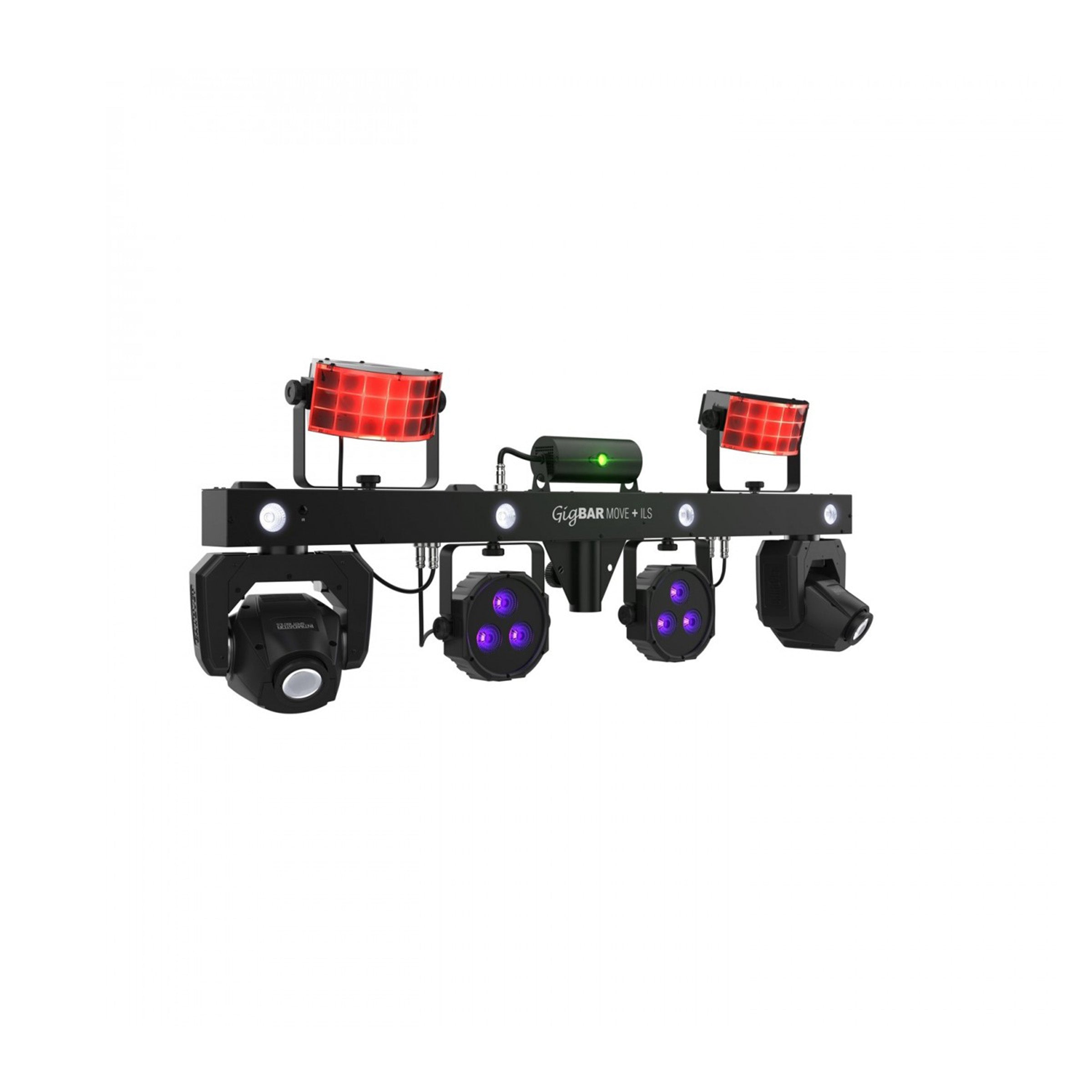

Chauvet DJ GigBAR Move + ILS
The future of easy lighting synchronization is here with GigBAR Move + ILS. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-colour LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.
Main features of the Chauvet GigBAR Move + ILS include:
- 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
- ILS compatibility for use in the ILS ecosystem (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
- Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver
- Use the included RF remote to trigger the built-in shows without needing line of sight
- Powerful moving heads with separate colour and gobo wheels allow for creative programming
- Totem Mode keeps the moving heads focused on the dance floor
- Easy navigation and access to all moving head functions directly from the full-color LCD display
- Safely mounts to truss or ceilings using the 3/8 in threaded inserts
- System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
- Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
- Individual control of each effect ensures your show looks the way you need it to
- Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch
- DMX Channels:3, 29, or 51
- DMX Connectors:3-pin XLR
- Pan and Tilt:540°/180°
- Colours: (moving head): 9 + open, split colours, continuous scroll at variable speeds
- Gobos: (moving head): 9 + open, continuous scroll at variable speeds
- Light Source: (pars): 3 LEDs (hex colour RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy
- Strobe Rate:0 to 30 Hz
- Beam Angle: (moving head): 17° (pars): 22°
- Field Angle: (pars): 33°
- Coverage Angle: (derby): 131°
- Size:1.5 in (37.4 mm)
- Illuminance: (pars): 1,205 lux @ 2 m (per par)
- Power Linking:7 units @ 120 V; 12 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 250 W, 3 A @ 120 V, 60 Hz
- Weight:(bar only) 31 lbs (14 kg)
- Size:43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
- Approvals:CE, UKCA, RoHS, FCC, FDA
- Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
- Footswitch Operating Frequency: 433 MHz
- Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
- Max Unobstructed Distance (D-Fi): 600 ft (183 m)
- Footswitch Battery: 9 V alkaline
- Included Controllers: RF remote, wireless footswitch
- Cable Length: 10 ft (3 m)
- Tripod Thickness: 1.37 in (35 mm)
- Optional Controllers: RFRF Remote Battery: 23A, 12 V alkaline
(strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy
(derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy
(moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
(Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW
(green) laser diode, 450 nm/ 50 mW (blue) laser diode
(strobe): 30°
(strobe): 62°
(laser): 93°Fits Tripod
(moving head): 5,140 lux @ 2 m (per head)
(strobe): 130 lux @ 2 m
248 W, 1.8 A @ 230 V, 50 Hz
- WHAT'S INCLUDED
- GigBar Move Plus ILS
- Power cord
- RF Remote

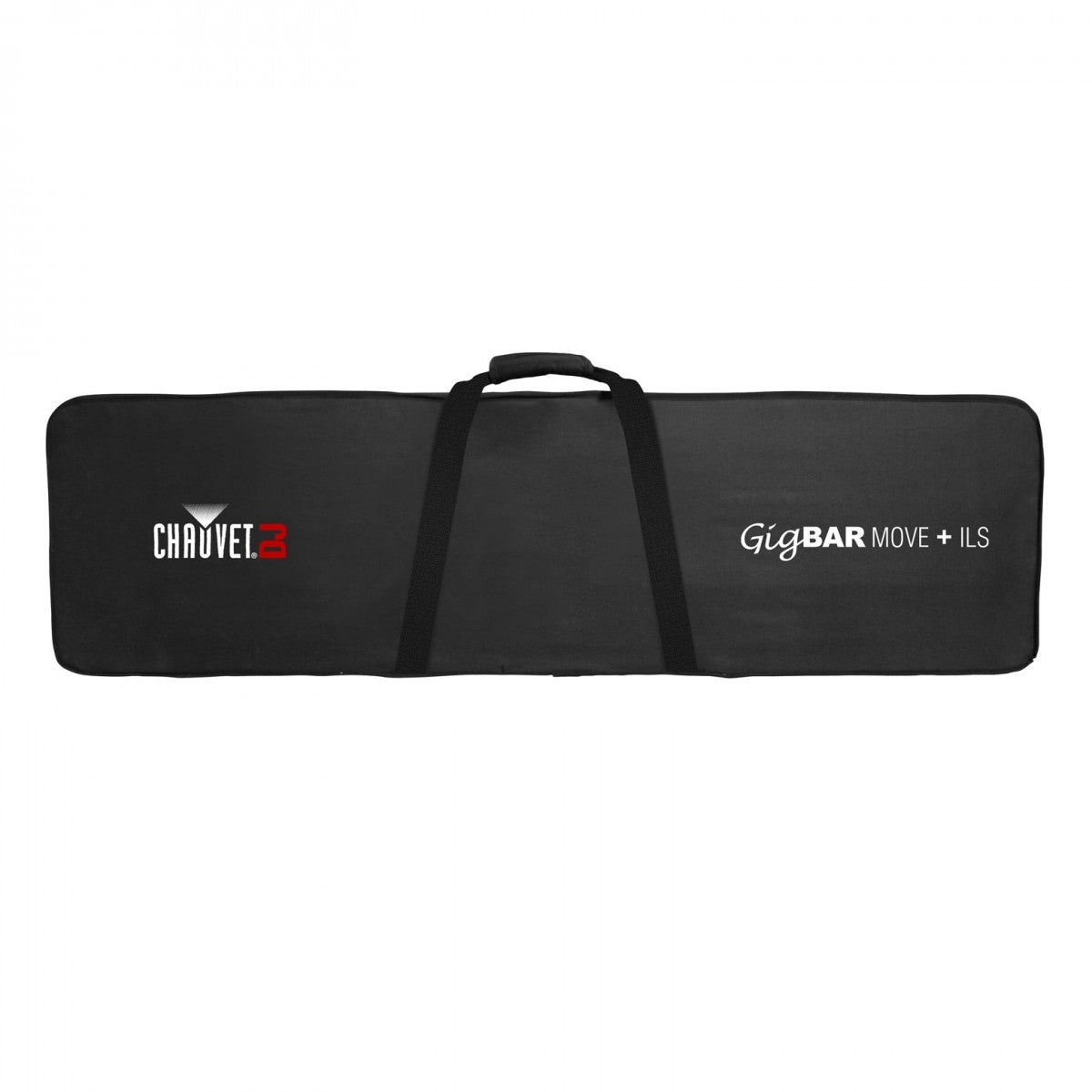

- Carry bag
- Tripod
- Tripod carry bag
- Footswitch
- User Manual
