FOCUSRITE

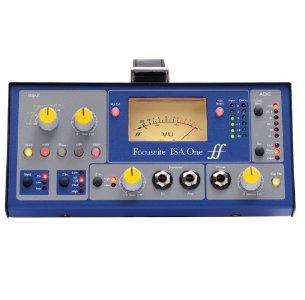

FOCUSRITE ISA One single mic preamp
Mic Input Response
(Switched Impedance setting Equivalent Input Impedance at 1kHz)
Low = 600 Ohms
ISA110 = 1400 Ohms
Med = 2400 Ohms
High = 6800 Ohms
Line Input Response
Instrument Input Response
High = greater than1M?
Low =greater than 300k?
High Pass Filter
Meters
0 = +22dBu
-2 = +20dBu
-6 = +16dBu
-12 = +10dBu
-18 = +4dBu
-42 = -20dBu
FRONT AND REAR CONNECTIVITY
Analogue Channel Inputs:
Analogue Channel Outputs:
Analogue Channel Additional I/O:
Weight
Dimensions
- ISA Series Transformer-based Pre-amplifier
- Stereo 192kHz ADC
- Flexible Independent D.I. Channel
- Switchable Impedance
- Headphone Output with Volume Control
- Dedicated Insert Point
ISA Series Transformer-based Pre-amplifier
Encased in a rugged and portable chassis, ISA One offers the classic Focusrite microphone pre-amplifier at its lowest cost to date.
Stereo 192kHz ADC
Cutting-edge conversion technology, incorporating Focusrite analogue circuitry to deliver the best A-D performance in its class (Dynamic range of 119dB).
Flexible Independent D.I. Channel
ISA One is ideal for both engineers and demanding performers alike, featuring independent gain control, an output for routing to an amp, an independent XLR output on the rear and routing to the optional ADC.
Switchable Impedance
Choose one of four carefully selected input impedances, including the original ISA 110 setting, to suit any microphone.
Headphone Output with Volume Control
ISA One can feed either a sum of the two inputs to the headphones output, or an external stereo cue mix (such as a stereo mix feed from an interface) via two TRS Jack inputs on the rear of the unit.
Dedicated Insert Point
Allows you to place extra processing between the pre-amplifi er or D.I. and the optional converter, such as an EQ or compressor.
