ORTOFON

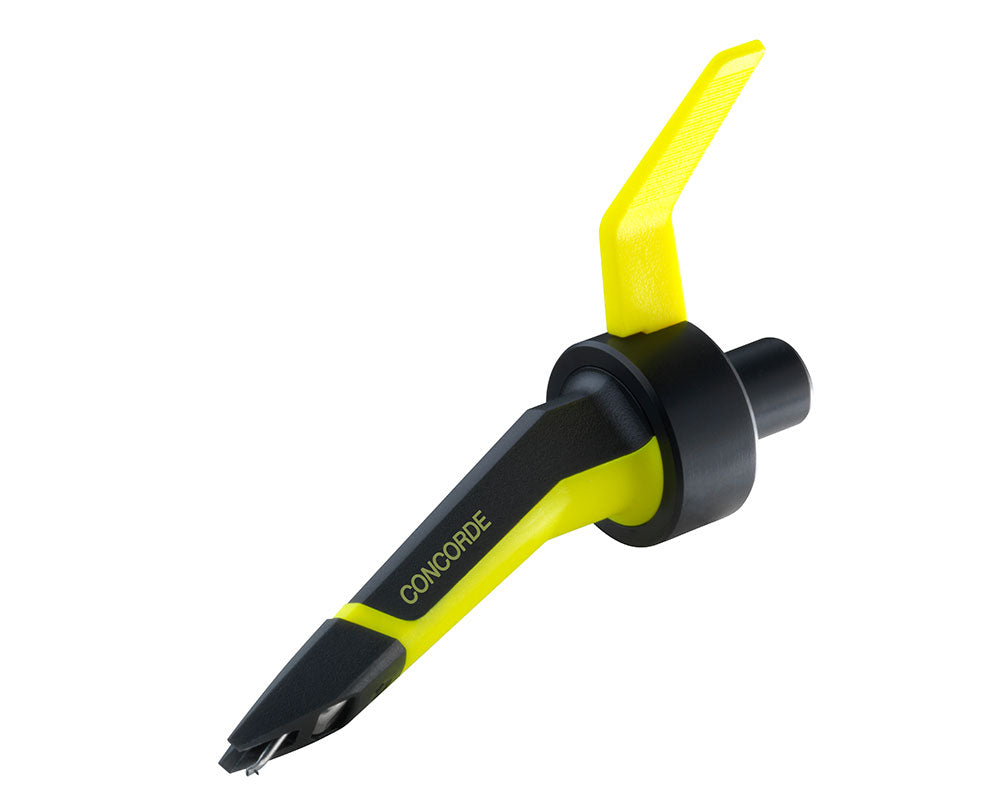

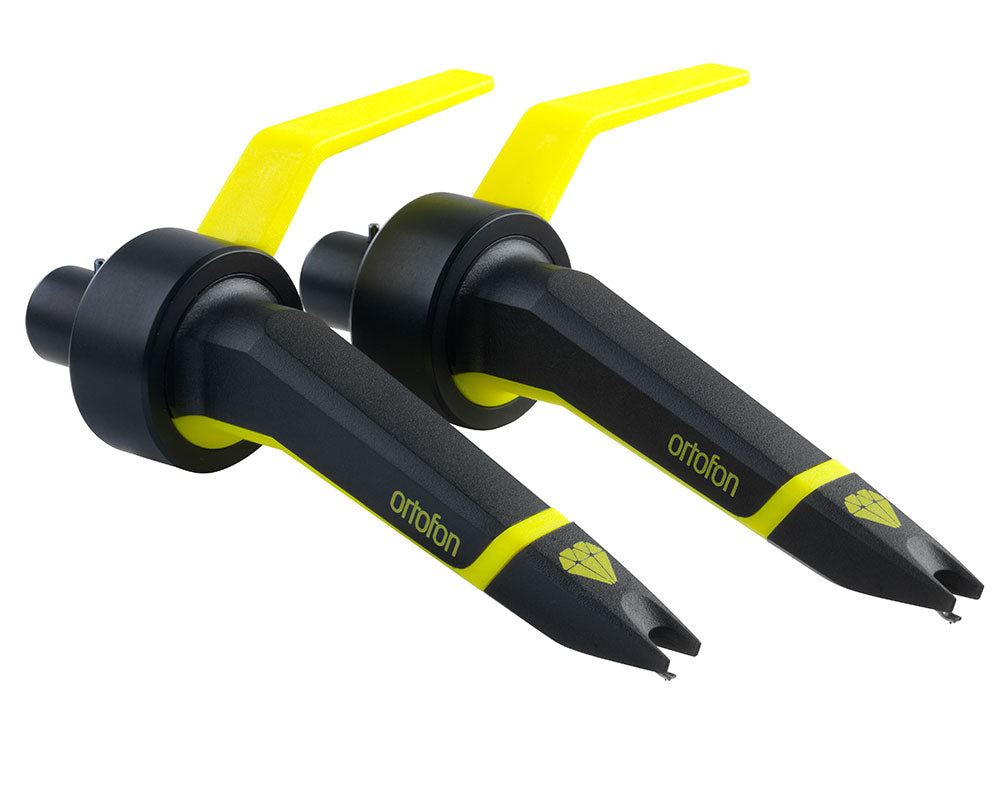

Ortofon Concorde Club Mk2 Cartridge Twin Pack
The Ortofon Concorde Club Mk2 twin pack offers excellent value with a pair of quality DJ cartridges in a tough flight case for easy and safe transportation.
The Ortofon Concorde Club Mk2 boasts the best specifications and best sound, making it an ideal choice of cartridge for Club DJs.
The Club replaces the iconic Night Club and sees the return of the classic luminescent yellow tip and now matching grip. The Concorde Club features a special elliptical stylus that allows for detailed sound quality by being better placed in the groove and therefore has more contact extracting more intricate details than is possible with a Spherical diamond.
The Club’s 8 mV output voltage requires less gain from the preamps, providing cleaner sound reproduction and less susceptibility to feedback in live environments.
The Club is also ideal for digitising vinyl, providing optimal quality and extracting every last detail from vinyl when transferring to digital .
Whats new with the Mk2?
The new Ortofon Concorde Mk2 range features some great new improvements :
- Totally redesigned from the ground up
- New locking mechanism for stylus
- Replaceable, colour coded finger lift
- New stylus tip : Larger and more robust, easier to grip:
The new shape of the stylus allows you to accurately drop the needle on any part of a record. The point of contact between the needle and record is very clear from any angel. The body is wider and provides easier grip and handling.
Key facts on the Ortofon Concorde Club Mk2:
- OUTPUT : 8 mV
- FREQUENCY RANGE : 20 – 20,000 Hz
- TRACKING FORCE : 3g
- STYLUS TYPE : Elliptical
Output voltage at 1,000 Hz, 5 cm/sec. | 8 mV |
Channel balance at 1 kHz | 1 dB |
Channel separation 1 kHz | 25 dB |
Channel separation 15 kHz | 15 dB |
Frequency range at -3 dB | 20 – 20,000 Hz |
Tracking ability at 315 Hz at recommended tracking force | 100 μm |
Compliance, dynamic lateral | 14 μm/mN |
Stylus type | Spherical R 18 μm |
Tracking force range | 2 – 4 g |
Tracking force recommended | 3 g |
Cartridge weight | 18.5 g |
Replacement stylus unit | Stylus Club Mk2 |
- Twin Pack
- Includes case
- High output
- Elliptical stylus
- New design
- Replaceable finger lift
- Excellent handling
