The PLX-500 series inherits design features from the PLX-1000 professional turntable to produce the high-quality sound you expect from vinyl. The shortest possible audio routing from the stylus to the outputs reduces distortion, and the phono and line outputs mean you can connect directly to your sound system or powered speakers to enjoy warm sound.
An in-built USB output means you can record your vinyl collection to high-quality digital WAV files by simply connecting the PLX-500 to your PC or Mac. Digitising your tracks is easy using our free rekordbox application and, once they’re in your rekordbox collection, you can play them using the PLX-500 and a rekordbox dvs set-up, or on a DDJ controller, or on CDJs via USB. You can also enjoy them on your mobile devices whenever you want.
Using its audio analysis technology, rekordbox detects the silence between tracks and creates a separate file in your collection for each one, so you can just press play and record a whole album from an analogue source to individual tracks without resetting the recording in between songs. After you’ve finished recording you can name and tag all your new tracks.
High-torque direct drive turntable for DJ performances and rekordbox dvs
The high-torque, direct drive PLX-500 is ideal for mixing and scratching on. You can also combine it with the rekordbox dvs Plus Pack to play and perform with your digital files when using a compatible DJM mixer and the RB-VS1-K Control Vinyl (available separately).

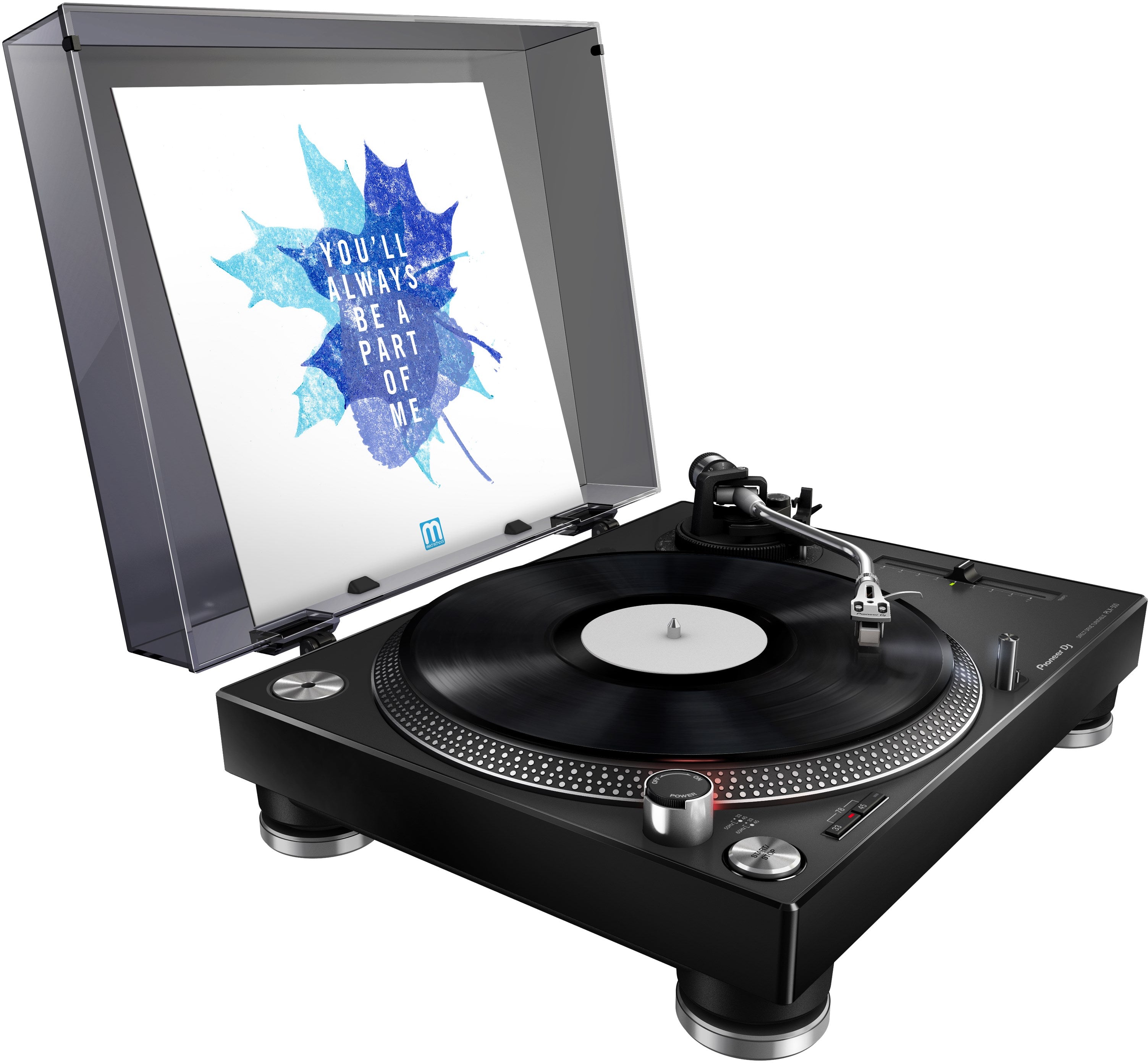

Dust cover with record sleeve stand
You can enjoy the vinyl sound of your records and their artwork at the same time thanks to the dust cover that incorporates a stand for displaying record sleeves when open.
Layout inherited from the PLX-1000 professional turntable
The PLX-500 inherits its slick design from the professional PLX-1000 turntable and you can choose between the black (PLX-500-K) and white (PLX-500-W) versions to match the colour of your gear or the interior of your home.
Power requirements :AC 220v 50 Hz/60 Hz
Power consumption :11 W
Main unit weight :10.7 kg
Max. dimensions (WxHxD)
:450 mm x 159 mm x 368 mm

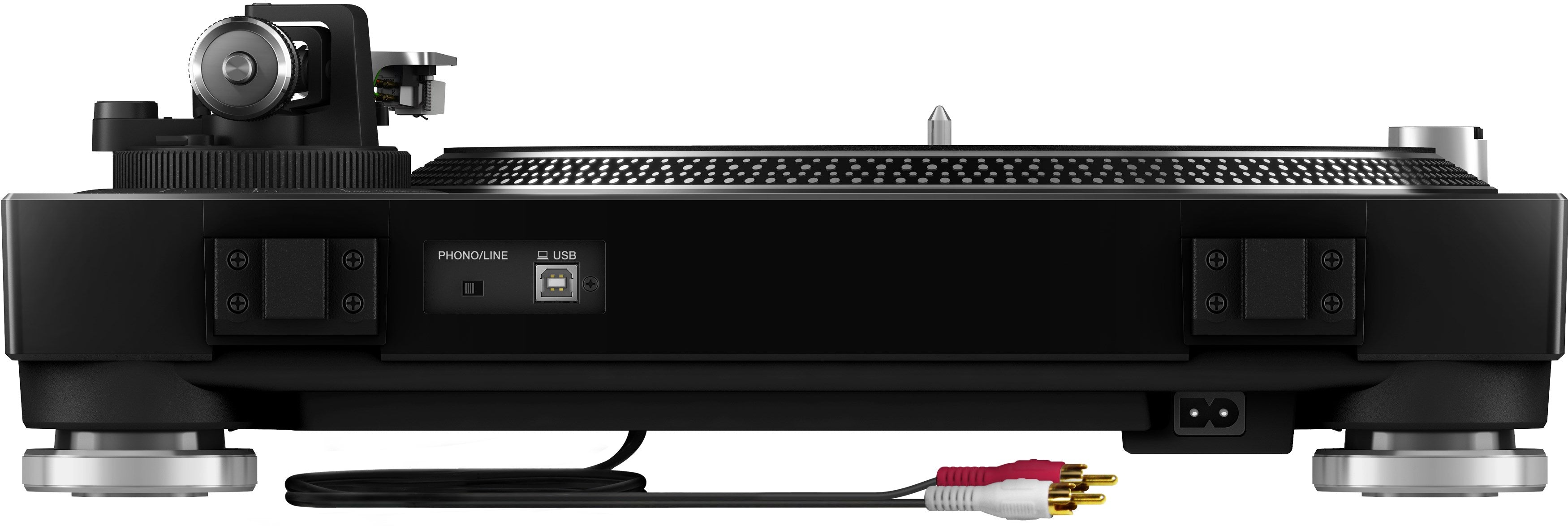

Output :RCA × 1, USB (type B)
Turntable
Drive method :Servo type direct drive
Motor :3-phase brushless DC motor
Braking system :Electronic brake
Rotation speed :33 1/3 rpm, 45 rpm, 78 rpm
Rotation speed adjustment range
:±8%
Wow and flutter :0.15% or less WRMS
S/N ratio :50 dB or above
Turntable :Aluminium die-casting Diameter: 332 mm
Starting torque :1.6 kgf・cm or more
Start time :Within 1 second (at 33 1/3 rpm)
Tone arm
Arm type :Universal type S-shape tone arm, gimbal-supported type bearing structure, static balance type
Effective length :230.5 mm
Overhang :16 mm
Tracking error : Within 3°
Arm height adjustment range: 6 mm
Stylus pressure variable range: 0 g to 4.0 g(1 scale 0.1 g)
Proper cartridge weight : 9.5 g or less (single cartridge)
Cartridge
Cartridge type : VM type
Included accessories
Slip mat, Dust cover with jacket stand, Adapter for EP record, Balance weight, Headshell (with
cartridge), Shell weight, Power cord, USB cord, Audio conversion cord(Stereo pin plug (female) –
Stereo mini plug(male)), Operating instructions
Headshell specifications
Weight :10.0 g
Shell length :52 mm
Finger Length :21 mm
- Direct Drive Turntable
- USB interface built in
- High torque motor
- Cartridge and stylus included
