1010music Blue Box

Add Some Color to Your Mix

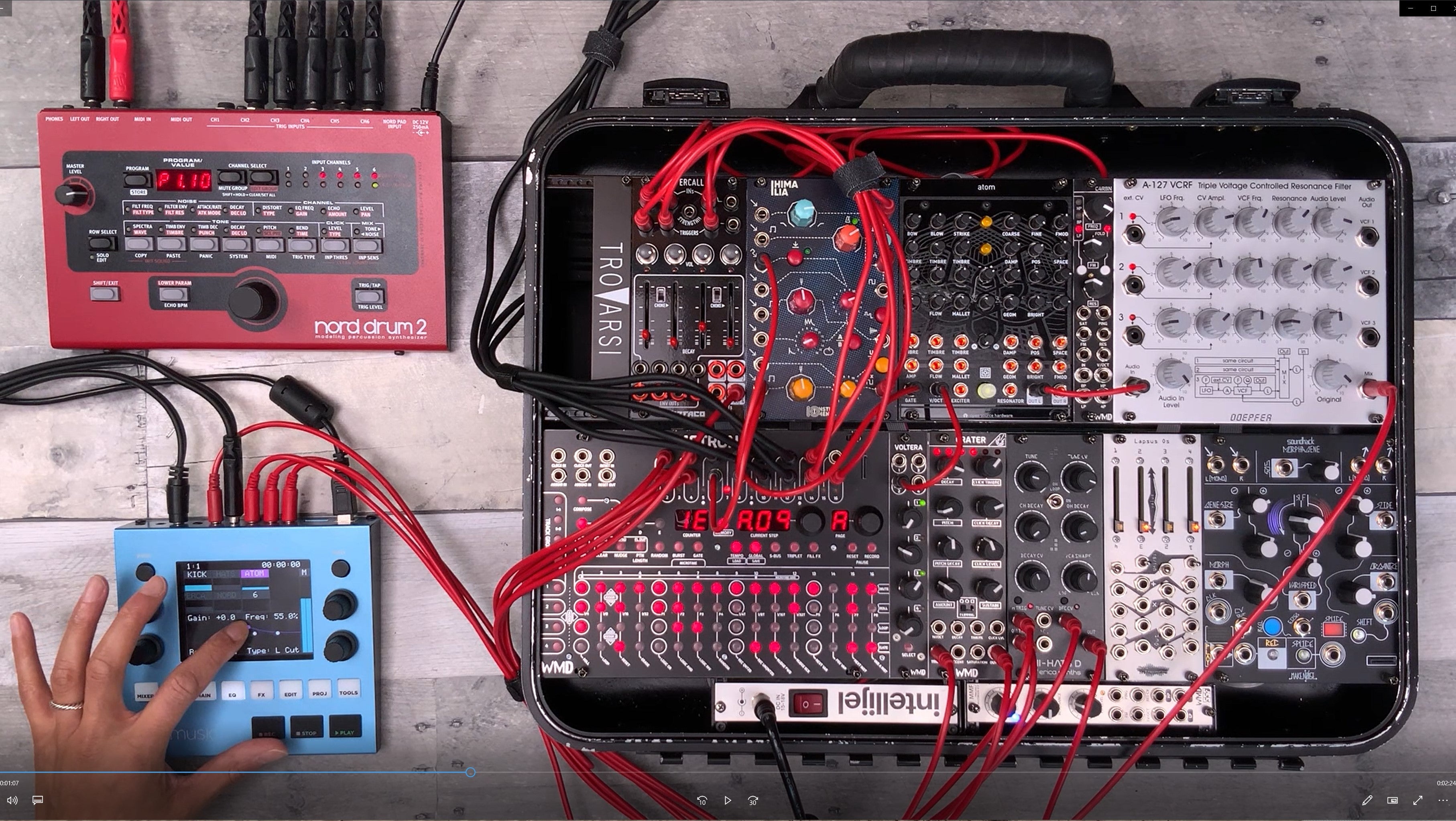

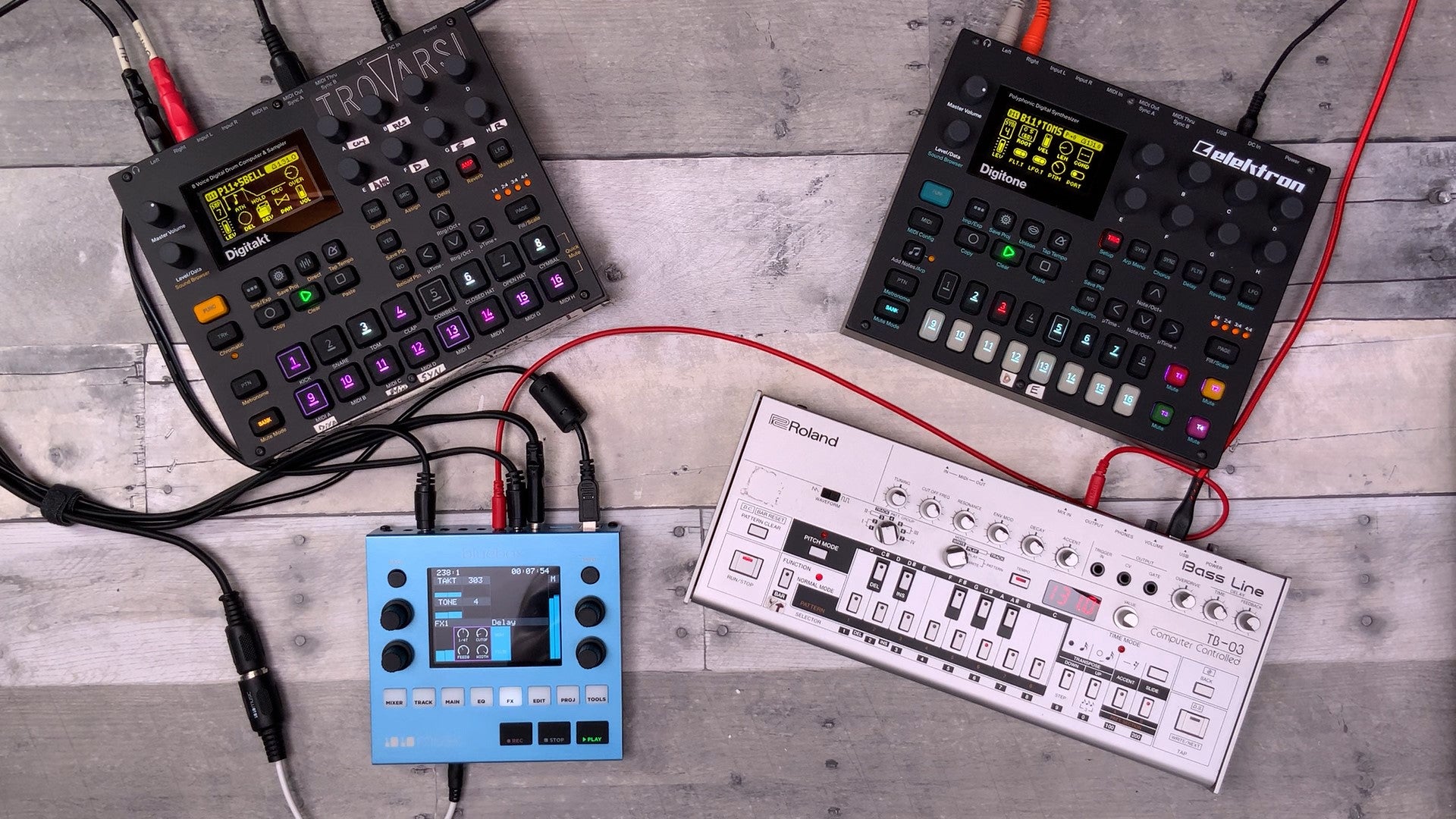

1010music Bluebox is the portable digital audio mixer that integrates your electronic music gear. Connect your eurorack, sampler, drum machine and synthesizer outputs to 6 stereo, 3.5 mm TRS inputs and map them to 12 mono tracks or 6 stereo tracks – all with independent control for recording and playback. It’s that keyboard mixer with live performance features that you always hoped someone would make.

Connect the output of your electronic music gear to bluebox, and then route each track independently to the three outputs and effects sends. Each track offers control of volume, gain, 4-band parametric EQ, pan, mute and solo functions. Apply high-quality global reverb and delay effects along with 4-band EQ per track to add new depth to your sound with total control to quickly tweak incoming audio or track playback as needed.

With bluebox you can record independent tracks or the Main mix using a standard microSD card. Capture your jam session for later review, or record the ultimate mix of the tracks for your song.

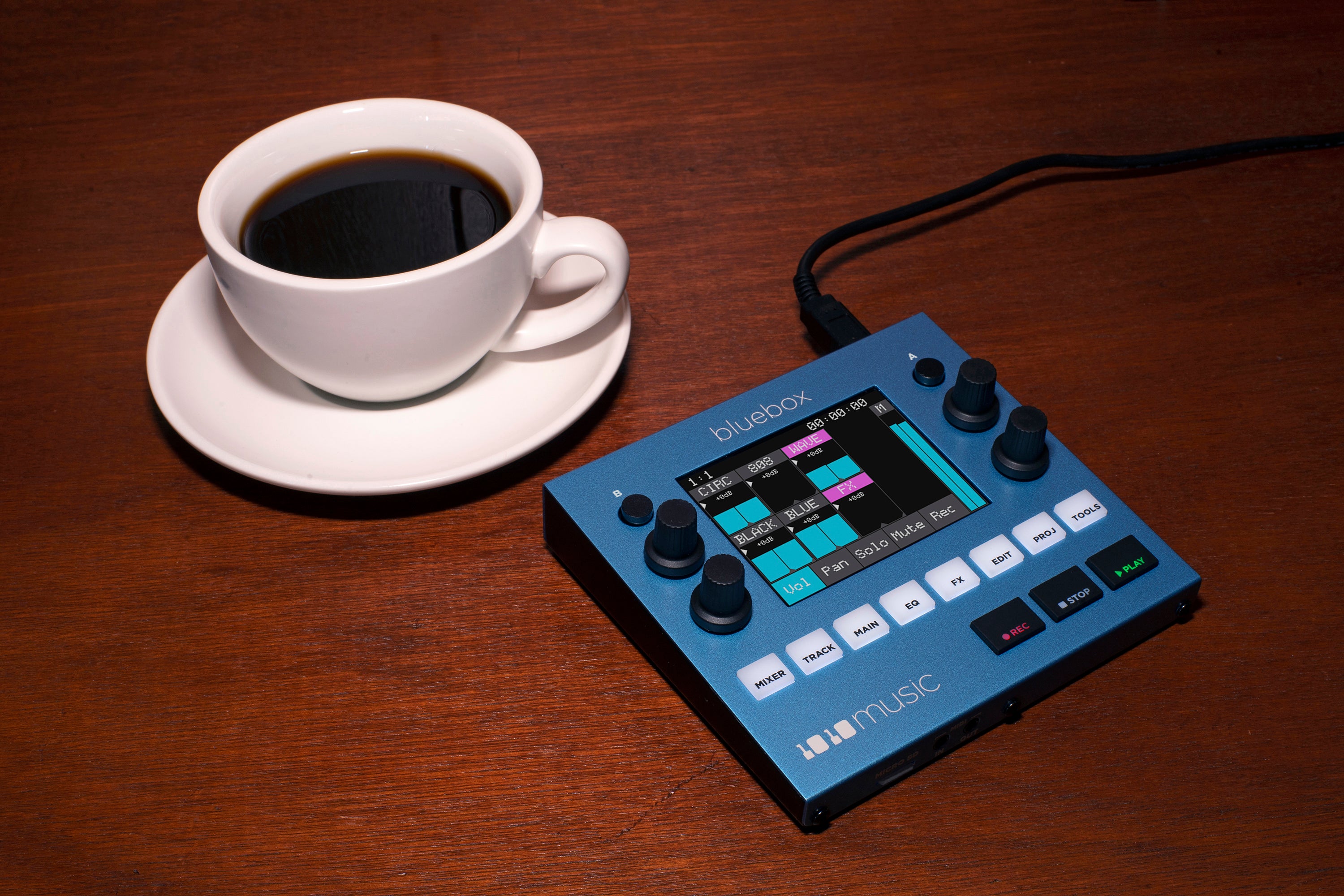

Bluebox’s compact 5.5” x 5” x 2” case lets you tuck it into a crowded tabletop studio or throw it in your pack for the next gig.

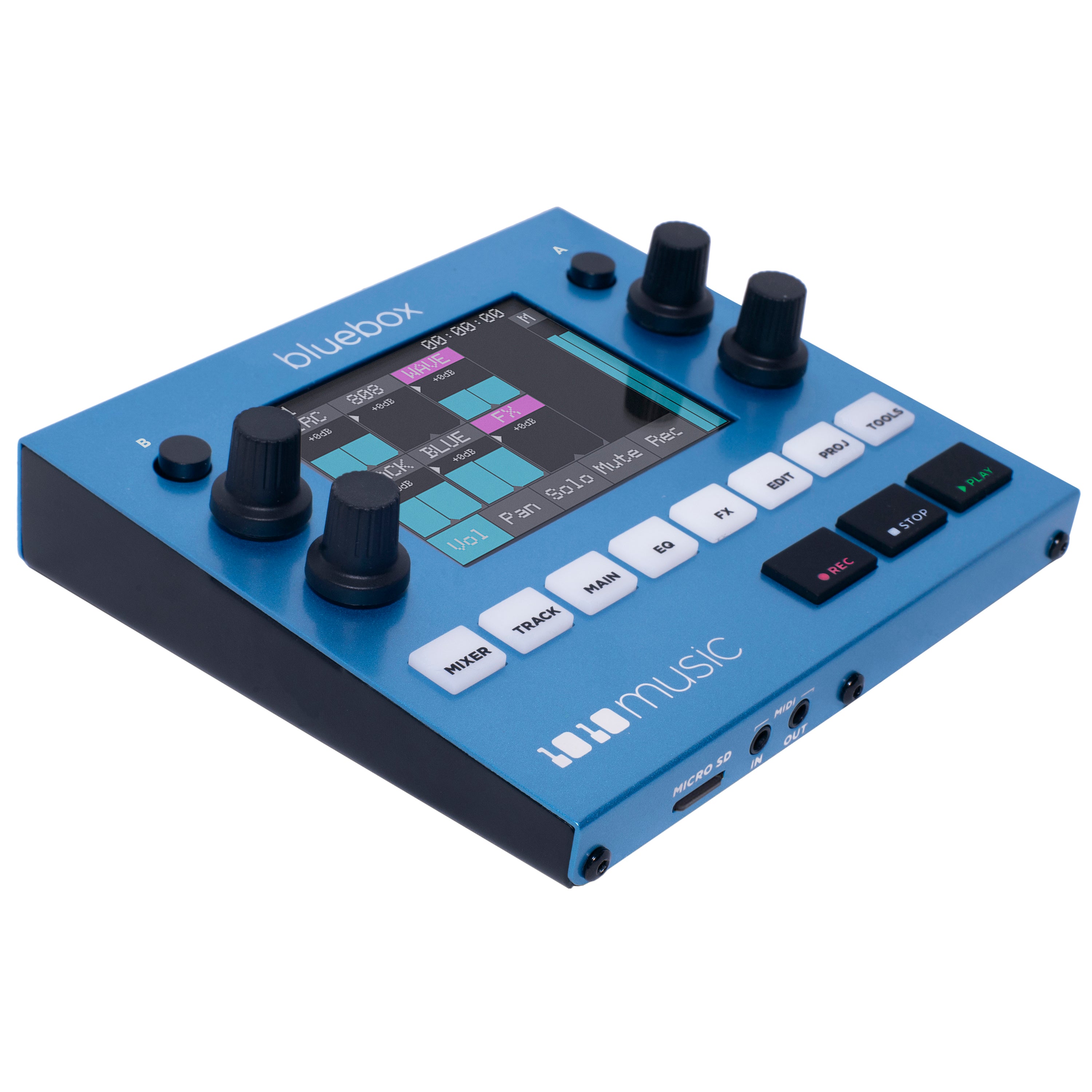

Interact with the dynamic visual interface on the 3.5” touch screen along with physical knobs, navigation buttons and transport buttons to quickly access the most important functions. MIDI input and output allow you to sync the clock with external gear for synchronized effects and metronome.

Top Features

• Mix 12 mono or 6 stereo tracks of live or prerecorded sound.
• Independently route each track to any combination of three stereo outputs:
  • Stereo Output 1 – Main mix
  • Stereo Output 2 – Assignable with sub-mixer (pre/post fader)
  • Stereo Output 3 – Headphone output with sub-mixer (pre/post fader)
• Control one parameter for multiple tracks in Mixer mode.
• Focus on one track at a time in Track mode.
• Independently adjust the level or mute state of each output.
• Use touch gestures or knobs for 4-band EQ with Low Cut/Shelf, Parametric, and High Shelf/Cut filters.
• Apply reverb and delay with individual effects sends for each track.
• Override headphone output with Main mix when needed.
• Use global compressor to unify and maximize mix loudness.
• Sync to external clocks with MIDI In and Out.
• Record 48k, 24-bit WAVs as multi-track or main stereo mix to microSD.
• Play back old tracks while recording new ones.
• Update firmware via microSD card.

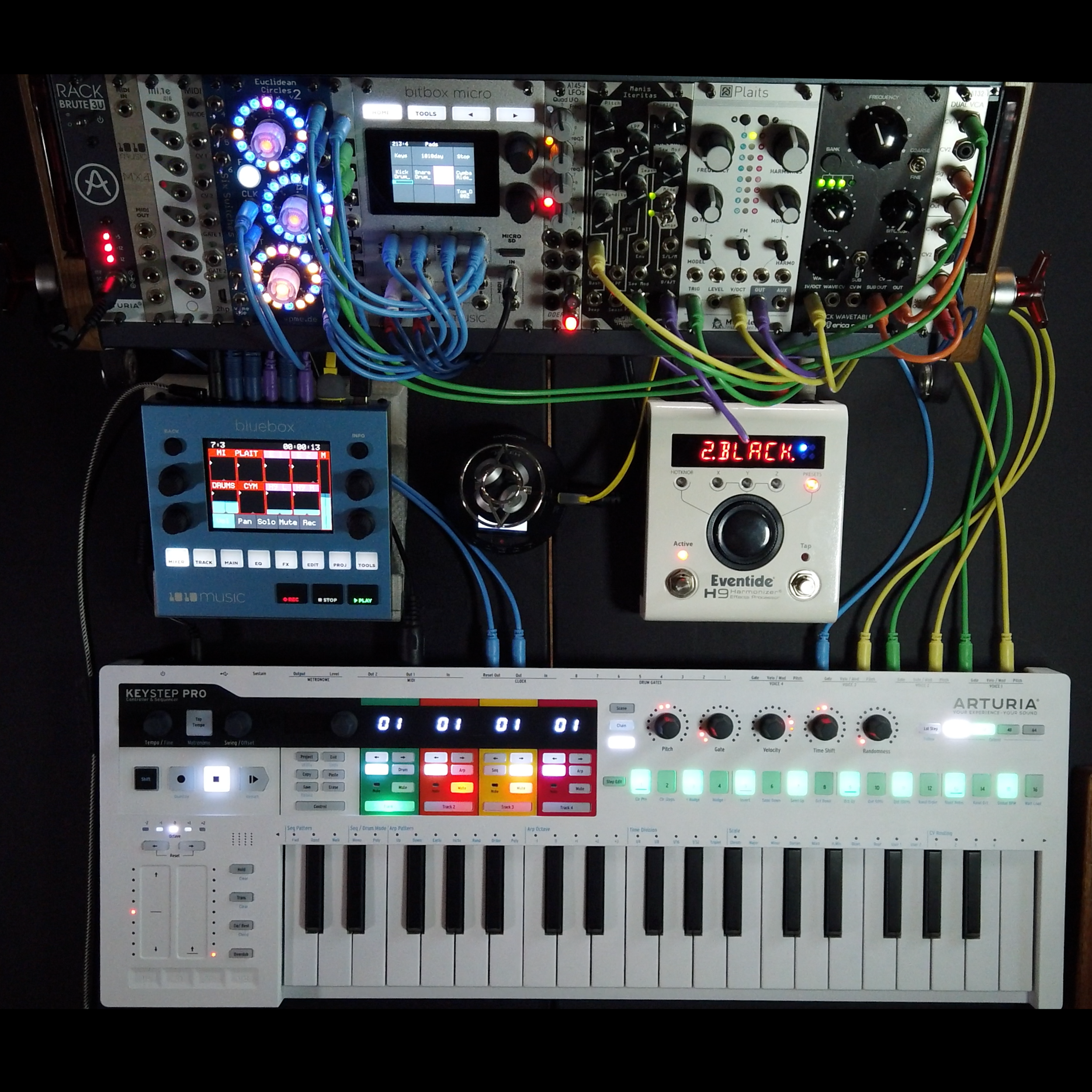

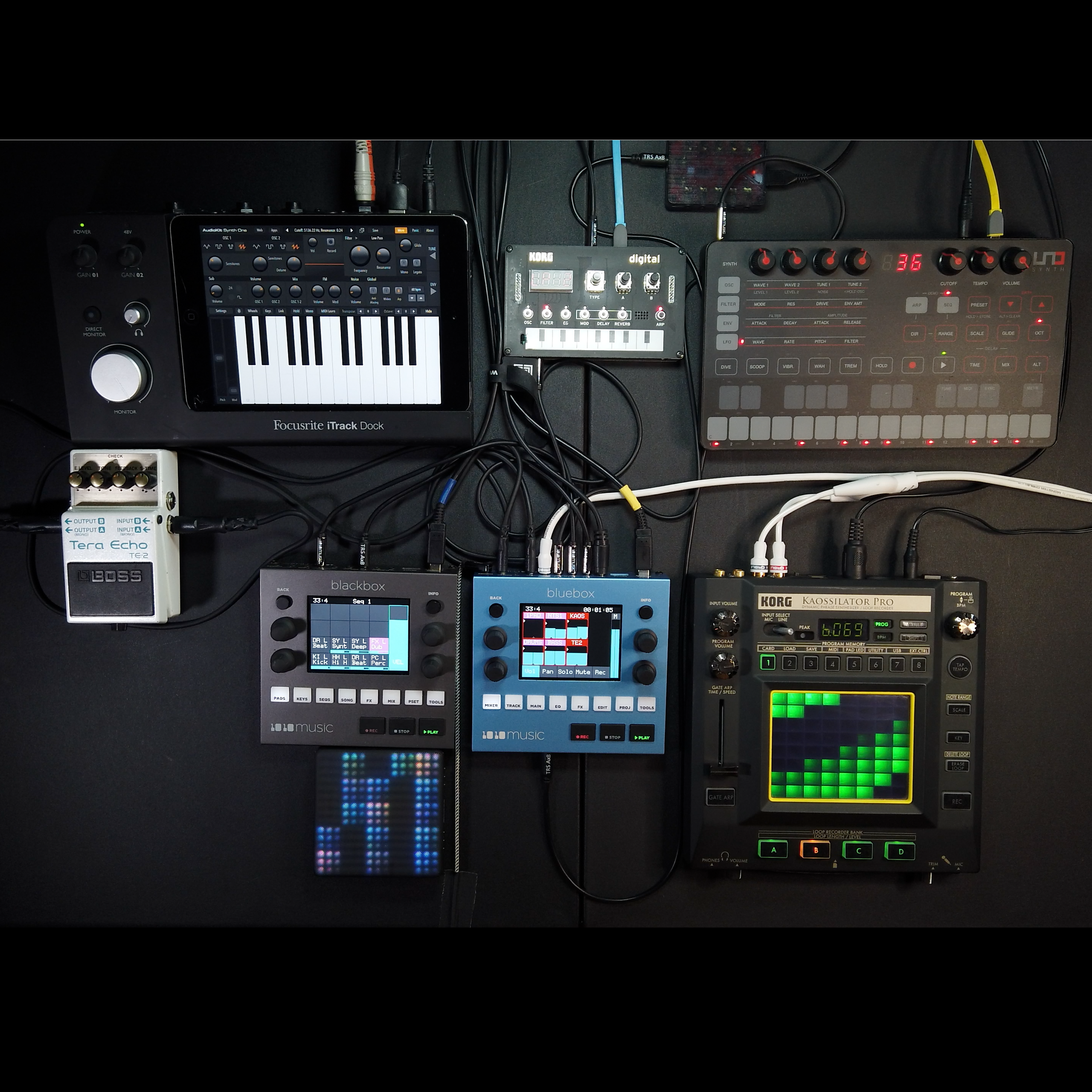

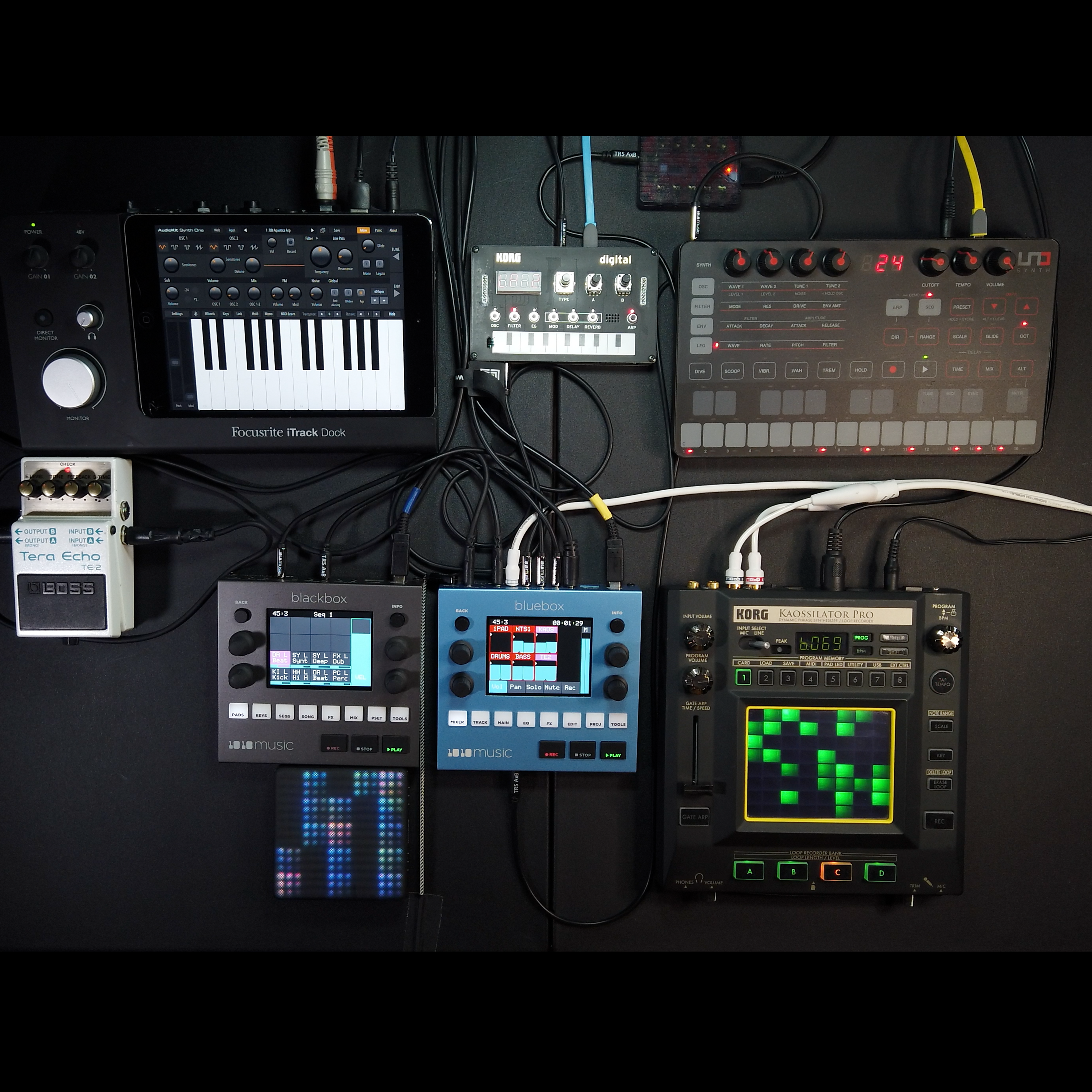

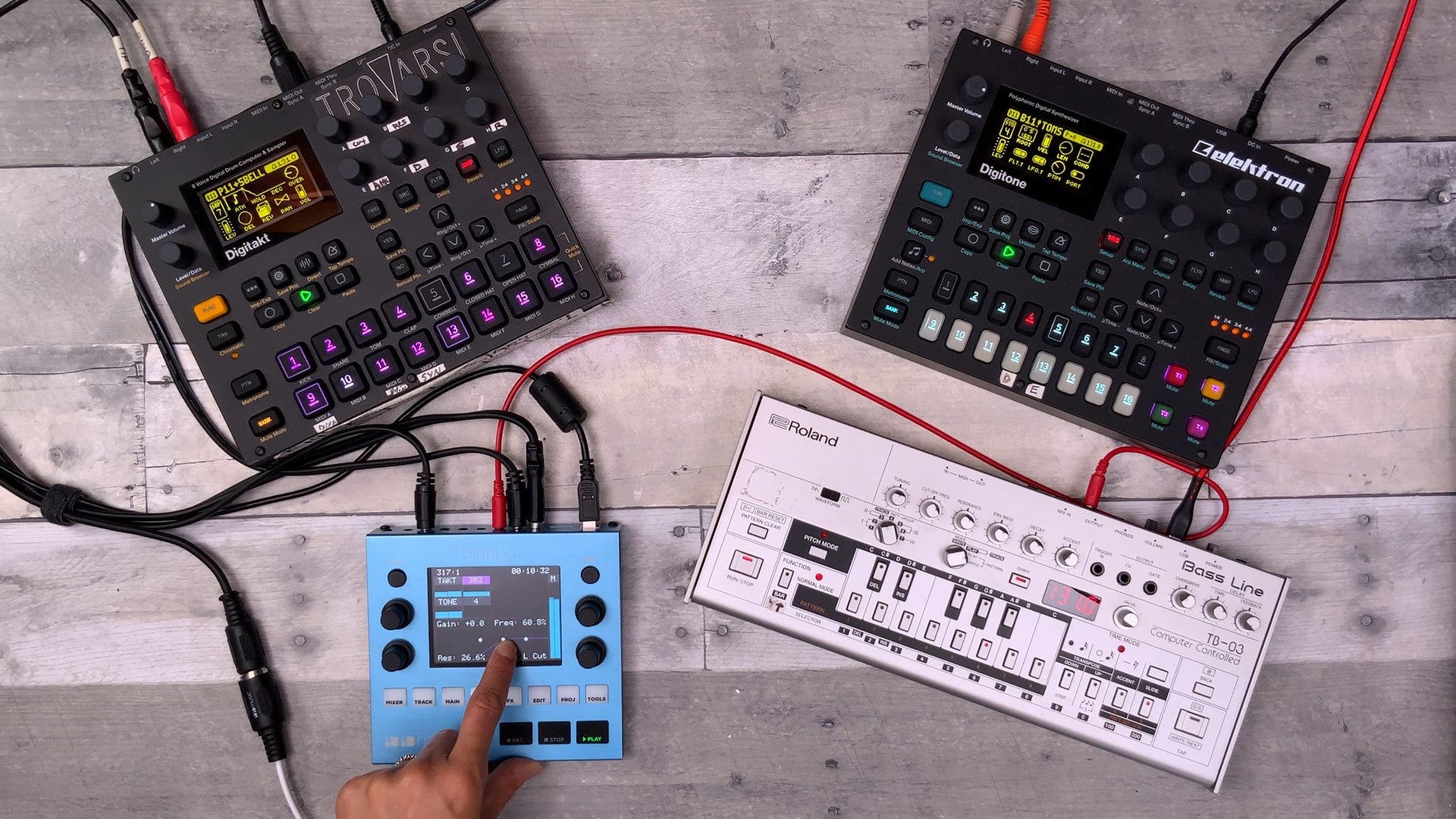

• Integrate with gear like blackbox, eurorack, samplers, synths, drum machines.
• Save and recall Projects with all track, output, EQ, and FX parameters.
• Run on wall power or a USB power bank for portability.

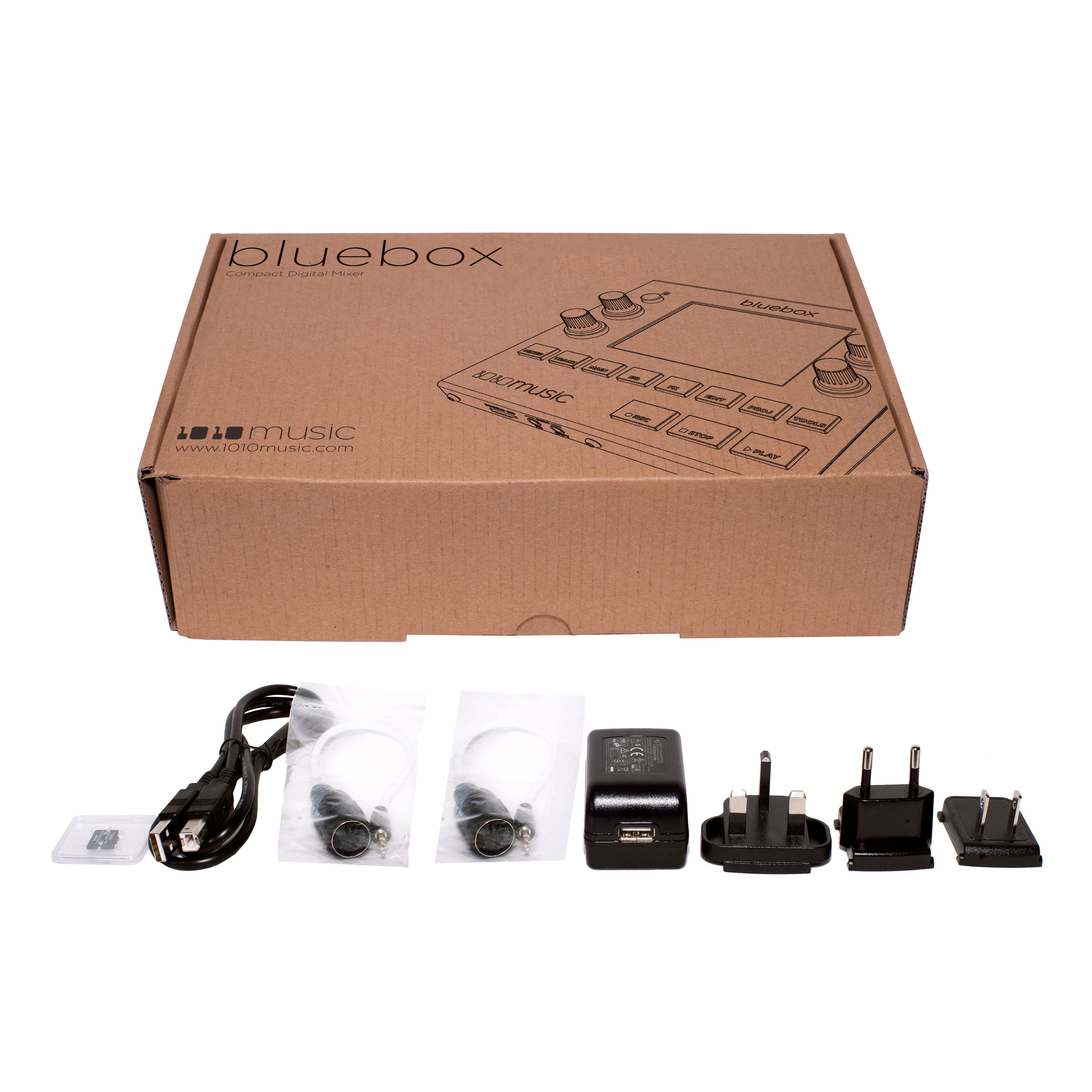

What Is Included

• Bluebox digital recording mixer
• MicroSD card with firmware and preloaded projects
• USB power cable and AC adapter with 3 international plugs
• 2 MIDI Adapters – Male 3.5 mm TRS to Female 5-pin DIN, MIDI Class B
• USB B Splitter cable (Power + Data)
• Quick Start guide (full manual online)

Technical Specs

• 12 mono or 6 stereo track support

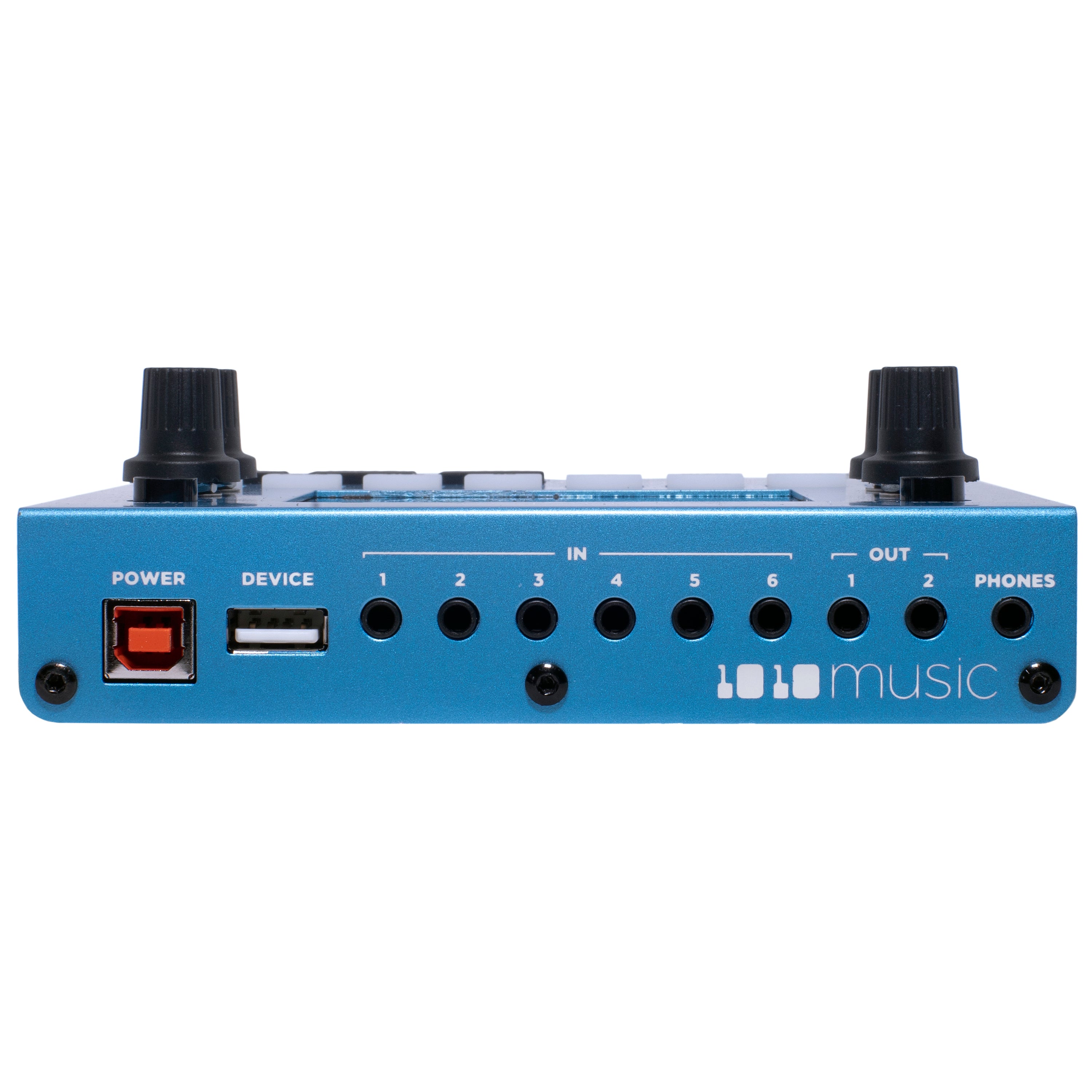

• 6 stereo 3.5 mm TRS inputs
• 3 stereo 3.5 mm TRS outputs
• Handles Eurorack levels up to ±5V
• MIDI via TRS or USB A input

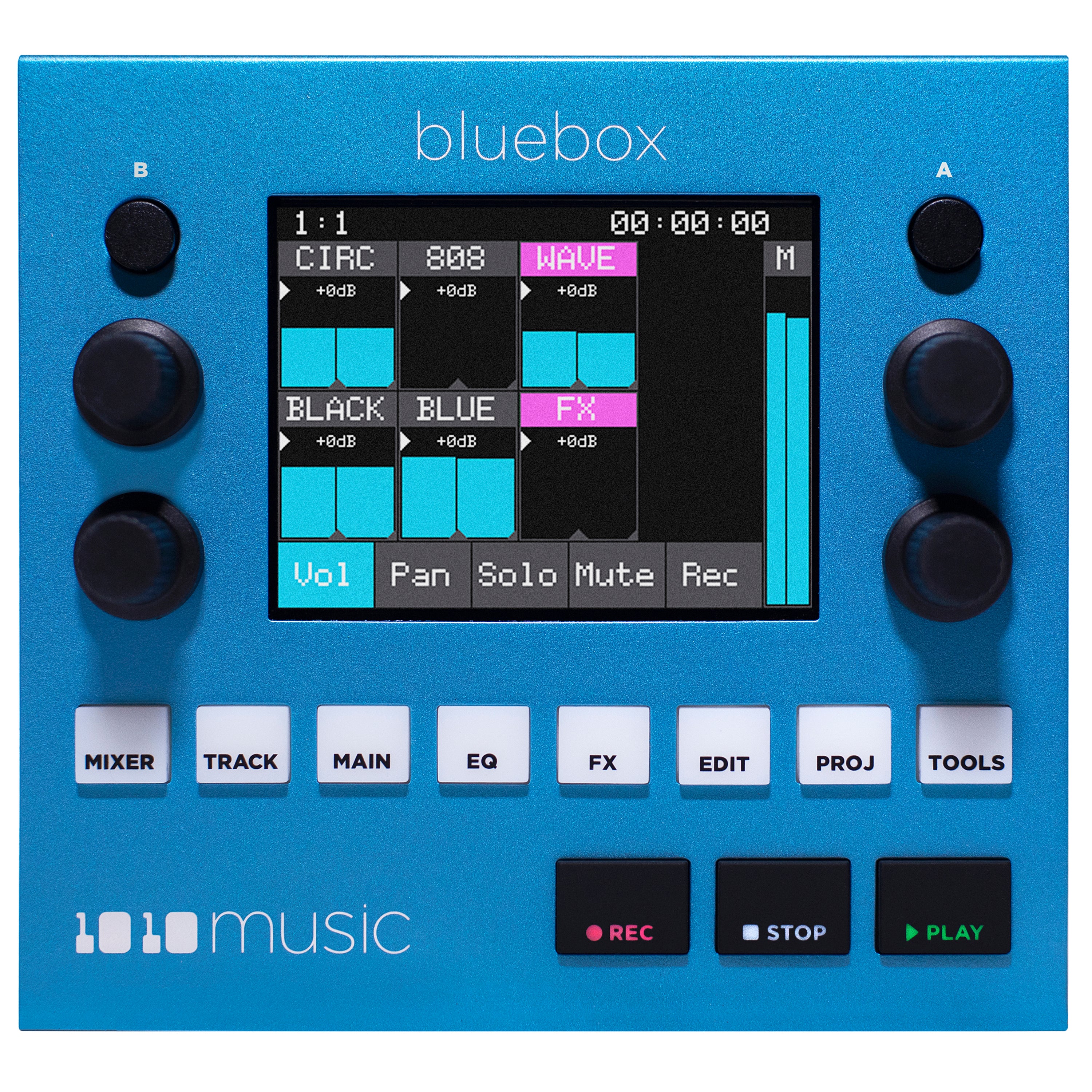

• 3.5” touchscreen, 4 knobs, 8 navigation, and 3 transport buttons
• 3 effects: Reverb, Delay, Compressor
• Records and plays 48k, 24-bit WAVs to microSD
• 4-band EQ per track
• Dimensions: 5.5″ x 5″ x 2″ (14 cm x 13 cm x 5 cm), 1 lb (450 g)
• Durable metal construction
