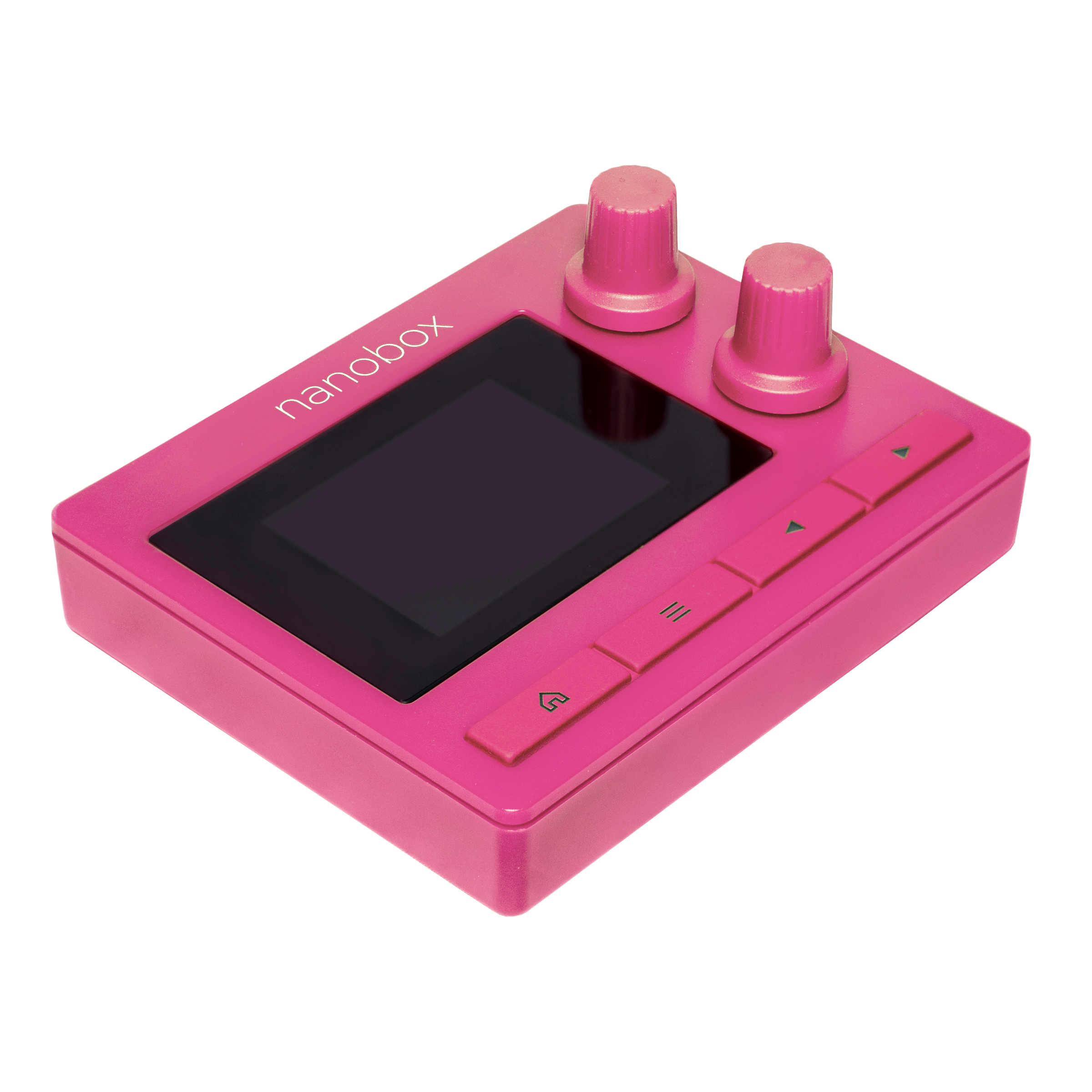

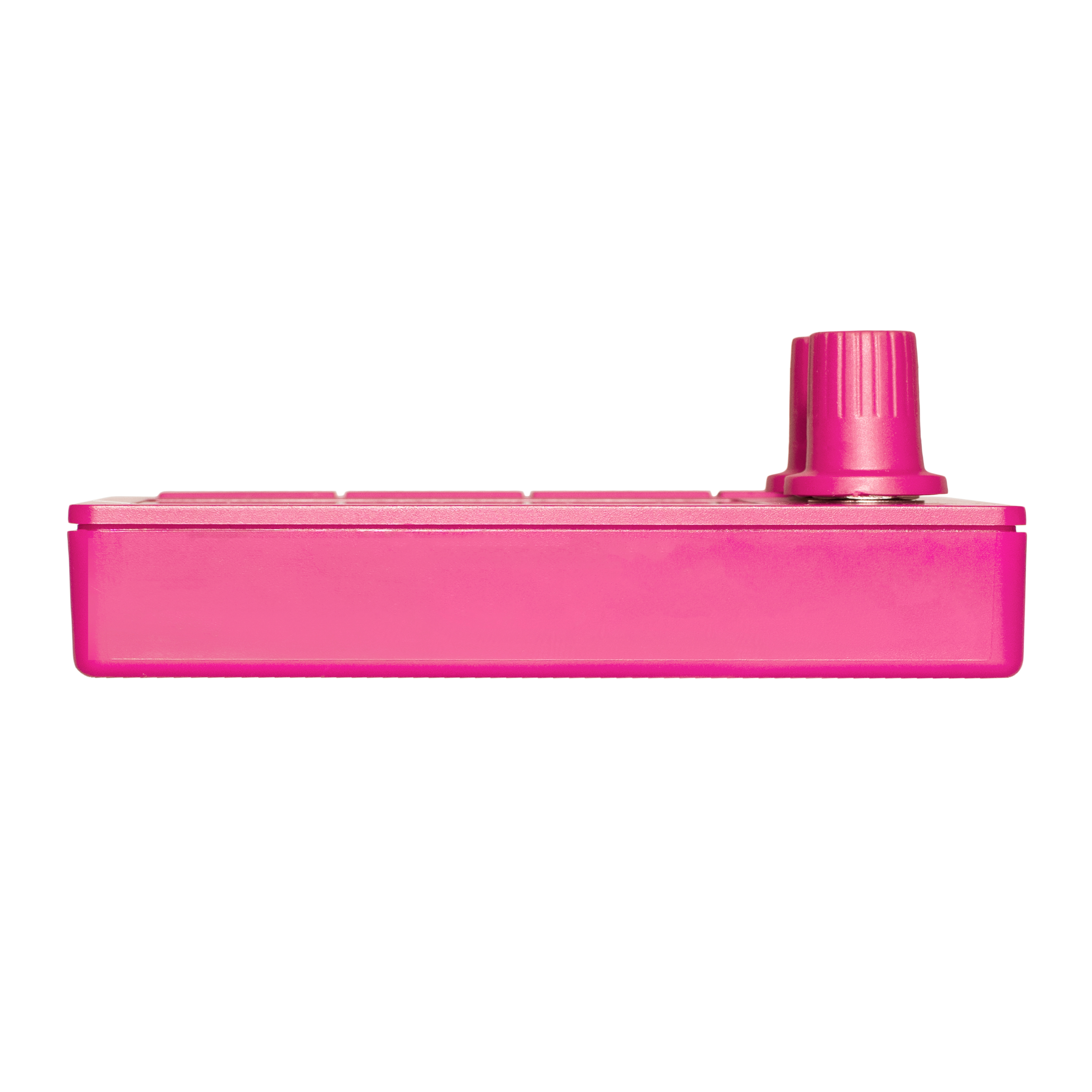

1010music Razzmatazz - Compact Drum Synthesizer
1010music Razzmatazz
The World’s Juiciest Groovebox

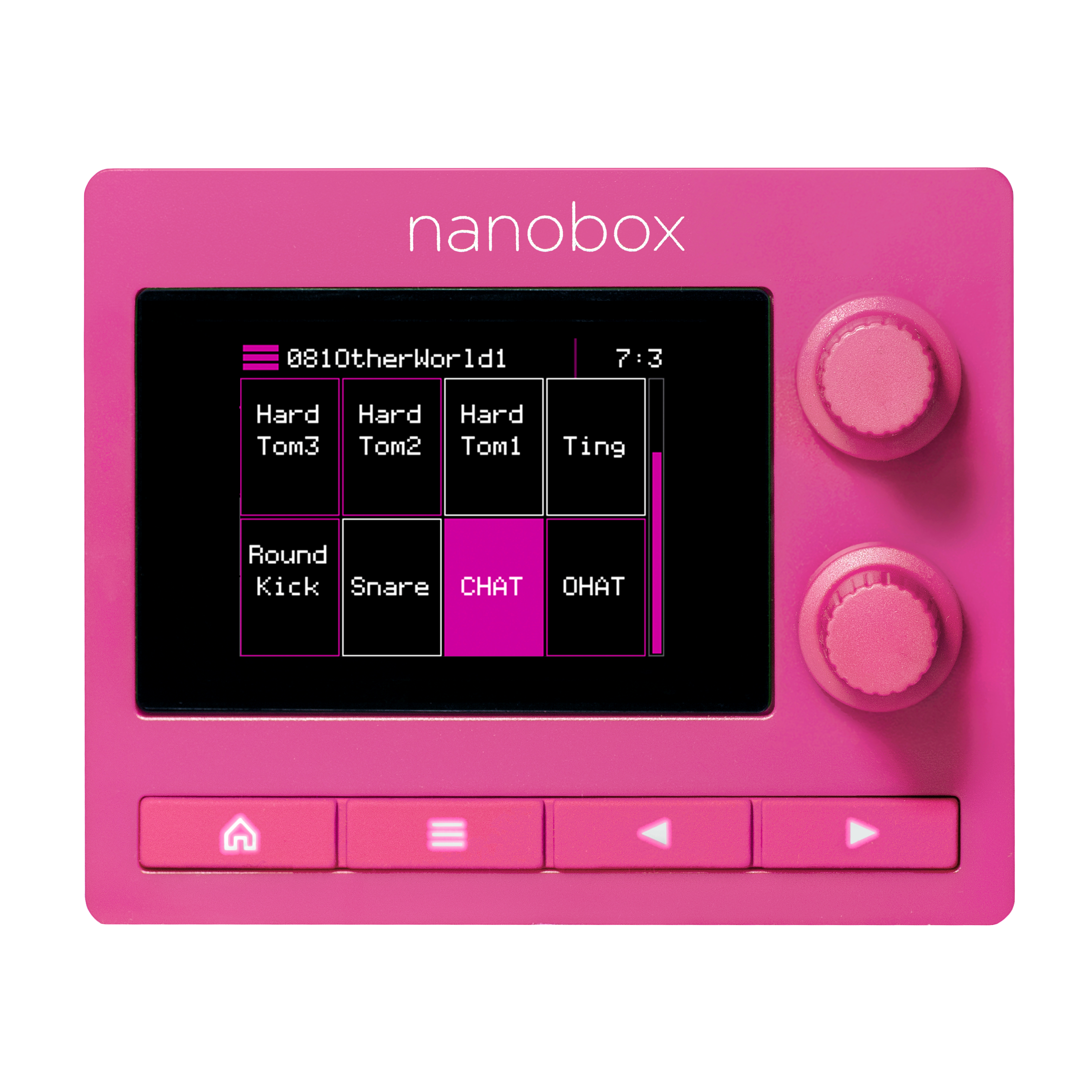

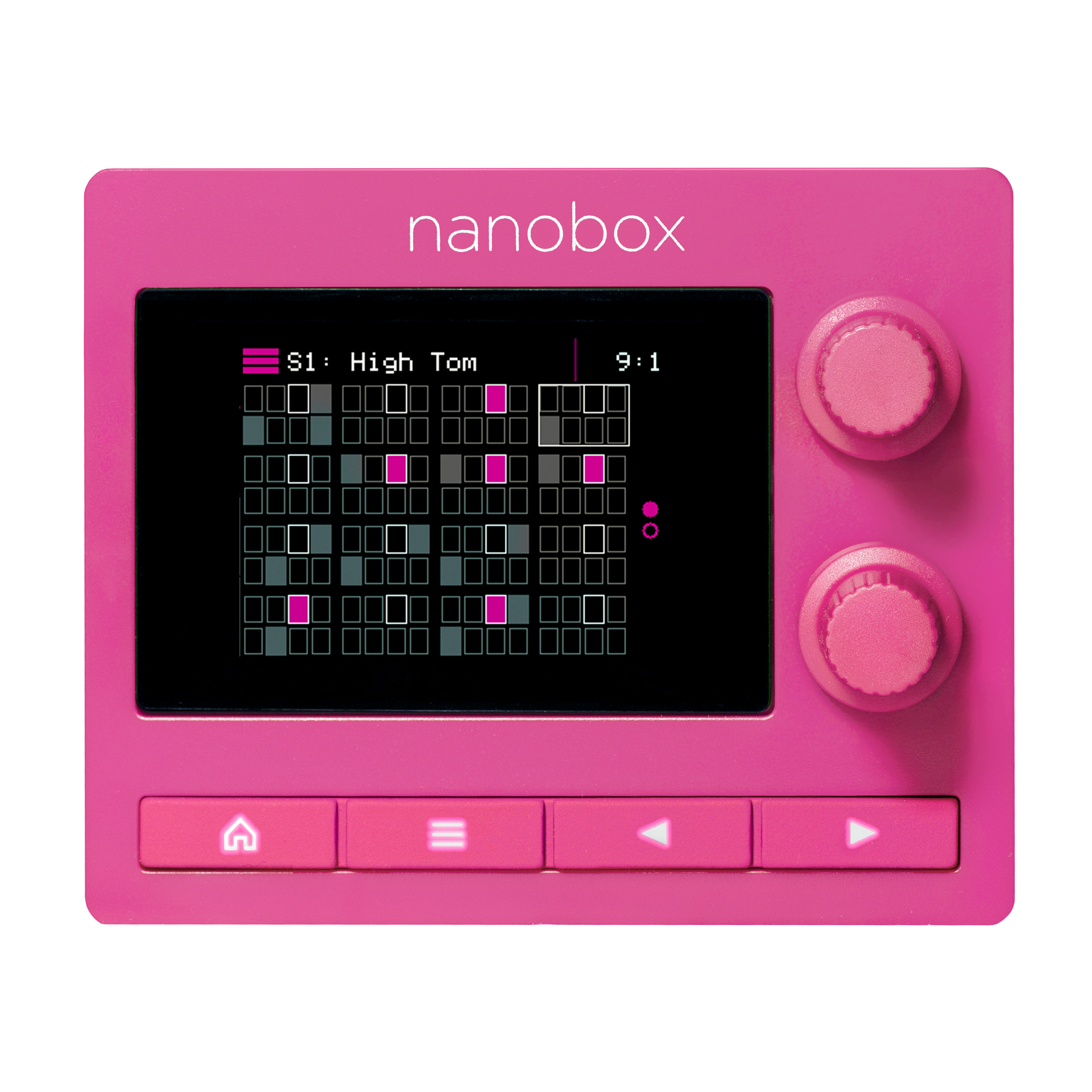

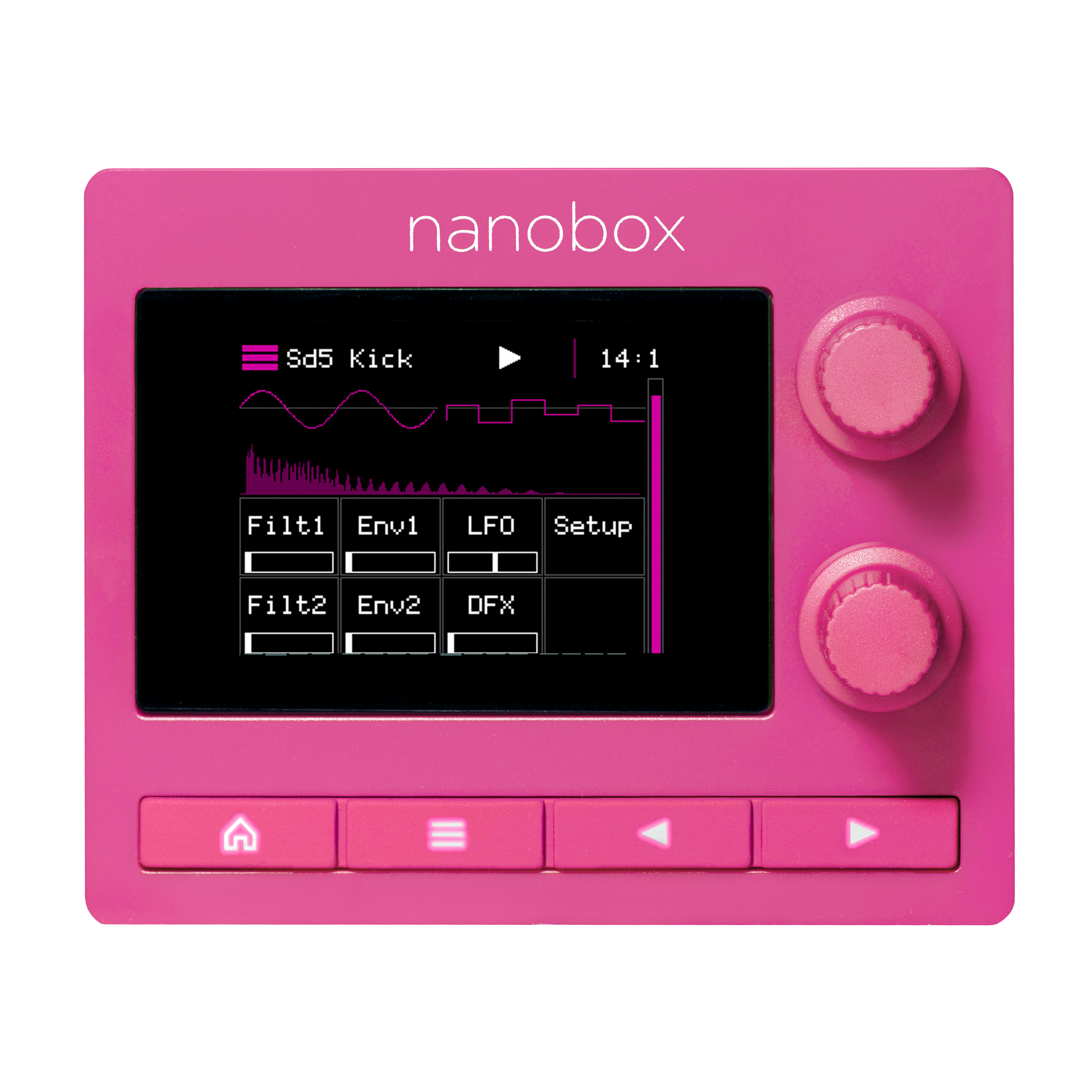

Create the juiciest beats and tastiest rhythms with nanobox | razzmatazz, a mini drum sequencer that combines powerful FM synthesis and sampling. Featuring advanced voice architecture, razzmatazz puts a huge range of percussive sounds at your fingertips—from deep and gritty kick drums to searing snare hits and crisp hi-hats. Perform using 8 touchscreen pads or your favorite midi controller, and craft up to 16 rhythms using an innovative visual sequencer that allows you to see all pad states and steps simultaneously. Shape the sound of each pad by combining any variation of two FM oscillators and a WAV file—plus two filters, two envelopes, a resonator, a snap generator, and three additional effects. You can even choose from four unique types of distortion to create incredibly distinct and powerful drum sounds. Enjoy massive analog drum sounds and an innovative feature set, all in a compact package that goes anywhere.
- Play up to 24 stereo polyphonic notes using internal memory (64 MB).
- Stream up to 8 large stereo samples directly from a microSD card.
- Load multi-sample banks with up to 16 velocity layers and 576 WAV files in one preset.
- Configure 8 stereo sample pads per preset as single or multi-samples, clips, slicers, or new recordings.
- Stream long samples (up to 4 GB) from the microSD card—many hours of audio.
- Trigger samples via touchscreen or MIDI input as one-shots or melodic notes.
- Choose from multiple launch modes: trigger, toggle, gate, and piano (new!).
- Adjust sample playback with parameters like start position, length, pitch, level, filter, loop mode, quantization, ADSR, Exclusive Grouping, clip sync, slice sequencing, and MIDI note/channel mapping.
- Use MIDI-mapped controls for tactile access to common settings.
- Record up to 16 sequence layers per preset.
- Enjoy a fast, fluid, and intuitive workflow.
- Create music anywhere with a compact and rugged design.

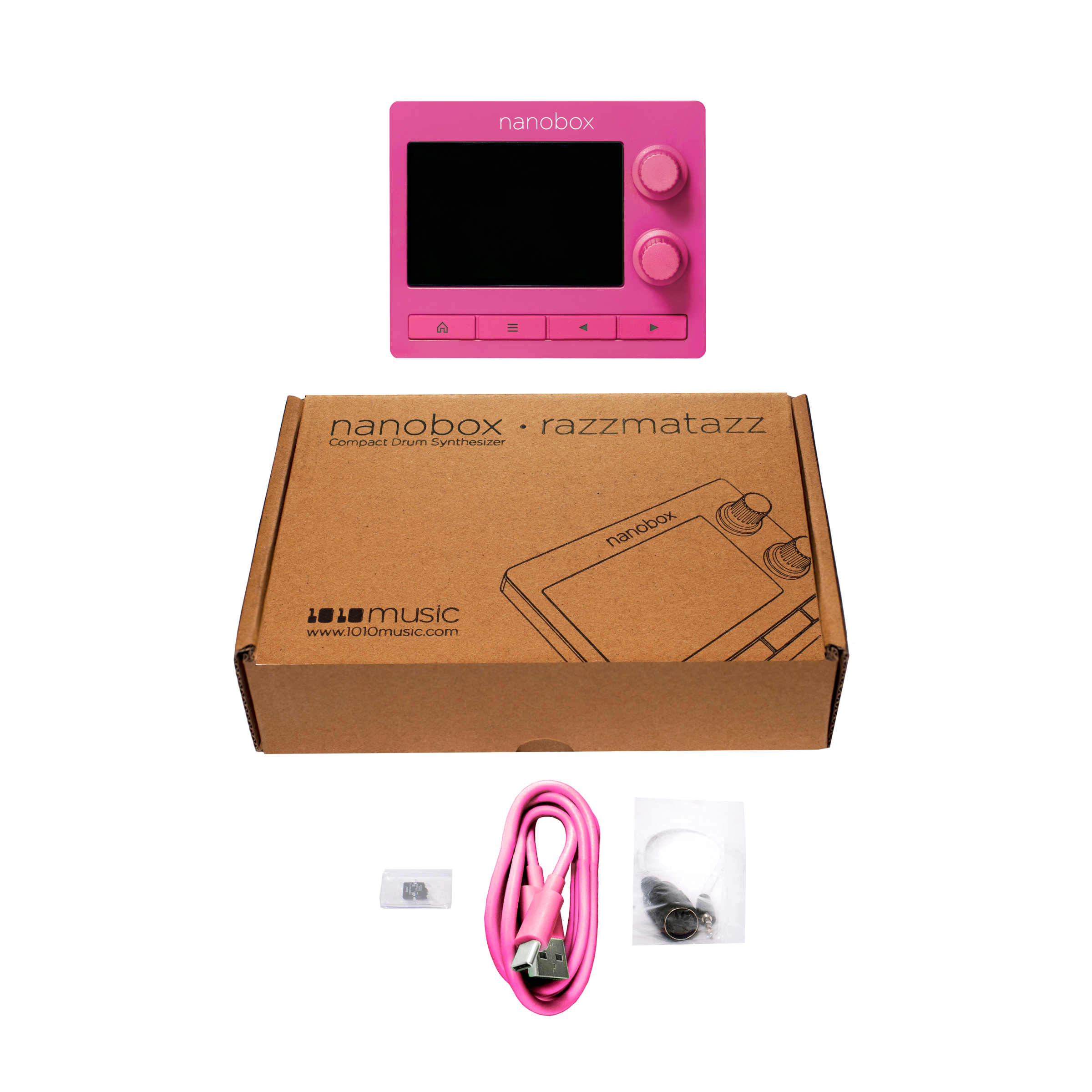

What Is Included
- nanobox | razzmatazz mini drum sequencer with FM synthesis and sampling
- MicroSD card with presets and WAV files
- Color-matched USB power cord
- Type B TRS MIDI to MIDI 5-Pin DIN adapter
- Quick Start Guide
- Includes 120 presets and 112 WAV files
- 8 pads that can support 2 FM oscillators and 1 WAV file each
- Sample memory per WAV: 30 seconds

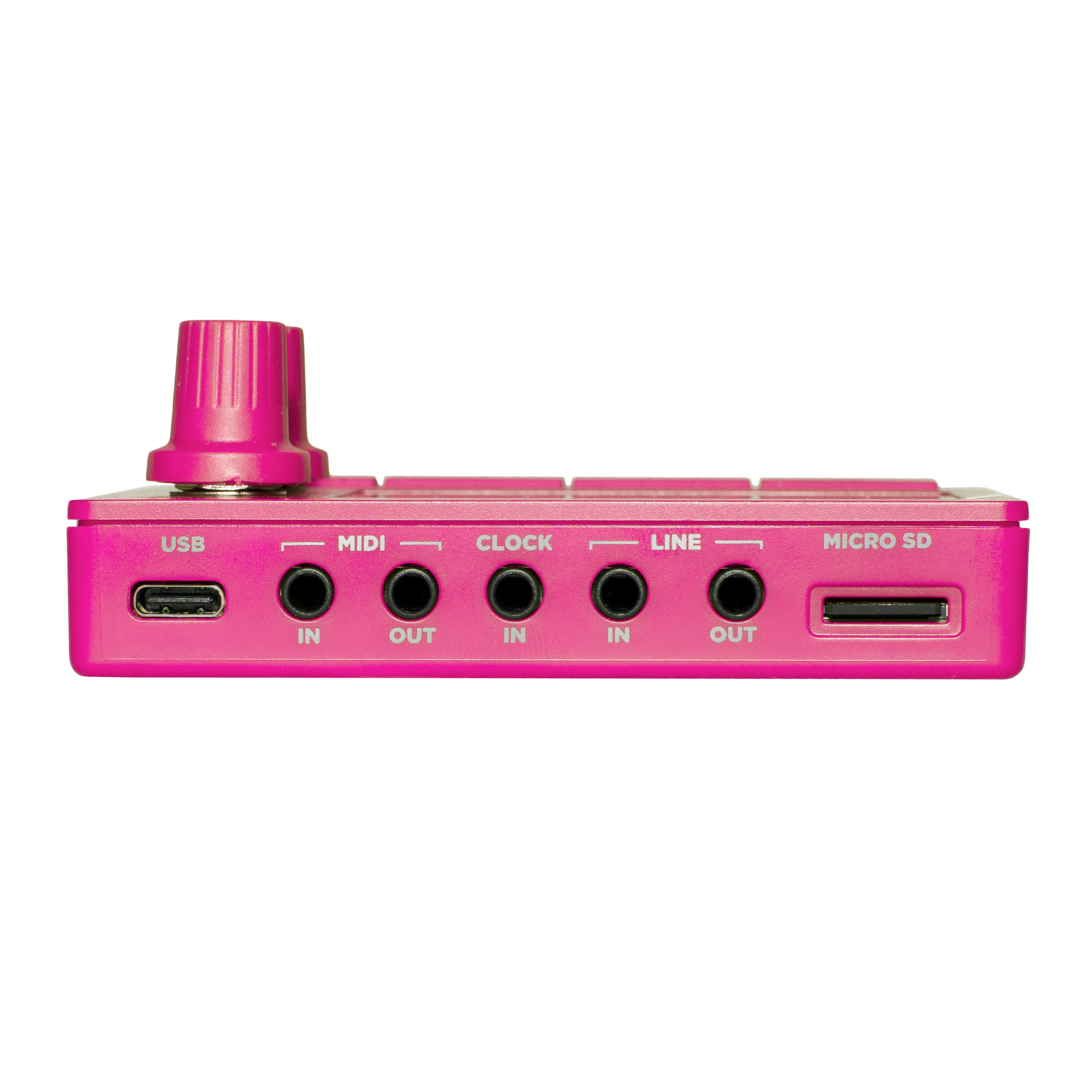

- Power: USB-C connection, 5V, 500mA
- USB-C power can also receive MIDI
- 3.5mm audio input and output
- Maximum input and output level: 2Vrms
- DAC and ADC resolution: 24-bit
- Internal resolution: 32-bit
- Sample rate: 48kHz
- MIDI Input: 3.5mm Type A/B auto-sensing
- MIDI Output: 3.5mm, Type A or Type B selectable
- Clock Input: 1, 2, 4, 8, 12, or 24 PPQ selectable
- Add modulation automation to each sequence
- MIDI support: Program Change, Note On/Off, Velocity, Pressure, Mod Wheel, assignable CCs, and clock
- Dimensions (H x W x D): 1.5″ x 3.75″ x 3″
- Weight: 0.25 lbs
