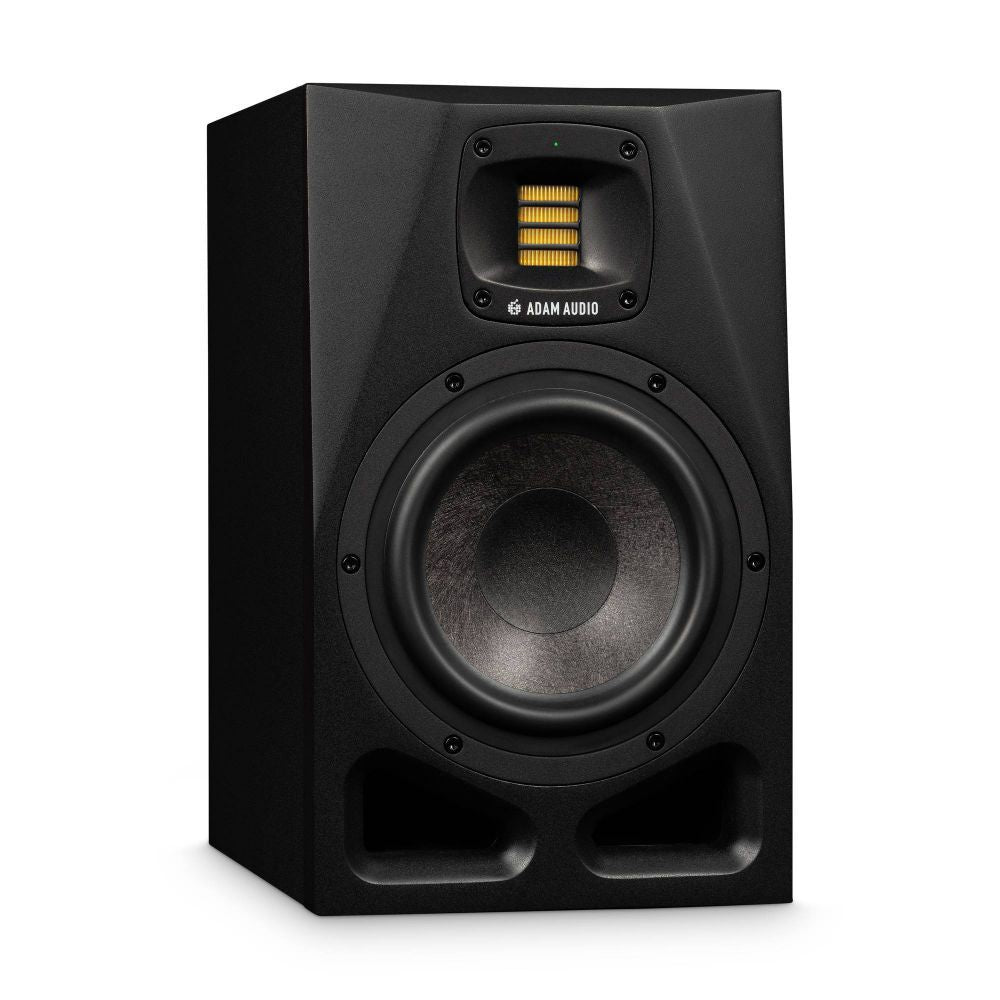

Adam Audio A7V Studio Monitor
The Adam Audio A7V is a contemporary 2-way monitor that represents the evolution of ADAM Audio’s award winning A7X. It features a 7” Multi-Layer Mineral woofer and rotatable X-ART tweeter, which is made by hand in Berlin.
DSP-based voicing, equalization and room correction options can be controlled remotely and in real time via the free-to-download A Control software, and updatable firmware allows for new filters and tunings to be implemented over the lifetime of the monitor.
A Control Remote Software
The DSP-based functionality of all A Series monitors can be controlled remotely and in real time over ethernet using A Control.
Rotatable HPS Waveguide & X-ART Tweeter
Made from a new glass fiber polymer compound, the HPS waveguide enables the X-ART tweeter to disperse sound in space with controlled consistency.
Bass Reflex System, Cabinets and Mounting
The new A Series cabinets build on the heritage of ADAM Audio and the AX Series in particular.
Automated Room Correction with Sonarworks
ADAM Audio is proud to partner with Sonarworks on an automated room correction solution that runs directly on the DSP of A Series monitors.
5 Year Warranty
Adam Audio now offer a 5 year warranty as standard across the entire current range, allowing you to work without worrying about your gear. You can activate this by registering in the MyADAM section of their website.
- Tweeter: Rotatable X- ART Tweeter + HPS Waveguide
- Woofer: 1x 7" MLM woofer
- Woofer Voice Coil Ø: 33 mm / 1.3”
- Frequency response @ -6dB: 41 Hz - 42 kHz
- Max. peak SPL per speaker at 1 m: 105 dB SPL
- AD convertor: 24-bit
- Internal sample rate: 96 kHz
- Amplifier power RMS: 110 W (Woofer) + 20 W (Tweeter)
- Crossover frequency: 2.8 kHz
- Power rating: 300 W max

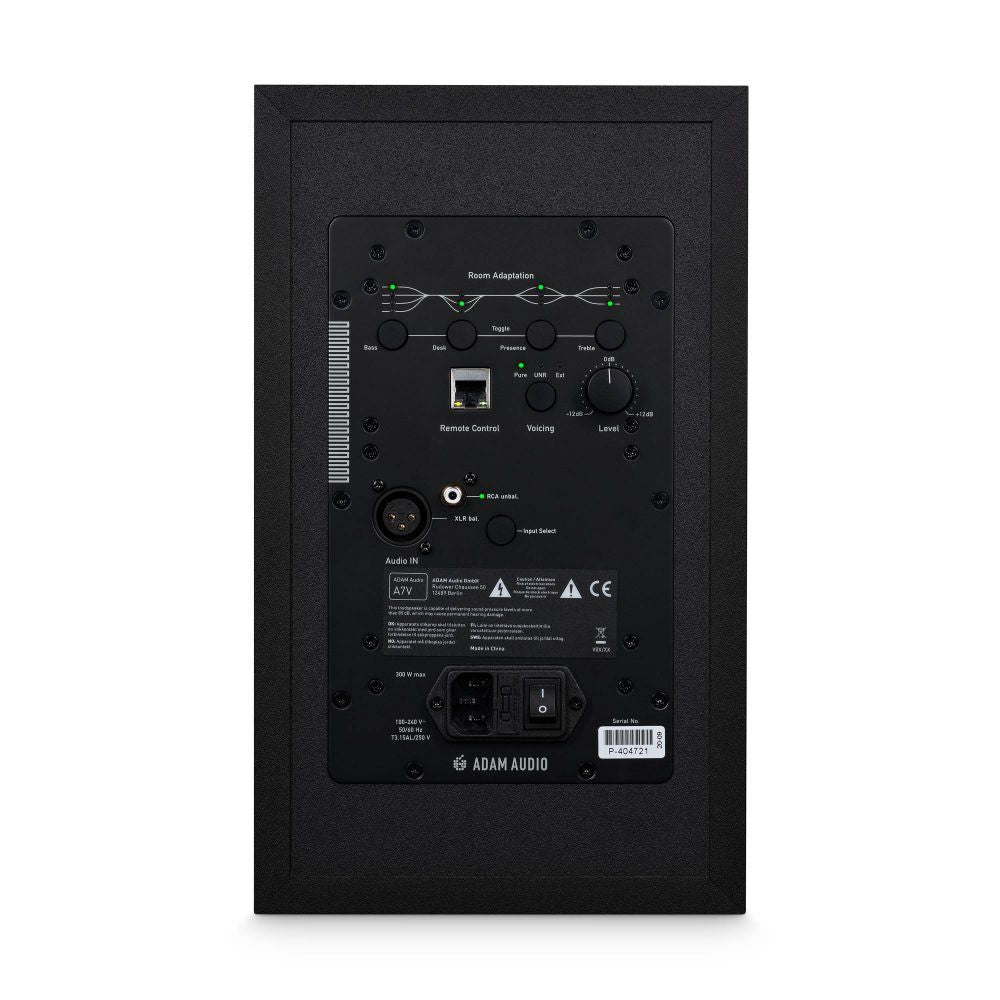

- Analogue Inputs (balanced): 1x XLR
- Analogue Inputs (unbalanced): 1x RCA
- Net Weight: 8.7 kg / 19 lb 3 oz
- Gross Weight: 10.7 kg / 23 lb 9 oz
- Cabinet Height x Width x Depth: 337 mm x 200 mm x 280 mm [13 1/4" x 7 7/8" x 11"]
- Box Dimensions: 470 mm x 330 mm x 415 mm [18 1/2“ x 13“ x 16 3/8“]
- AC Input Voltage: 100 - 240V, 50/60 Hz
- German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
- 7'' Woofer (Multi-Layer Mineral)
- Cumulated Amp. Power Peak: 130 W
- Frequency Response @ -6 dB: 40 Hz - 45 kHz
- Max. peak SPL per speaker at 1 m: 105 dB SPL
