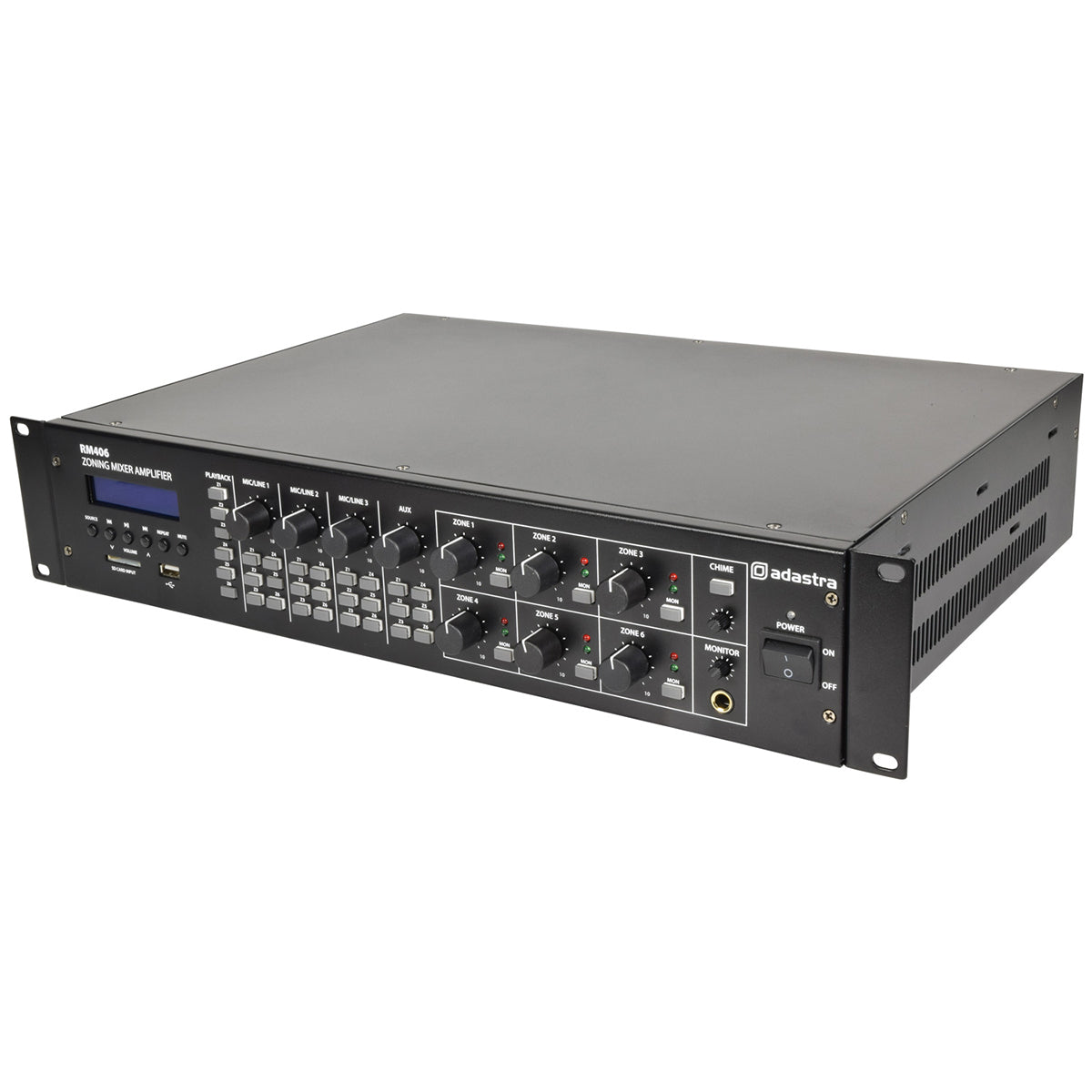

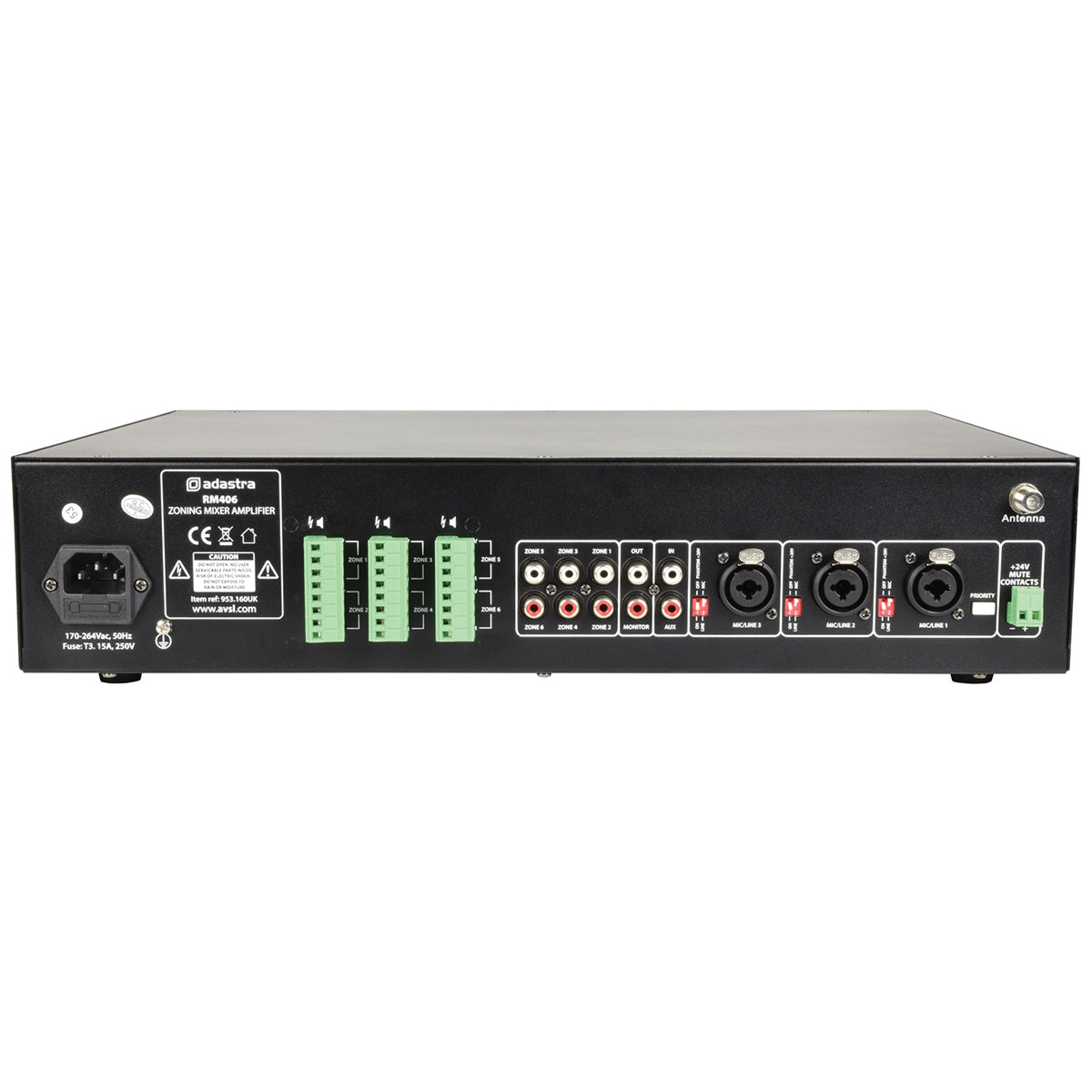

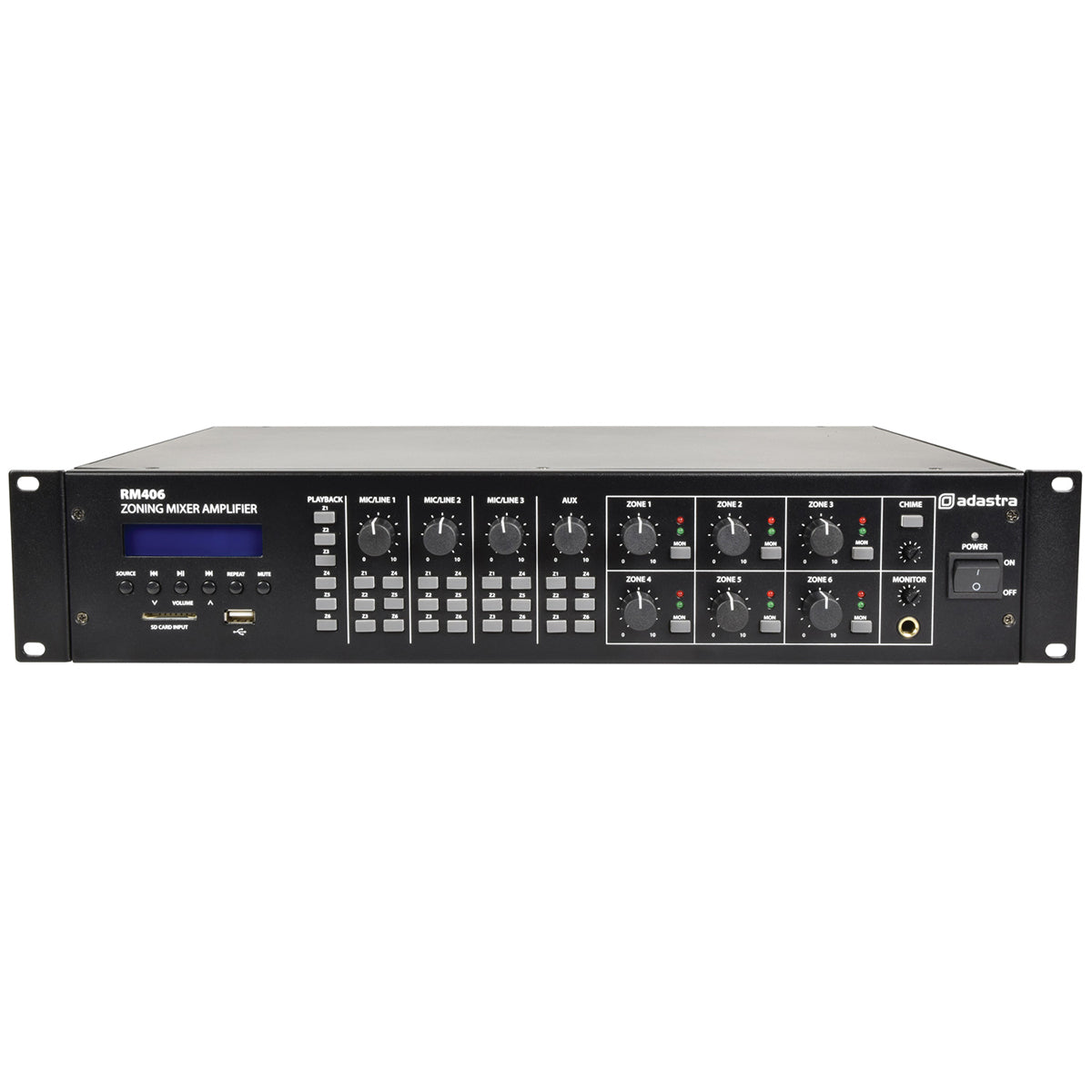

Adastra RM406 100V Mixer Amplifier 6 x 40W + USB/SD/FM/Bluetooth (953160)
Zone mixer-amplifier with 6 x 40W class D power section for 100V or 4/8 Ohms speakers. Each zone can be monitored from the front panel via a headphone output with volume control. 3 mic/line inputs, 1 aux input and an integral USB/SD/FM player with Bluetooth receiver can be matrix switched to any of the 6 zones independently. Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts. Designed for multi-room systems requiring different audio sources.
Main features of the Adastra RM406 100V Mixer Amplifier 6 x 40W + USB/SD/FM/Bluetooth (953160) include:
- Power supply: 170-264Vac, 50Hz (IEC)
- Power output: 6 x 40W rms
- Amplifier: constructionClass D + transformer outputs
- Audio source: USB/SD/FM/BT audio player
- Inputs: 3 x mic/line (XLR/jack), auxiliary 2 x RCA
- Zone outputs: line6 x RCA (mono)
- Zone outputs: speaker6 x terminal outputs 100V / 8 Ohms / 4 Ohms / Com
- Phantom power: +20V switchable to each XLR
- Monitor outputs: 6.3mm stereo phones, 2 x RCA line
- Mute: +24V relay contacts
- THD: <0.76% @ 1kHz
- Input impedance: 1k Ohms (mic/line)
- Input sensitivity: -11dB (line), -46dB (mic)
- SNR84dB (line), 82dB (mic)
- Bluetooth version: 2.0
- Frequency response: 100Hz - 24kHz
- Dimensions: 433 x 89 x 403mm
- Weight: 11kg
- Integral USB/SD/FM audio player
- Internal Bluetooth receiver
- 100V or 4/8 Ohms operation
- 6 independent output zones
- 3 mic/line and 1 auxiliary input
- Mic priority and chime functions
- Switchable +20V phantom power
- 24V mute contacts
- Monitor headphones output
