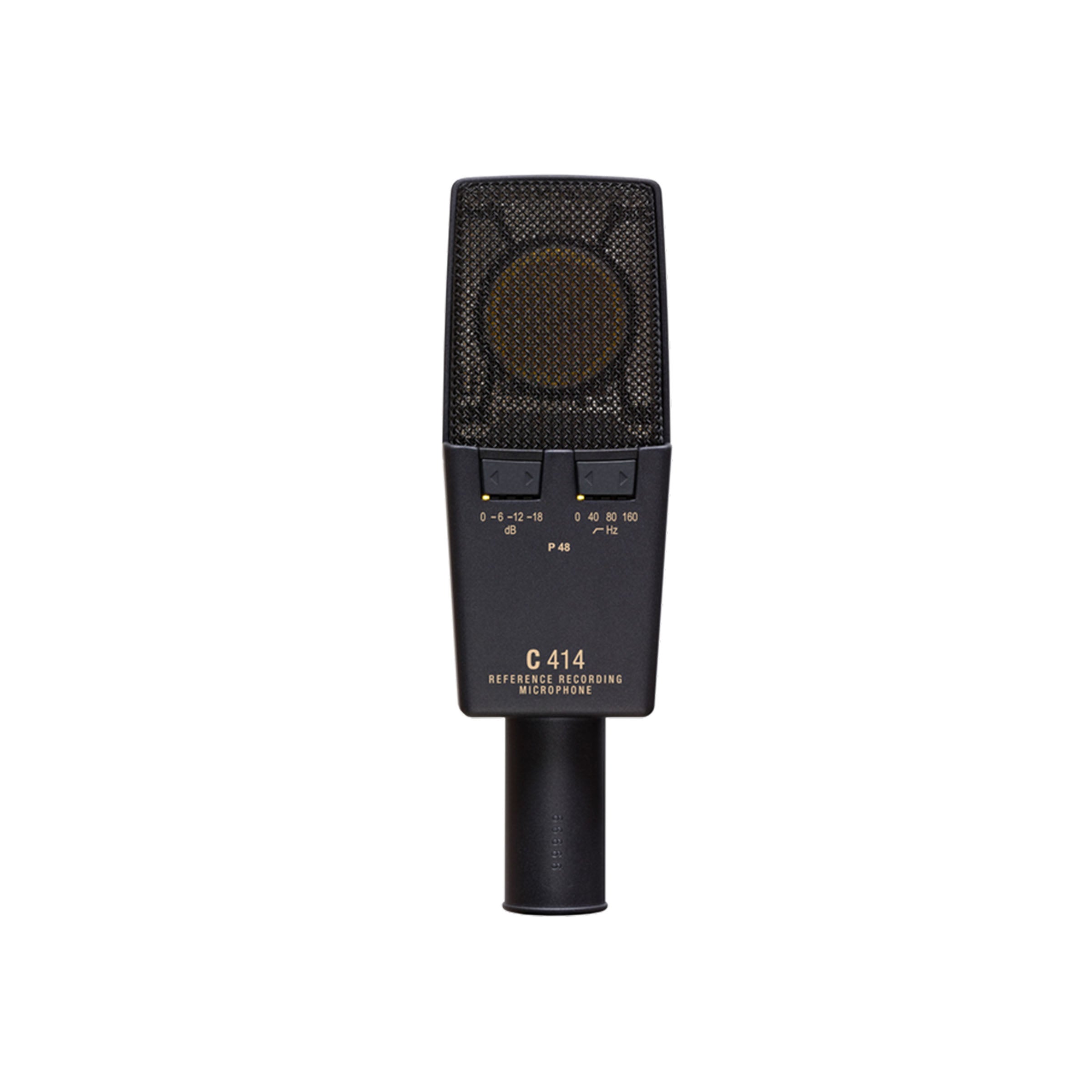

AKG C414 XLII Reference Multipattern Condenser Microphone
The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live-sound applications and permanent installations, all controls can easily be disabled for trouble-free use.
The C414 XLII version differs from the C414 XLS version in one major respect - the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.

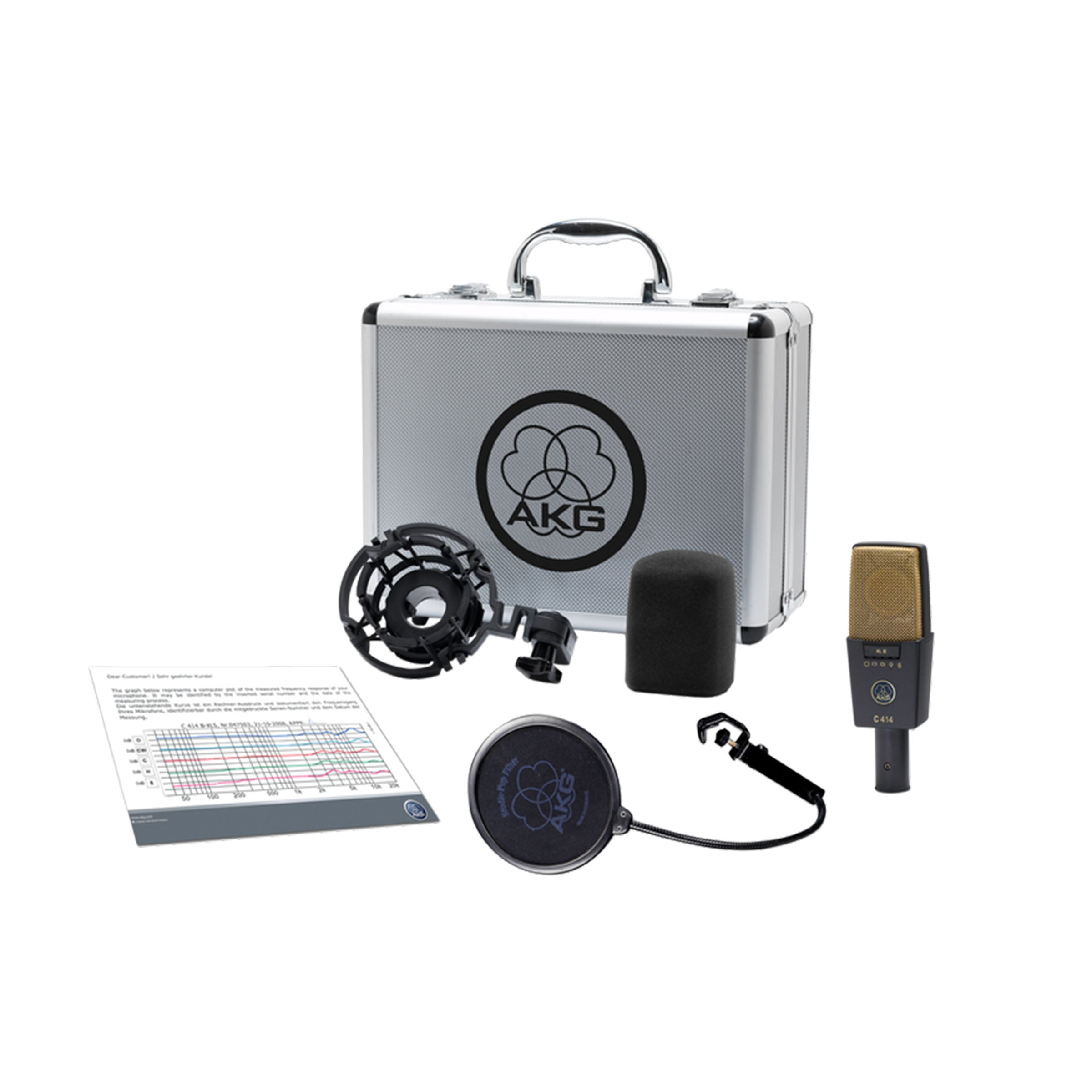

- What's In The Box?
- 1 x C414 XLII Microphone
- 1 x H85 Universal Shock Mount
- 1 x PF80 Pop Filter
- 1 x W414 Windscreen C414
- 1 x Metal Carrying Case
| General Specifications | |
| Polar Patterns | Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid |
| Audio frequency bandwidth | 20 - 20000 Hz |
| Equivalent noise level | 6 dB-A |
| Sensitivity | 23 mV/Pa |
| Signal to Noise | 88 dB-A |
| Preattenuation Pad | -6; -12; -18 dB |
| Bass cut filter | 160; 80; 40 Hz |
| Electrical impedance | 200 Ohms |
| Recommended load impedance | 2200 Ohms |
| Dimensions | |
| Length | 38 mm |
| Width | 50 mm |
| Height | 160 mm |
| Net Weight | 300 g |
| Design | |
| Finish | Dark Grey/Gold |
| Audio Output | |
| Type | Balanced XLR |
| Gender | Male |
| Contacts | 3-pin |
| Powering Interface | |
| Voltage | 44 to 52 V |
| Current | 4.5 mA |
| Application | Pro Studio |
| Instrument | Vocals, Piano, Strings, Horns, Woodwinds, Drums, Percussion |
- Sonic character of the famous AKG C12
- Nine selectable polar patterns
- Three attenuation levels (-6,-12,-18dB)
- Three switchable different bass-cut filters
- Overload warning with audio peak hold LED
