AKG

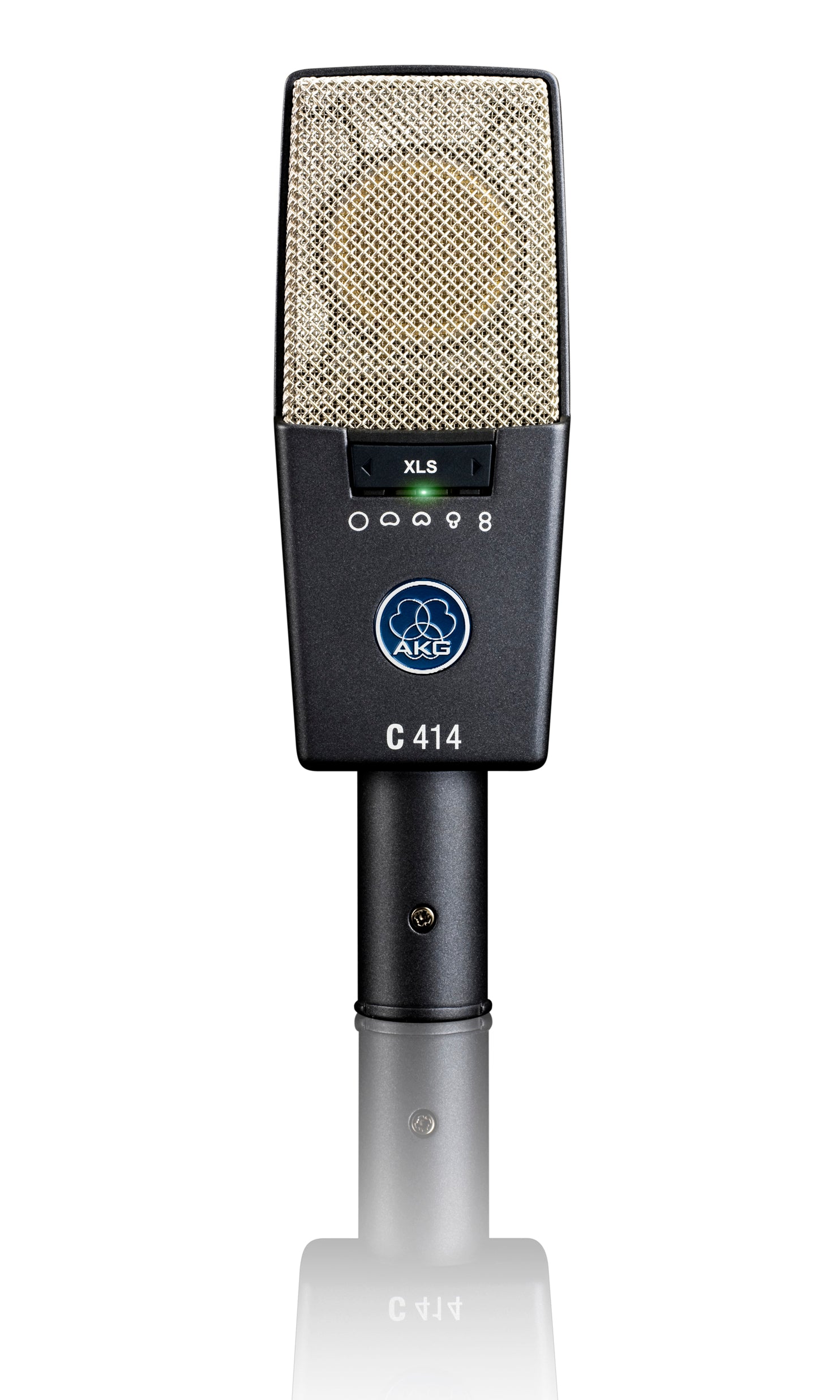

AKG C414-XLS Large Diaphragm Condenser Mic
The C414 XLS multipattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live-sound applications and permanent installations, all controls can easily be disabled for trouble-free use.
The C414 XLS maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades.
Polar pattern omnidirectional, wide cardioid, cardioid, hypercardioid, figure eight and 4 intermediate settings
Frequency range 20 to 20, 000 Hz
Sensitivity 20 mV/Pa (-34 dBV) ± 0.5 dB
Max. SPL 200/400/800/1600 Pa = 140/146/152/158 dB (0/-6/-12/-18 dB) for 0.5% THD
Equivalent noise level 6 dB-A (0 dB preattenuation) (IEC 60268-4)
Signal/noise ratio 88 dB
Preattenuation pad 0 dB, -6 dB, -12 dB, -18 dB, switchable
Bass cut filter slope 12 dB/octave at 40 Hz and 80 Hz; 6 dB/octave at 160 Hz
Impedance Recommended load impedance >= 2,200 ohms
Supply voltage 48 V phantom power to DIN/IEC
Powering approximately 4 mA
Connector 3-pin XLR to IEC
Dimensions 50 x 38 x 160 mm (2.0 x 1.5 x 6.3 in.)
Net weight 300 g (10.6 oz.)
Patent(s) Electrostatic transducer (Patent no. AT 395.225, DE 4.103.784, JP 2.815.488)
- Engineered for highest linearity and neutral sound
- Nine selectable polar patterns
- Three attenuation levels (-6,-12,-18dB)
- Three different switchable bass-cut filters
- Overload warning with audio peak hold LED
