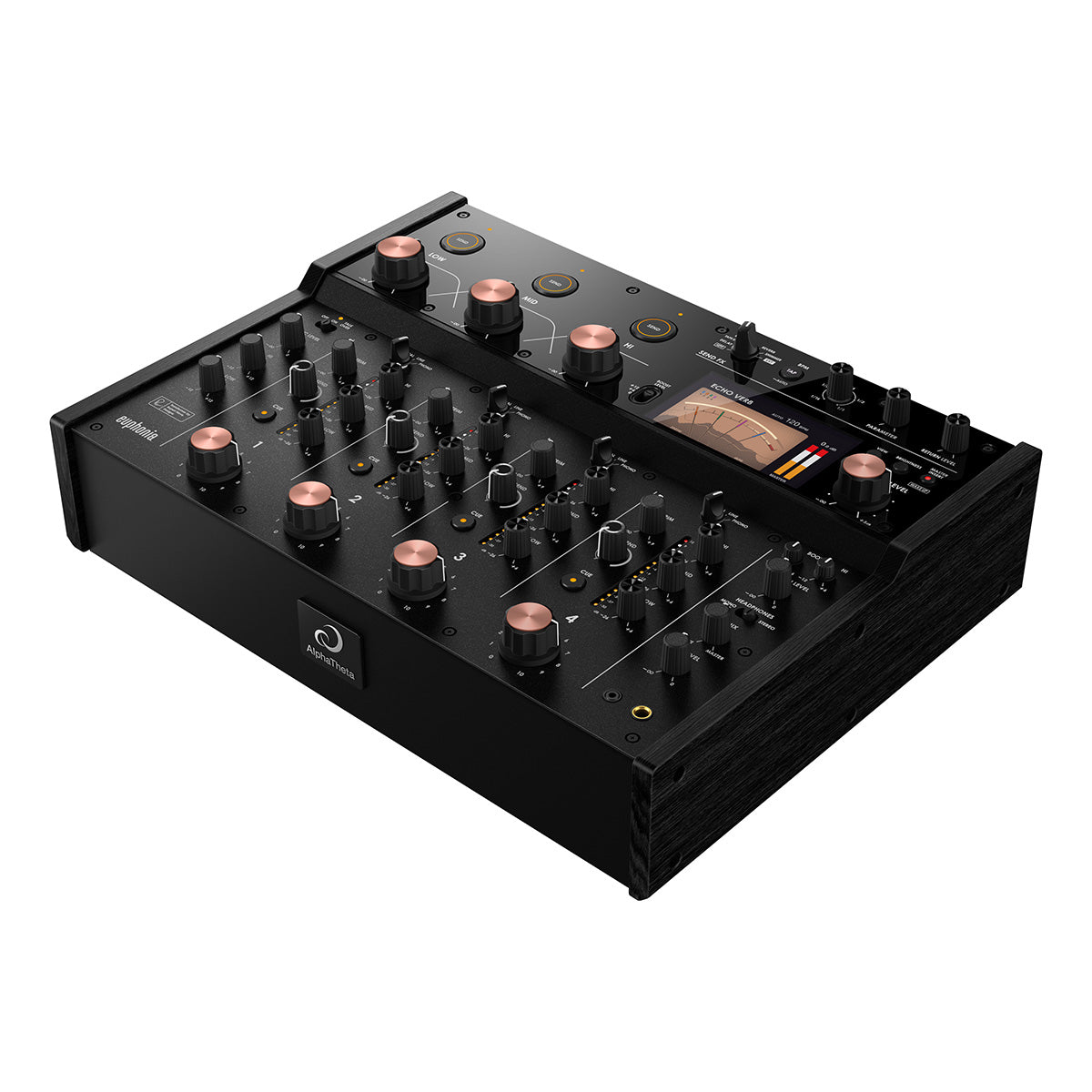

The AlphaTheta Euphonia is a four channel, hybrid analogue/digital rotary mixer created in conjunction with Rupert Neve designs. This stunning rotary mixer has been built to deliver an unrivalled mixing experience with exceptional sound quality.
From the moment you lift the Euphonia from its packaging it is clear that AlphaTheta has crafted this mixer to deliver a mixing experience without comparison. Everything you touch oozes quality, from the rotary encoders through to the connections on the rear of the unit and then there’s the sound quality…
Built using components from Rupert Neve designs, the Euphonia seamlessly blends a digital heart with analogue soul to create a sound with both weight, warmth and definition throughout the frequency spectrum. Connect turntables, CDJs or playback from Rekordbox or Serato DJ and you’ll be impressed at the new life pumped into tunes you’ve heard countless times before.
Controlling your mix is a joy thanks to the perfectly proportioned rotary faders. These have been developed to allow fine adjustments when under light pressure yet twist them with more force, and you’ll feel like you’ve chopped the up fader on a DJM. As a result, the Euphonia always feels just right as if a perfect weight has been achieved with the rotary fader. Thanks to some impressive damping and an elastomer that’s been applied to the rotary knob, the feel is impressively premium.
The visual feedback provided by the Euphonia is just as impressive as the build quality. The “Energy Visualiser” that combines with excellent channel metering to deliver a metering experience that could only be achieved within a digital mixer. Multi-needle VU metering simplifies the level matching process to ensure seamless blends and the Spectrum Analyzer helps to keep mixes smooth.
No good rotary is complete without an isolator and the Euphonia is no exception. The three-band isolator features perfectly balanced control whether it’s a quick cut or crowd hyping build-up boost that you’re looking to dial in. The isolator can also send a frequency band to the built-in send-FX, or to an external effect unit or pedal that defines your sound. The boost level per band adds to the creative possibilities with +12dB, +6dB or 0dB available to increase the presence of tweaks you make to a frequency band or the return signal from FX.
While we’re on the subject of FX, the Euphonia features 5 built-in spatial effects which include delay, tape-echo, echo verb, reverb and shimmer. In addition there’s a high-pass filter to further shape the sound passing through the FX section. The knob controlling the timing or space has a variable click that allows you to set precise timings for BPM synchronisation, for effects such as reverb and shimmer the knob can be freely turned to dial in the room size to suit your needs.
In addition to all of the above, the AlphaTheta Euphonia has USB-C connectivity for use with Rekordbox (as a hardware unlock device) and Serato DJ Pro (this requires a license). The booth output has two band EQ control and there are two connection options for external effects (Send/Return and Master Insert).
The main features of the AlphaTheta Euphonia include:
- Rupert Neve Designs transformers for analogue warmth
- Three Band Isolator
- Built-in Send and Return Effects
- DVS compatibility with Rekordbox and Serato DJ Pro via USB-C
Max. external dimensions (W × D × H) | 429.2 × 331.0 × 119.9 mm / 16.90" × 13.03" x 4.72" |
---|---|
Main unit weight | 9.5 kg / 20.94 lbs. |
Frequency response | 20 Hz - 40 kHz (LINE) |
S/N Ratio | 107 dB (USB, DIGITAL IN) 88 dB (PHONO) 105 dB (LINE) 79 dB (MIC) |
Power requirements | AC 110 V - 240 V, 50 Hz / 60 Hz |
Power consumption | 43 W |
Accessories | Power cord Warranty (for some regions) Quick start guide Precautions for use |
Compatible software | rekordbox Serato DJ Pro |

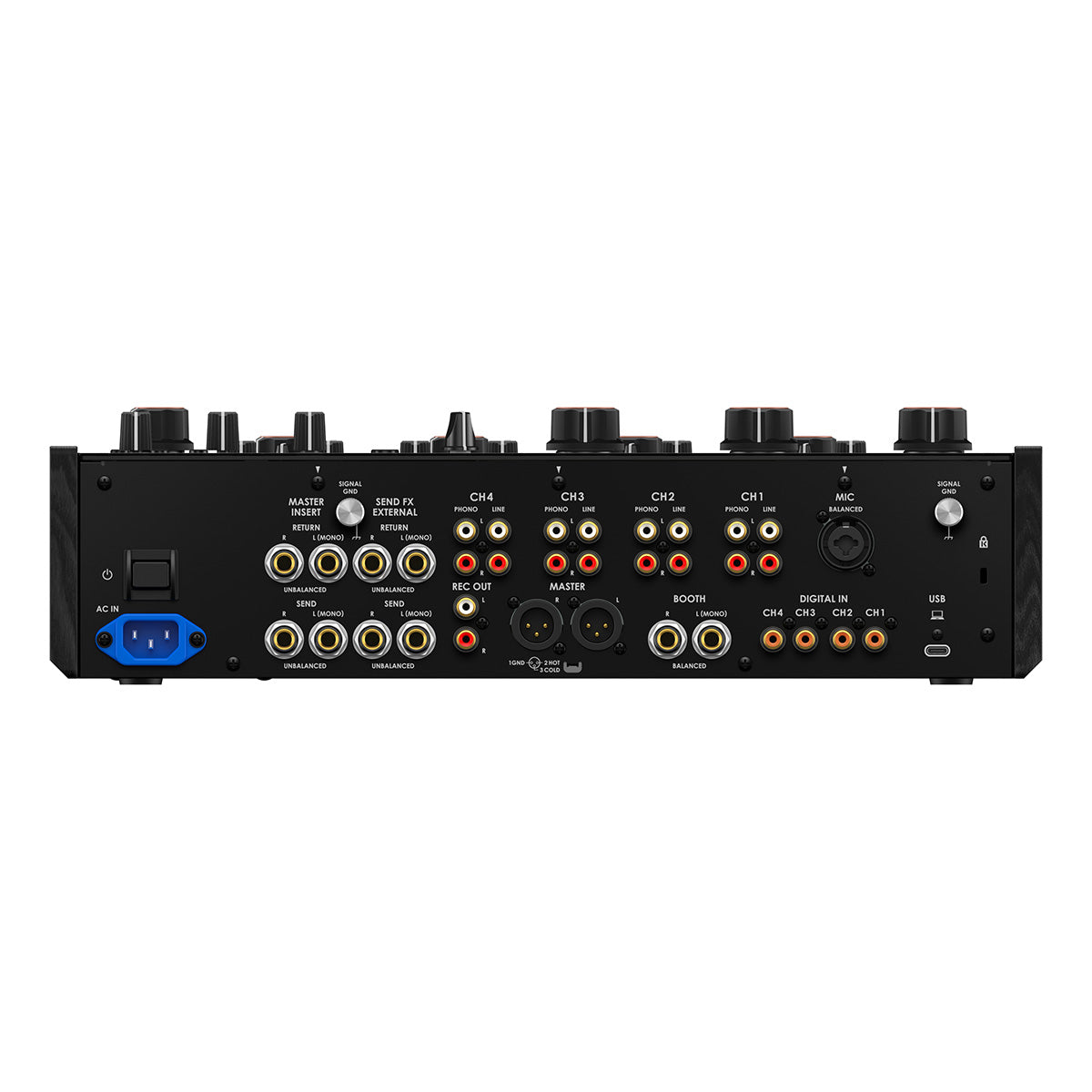

Terminals
Inputs | DIGITAL IN × 4 (coaxial) LINE × 4 (RCA) PHONO × 4 (RCA) MIC x 1 (XLR & 1/4" TRS jack) |
---|---|
Outputs | MASTER × 1 (XLR) BOOTH × 1 (1/4" TRS jack) REC × 1 (RCA) PHONES × 2 (1/4" stereo phone jack, 3.5 mm stereo mini jack) |
USB | USB Type-C × 1 |
Others | SEND × 2 (1/4" TS jack) RETURN × 2 (1/4" TS jack) |
