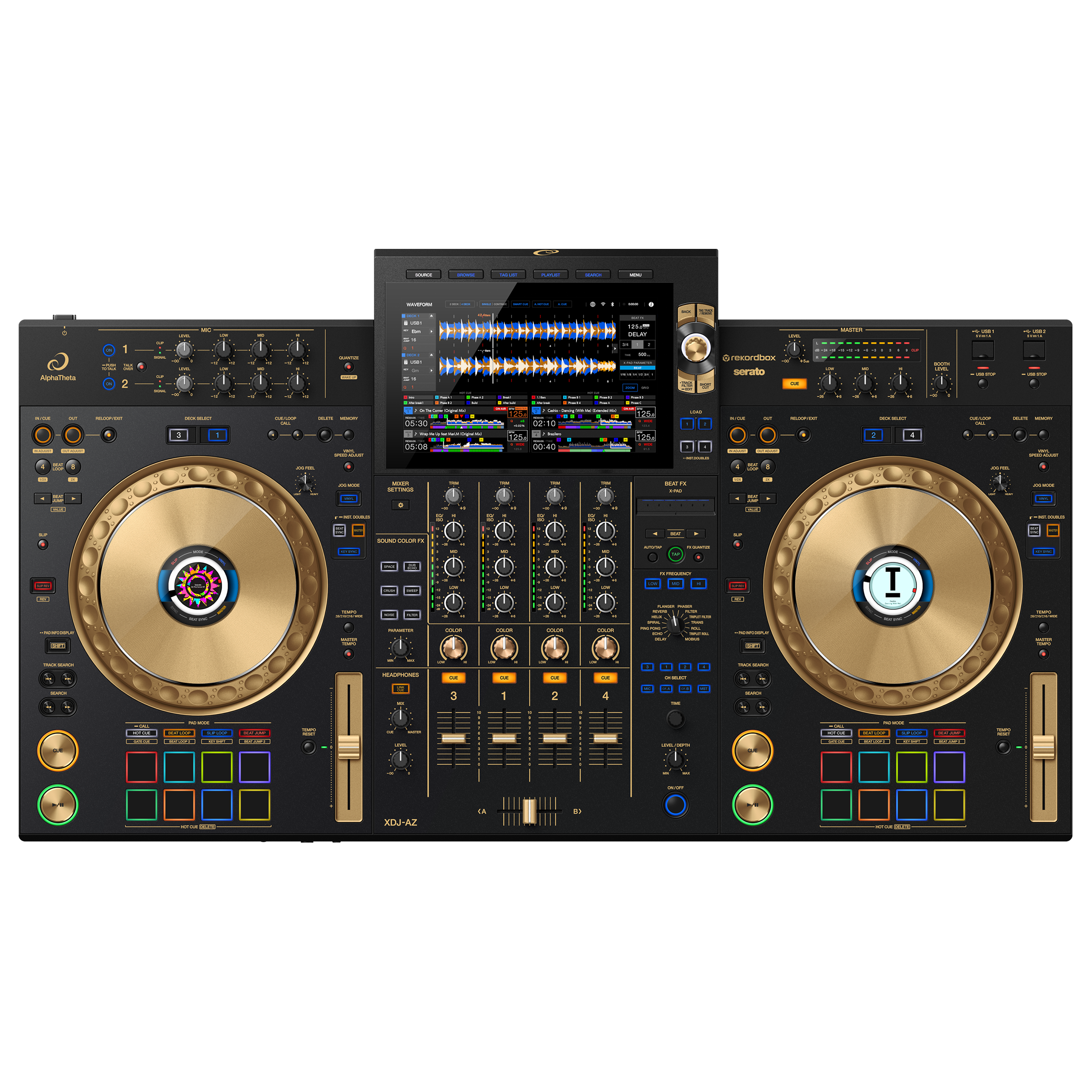

The AlphaTheta XDJ-AZ-N is a four-channel standalone DJ system in limited-edition gold featuring a club-standard layout, built-in Wi-Fi, multi-device support, four-deck control, and SonicLink wireless headphone connectivity. As the successor to the Pioneer DJ XDJ-XZ, it introduces major improvements including a significantly larger multi-touch display for smoother browsing and mixing.
Club-Style Layout
With jogwheels based on the flagship CDJ-3000, the XDJ-AZ offers precise, responsive control that feels instantly familiar to working DJs. The redesigned mixer section is streamlined and uncluttered, with many settings relocated to the 10.1-inch touchscreen for easier access.
The layout mirrors what DJs expect in a professional booth, making it quick to adapt to. Four-deck mixing is well supported thanks to the detailed visual feedback on the display and dedicated deck-selection buttons for fast switching.
SonicLink Wireless
Built-in SonicLink allows low-latency wireless headphone use with compatible models such as the HDJ-F10, providing cable-free monitoring without sacrificing performance.
Integrated Wi-Fi
Connecting to Rekordbox Cloud Play lets you access your library instantly from anywhere with internet access, while Beatport Streaming via StreamingDirectPlay gives you a vast selection of tracks on demand. (Subscriptions required.)
Professional Sound Quality
A 32-bit ESS digital-to-analog converter delivers detailed, powerful audio suitable for clubs, studios, and live environments, ensuring your tracks sound rich and full.
Multi-Device Ready
The XDJ-AZ works seamlessly with Mac, PC, Android, and iOS devices. It unlocks Rekordbox out of the box, as well as Serato DJ Pro.
Additional highlights include 16 performance pads for expressive control, three USB ports for smooth DJ changeovers, and Gate Cue functionality that triggers Hot Cues only while held.
Blending proven Pioneer DJ design with updated hardware and future-ready architecture, the AlphaTheta XDJ-AZ offers a modern, flexible platform built for years of use.
The main features of the AlphaTheta XDJ-AZ-N Limited Gold Edition include:
- Limited edition black & gold colourway
- Online media support: cloud and streaming services available.
- Industry club standard layout, including functions of the CDJ-3000 and DJM-A9 (browse screen workflow, key sync/shift, BEAT FX, waveform preview etc.)
- 4 deck USB playback with external CDJs/turntables inputs.
- 10.1inch touch screen
- Dedicated deck select hardware buttons.
- Serato DJ compatible
Specifications
- Maximum Dimensions (W × D × H) - 895 × 504.1 × 133.4 mm / 35.24” × 19.85” × 5.25”
- Main unit weight - 13.5 kg / 29.8 lbs.
- Frequency response - 20 Hz - 20 kHz (USB)
- S/N ratio - 115 dB (USB)
- Total harmonic distortion - 0.0018 % (USB)
Accessories
- Power cord
- Quick Start Guide
- Precautions for use
- Warranty (for some regions)
Compatible software
- rekordbox for Mac/Windows
- rekordbox for iOS/Android
- Serato DJ Pro (Coming December 2024)

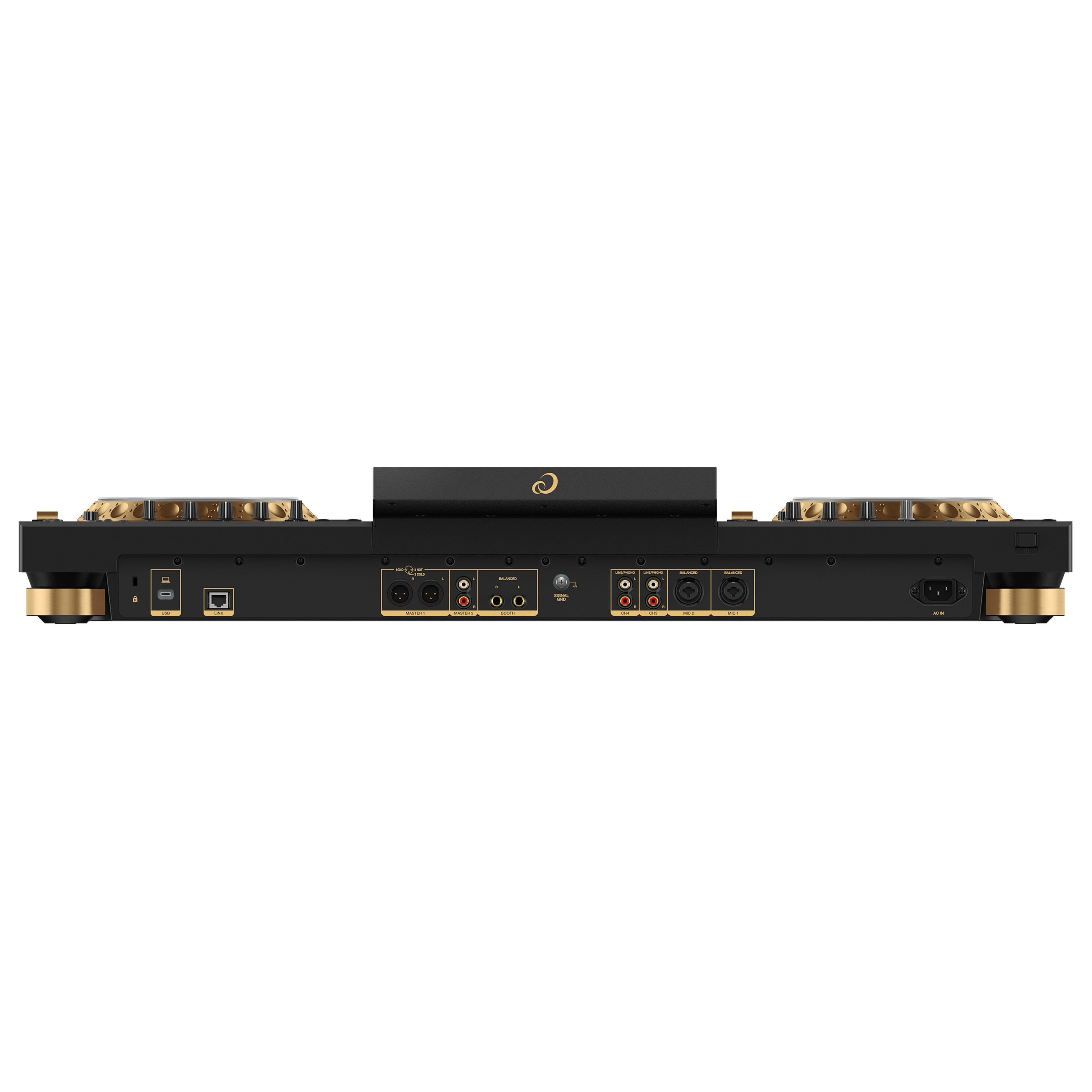

Terminals
Inputs
- LINE / PHONO × 2 (RCA)
- MIC × 2 (XLR & 1/4” TRS jack)
Outputs
- MASTER × 2 (XLR × 1, RCA × 1)
- BOOTH × 1 (1/4” TRS jack)
- PHONES × 2 (1/4” stereo jack × 1, 3.5 mm stereo mini jack × 1)
USB
- USB Type-A × 2
- USB Type-C × 1
Others
- LAN port (100BASE-TX) × 1
Wireless LAN
- Supported standards - IEEE 802.11 a / b / g / n / ac
- Frequency band used - 2.4 GHz / 5 GHz
Bluetooth
- Wireless system - Bluetooth ver. 5.3
- Compatible codecs - SBC, AAC
SonicLink
- Frequency band used - 2.4 GHz
Performance Control
- Channels - 4
- Deck Control - 4 (USB Storage Device)
- Deck Control - 4 (DJ Software Control)
- Jog Wheel - 206 mm
- Jog Feeling - Yes
- Sound Color FX - DUB ECHO, NOISE, SWEEP, FILTER, SPACE, CRUSH
- Beat FX - DELAY, ECHO, PING PONG, SPIRAL, REVERB, TRANS, FILTER, TRIPLET FILTER, FLANGER, PHASER, ROLL, TRIPLET ROLL, HELIX, MOBIUS
Please note, streaming services are unlocked by your choice of DJ software.
*An internet connection and separate subscriptions are required to use these services.
