ALTO

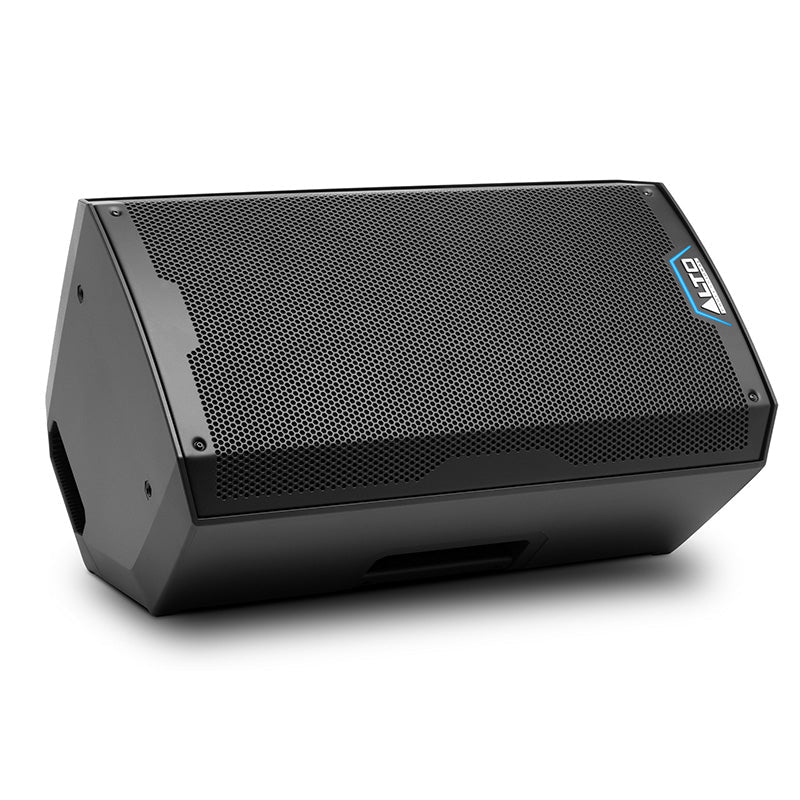

Alto TS412 Active Bluetooth PA Speaker (Pair)

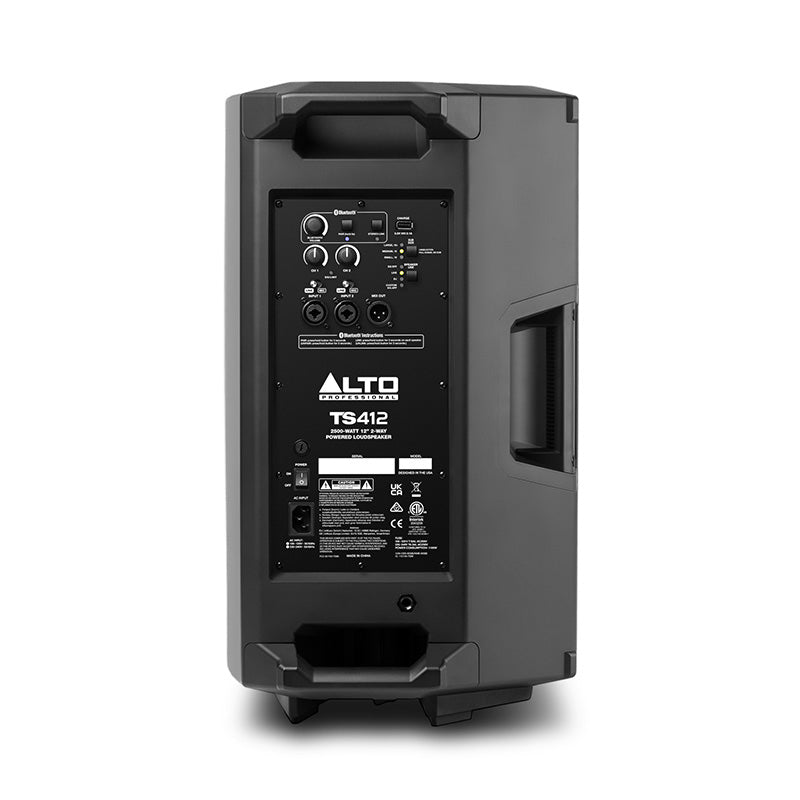

Output Power: 2500 W Low-Frequency Driver: 12.0” driver, 2.5” (63 mm) high-temperature voice coil. 1 x 800 W RMS @ 2 Ω. High-Frequency Driver: 1.0” exit ceramic driver with 1.4” (35 mm) coil. 1 x 450 W @ 4 Ω. Crossover Frequency: 2 kHz Maximum SPL: 132 dB (peak), 129 dB (continuous) (dB-SPL @ 1 m) Frequency Response: 53 Hz – 20 kHz (+/-3 dB) Frequency Range: 44 Hz – 20 kHz (-10 dB) Horn Coverage: 90° horizontal x 60° vertical (nominal) Connectors: (2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced), (1) XLR output (Link), (1) IEC power cable input Input Impedance Line: 10 KΩ balanced, 20 KΩ unbalanced, Mic: 1.2K Line Gain/Volume Control Range: -∞ to 0 dB, +4 dBu nominal, +10 dBu for max output Mic/Inst. Gain/VolumeControl Range: -∞ to +50 dB USB Charging Port: 5V 2.1A Controls: Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Bluetooth volume control encoder, Pairing button, Stereo Link button, Sub Size button, Speaker Use button Indicators: (1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2 Limiter) (Red = Ch1/2 Output Clipped), (1) Bluetooth LED (Blue), (1) Link LED (Orange), (4) DSP Presets LED (Green), (3) HPF LED (Green) Power Connection: IEC Voltage: 100-120V, 50/60Hz; 220-240V, 50-60Hz Consumption: 1100W Fuse: 100-120V T15AL AC250V; 220-240V T6.3AL AC250V Protection: Electronic clip, thermal, and transducer overdrive protection Enclosure: Injected Molded Enclosure and Perforated Metal Grille Mounting/Installation: Standard 36 mm pole socket, flown application with integral M10 suspension points, or in a wedge monitor position Operating Temperature: -10°C to 45°C (14°F to 113°F) Dimensions: (height x width x depth)23.9” x 13.9” x 13.8” / 606.5 x 353.5 x 350.5 mm Weight 33 lbs. / 15 kg |
