American DJ Focus Spot 2X Moving Head
The ADJ Focus Spot 2X is a 100W LED Moving Head with a 3W UV LED included for black lighting or additional color hues. It features two prism effects; a 6-facet circular prism and a 6-facet linear prism. In addition, ADJ has fitted the Focus Spot 2X with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing with one screw that’s on a hinge. GOBOs easily lock in and out of the GOBO wheel. This mover is also equipped with motorized focus, Gobo Indexing, EZ Gobo replacement and a manual zoom knob near the lens to change the beam angle from 16 ~ 19 degrees.
The Focus Spot 2X is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a LED spot moving head. It has 16 & 18 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, locking 3-pin DMX In/Out, Locking Power In/Out connectors, and a 4-Button DMX LCD menu.
The Focus Spot 2X is fitted with 8 colors plus spot and split colors. It has 6 rotating, replaceable GOBO patterns plus spot. The color wheel and GOBO wheel work independent of each other. All GOBOs are indexable.
Features:
• Motorized Focus
• 1 x 100W Cold White LED (7600˚K, 50,000 hr.)
• 1 x 3W UV LED
• Manual Zoom knob on head: 16 ~ 19-degree beam angle
• Fan cooled
• Strobe/Pulse effect; random strobe slow to fast
• UC IR and Airstream IR compatible (Sold Separately)
• 8 Colors + White & Split Colors
• 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
• 4 Built-in lighting shows
• 16 & 18 DMX channel modes
• Stepper motors with micro stepping
• With Wired Digital Communication Network
• Includes Omega bracket for truss mounting
• Includes Locking Power cable
Light Source:
• 1 x 100W Cold White LED (7600˚K, 50,000 hr.)
• 1 x 3W UV LED
Features:
• Motorized Focus
• Manual Zoom knob on head: 16 ~ 19-degree beam angle
• Fan cooled
• Strobe/Pulse effect; random strobe slow to fast
• UC IR and Airstream IR compatible (Sold Separately)

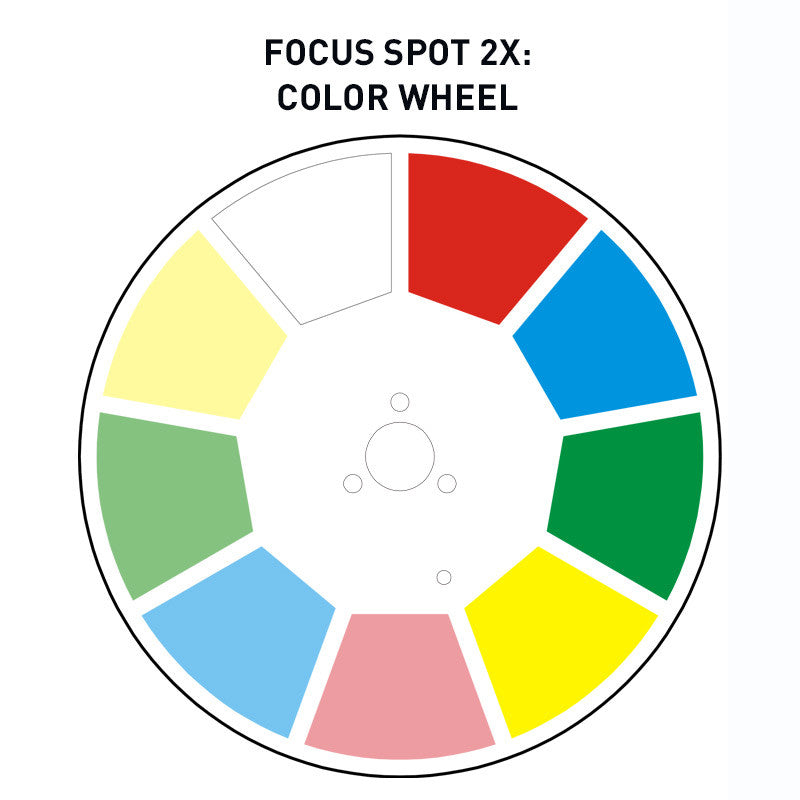

Color Wheel:
• 8 Colors + White & Split Colors

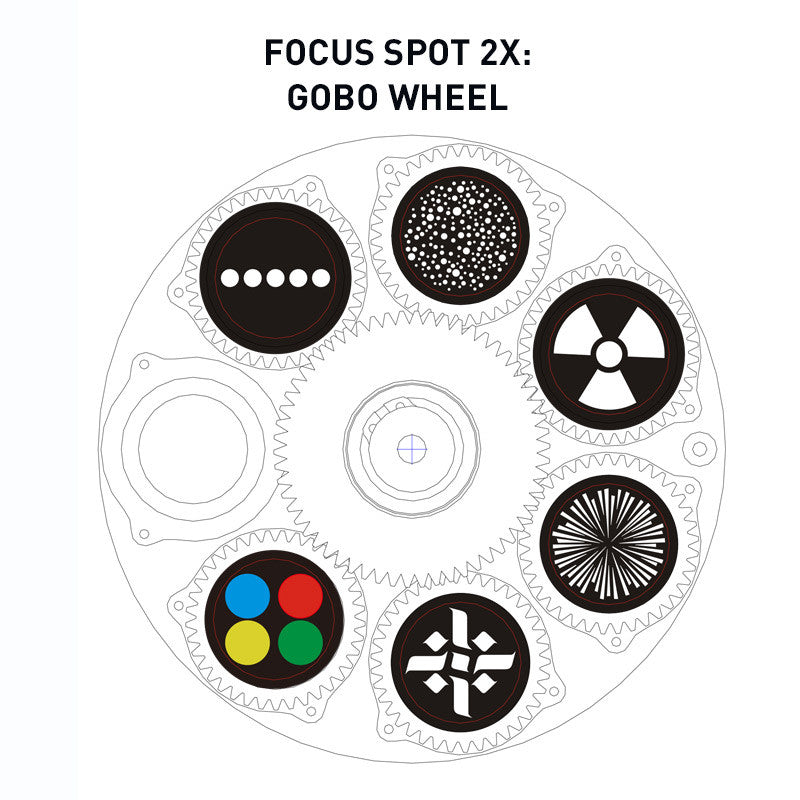

GOBO Wheel:
• 6 Rotating, replaceable Gobos + Spot
• Gobo Size: Outer: 23.8mm/Inner:19mm/Thickness: 0.2mm
• Gobo Indexing
• EZ Gobo replacement with hinged head cover
• Gobo Shake effect
Prism Wheel:
• 6-facet circular prism
• 6-facet linear prism
Control:
• 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
• Primary/Secondary Mode
• 4 Built-in lighting shows
• 16 & 18 DMX channel modes
• Electronic Dimming: 0% - 100%
• 5 Dimmer Curves
• 4-Button DMX LED menu
• Stepper motors with micro stepping
• With Wired Digital Communication Network
Connections:
• Locking 3-pin DMX In/Out
• Locking Power In/Out connections on rear to daisy chain power (up to 9 Focus Spot 2X’s @ 120V and 16 Focus Spot 2X’s @ 230V)
Pan/Tilt:
• Fast and precise Pan/Tilt Movements
• 16-Bit Fine Pan/Tilt control
• Pan: 540-degree
• Tilt: 270-degree
• Pan/Tilt Invert Mode
• 4 Built-In Pan/Tilt Target Modes
Electrical:
• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Power Consumption: 175W
Dimensions / Weight:
• Dimensions (LxWxH): 9.33” x 9.10” x 15.15”/ 237 x 231 x 385mm
• Weight: 14.5lbs. / 6.5kgs.
What’s Included:

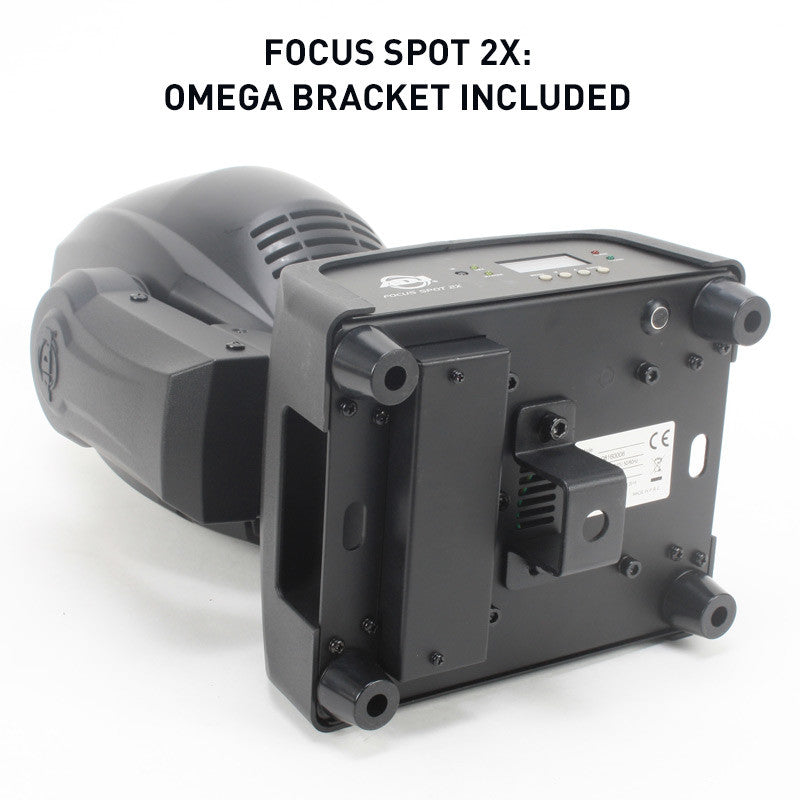

• Includes Omega bracket for truss mounting
• Includes Locking Power cable
- 100W LED Moving Head
- 3W UV LED included for black lighting or additional colour hues
- Motorized Focus
- Manual Zoom knob on head: 16 ~ 19-degree beam angle
- Fan cooled
- Strobe/Pulse effect; random strobe slow to fast
- UC IR and Airstream IR compatible (Sold Separately)
