AMERICAN DJ
American DJ PIXIE DRIVER 2000

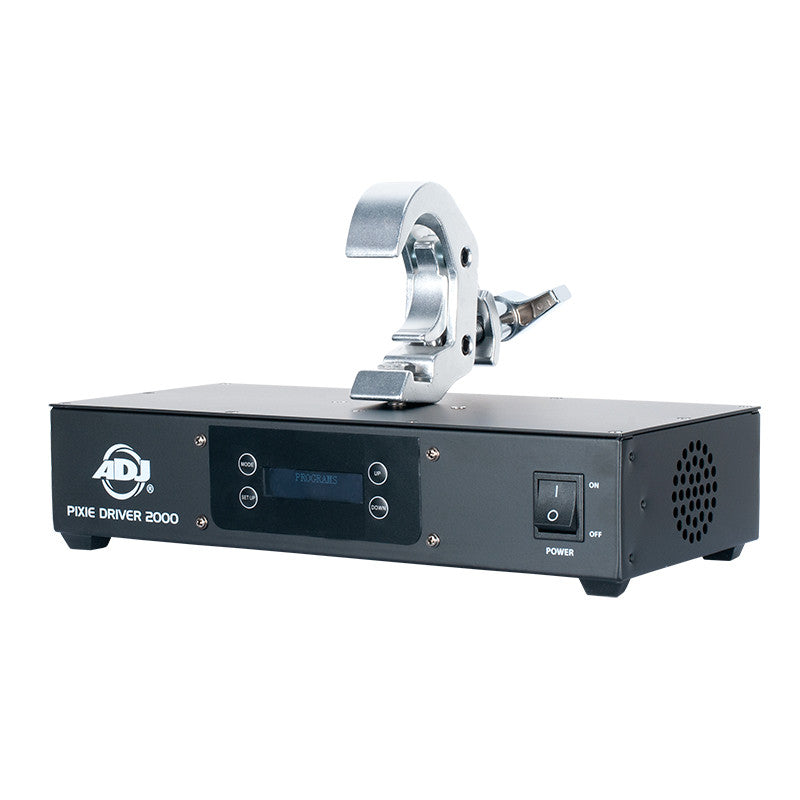

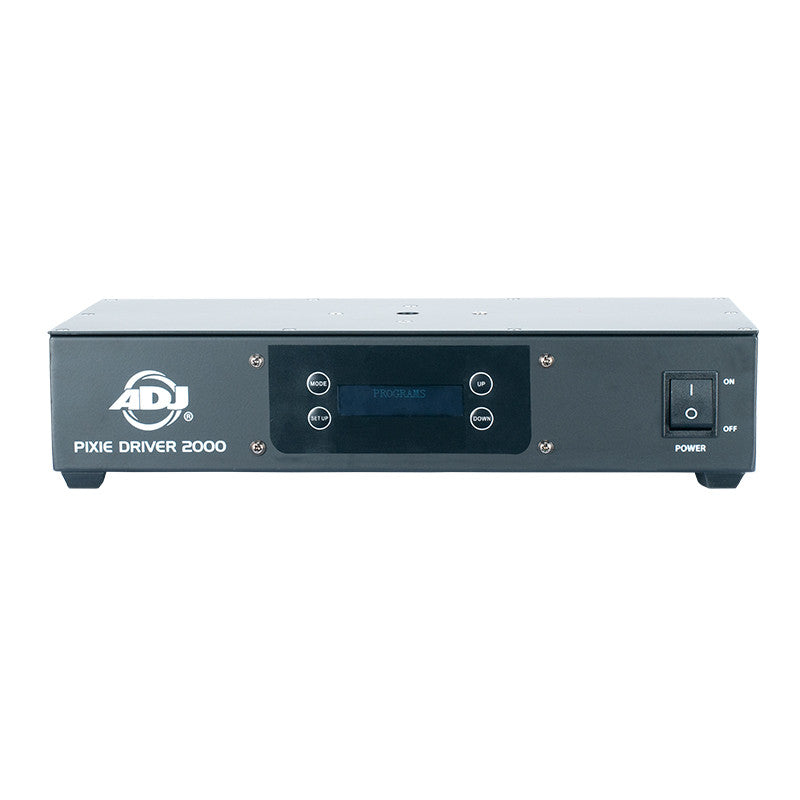

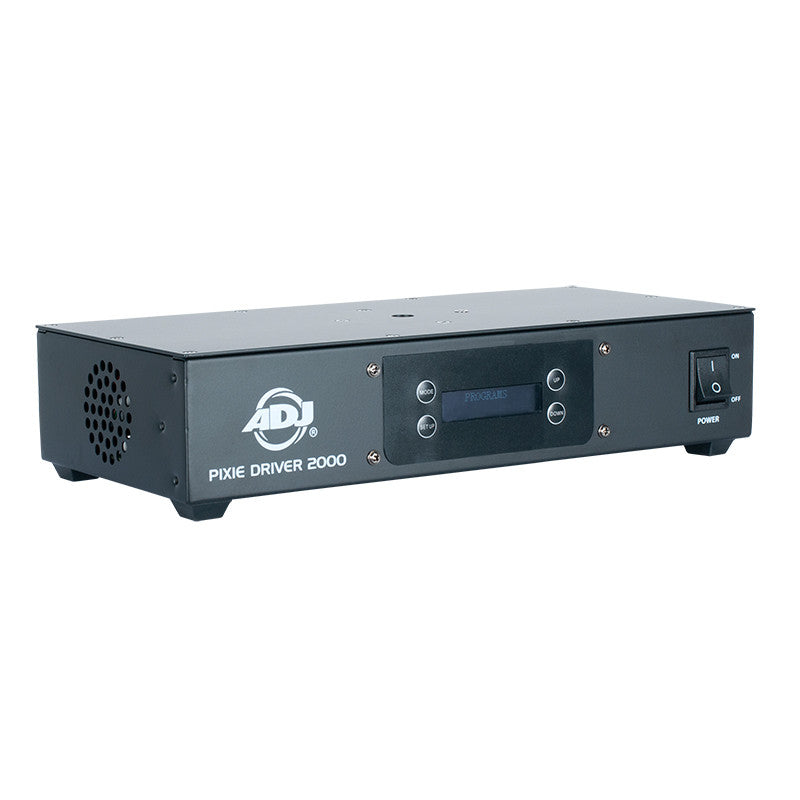

American DJ Pixie Driver 2000 is designed specifically for the ADJ Pixie Strip 30, 60, and 120 series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 2,040 max pixels via Kling-Net, and 340 max pixels via Art-Net and sACN (streaming ACN) protocols.The Pixie Driver 2000 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (2) outputs which use proprietary, 4pin combo cables (sold separately) that supply power and data to each pixel strip, (available in lengths from 2 to 50 feet). The Pixie Driver 2000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
Control:
• Power / data supply for ADJ Lighting Pixie Strip 30, Pixie Strip 60 and Pixie Strip 120
• Manual RGB mode
• Internal programs
• Manual Dimming and Strobe Control
• Full Pixel Mapping Control
• 2040 Pixels via Kling-Net
• 340 Pixels via Art-Net and sACN (streaming ACN)
• OLED screen with 4-button menu
Control Quantity:
• KlingNet: 34 Pixie Strip 30; 17 Pixie Strip 60; 8 Pixie Strip 120 per port, 2040 pixels in total
• Pixie Strips can be mixed on each output
• KlingNet: 1020 pixels max each port
• ArtNet: 170 pixels max each port
• sACN: 170 pixels max each port
Construction
• Bolt to add an optional clamp to hang on truss

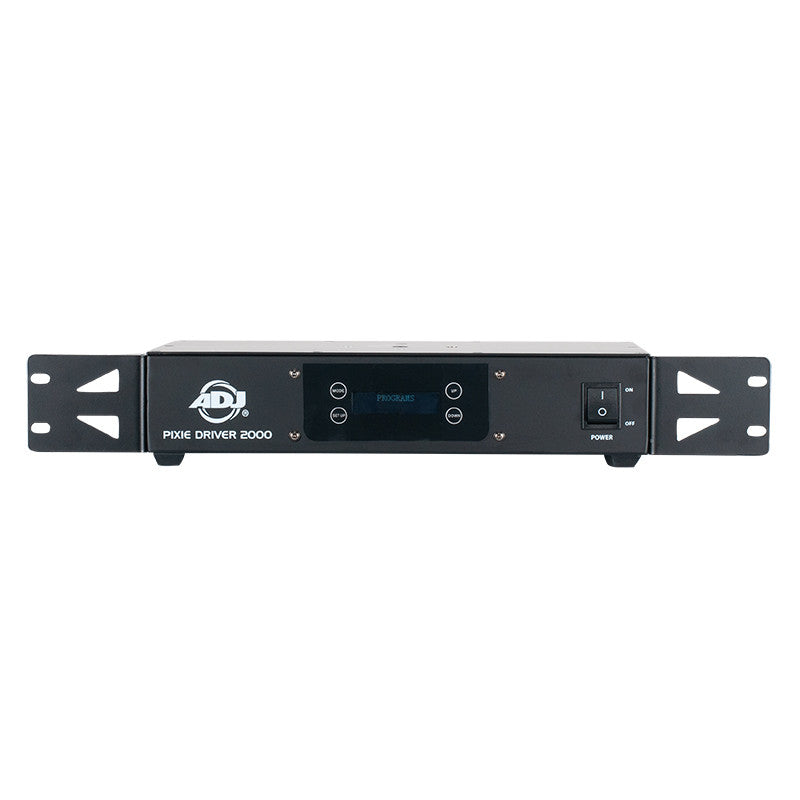

• Includes 19-inch rack mount ears
• Safety eye

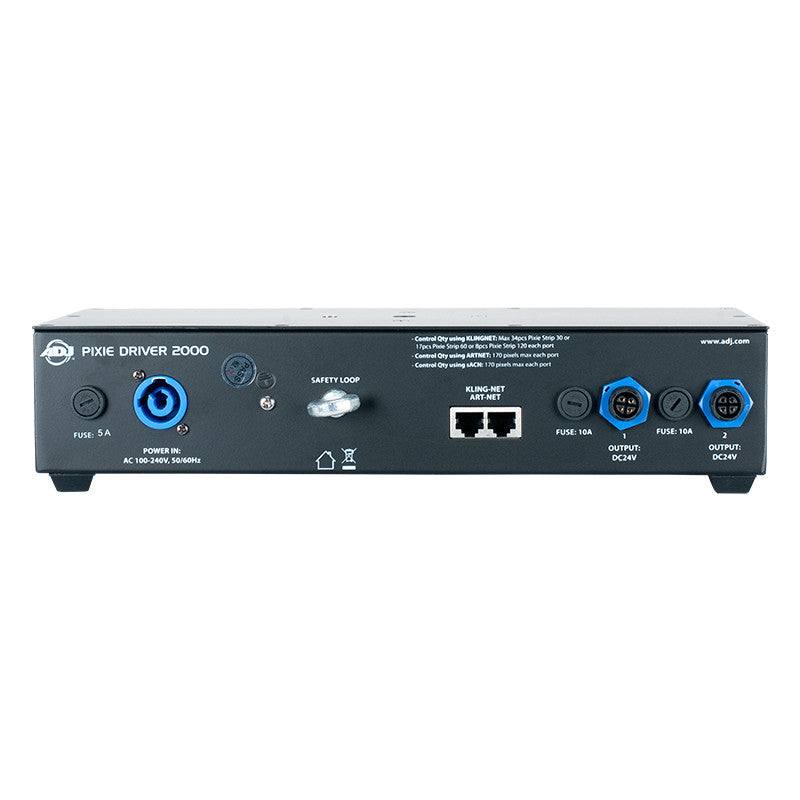

Connections:
• Power: Locking Power Input
• Two KlingNet / Artnet ethernet ports
• Two 4-pin proprietary DC 24V power/data outputs to Pixie Strips
Electrical:
• Multi-voltage operation: AC 110-240V, 50/60Hz
• Power Consumption: 400W max
• Operational temperature: -20°C to 45°C
Dimensions / Weight:
• Dimensions (LxWxH): 480 x 150 x 65mm
• Weight: 2.8 kg

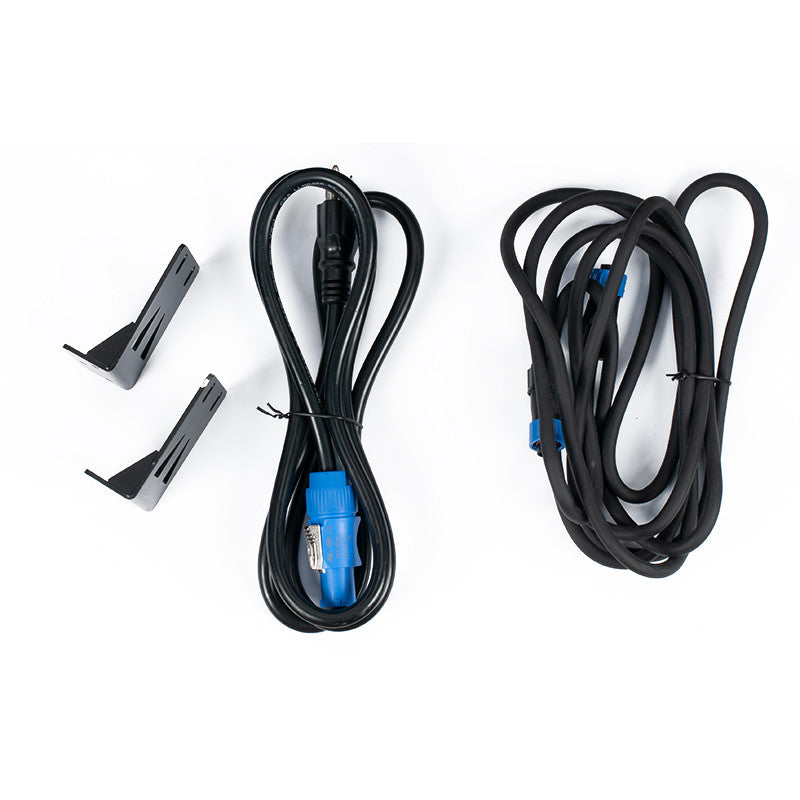

Accessories:
• 1611000078 PSLC1 Pixie Strip Link Cable 0.3m
• 1611000079 PSLC3 Pixie Strip Link Cable 1m
• 1611000080 PSLC5 Pixie Strip Link Cable 1.5m
• 1611000081 PSLC10 Pixie Strip Link Cable 3m
• 1611000082 PSLC15 Pixie Strip Link Cable 4.5m
• 1611000083 PSLC25 Pixie Strip Link Cable 7.5m
• 1611000084 PSLC50 Pixie Strip Link Cable 15m
- Power / data supply for ADJ Lighting Pixie Strip 30, Pixie Strip 60 and Pixie Strip 120
- Manual RGB mode
- Internal programs
- Manual Dimming and Strobe Control
- Full Pixel Mapping Control
- 2040 Pixels via Kling-Net
- 340 Pixels via Art-Net and sACN (streaming ACN)
- OLED screen with 4-button menu
