AMERICAN DJ

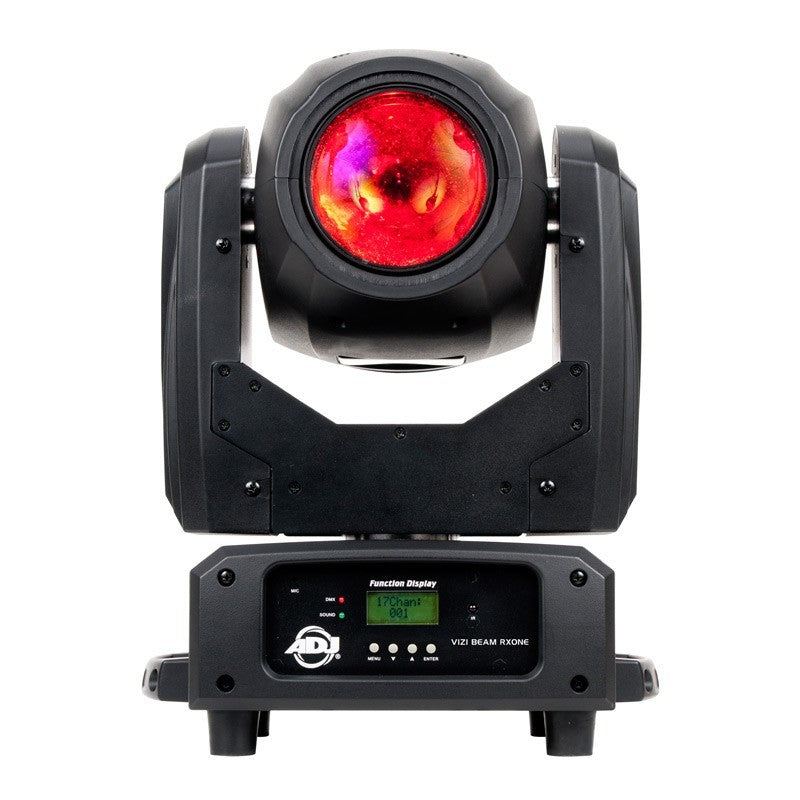

American DJ VIZI BEAM RX ONE moving head lighting effect
The newest fixture in ADJ’s popular Vizi Series, the Vizi Beam RXONE, is a compact and quick moving head with a potent 1R MSD long life lamp that produces a super sharp 3-degree beam of light that travels up to 100 meters. This 16-bit, nimble mover also includes a frost filter to give the beam a wash effect of 21-degrees making this fixture very useful for a variety of portable and permanent applications.
Under the hood the Vizi Beam RXONE boasts a 16-facet prism with macros, 14 color + white and 15 static, fixed GOBOs. The RXONE has 2 DMX modes (15 or 17 channel mode), 3-pin DMX In/Out, PowerCon In/Out plus a low power consumption of only 199W at max power
- Pan/Tilt Invert - Built-In Pan/Tilt Macros
- 16-Bit Pan/Tilt Positioning
- Shutter: Pulse effect; random strobe slow to fast
- Dimming: 0% - 100%
- Strobe effect
- Frost Filter
- Stepper motors with micro stepping
- 3-pin XLR In/Out
- Power Consumption: 199W
- Photometric data: 99250 LUX @ 10M, 70030 LUX @ 15M
- Powercon in/out
- Multi-voltage Operation: 100-240V, 50Hz/60Hz
- Power Cord Daisy Chain (8 Fixtures Max. @ 120V / 16 Fixtures Max. @ 230V
- Lamp: Osram® SIRIUS HRI 100W discharge, 9000˚K
- 6000 hr. long-life
- Dimensions (LxWxH): 225 x 279 x 387mm
- Weight: 9.2kg
- 2 DMX Channel Modes: 15 or 17 DMX channels
- LED DMX 4-Button menu system
- 3-degree beam angle - Auto X-Y repositioning
- 14 colors + white and Split Colors
- 15 static, fixed gobos + spot
- 16-facet Prism with macros
- Gobo Shake effect
- Independent gobo and color wheels
- Pan: 360-degee standard (540-degree optional)
- Tilt: 270-degree
