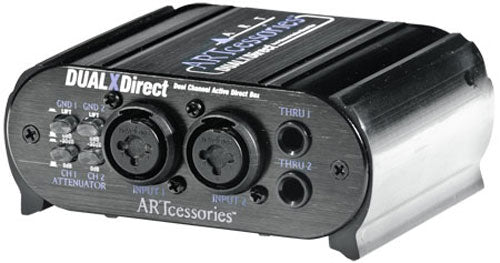

ART Dual X-Direct Twin Channel Active DI Box
The DUALXDirect provides two independent high quality active interfaces that let you connect instrument, line, or speaker level signals to a mixer or other balanced inputs. Each of the high impedance 1/4" and XLR inputs (provided via "combo" jacks) are buffered and converted by very low noise active electronics into an isolated, balanced, low impedance signal output. The DUALXDirect has an extremely flat and wide frequency response and can handle high signal levels. This gives the DUALXDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.
Frequency Response | 10 Hz - 100 kHz, ± 0.5 dB @ +0 dBu |
Total Harmonic Distortion | <.05% (typical) |
Dynamic Range | >100 dB (typical) |
Channel Separation | > 80 dB (typical) |
Maximum Input Level | +4, +34 dBu |
Maximum Output Level | +6 dBu (battery powered), +14 dBu (phantom powered) |
Input Connections | ¼-inch TRS | XLR female balanced / unbalanced (2), 470k Ohm |
Thru Connections | ¼-inch TRS (2) |
Output Connections | XLR male balanced (2), <600 Ohm |
Input Attenuation | Switchable, (0, -30 dB) |
Power Requirements | 9V @ 7.5 mA (battery,Alkaline recommended), 18 - 48V DC @ 6.4 mA (phantom power, per channel) |
Dimensions | 1.85"H x 4.6"W x 3.9"D (47mm x 117mm x 99mm) |
Weight | 0.84 lbs (0.38 kg) |
- Fully Active Design
- Phantom Voltage or 9v Battery Powered
- Converts High-Impedance Balanced / Unbalanced Inputs Into 600 Ohm Balanced Outputs
- Switchable input attenuation (0, -20, -40 dB) Switchable low pass filter
- Switchable phase invert
- Switchable ground lift (fully isolates inputs from chassis and outputs)
- ¼-Inch TRS | XLR Combi Jack Inputs
