ART

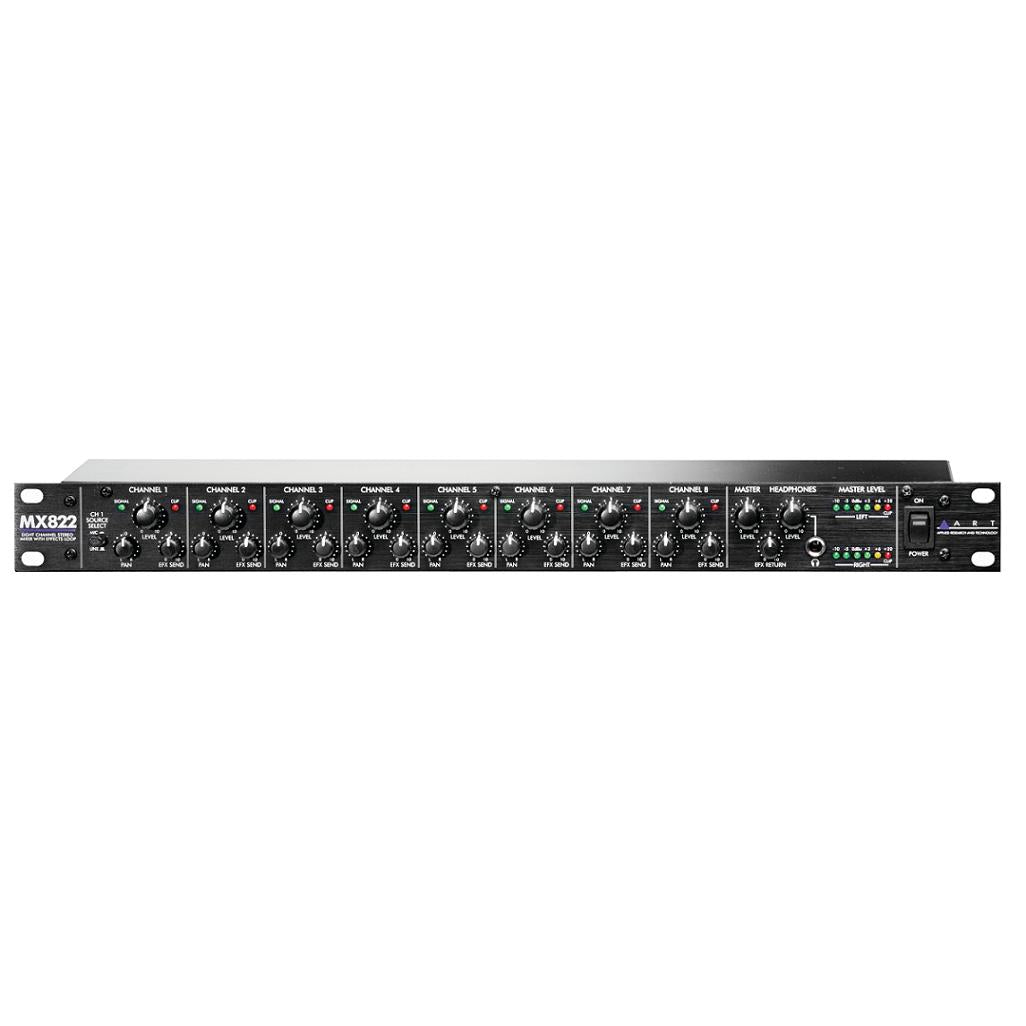

ART MX822 8-Channel Stereo Mixer with Effects Loop
The ART MX822 Eight Channel Stereo Rackmount Mixer is a versatile eight input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power.
Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.

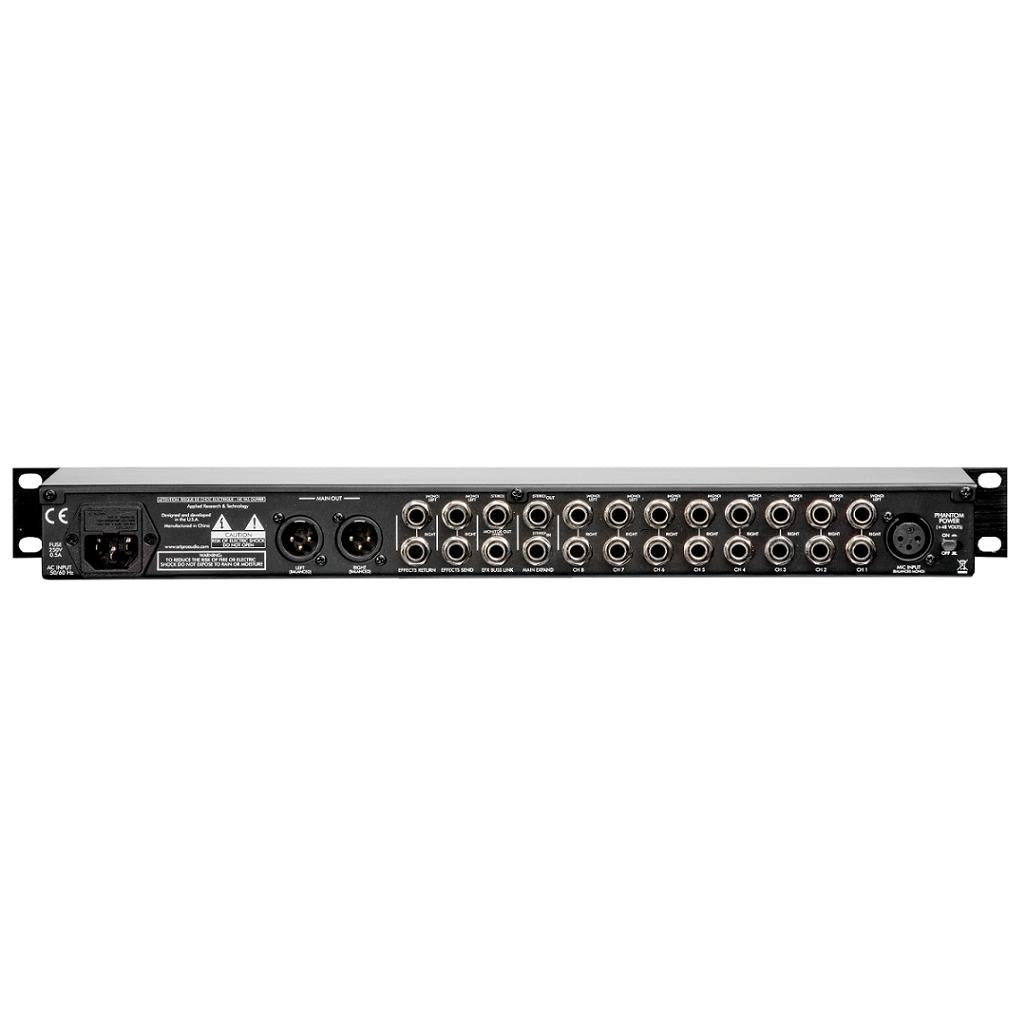

XLR-F balanced (MIC)
1/4" TRS unbalanced (Ch1-Ch8, Effects Return)
1/4" TRS stereo unbalanced (EFX Buss, Main Expand)
XLR-M balanced (Main)
1/4" TRS unbalanced (Effectss Send)
1/4" TRS stereo unbalanced (Monitor, Main Expand, Headphone)
- Eight Channel Stereo Rackmount Mixer
- For studio, live sound or installation applications
- Each input accepts mono or stereo signal
- Independent level, pan and effects send controls
- Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables
- External effects processors can be linked in and mixed with independent level controls
