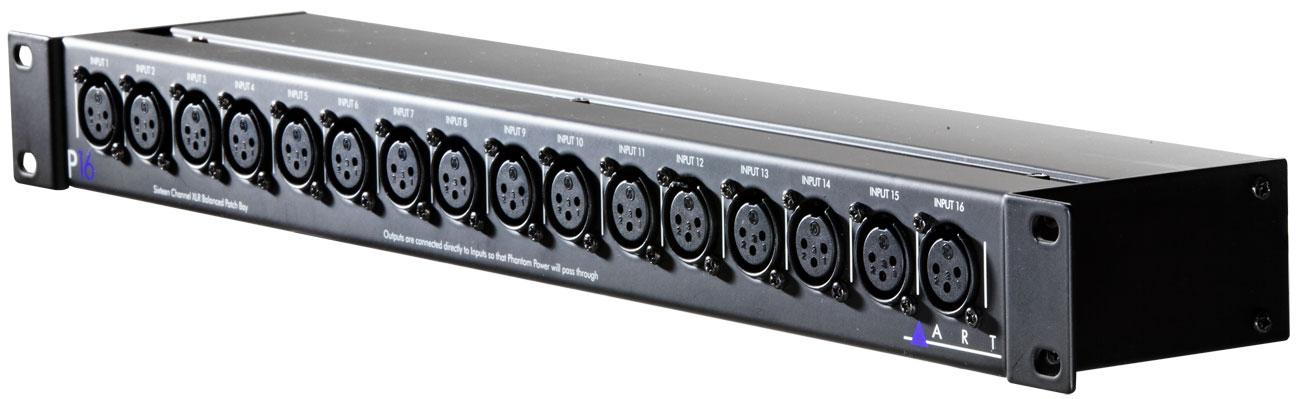

ART P16 19" 16 Channel XLR Balanced Patch Bay
Ideal for any live PA rack, studio rack or fixed installation where easy access to XLR inputs are required, the P16 brings all rear-mounted XLR inputs from various devices to one, convenient single space rackmountable location. The P16 saves wear and tear on the connectors of expensive audio equipment by bringing all commonly used connections to the external patch bay.
Connectors Balanced XLR (female front, male rear)
CMRR > -95 dB (typical)
Channel to channel isolation > -95 dB (typical)
Enclosure Steel 1U high, 19" rack mount
Dimensions (HWD) 1.75" x 19" x 3.5"
44mm x 483mm x 89mm
Weight 3.2 lbs. (1.4 kg)
CMRR > -95 dB (typical)
Channel to channel isolation > -95 dB (typical)
Enclosure Steel 1U high, 19" rack mount
Dimensions (HWD) 1.75" x 19" x 3.5"
44mm x 483mm x 89mm
Weight 3.2 lbs. (1.4 kg)
- 16 channels of balanced direct signals
- High quality passive interface
- XLR connectors (female on front, male on rear)
- All connections made via reliable PCB wiring
- 19-inch 1U-high rack mount with rugged, fully shielded black all-steel enclosure
- Reversible rack ears for added system flexibility
- Three year warranty
16 channels of balanced direct signals
High quality passive interface
XLR connectors (female on front, male on rear)
All connections made via reliable PCB wiring
19-inch 1U-high rack mount with rugged, fully shielded black all-steel enclosure
Reversible rack ears for added system flexibility
Three year warranty
High quality passive interface
XLR connectors (female on front, male on rear)
All connections made via reliable PCB wiring
19-inch 1U-high rack mount with rugged, fully shielded black all-steel enclosure
Reversible rack ears for added system flexibility
Three year warranty
