ART

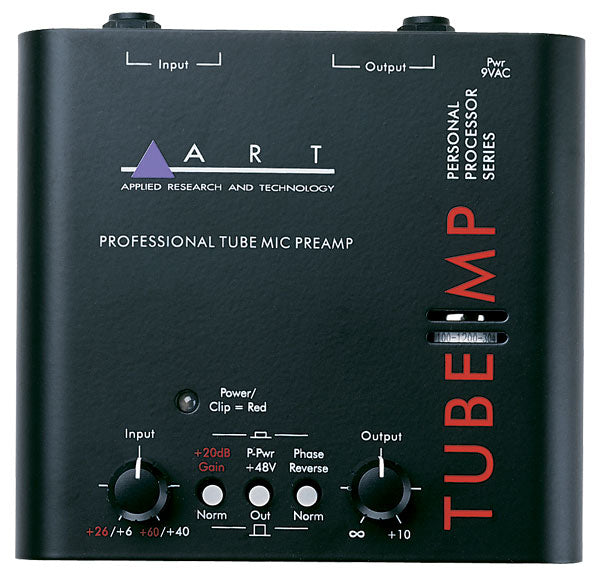

ART Tube MP Mic Pre Amp
The Tube MP is the world's most popular external tube microphone preamp. Whether you're working with a digital, computer or analog recording system, the Tube MP's TEC award nominated design will allow you to obtain professional recording studio results at a fraction of the cost of comparable equipment. The hybrid design of the Tube MP allows it to add warmth and fatness to a signal while maintaining exceptionally low-noise and high quality. While its primary application is to be used with a microphone, the Tube MP is an exceptional direct box - impedance matching, amplifying and improving the sound of any instrument plugged into it.
- CMMR >75dB (typ @1kHz)
- Dimensions 5.0"D x 5.5"W x 2.0"H
- Dynamic Range >100dB (20Hz to 20kHz)
- Equivalent Input Noise -129dBu (´A´ weighted XLR to XLR)
- Frequency Response 10Hz to 20kHz (+0,-1dB)
- Input Impedance 2k ohms (XLR), 840K ohms (1/4")
- Maximum Gain 70dB (XLR to XLR typical)
- Maximum Input Level +14dBu (XLR), +22dBu (1/4")
- Maximum Output Level +28dBu (XLR), +22dBu (1/4")
- Output Impedance 600 ohms (XLR), 300 ohms (1/4")
- Power Requirements 9 VAC @ 700ma (typ)
- Total Harmonic Distortion
- Weight 1.5 lbs
* Specifications subject to change without notice
- Provides Superior Preamplification for: Microphones, Instruments and Line Level Sources
- Hand Selected 12AX7a Provides 70dB of Gain Smooth, Warm and Fat Sound Quality
- Variable Input and Output Gain Controls
- Excellent as a Tube DI
- XLR and 1/4" Inputs and Outputs +48 volts
- Phantom Power
