Audio Technica

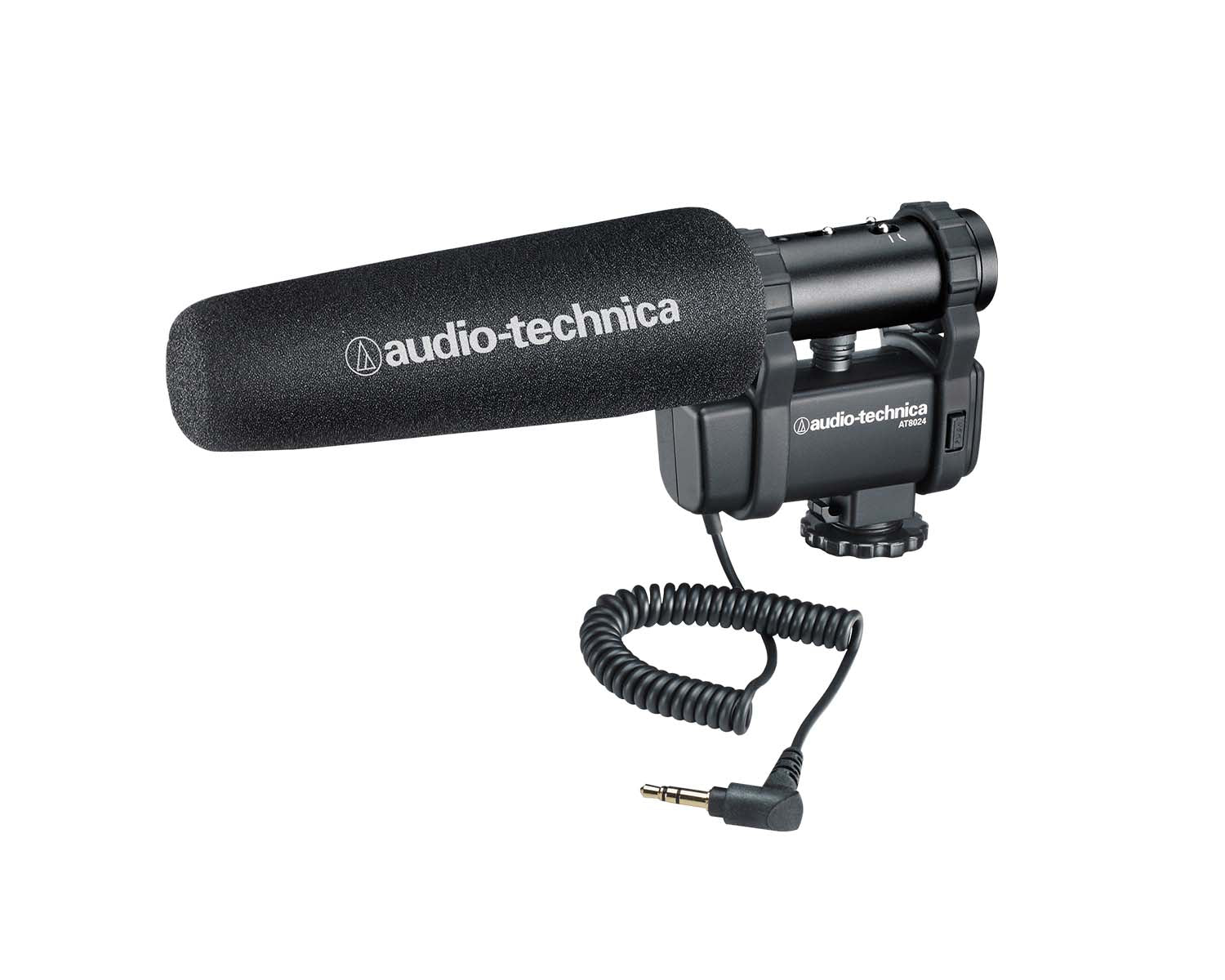

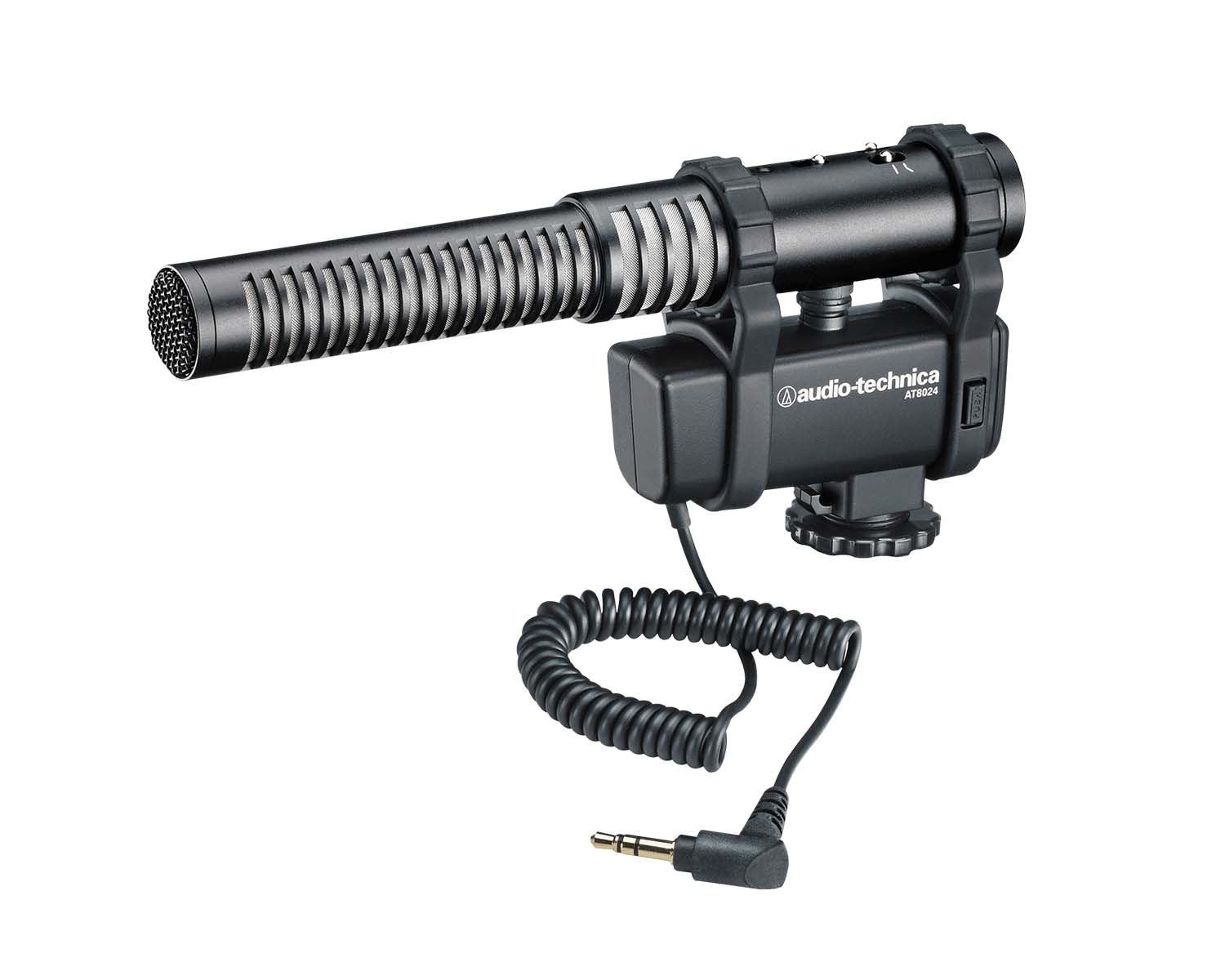

Audio Technica AT8024 Stereo Camera-Mount Microphone
Quantity:
- General
- Element: Fixed-charge back plate, permanently polarized condenser
- Polar Pattern: Line-cardioid, LR stereo
- Frequency Response: 40-15,000 Hz
- Open Circuit Sensitivity: –37 dB (14.1 mV) re 1V at 1 Pa (Mono & LR Stereo)
- Impedance: 50 ohms
- Maximum Input Sound Level: 128 dB SPL, 1 kHz at 1% T.H.D.
- Low Frequency Roll Off: 80 Hz, 12 dB/octave
- Switches: Mono, M-S Stereo; Three-position input pad; Flat, roll-off
- Dynamic Range: Mono: 106 dB, 1 kHz at Max SPL; Stereo: 104 dB, 1 kHz at Max SPL
- Signal-to-Noise Ratio: Mono: 72 dB, 1 kHz at 1 Pa; Stereo: 70 dB, 1 kHz at 1 Pa
- Battery Type: 1.5V AA
- Battery Current/Life: 80 hours typical
- Output Connector: 3.5 mm stereo mini-plug on cable
- Cable: Permanently attached 0.2 m -1 m (7.8"- 39.3") coiled cable with right-angle molded 3.5 mm stereo mini-plug at output end Physical & Dimensions
- Weight: 114 g
- Length: 172mm
- Height: 82mm
- Width: 30mm
- Designed for use with DSLR and other video cameras
- Delivers dramatically better sound quality than the camera’s internal mic
- Selectable line-cardioid mono or mid-side stereo modes
- Three-position adjustable input pad and switchable low-frequency roll-off
- Integral rubber shock mounts for vibration and mechanical noise isolation
- Compact, lightweight design with integral shoe mount
