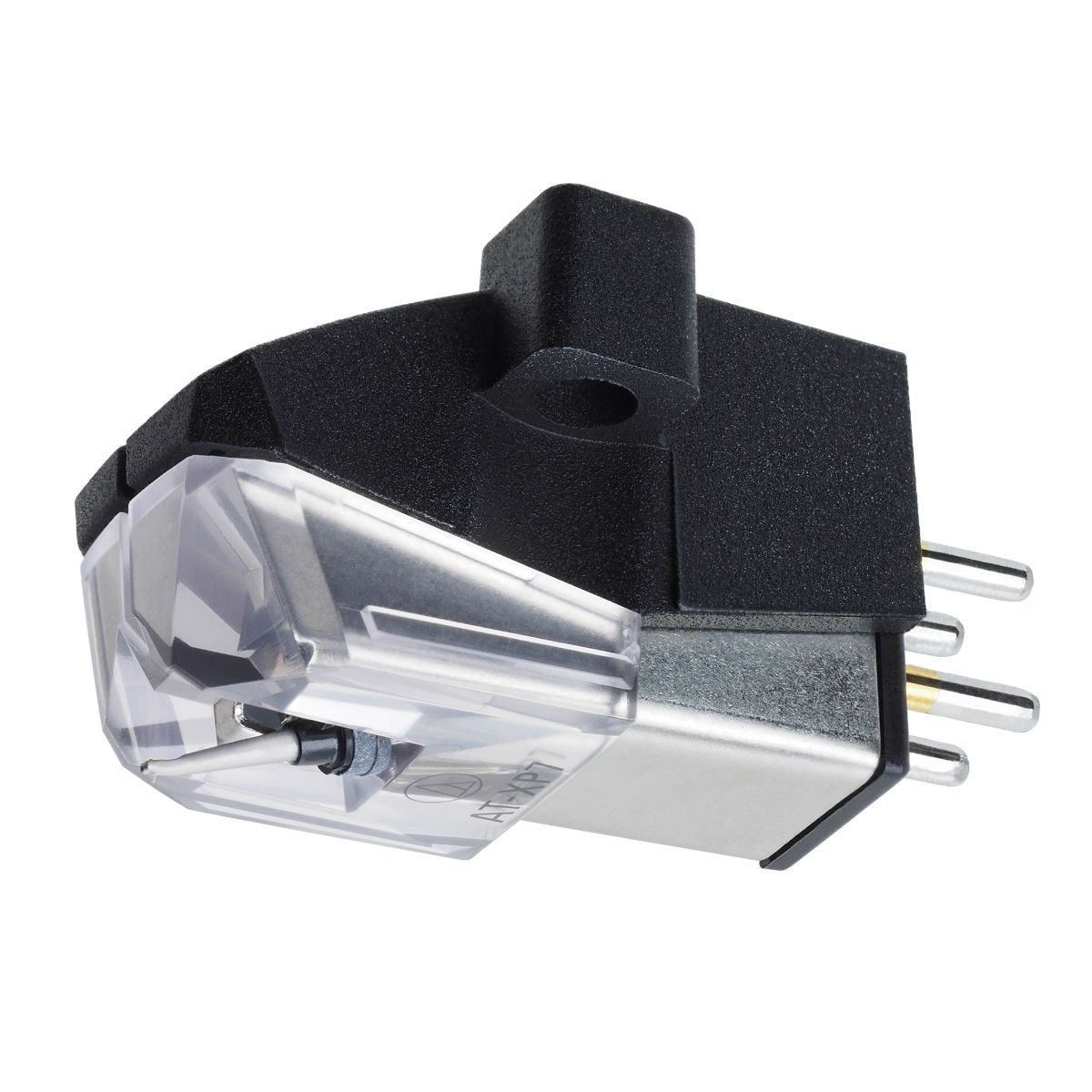

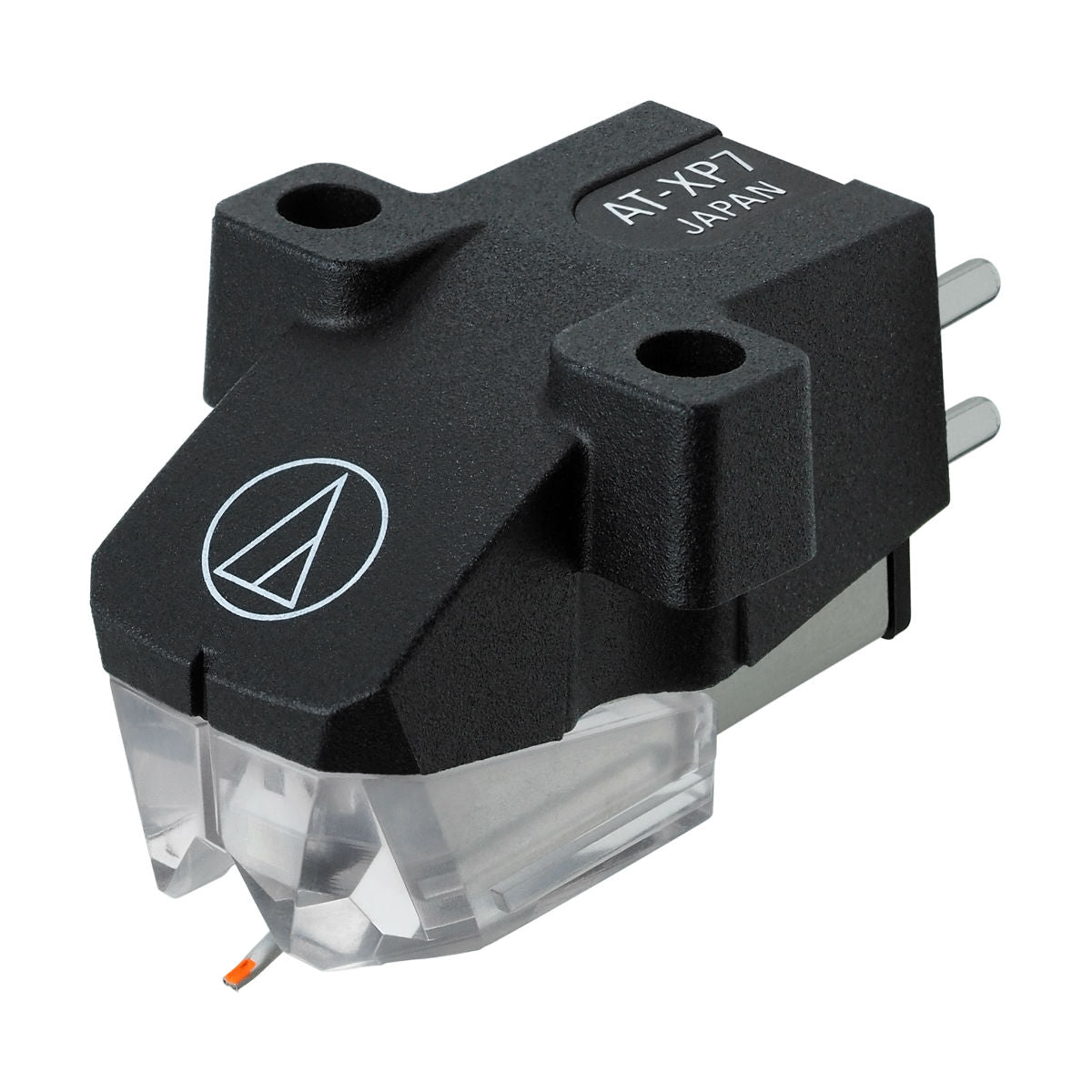

Audio Technica AT-XP7 DJ Cartridge
The Audio Technica AT-XP7 DJ Cartridge is a dual moving magnet stereo cartridge with eliptical stylus specially designed for DJs.
This AT-XP7 cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Main features of the Audio Technica AT-XP7 DJ Cartridge include:
Type | VM |
Mounting: | Half-inch |
Frequency Response: | 20 – 20,000Hz |
Channel Separation: | 22dB (1kHz) |
Output Channel Balance: | 2.0dB (1kHz) |
Output Voltage | 6.0mV (1kHz, 5cm/sec) |
Vertical Tracking Angle | 20˚ |
Vertical Tracking Force Range | 2.0 - 4.0g (3.0g standard) |
Stylus Shape | Elliptical bonded |
Stylus Size | 0.3x0.7 mil |
Cantilever | Aluminium tapered pipe |
Coil Impedance | 6,700 ohms (1kHz) |
Static Compliance | 20x10-6 cm/dyne |
Dynamic Compliance: | 8.0x10-6 cm/dyne |
Recommended Load Impedance | 47,000 ohms |
Recommended Load Capacitance | 100 – 200pF |
Weight | 6.2g |
Dimensions | 17.2 x 17.8 x 28.3 mm |
Replacement Stylus | ATN-XP7 |
Accessories Included | Cartridge installation screws 11mm ×2, 8mm ×2 Washer ×2 Nut ×2 Non-magnetic screwdriver ×1 |
- 0.3 x 0.7 mil elliptical bonded stylus tip
- Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
- 6.0 mV high-output level
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Stainless wire suspension, double-layered rubber damper and tapered aluminum cantilever ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
