BSS Audio SW3088 Soundweb Lite Sound Processor (EX DEMO)
Note:This is an Ex Demo unit and will show signs of use and wear.

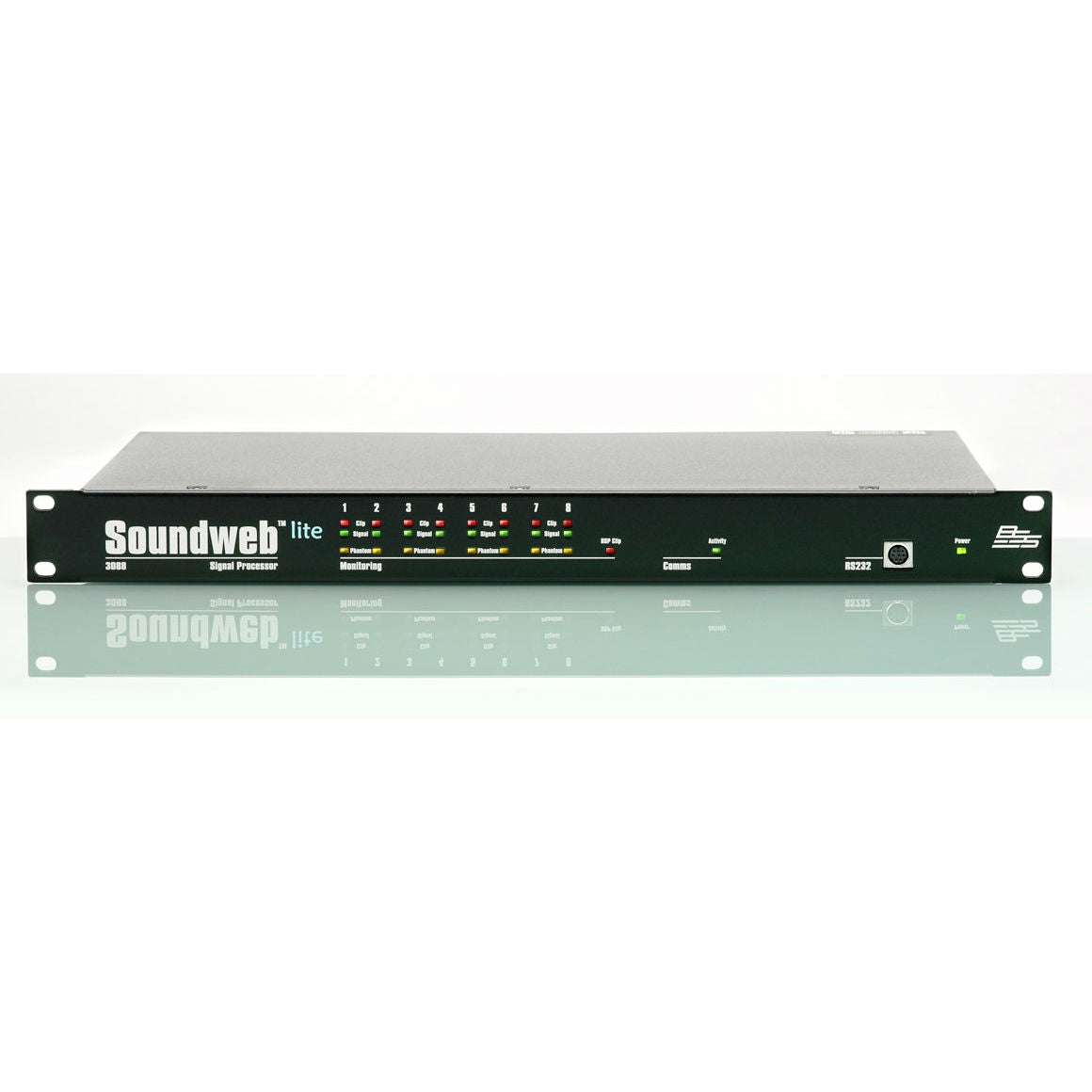

The BSS Audio Soundweb Lite 3088 Programmable Digital Audio System is a 8x8 unit which draws on the phenomenal success of the larger networked Soundweb 9088iis and associated products, but provides a less-expensive alternative for situations where the design requires a maximum of 8 inputs and 8 outputs.
This Soundweb Lite is suitable for many applications such as houses of worship, bars, boardrooms and clubs.
The 3088 has all the capabilities of the networked version - totally free-design DSP layout, a large palette of processing objects, custom control panels etc, and runs under the common Soundweb Designer platform. This means that Consultants and Contractors who are familiar with Soundweb already will be able to incorporate designs using the 3088 immediately. It also means that the 3088 uses an incredibly stable set of hardware and software to give users peace of mind.
Control options for the 3088 are similar to the 9088iis, with PC control (custom control panels), simple control from the 9012 and new 9015 wall panels and control ports, or serial control from AMX, Crestron and other serial-based control systems. The 9015 panel features an 8-way switch for selecting presets and a pair of up/down buttons for level control etc. All standard input configuration options are available for the 3088, including mic, line and AES/EBU digital I/O, and the 3088 will also integrate with the recently released 9016 Video/Audio and 9026 Audio switchers.
Soundweb Designer V1.40 and later supports the new 3088 as well as featuring a set of example templates and macros to make designs easier still. The Latest version of Soundweb Designer is available here.

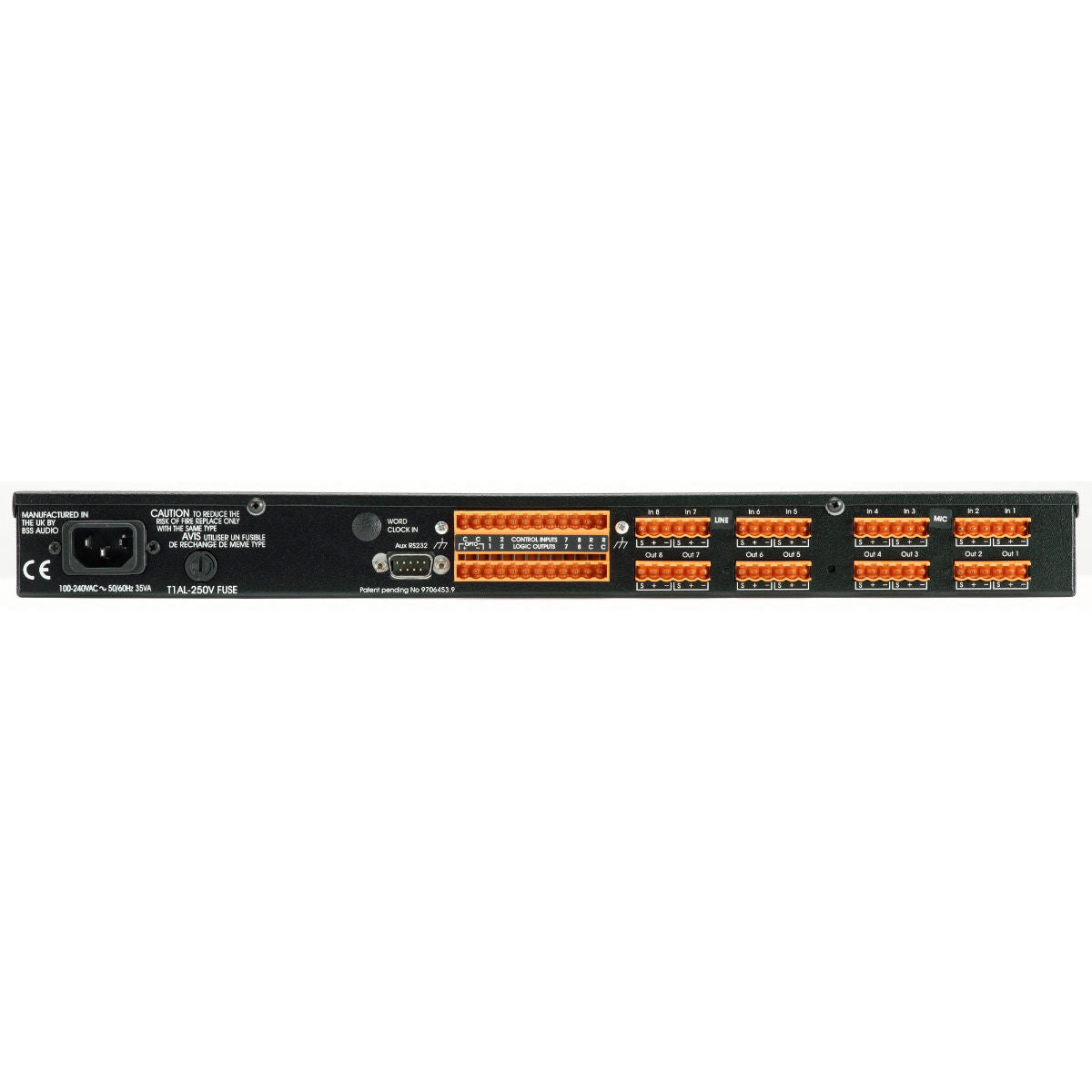

Inputs: 8 Analogue, electronically balanced
- Connectors: Phoenix/Combicon removable screw connectors
- Line Inputs: Nominal gain 0dB, electronically switchable to +12dB gain, input impedance 10kOhm
- Mic/Line Inputs: Nomical gain 0db, electronically switchable up to +72dB, in +6dB steps, input impedance 3.5kOhm
- Maximum input Level: +20dBu with 0dB input gain (+8dBu with 12dB gain)
- CMRR: >75dB at 1kHz
- Equiv. Input Noise (EIN): <-128dBu typ with 150 Ohms source
- Phantom Power: 48V nominal, selectable per input
- AES/EBU Digital Inputs: 2 x 2 channel inputs per card
- Sample Rates: 32 to 96kHz, auto selected
- Connectors: Phoenix/Combicon removable screw connectors
Outputs: 8 Analogue, electronically balanced
- Connectors: Phoenix/Combicon removable screw connectors
- Maximum Output Level: +20dBu
- AES/EBU Digital Outputs: 2 x 2 channel outputs per card
- Sample Rates: 44.1, 48, 88.2, 96kHz, user selectable
- Connectors: Phoenix/Combicon removable screw connectors
- Digital Resolution: 24 bit
- Frequency Response: 15Hz to 20kHz (+-0.5dB)
- THD: <0.01% (20Hz to 20kHz, +10dBu output)
- Dynamic Range: 105dB typ. (22Hz to 22kHz unweighted), 108dB typ. (A-weighted)
- Crosstalk: <-75dB
Control Ports: 8 Inputs and 8 Outputs
- Control Input Voltage: 0 to 4.5v
- Control Input Impedance: 4.7kOhms to +5V (2-wire mode); >1MOhm (3-wire mode)
- Logic Output Voltage: 0 or +5V unloaded
- Logic Output Impedance: 440 Ohm
Watchdog Output: Phoenix/Combicon connector for failsafe control
- Opto Output Current: 14mA maximum
- Withstanding Voltage: 80V maximum (Off)
- Series Impedance: 220 Ohms (isolated)
Other Info
- Panel LED Indicators: Signal Present (per input), CLIP (per input)
- Mains Voltage: 85-270V AC, 50/60Hz
- Power Consumption: <35VA
- Analogue 8 in, 8 out
- Standalone unit with 200MIPS of DSP resource
- Integral multivoltage PSU (85V - 270V AC)
- Analogue control ports for GPI hardware interfacing e.g. faders, switches, LEDs
- Front and rear access RS232 ports for PC control
- Integral memory holds up to 12 DSP system designs
