Cameo Multi FX Bar EZ Complete Lighting System
The Cameo Multi FX Bar EZ is an all-in-one LED lighting system with 3 lighting effects perfect for mobile DJs, entertainers and bands!

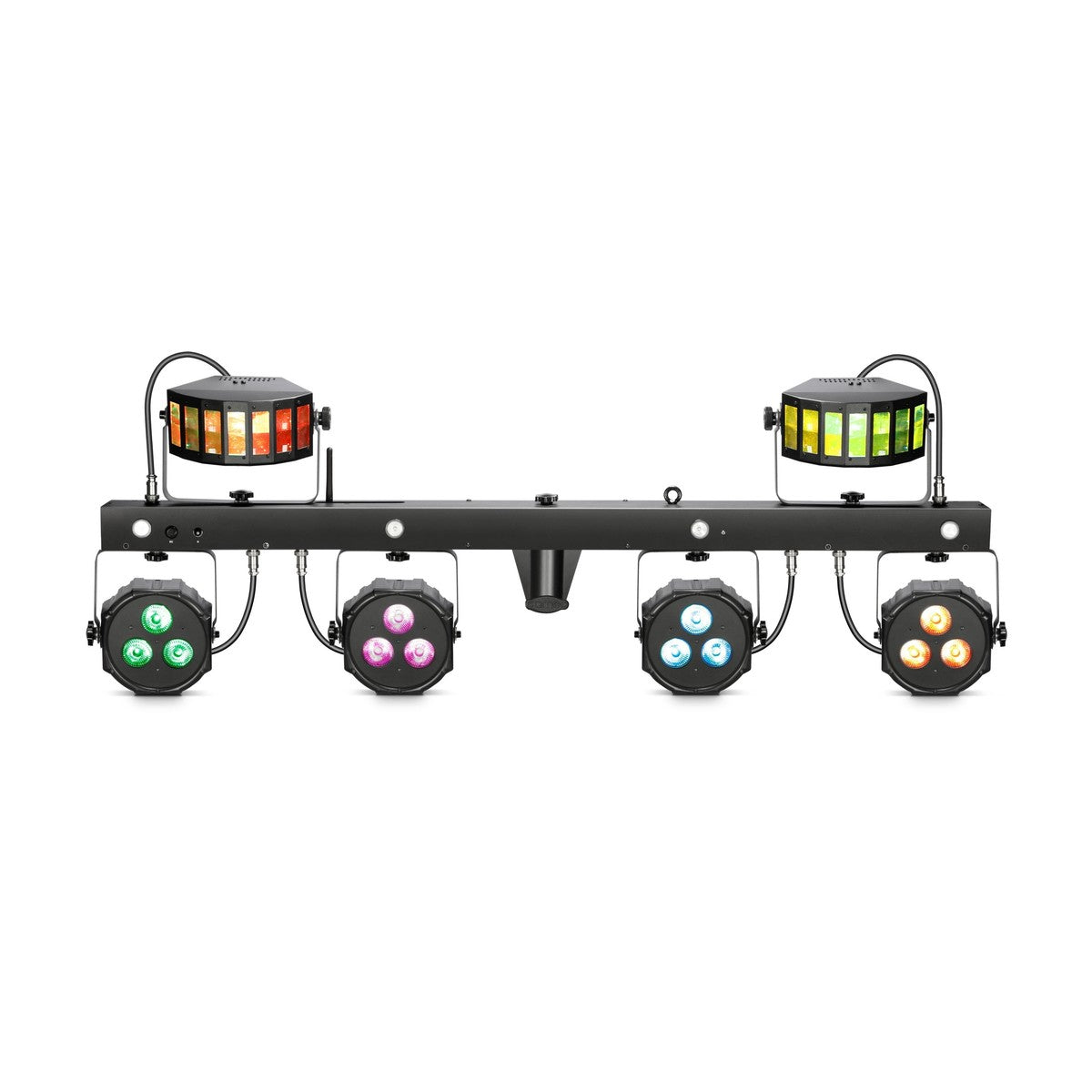

Featuring 3 amazing pre-mounted fixtures, the Cameo Multi FX Bar EZ is the favourable all-in-one solution for mobile DJs, entertainers and bands to spice up their performance with terrific lighting. Producing colourful illumination, magnificent rotating beams and stunning slow-motion effects, the system sports a quartet of PAR spot lights, two LED Derby lights and four strobe LEDs that are built into the bar.
With the integrated pole mount, set-up is quick and straightforward instant use. The Multi FX Bar EZ provides a variety of control options via seven DMX modes, the 4-button menu display and wireless footswitch or handheld infrared remote which are both included with the lighting system. The 7-channel DMX mode allows you to quickly create your own chases. A selection of fantastic built-in programs for automatic operation and sound activation produces mesmerizing light shows combining all three effects or using the spot lights only.
The Cameo Multi FX Bar EZ comes with a rugged transport bag for convenient transport and allows easy daisy-chaining to create larger lighting systems. It also features a mounting provision for an additional fixture.
Main features of the Cameo Multi FX Bar EZ Complete Lighting System include:
Product type | LED Lighting Systems |
Type | 3 in 1 multi FX Bar |
Spot Colour Spectrum | RGBWA + UV |
Number Of Spot LEDs | 3 |
LED Typ LED Spot | 12 W 6in1 |
Colour Spectrum Derby Effect | RGB |
Number of LEDs Derby Effect | 3 single colour |
LED Type Derby Effect | 3 W |
Colour Spectrum Strobe | white |
Number of LEDs Strobe | 4 |
LED Type Strobe | 1 W |

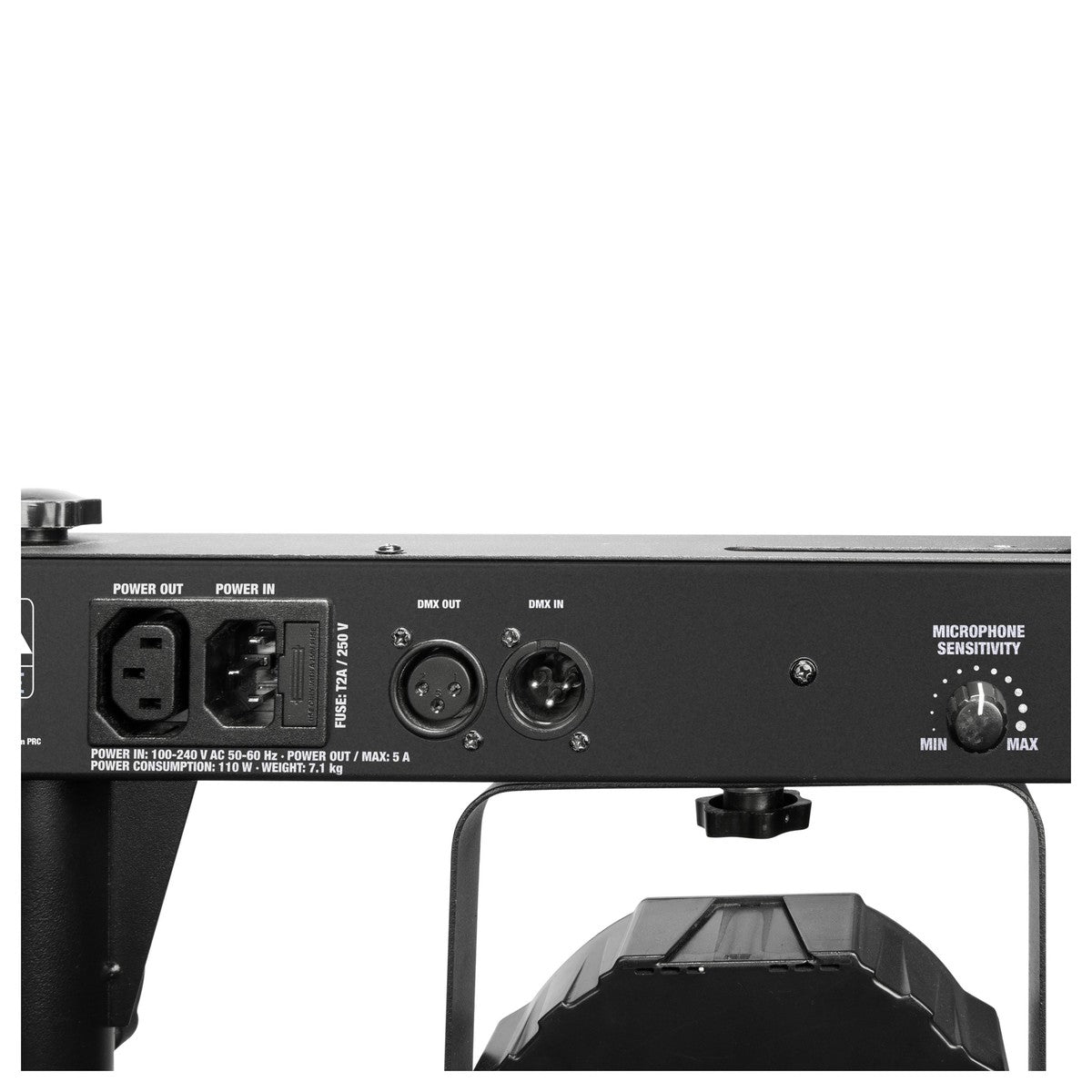

DMX input | XLR 3-pin male |
DMX output | XLR 3-pin female |
DMX mode | 10-channel, 25-channel, 28-channel, 36-channel, 5-Kanal 1, 5-Kanal 2, 7-channel |
DMX Functions | Auto programs, Colour macros, Derby Rotation, Dimmer, Dimmer Chase, Foreground / Background Colour, RGB (for PAR), RGBWA + UV (for PAR), Speed Control, strobe |
Standalone modes | Auto programs, sound programs, Static |
Control | DMX512, IR Remote Control, Wireless footswitch (433MHz) |
Controls | Down, Enter, IR Remote Control, Mode, Up, Wireless Pedal Remote Control (433MHz) |

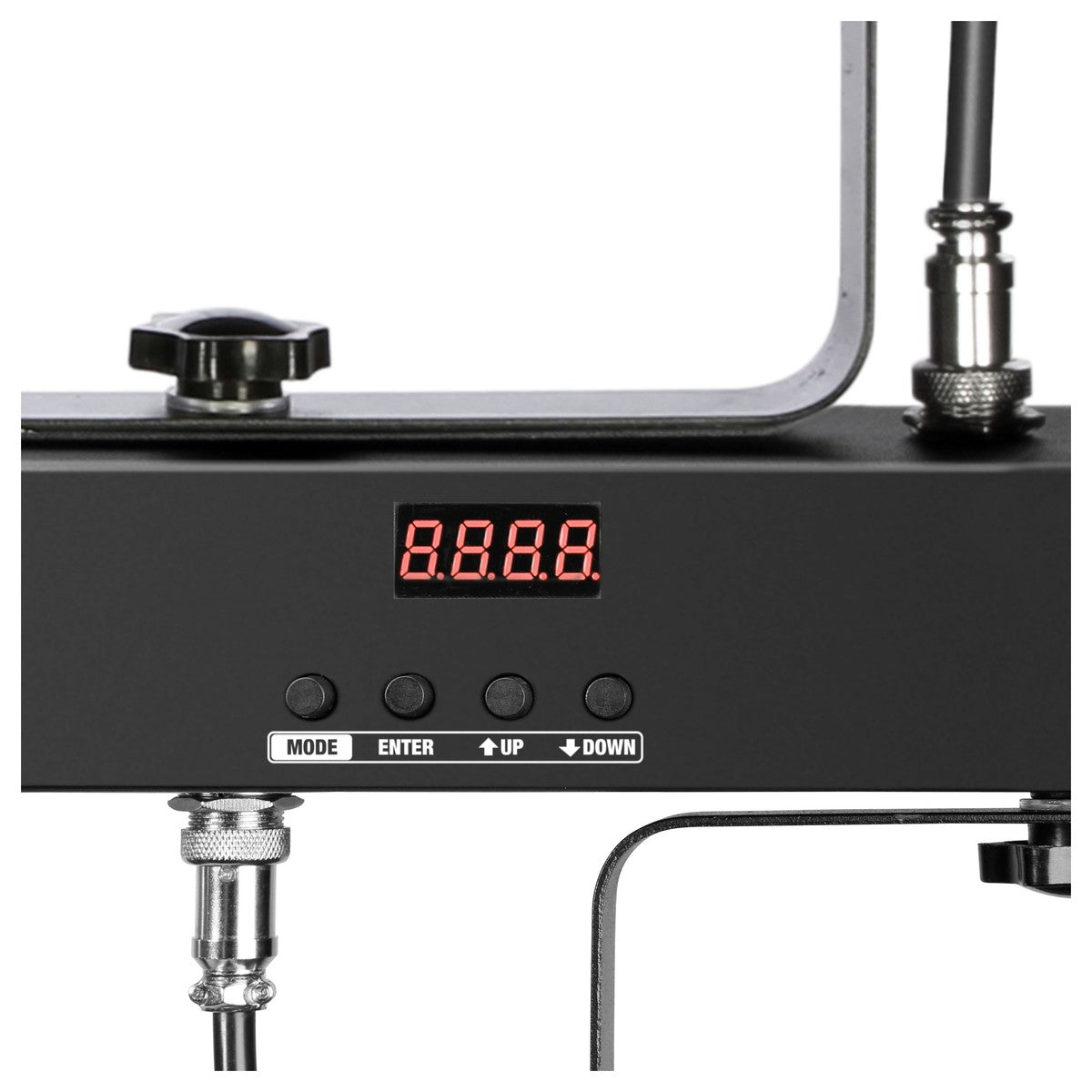

Indicators | 4-digit LED display |
Power connector | IEC power input and output |
Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
Power consumption | 110 W |
Max. output current | 5 A |
Fuse | T2A / 250 V (5 x 20 mm) |
Maximum Ambient Temperature | 10° C - 40° C °C |
Relative Humidity | < 85 %, not condensing |
Housing material | Metal / ABS |
Cabinet colour | Black |
Dimensions (W x H x D) | 1149 x 414 x 80 mm |
Weight | 6,6 kg |
Features | adjustable mounting bracket included, IR Remote Control, safety eyelet, Softcase, Stand mount 35 mm, Wireless footswitch (433MHz) |
- All-in-one lighting system
- 3 intense effects including 4 brilliant LED spot lights, 2 rotating LED derbies and 4 strobe LEDs
- Pre-mounted to a bar with pole insert for instant set-up and use

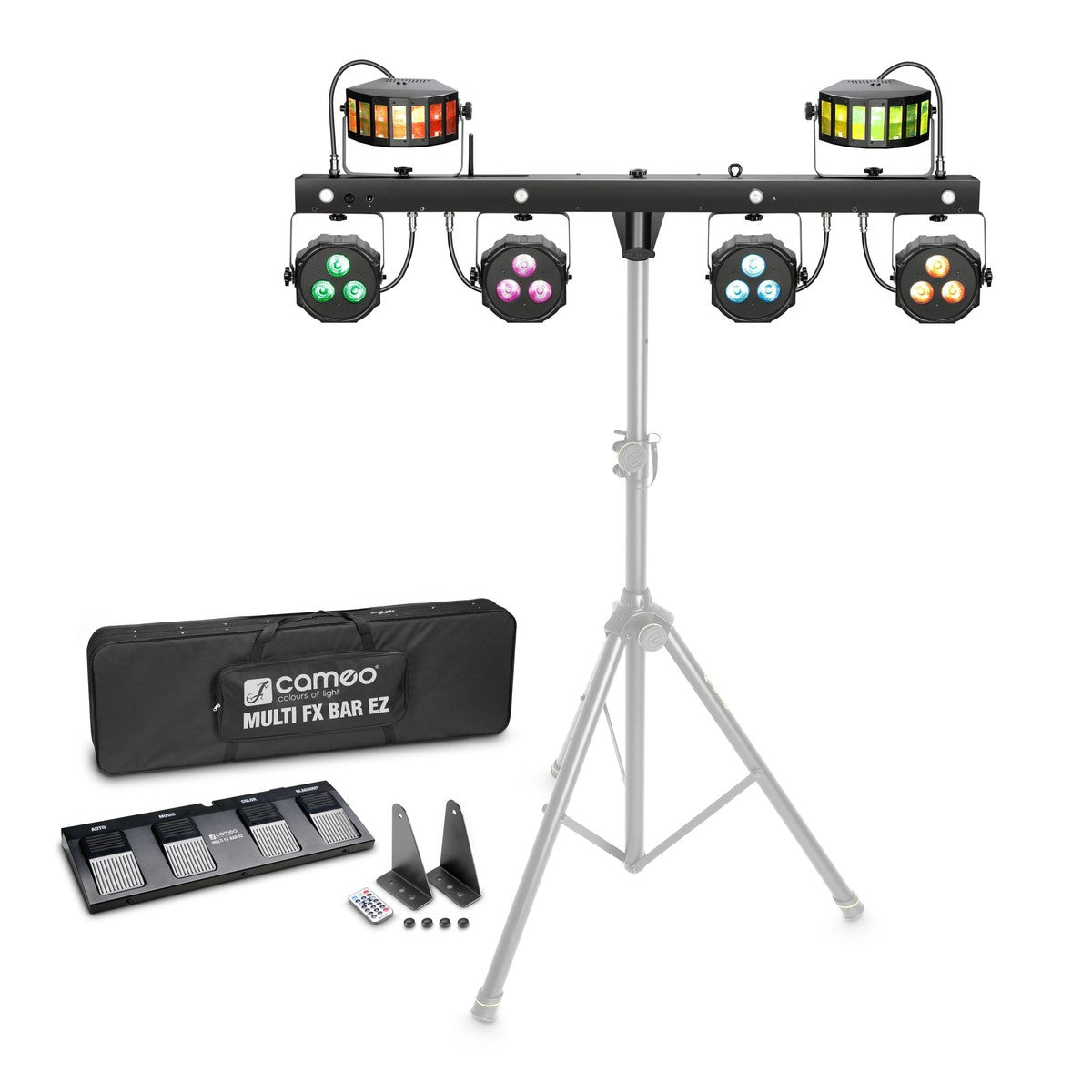

- Includes a convenient transport bag, wireless footswitch, infrared remote control and truss mounting brackets
- Built-in programs for mesmerizing light shows
- Multiple control options including DMX, infrared remote or wireless footswitch plus automatic operation and sound activation
- Innovative auto program control with foreground and background colours and pattern selection
- 7-ch DMX mode for quick chase creation
- All effects usable individually, e.g. spot lights only, and in combinations
