Chauvet

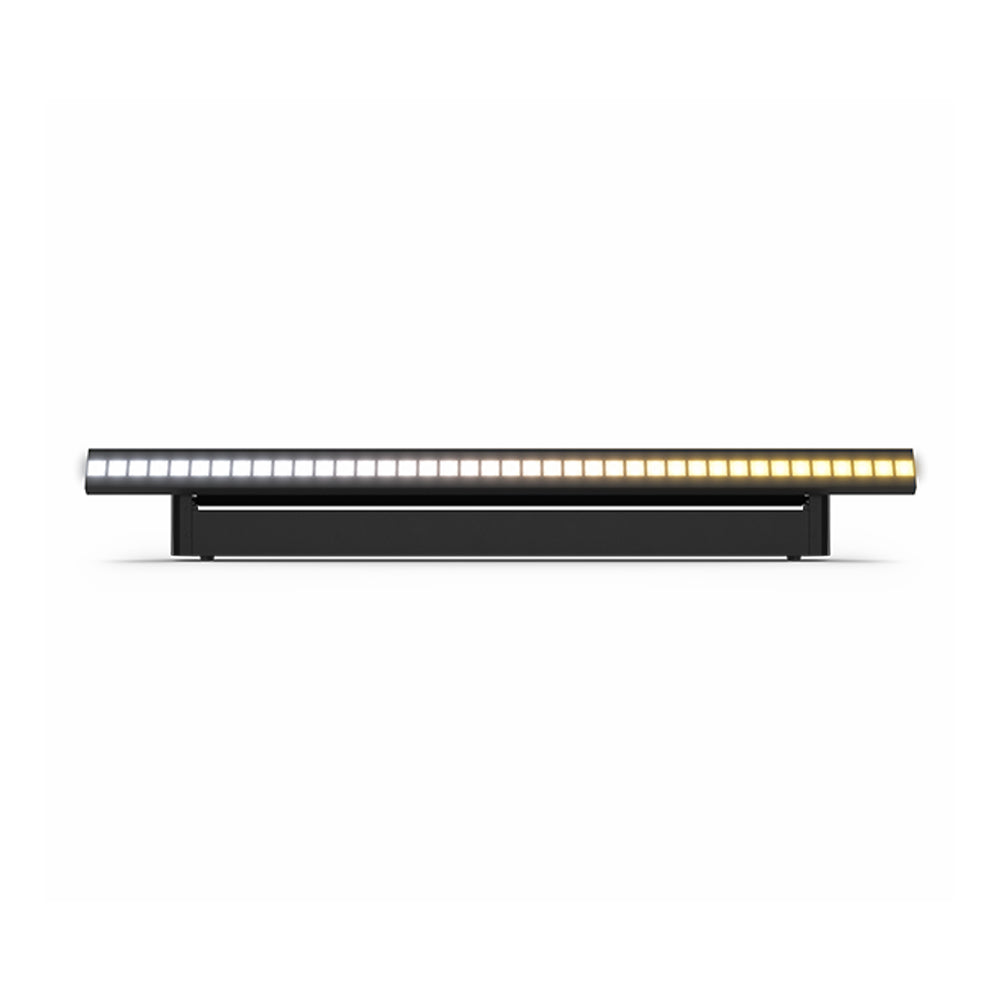

Chauvet DJ COLORBAND SPECTRA ILS
The Chauvet DJ COLORband Spectra ILS is a low-profile, motorised LED strip light that blends seamlessly into event spaces – that is until it comes alive with dynamic sweeping effects, pixel animation, bright blinder bursts and rich colour washes. Designed for DJs, venues, and lighting pros seeking expressive visual impact, this fixture combines elegant colour mixing with precision motion and multiple control options, all within the Chauvet DJ ILS (Instant Light Shows) ecosystem.
Whether your setup is a wedding, club night, corporate event or rooftop party, this ILS-enabled strip light elevates atmosphere with creative, programmable visuals that are easy to sync with other parts of your lighting rig.
The main features of the Chauvet DJ Colorband Spectra ILS include:
- Dynamic Motorised Effects – Integrated motors tilt the light up to 180° for sweeping beams and eye-catching movement.
- Multi-Role Fixture – Functions as a pixel mapping effect, blinder, or wall-washer to suit diverse lighting needs.
- Individual Pixel Control – 40 mappable quad-colour LEDs (RGB + Warm White) let you create custom animations and effects.
- Flexible Control Options – Works with DMX, ILS, RF, and Master/Slave modes; supports optional D-Fi USB for wireless control and networking.
- Robust Connectivity – Onboard 3- and 5-pin DMX connectors plus powerCON® input/output for easy power linking.
- Seamless ILS Integration – Syncs shows effortlessly across compatible CHAUVET DJ ILS fixtures for coordinated, professional-looking light shows.
- Compact, Transport-Friendly Design – Slim profile fits into tight spaces and packs neatly in the CHS-60 VIP Gear Bag.
- DMX Channels: 6, 11, 17, 19 or 164
- DMX Connectors: 3- and 5-pin XLR
- Pan and Tilt: 180°
- Light Source: 40 LEDs (quad-colour RGB+WW), 0.7A, 50,000 hours life expectancy.
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 15°
- Field Angle: 26°
- Illuminance: 3,872 lux @ 2 m
- Lumens: 1,938
- Power Linking: 16 units @230 V
- Input Voltage: 240 VAC, 50Hz (auto-ranging)
- Power and Current: 72 W, 0.8 A @ 230 V, 50 Hz
- Weight: 4.6 kg
- Size: 1000 x 60 x 142 mm
- Approvals: CE, ROHS
- Colour Temperature Range: 3,000K-14,000K
- Optional Controllers: RFC, RFC-XL, ILS Command
- Moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder, or wall-washer
- Built-in motors ensure the light can be angled anywhere
- Create eye-catching animations and effects with individual pixel control
- Multiple control options such as DMX, ILS, RF, or master/slave for complete flexibility
- D-Fi USB compatibility for wireless master/slave or DMX control
