Chauvet

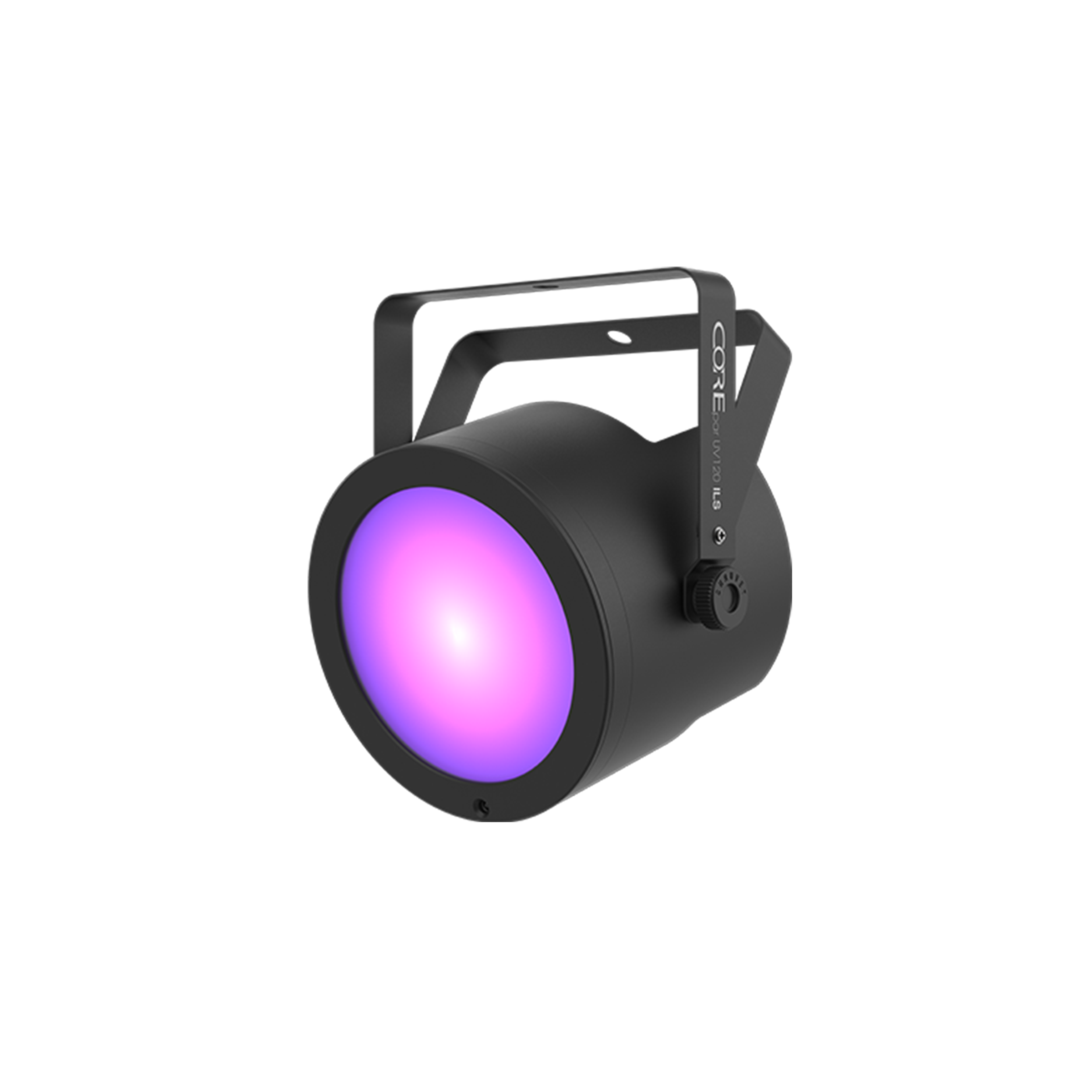

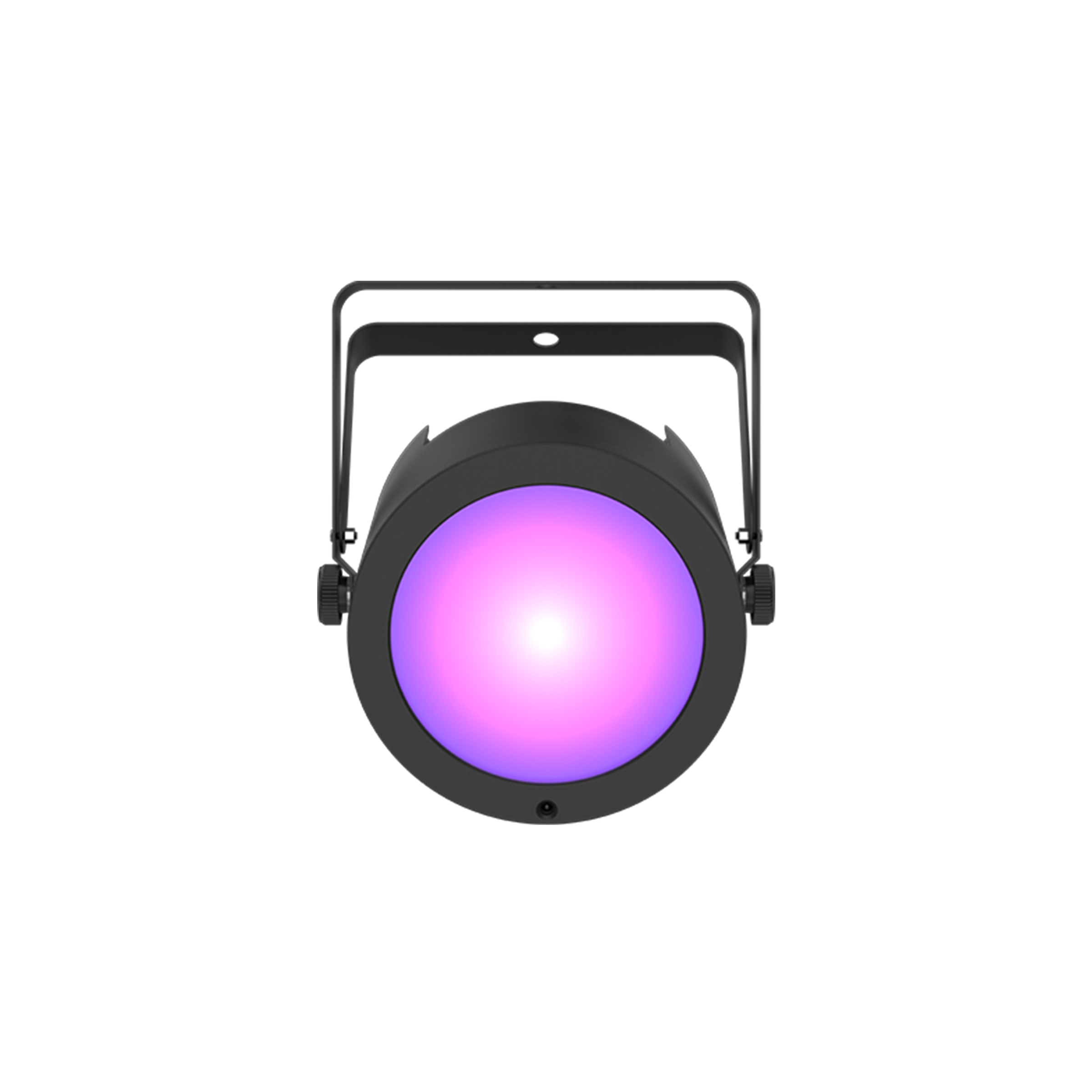

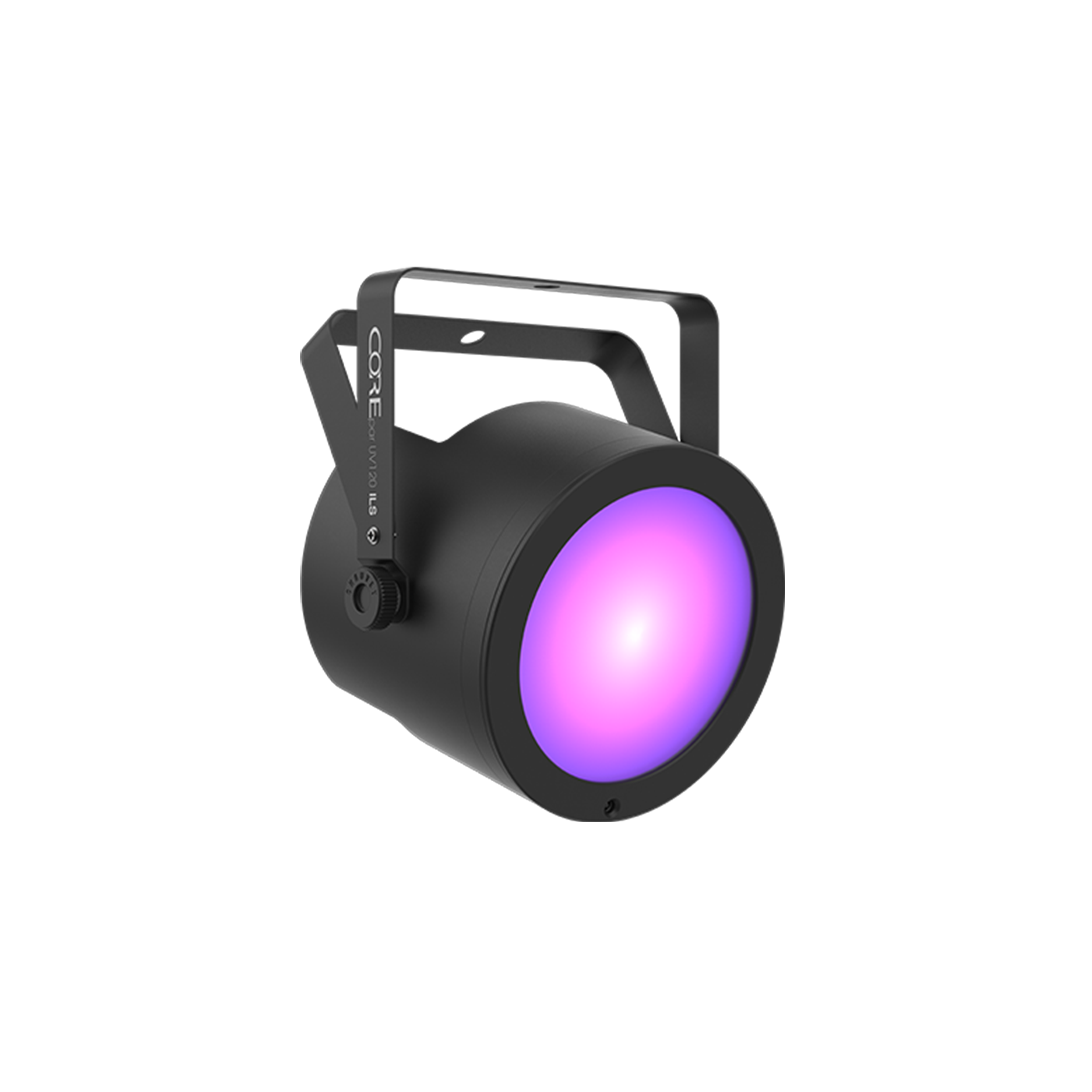

Chauvet COREpar UV 120 ILS Blacklight Wash Flood
Chauvet COREpar UV 120 ILS is a compact ultra-wide 120-watt UV wash with COB (Chip-on-Board) technology. Also on board is ILS compatibility which makes creating coordinated light shows across different fixture types easy. COREpar UV 120 ILS also has D-Fi USB compatibility for wireless Master/Slave or DMX control and high-frequency LED dimming lets you achieve flicker-free video operation. The included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds. Its sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit for easy connections. COREpar UV 120 ILS has a robust housing to withstand the harshness of traveling from gig to gig.
- Main features of the Chauvet COREpar UV 120 ILS Blacklight Wash Flood include:
- Compact ultra-wide UV wash with COB (Chip-on-Board) technology
- ILS compatibility for use in the ILS ecosystem
- D-Fi USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)
- Included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds
- Withstand the harshness of traveling from gig to gig with a robust housing

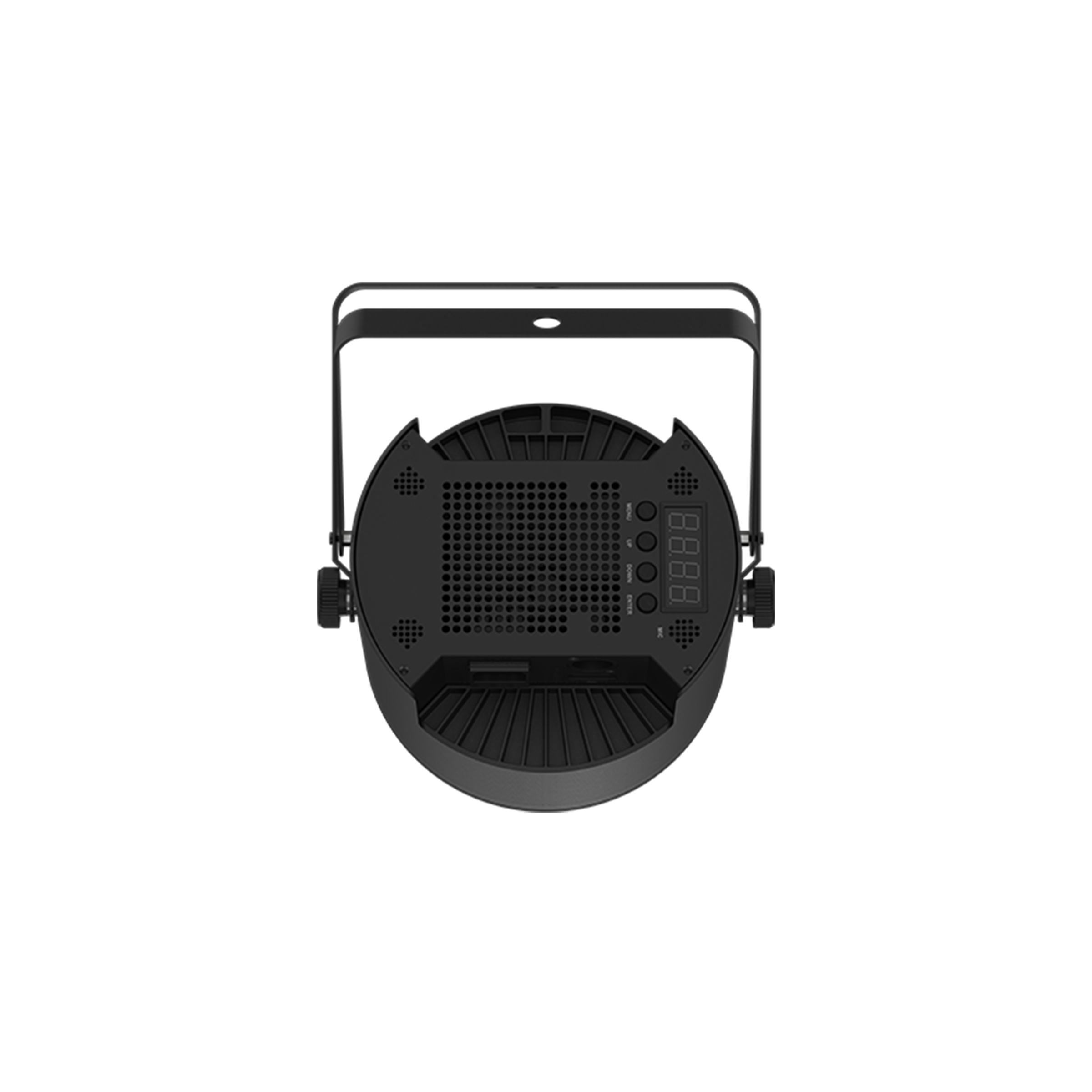

- Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
- Achieve flicker-free video operation with high-frequency LED dimming
- Save time running cables and extension cords by power linking multiple units
- Point-and-shoot operation of sound-activated and automated programs with the optional IRC-6 remote
- Fits best in the CHS-40 VIP Gear Bag
- WHAT'S INCLUDED
- Fixture
- Power cord
- Magnetic Lens
- Quick Referencev Guide
- DMX Channels: 1 or 5
- DMX Connectors: 3-pin XLR
- Light Source: 1 COB LED (UV) — 120 W (3.34 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Beam Angle:
- with lens: 21°
- without lens: 44°
- Field Angle:
- with lens: 34°
- without lens: 94°
- Power Linking: 5 units @ 120 V; 9 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
- 119 W, 1.5 A @ 120 V, 60 Hz
- 118 W, 0.9 A @ 230 V, 50 Hz
- Weight: 4.6 lb (2.1 kg)
- Size: 8.9 x 7.4 x 9 in (225 x 185 x 228 mm)
- Approvals: CE, RoHS, UKCA
- Optional Controllers: IRC-6, D-Fi USB
- Wavelength: 390 to 400 nm
