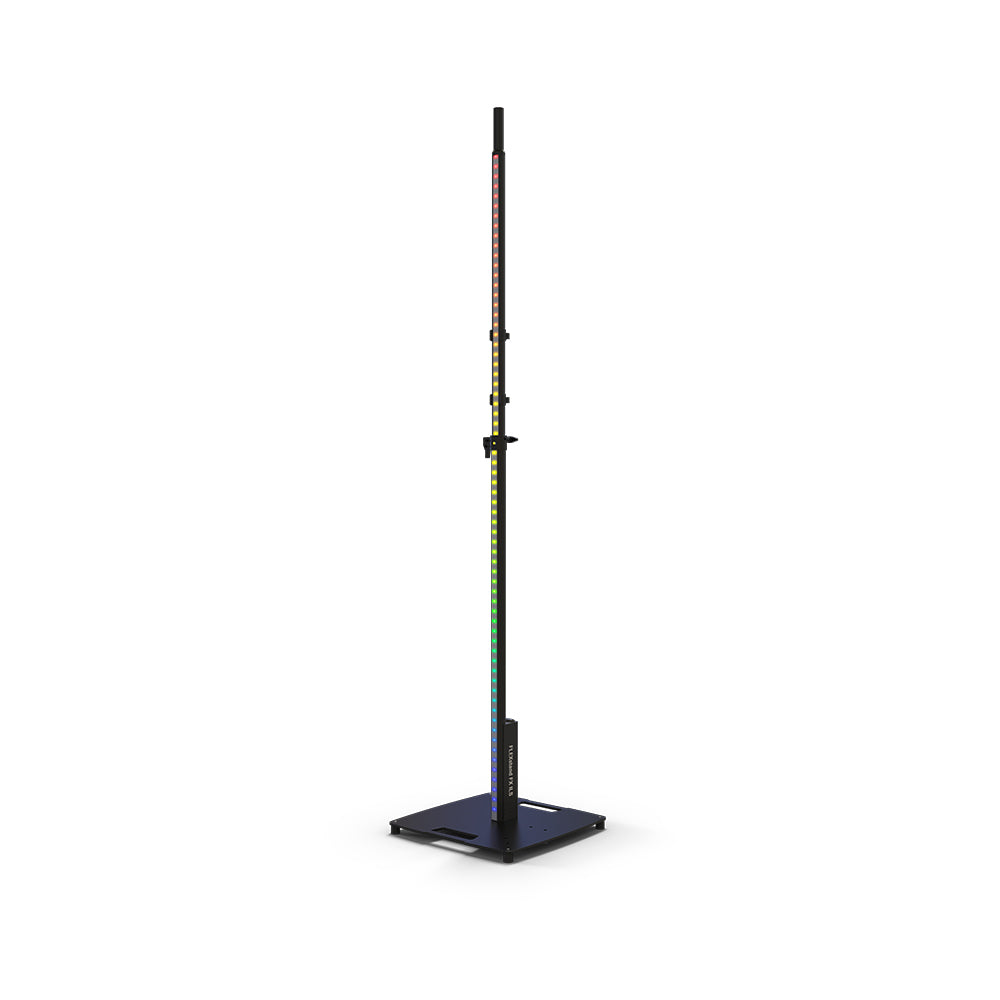

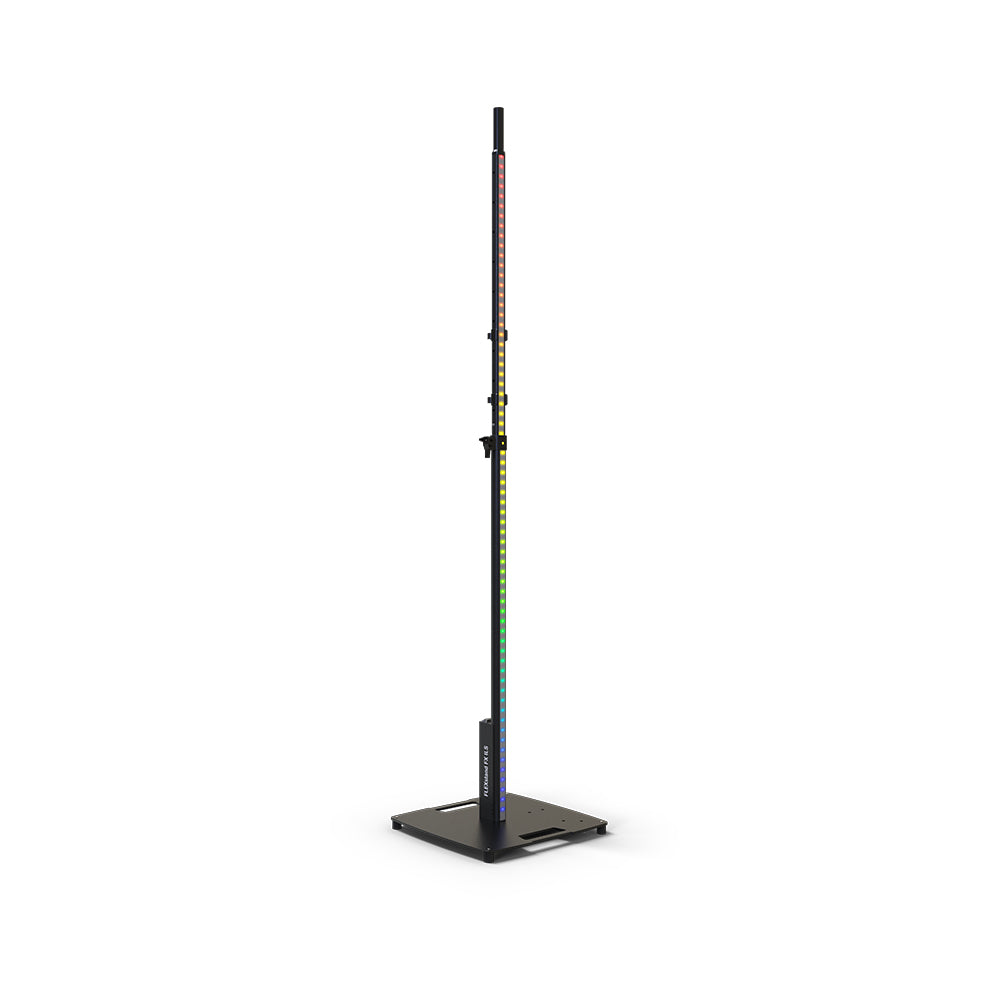

Chauvet DJ FLEXSTAND FX ILS
The Chauvet DJ FLEXstand FX ILS is a unique all-in-one solution for mobile DJs, event professionals, and venues who want professional support hardware with built-in lighting effects. Combining a heavy-duty telescoping stand with an integrated LED lighting column, it reduces setup time, cabling, and the need for additional fixtures - while still delivering an impactful visual presence.
Designed to work seamlessly as part of the Chauvet DJ ILS (Instant Light Shows) ecosystem, the FLEXstand FX ILS offers simple synchronisation across compatible fixtures, along with RF remote and full DMX control for more advanced setups.
The main features of the Chauvet DJ FLEXstand FX ILS include:
- Multi-Purpose Stand + Light Show: A heavy-duty stand that safely supports lighting and audio gear while delivering built-in lighting effects straight from the column.
- Integrated LED Engine: 68 quad-colour RGB+Warm-White LEDs with auto programs that resize to your chosen height, creating balanced visuals at any setup.
- Fast, Tool-less Setup: Telescoping pole and trigger-style safety release make raising and lowering the stand quick and secure - no tools needed.
- Flexible Control: Works with Chauvet ILS ecosystem, built-in RF receiver (compatible with RFC/RFC-XL remotes), and DMX control over 3-pin XLR for synced show control.
- Professional-Grade Build: Sturdy cast-iron base with rubber feet protects floors and keeps your rig stable, even under load.
- Multiple Mounting Options: Adaptable pole diameters and threaded inserts support clamps and taper to a speaker mount - ideal for hybrid audio/light setups.
- DMX Channels: 4, 15, 18, 34, 66, or 94
- DMX Connectors: 3-pin XLR
- Light Source: 68 LEDs (quad-color RGB+WW) 0.8W, 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Operating Frequency: 2.412 to 2.48 GHz
- Power Linking: 47 units @ 230 V
- Input Voltage: 240 V, 50Hz (auto-ranging)
- Approvals: CE, FCC
- Load Capacity: 60 kg
- Cable Length: 1.52 m
- Power and Current: 15 W, 0.2 A @ 230 V, 50 Hz
- Weight (pole): 3.7 kg
- Weight (base): 16 kg
- Weight (combined): 19.7 kg
- Threaded inserts (bottom): M10-1.0 TPI
- Threaded insert (top): M10-1.5 TPI
- Pole Height: 1.5 to 2.4 m
- Pole Diameter: (Top): 34 mm (Middle) 44 mm (Bottom) 50mm
- Multi-purpose, telescoping stand safely supports lighting and audio gear
- Built-in LED strip adds pizazz and eye-candy effects to mobile entertainment setups
- Auto programs can be resized to fit the chosen height of the stand
- Built-in RF receiver and compatible with the RFC and RFC-XL remotes (sold separately)
- Compatible with the ILS ecosystem (DFI-USB sold separately)
