Chauvet DJ FXPar 6

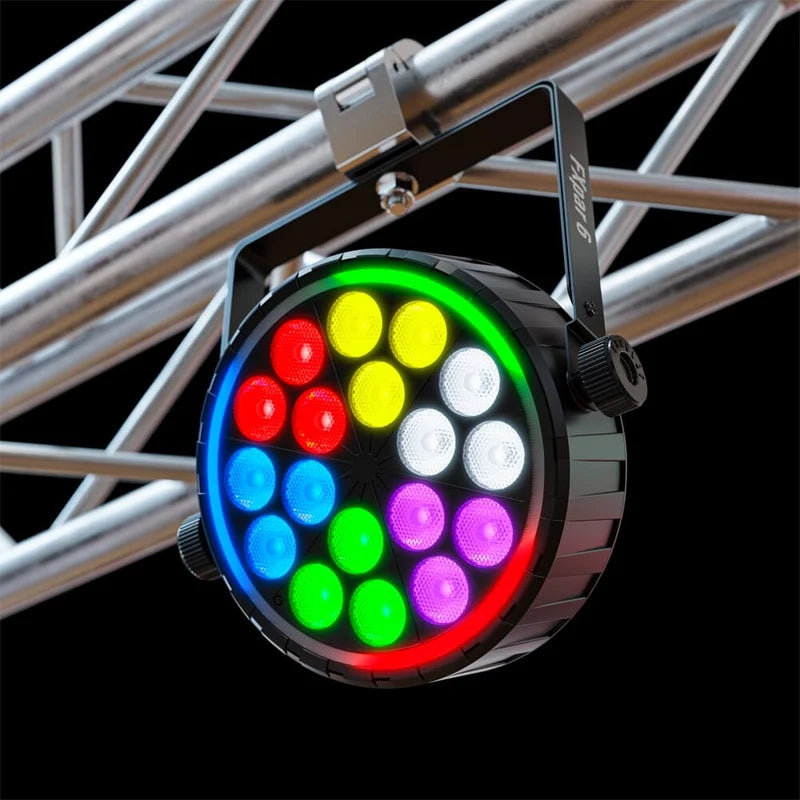

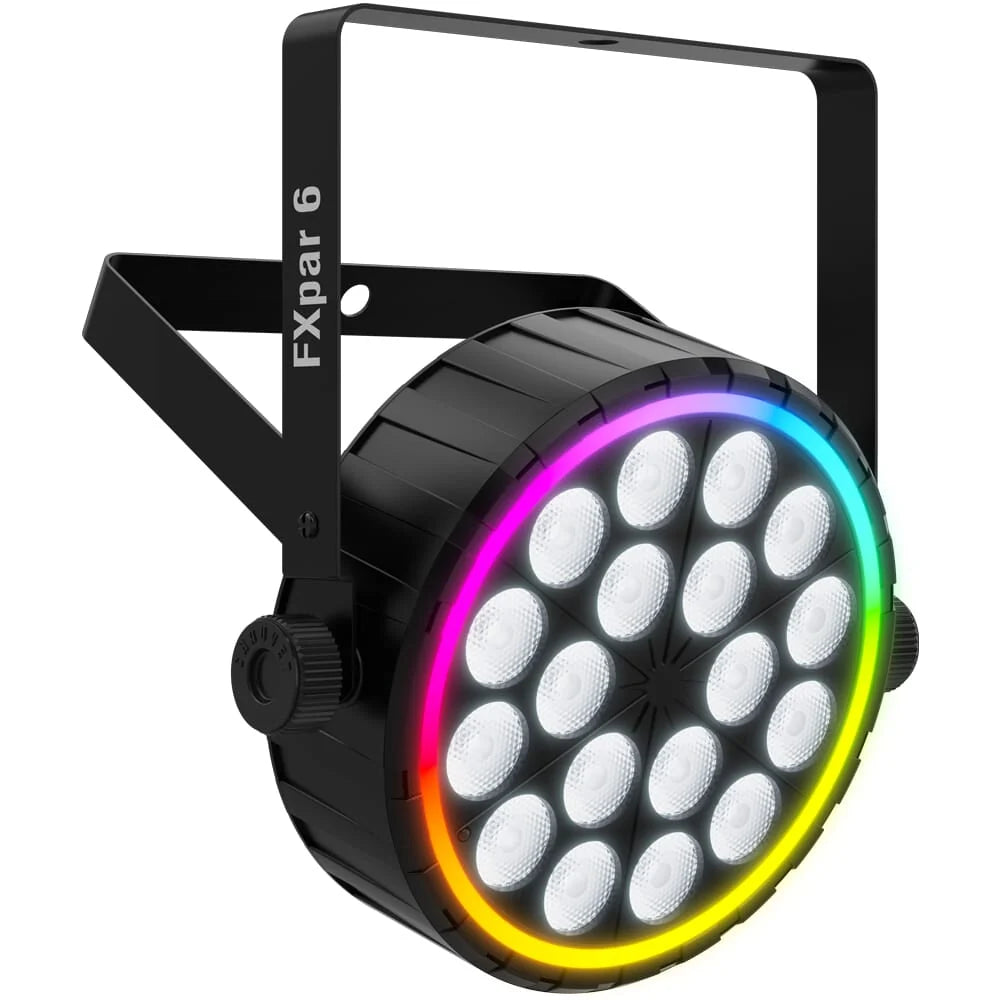

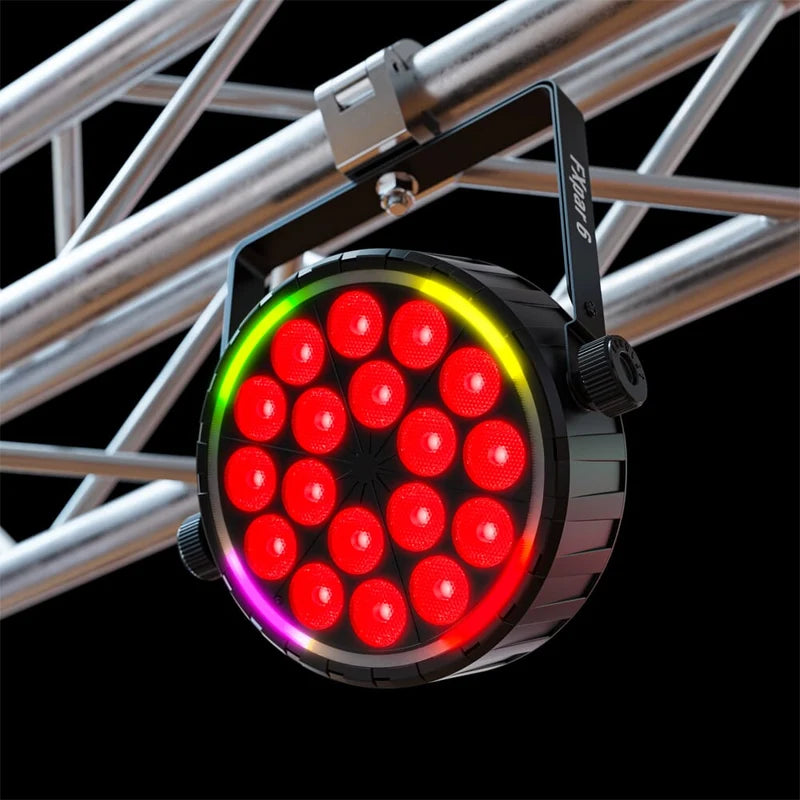

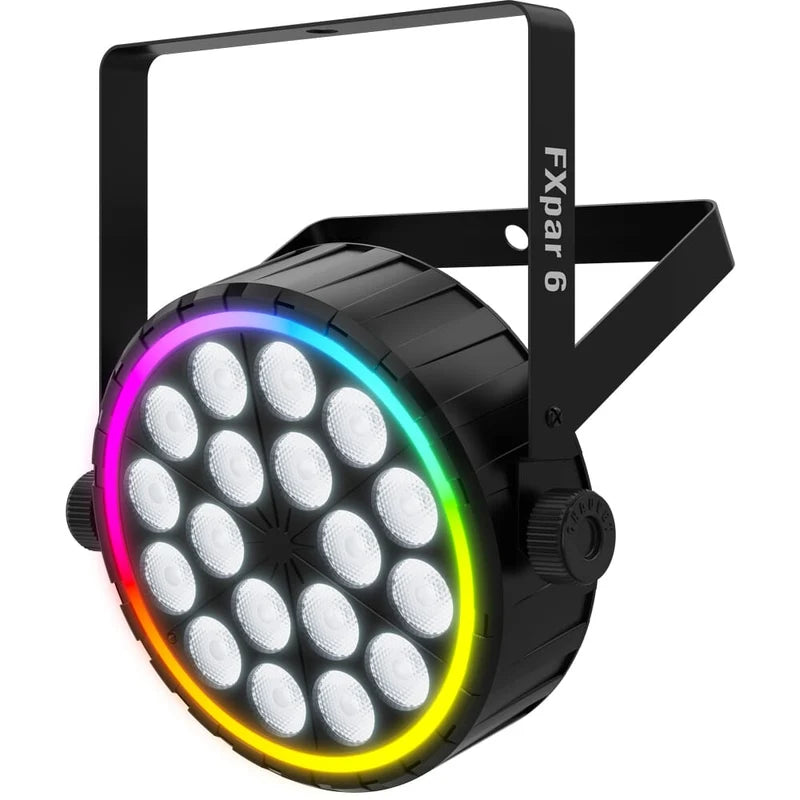

The Chauvet DJ FXpar 6 is a compact multi-effect LED par designed to deliver dynamic, eye-catching lighting for DJs, events, and stage setups. Featuring RGBW wash LEDs combined with an RGB outer ring and independent zone control, it offers a wide range of creative effects in a single, portable fixture.
Why choose the FXpar 6?
- Multi-effect LED par with RGBW wash and RGB outer ring
- 6-zone control for dynamic and custom lighting effects
- Sound-activated and automated programs for instant shows
- DMX control for full customisation
- Compact and portable design for easy setup

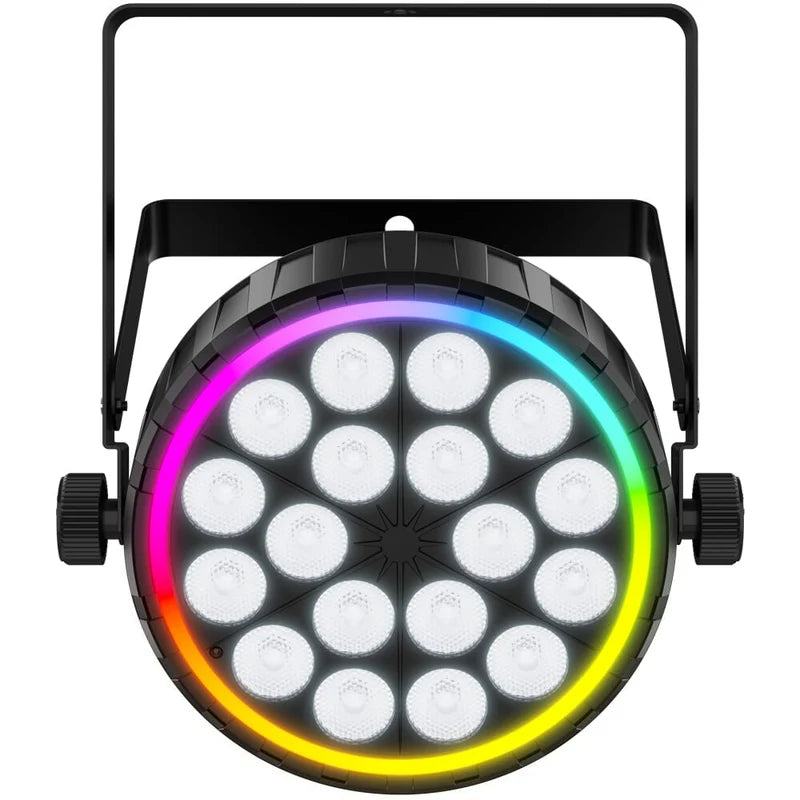

The FXpar 6 combines powerful RGBW wash LEDs with an RGB outer ring, allowing you to create vibrant colour washes alongside animated ring effects. With six independently controlled zones, you can design complex, layered lighting looks that stand out in any environment.
Take full control with DMX for detailed programming, or use built-in automated and sound-activated modes to generate impressive effects instantly. For quick adjustments, the optional IRC-6 remote allows you to easily select colours and programs wirelessly.
Whether you’re lighting a dancefloor, stage, or party space, the FXpar 6 delivers high-impact visuals with minimal setup. Its compact design makes it ideal for mobile DJs, event setups, and small venues.

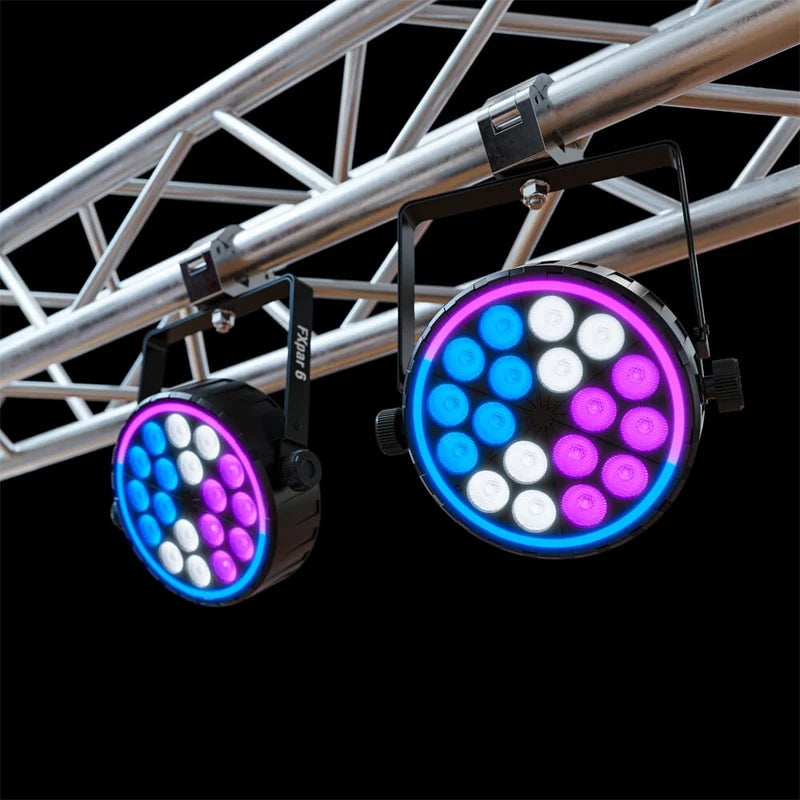

Power linking allows you to connect multiple units together, reducing cable runs and speeding up setup. Flicker-free operation ensures reliable performance for video applications, making it suitable for filming and live streaming.
Lightweight and easy to transport, the FXpar 6 fits neatly into the CHS-40 VIP Gear Bag, making it a practical choice for DJs and event professionals on the move.
Ideal for
- Mobile DJs and event lighting
- Parties and dancefloors
- Stage and performance lighting
- Video and streaming setups
DMX Channels
- 3
- 6
- 11

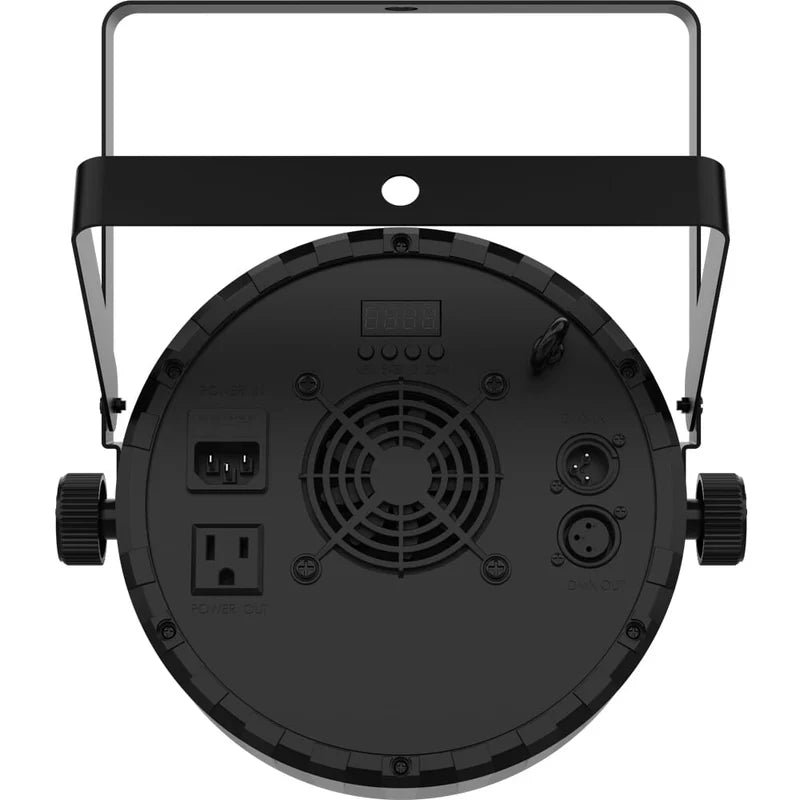

DMX Connectors
- 3-pin XLR
Light Source

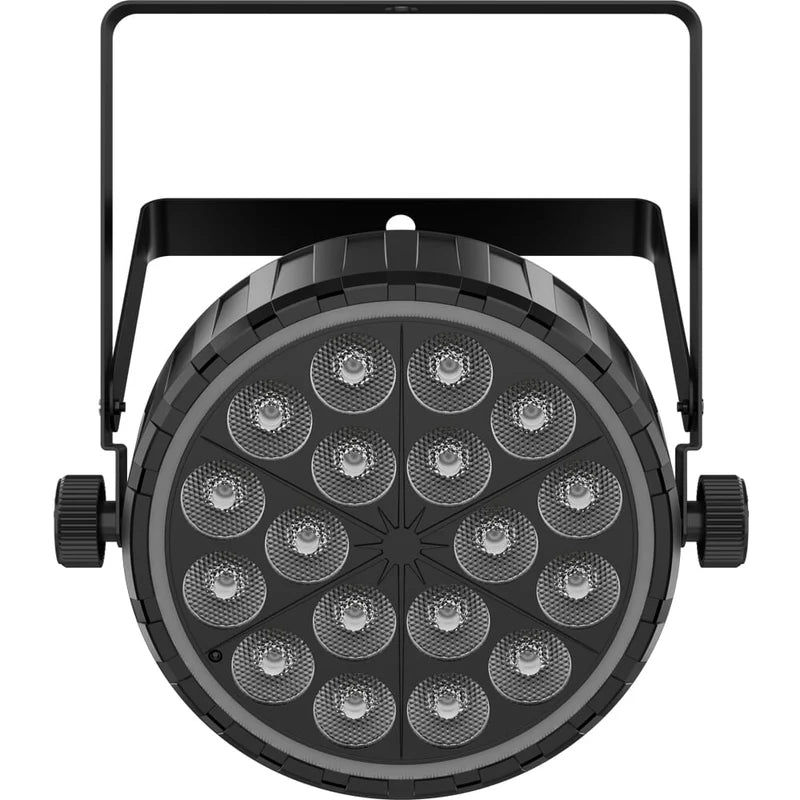

- 18 × RGBW LEDs (52 W, 50,000 hours)
Light Source (Ring)
- 51 × RGB LEDs (6 W, 50,000 hours)
Beam Angle
- 20°
Field Angle
- 36°
Illuminance
- 5,657 lux @ 2 m
Lumens
- 3,239
Strobe Rate
- 0–20 Hz
Power Linking
- 8 units @ 120 V
- 12 units @ 230 V
Input Voltage
- 100–240 V AC, 50/60 Hz
Power Consumption
- 63 W (120 V)
- 62 W (230 V)
Dimensions
- 275 × 69 × 305 mm
Weight
- 1.3 kg
Mounting
- Bracket mounting hole: 13 mm
Approvals
- CE
- RoHS
Optional Controllers
- IRC-6
- Compact effect par combining multiple lighting technologies in one fixture
- Six-zone RGBW LED wash for detailed, customisable lighting effects
- Independent control of inner wash LEDs and outer RGB ring
- Dynamic sound-activated programs for automatic light shows
- Built-in automated programs for quick setup and performance
- DMX control for full custom programming and integration
- Compatible with optional IRC-6 remote for wireless control
- Static colour selection and preset effects via remote or onboard control
- Power linking capability to reduce cable runs and setup time
- Flicker-free operation suitable for video and camera use
- Designed to fit in CHS-40 VIP Gear Bag for easy transport
