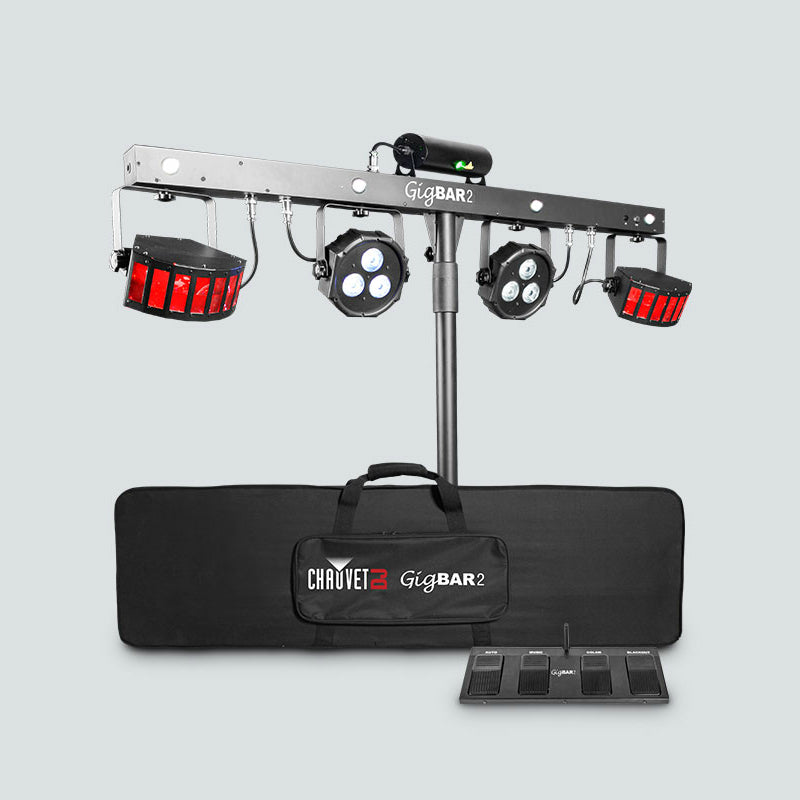

CHAUVET GigBAR 2 Multi-Effect Lighting Bar
Quantity:
GigBAR 2 adds to the original ultimate pack and go 4-in-1 light by including UV in its pars and strobes for increased color mixing and effects. GigBAR 2 includes a pair of LED Derby fixtures, LED pars, a laser, and 4 high-power, LED strobe lights all mounted on one bar. 4 individually adjustable and interchangeable heads let you cover any room or stage. GigBAR 2 strobes allow you to create exciting chase and slow-motion effects and the adjustable red and green laser scatters hundreds of bright dots and beams in all the right directions. Phenomenal built in automated and sound-activated programs are on board that include all 4 effects to make one complete show and you can easily control the unit from the display, IRC, wireless foot switch or DMX to take your gig to a higher level. Master/slave multiple units under the control of a single IRC or wireless foot switch and save time running cables and extension cords by power linking multiple units. GigBAR 2 is ready for every application using the included mounting brackets to attach to truss. Get in and get out quickly with the included tripod, wireless footswitch and FREE carry bags.
- DMX Channels: 3, 11 or 23
- DMX Connectors: 3-pin XLR
- Light Source: (pars): 6 LEDs (Quad-color RGB+UV) 3.5 W (1.1 A), 50,000 hours life expectancy
(strobe): 4 LEDs (white & UV) 1.8 W (600 mA), 50,000 hours life expectancy
(Derby): 6 LEDs (2 red, 2 green, 2 blue) 6 W (1.7 A), 50,000 hours life expectancy
650nm/100 mW (red) laser diode, 532nm/30 mW (green) laser diode - Strobe Rate: (strobe): 0 to 18 Hz
- Beam Angle: (pars): 13°
(strobe): 8° - Field Angle: (pars): 24°
(strobe): 18 - Coverage Angle: (laser): 93°
(Derby): 114° - Fits Tripod Size: 37.4 mm
- Illuminance: (pars): 1,205 lux @ 2 m (per head)
(strobe): 86 lux @ 2 m (per zone) - Power Linking: 8 units @ 120 V; 15 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 68 W, 1 A @ 120 V, 60 Hz
64 W, 0.5 A @ 230 V, 50 Hz - Weight: 6.6 kg
- Size: 1185 x 110 x 386.5 mm
- Approvals: CE, FDA, FCC
- Stand Height: 1.5 to 2.5 m
- Tripod leg width: 1.2 m
- Foot Switch Operating Frequency: 433 MHz
- Foot Switch Max Unobstructed Distance: 30.5 m
- Optional Controllers: IRC-6
WHAT'S INCLUDED
- GigBAR 2
- Power cord
- IRC-6
- Tripod
- Tripod Carry bag
- Wireless footswitch
- Warranty card
- User Manual
- 4-in-1 light that includes a pair of LED Derby, LED pars, a laser, and strobe effect all mounted on one bar
- Added UV in pars and strobes for increased color mixing and effects
- Cover any room or stage with 4 individually adjustable and interchangeable heads
- Get in and get out quickly with the included tripod, wireless footswitch and FREE carry bags
- Ready for every application using the included mounting brackets to attach to truss
- 4 high-power, LED strobe lights create exciting chase and slow motion effects
