Chauvet
Chauvet Gigbar 3 Ils

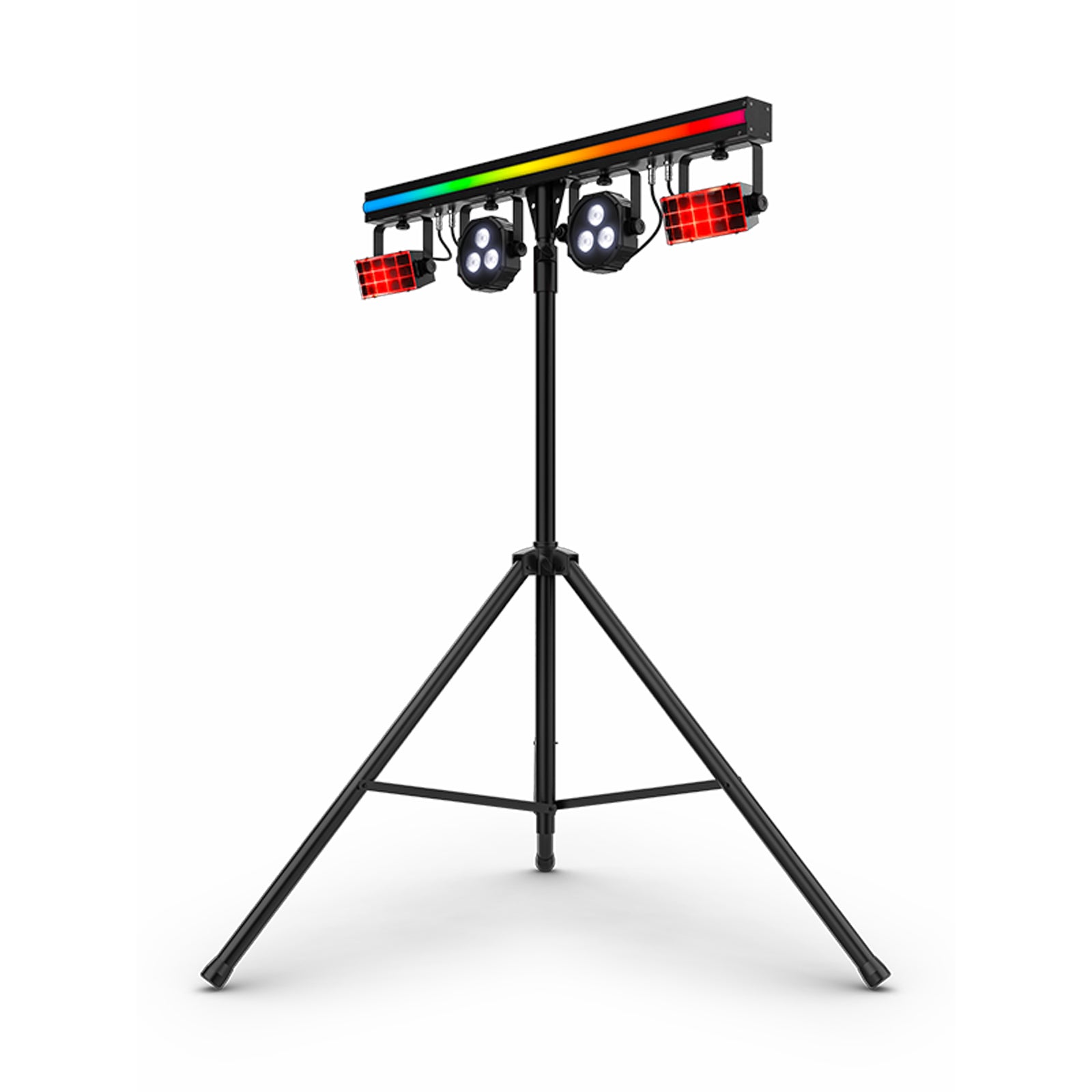

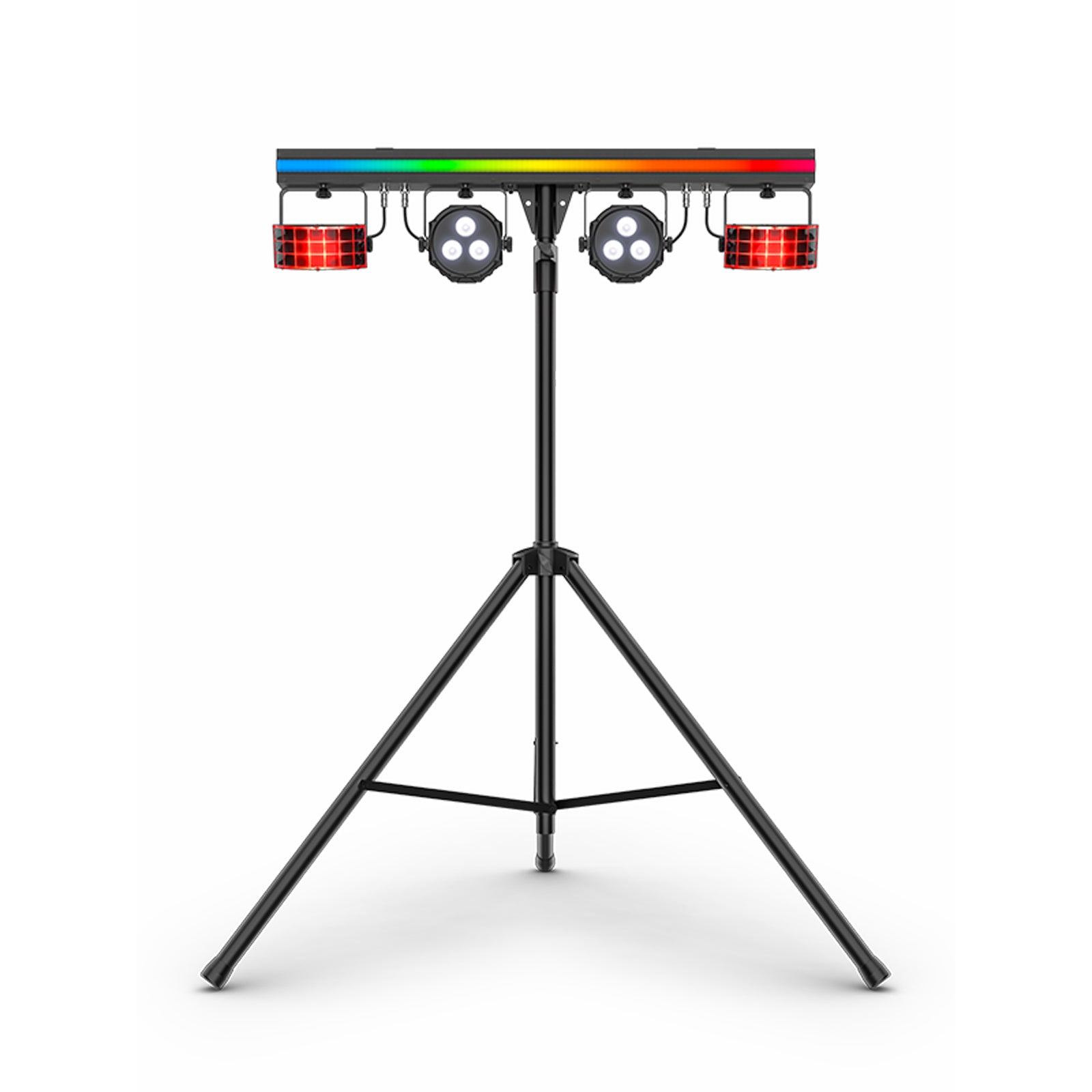

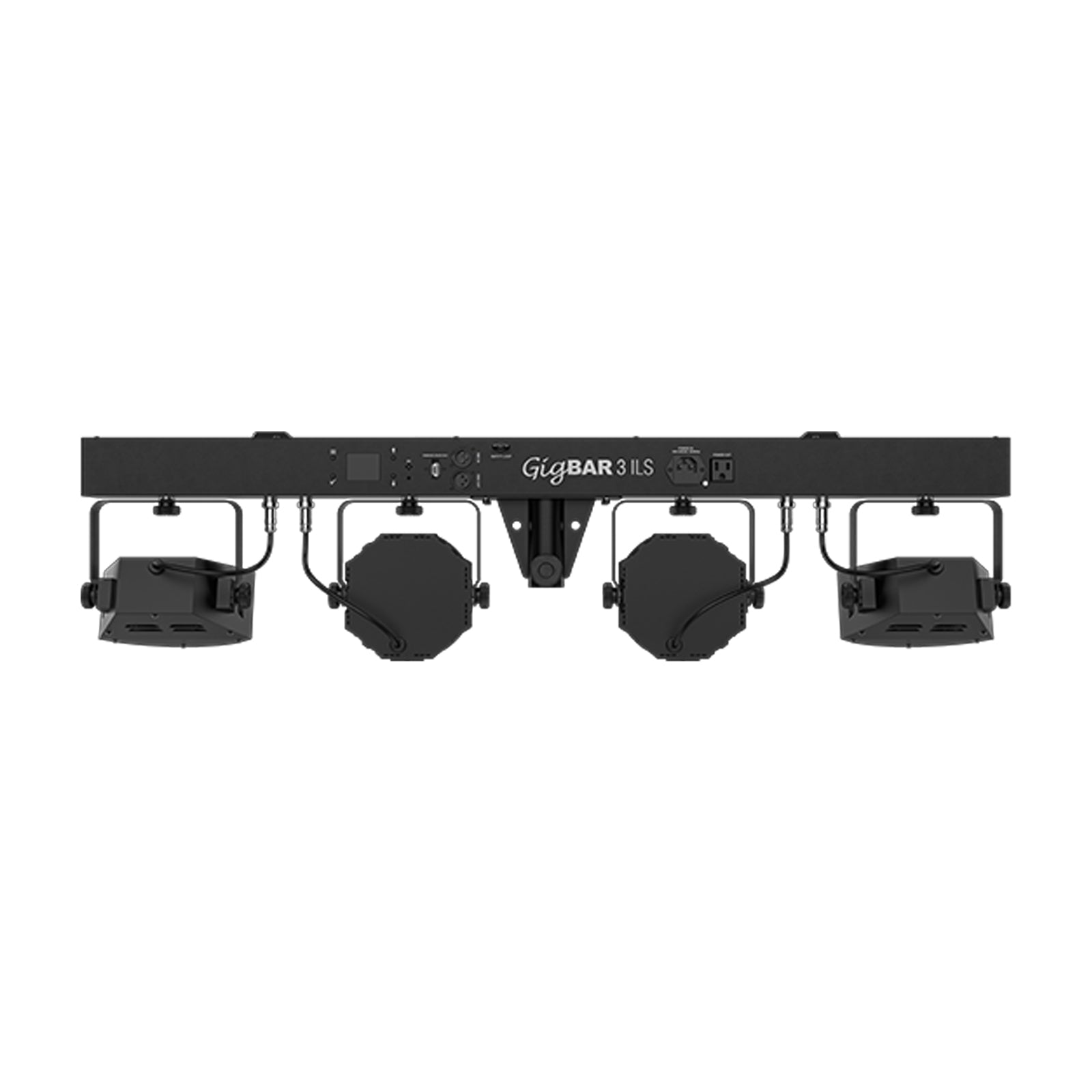

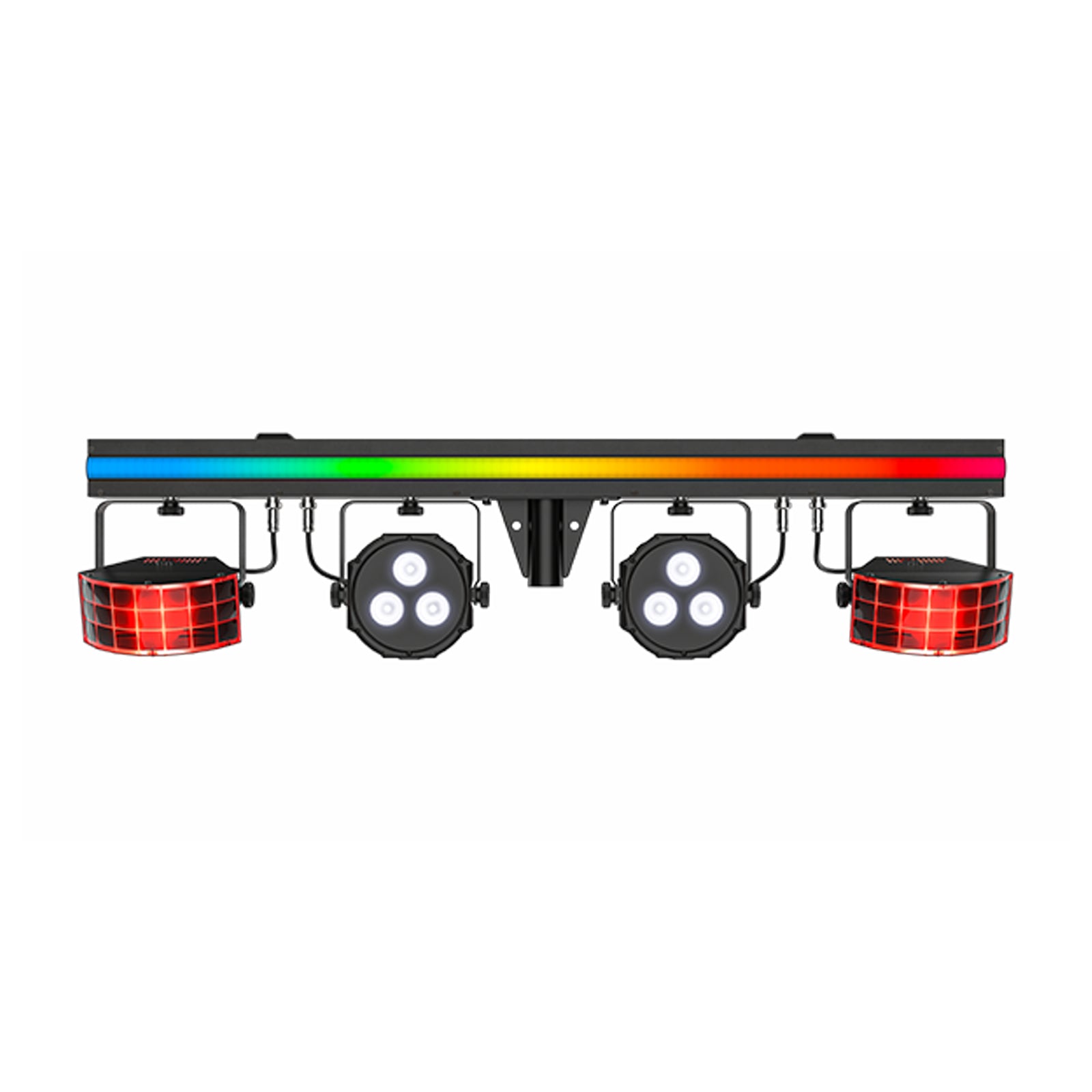

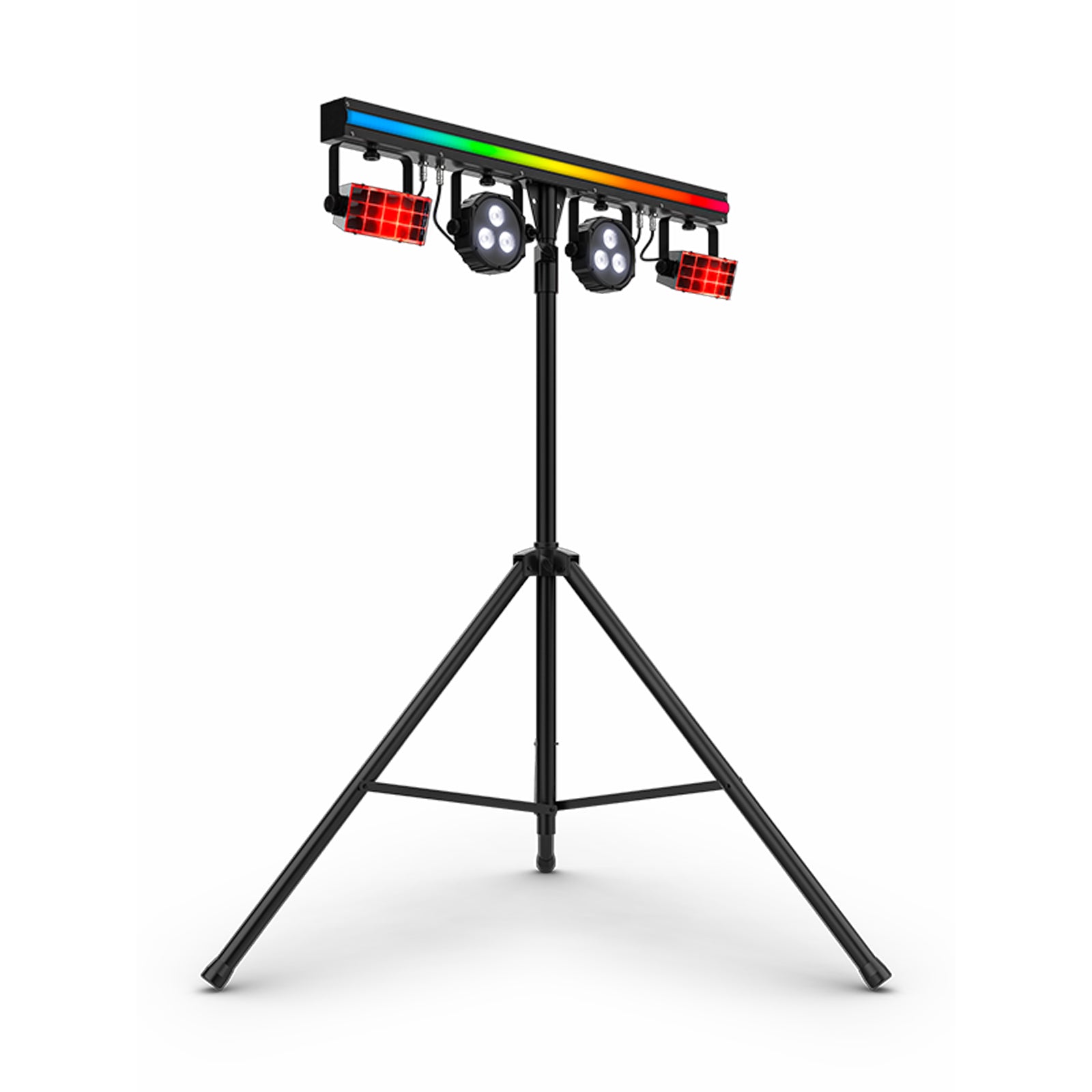

The Chauvet DJ GigBAR 3 ILS is a 3-in-1 mobile DJ lighting system built to get you set up quickly while still delivering a fuller, more coordinated show. With a pair of LED derbies, LED pars and a built-in LED strip all mounted on one bar, plus ILS compatibility, a built-in D-Fi transceiver, an included tripod, wireless footswitch and carry bags, it is a strong fit for mobile DJs who want a faster route to event-ready lighting without piecing together multiple separate fixtures.
A faster way to build a complete mobile DJ light show
The GigBAR 3 ILS is designed for DJs who want more than a single effect light but do not want the time, cabling and complexity that can come with building a rig from separate fixtures. The all-in-one format makes it easier to get in, get set up and get the room covered without overcomplicating the lighting side of the job.
For parties, weddings and private events, that makes it especially useful where setup time is tight, transport space is limited and a neat, self-contained lighting system is easier to manage.
Why the Chauvet DJ GigBAR 3 ILS stands out
Three effects on one bar
The GigBAR 3 ILS combines LED derbies, LED pars and an LED strip on a single bar, giving you multicoloured chasing beams, colour wash coverage and added eye-candy effects from one fixture system. That makes it easier to create a more varied show without carrying separate pars, derby effects and strip lighting.
ILS compatibility for easier wireless show building
ILS compatibility makes it easier to sync the GigBAR 3 ILS with other compatible fixtures in a wider lighting setup. The built-in D-Fi transceiver also supports wireless DMX or ILS communication, helping to reduce cabling and speed up setup for mobile work.
Room to expand when your rig grows
There is also scope to build the system out further, with mounting points for up to 4 additional fixtures on top of the GigBAR 3 ILS. That gives mobile DJs a clearer upgrade path if they want to start with one all-in-one system and add more effects later.
Built for mobile DJ and event use
Designed to get in and out quickly
The included tripod, wireless footswitch and carry bags make the GigBAR 3 ILS especially practical for DJs working regular events. Instead of buying the essentials separately, you get a system that is already geared towards transport, setup and teardown.
Easy control for different types of job
Control is available from the onboard display, the included RF remote, the wireless footswitch or DMX. Built-in automated and sound-activated programs also use all 3 effects together, giving mobile DJs a quicker route to a complete show when full programming is not necessary.
A better fit for buyers looking at mobile DJ lighting
The GigBAR 3 ILS solves several practical problems at once: transport, setup speed, wireless control and show variety. Rather than building a small lighting rig from multiple products, it puts the core effects into one coordinated system that is easier to carry, easier to rig and easier to run.
For event lighting, that makes it a sensible option for DJs who need broad dancefloor coverage, colour wash and visual movement from a single package that still leaves room to expand.
The main features of the Chauvet DJ GigBAR 3 ILS include:
- 3-in-1 light system with a pair of LED derbies, LED pars and an LED strip on one bar
- Built-in LED strip for added eye-candy effects
- ILS compatibility for use within the ILS ecosystem
- Built-in D-Fi transceiver for wireless DMX or ILS communication
- Mounting points for up to 4 additional fixtures
- Reversible tripod bracket for upside down mounting
- Full-colour LCD display for direct access to functions
- Included tripod, wireless footswitch and carry bags
- Built-in automated and sound-activated programs using all 3 effects together
- Control via display, included RF remote, wireless footswitch or DMX
- Power linking for faster cable management
Specifications
| Product | Chauvet DJ GigBAR 3 ILS |
|---|---|
| Product type | 3-in-1 mobile DJ lighting system |
| DMX channels | 2, 21 or 132 |
| DMX connectors | 3-pin XLR |
| Strobe rate | 0 to 20 Hz |
| Operating frequency | 2.412 to 2.484 GHz |
| Power linking | 11 units at 120 V; 18 units at 230 V |
| Input voltage | 100 to 240 VAC, 50/60 Hz, auto-ranging |
| Power and current | 47 W, 0.7 A at 120 V, 60 Hz / 45 W, 0.4 A at 230 V, 50 Hz |
| Weight | 6 kg |
| Size | 1047 x 94.5 x 272 mm |
| Approvals | CE, ROHS, FCC |
| Light source (pars) | 6 LEDs, quad-colour RGB + UV, 3.7 W, 50000 hours life expectancy |
| Light source (LED strip) | 74 LEDs, red, green and blue, 5 W, 50000 hours life expectancy |
| Light source (derby) | 6 LEDs, 2 red, 2 green, 2 blue, 3 W, 50000 hours life expectancy |
| Stand height | 1.5 m to 2.4 m |
| Tripod leg width | 1.2 m |
| Fits tripod size | 37.4 mm |
| Beam angle (pars) | 13° |
| Field angle (pars) | 24° |
| Coverage angle (derby) | 114° |
| Coverage angle (LED strip) | 174° |
| Cable length | 2.844 m |
| Footswitch operating frequency | 433 MHz |
| Footswitch max unobstructed distance | 30.5 m |
| Footswitch battery | 9 V 300 mA |
| Optional controllers | ILS Command, RF Remote |
