Chauvet

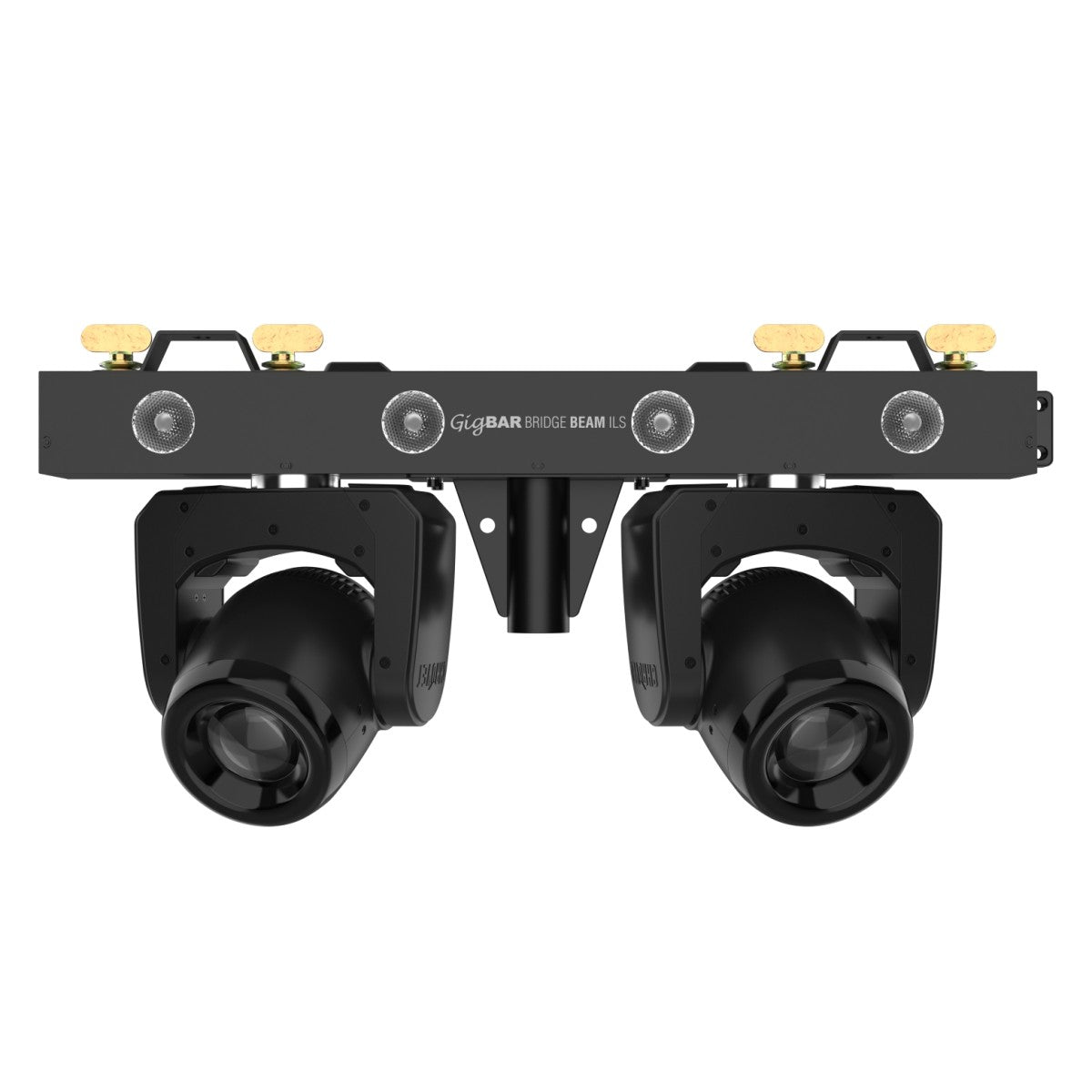

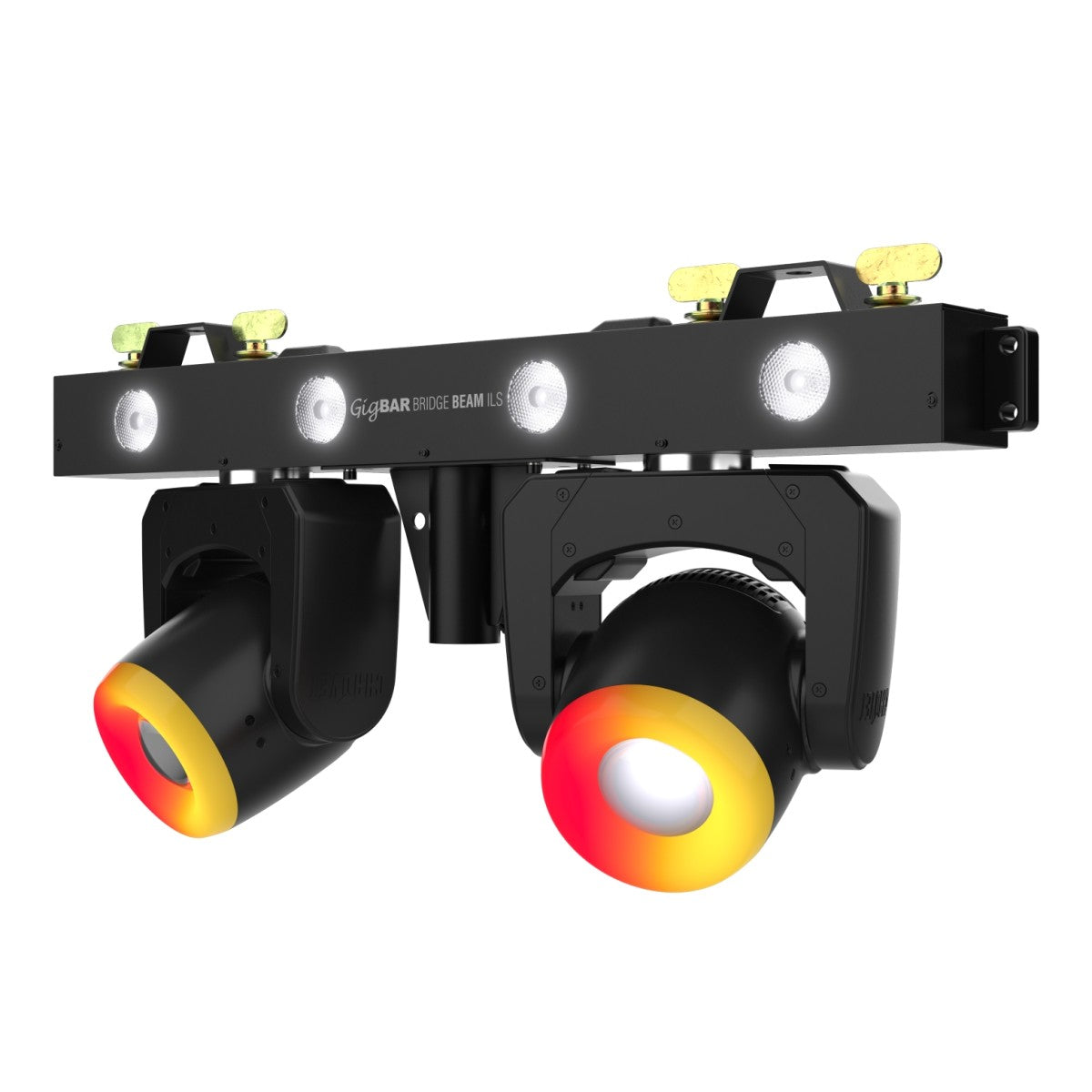

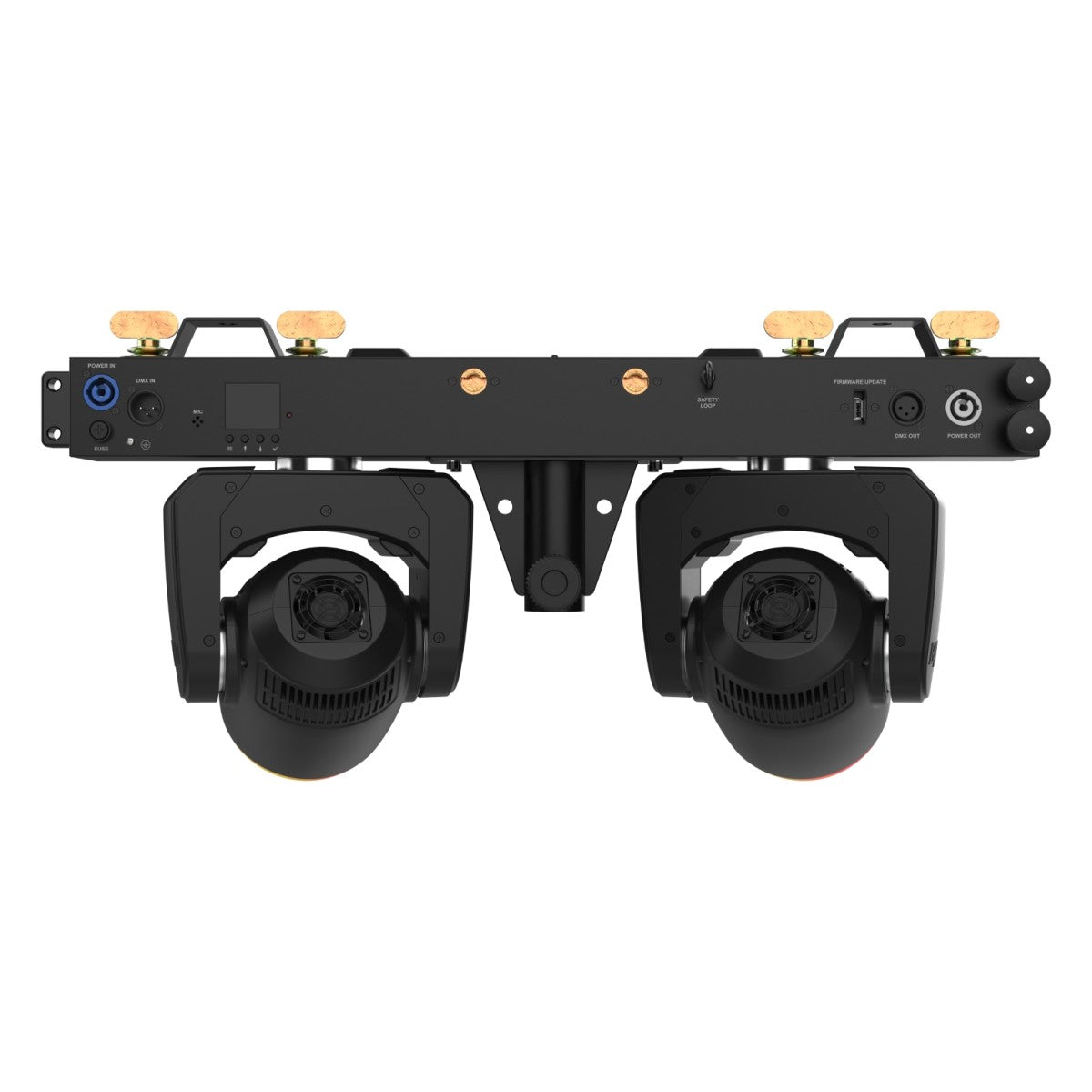

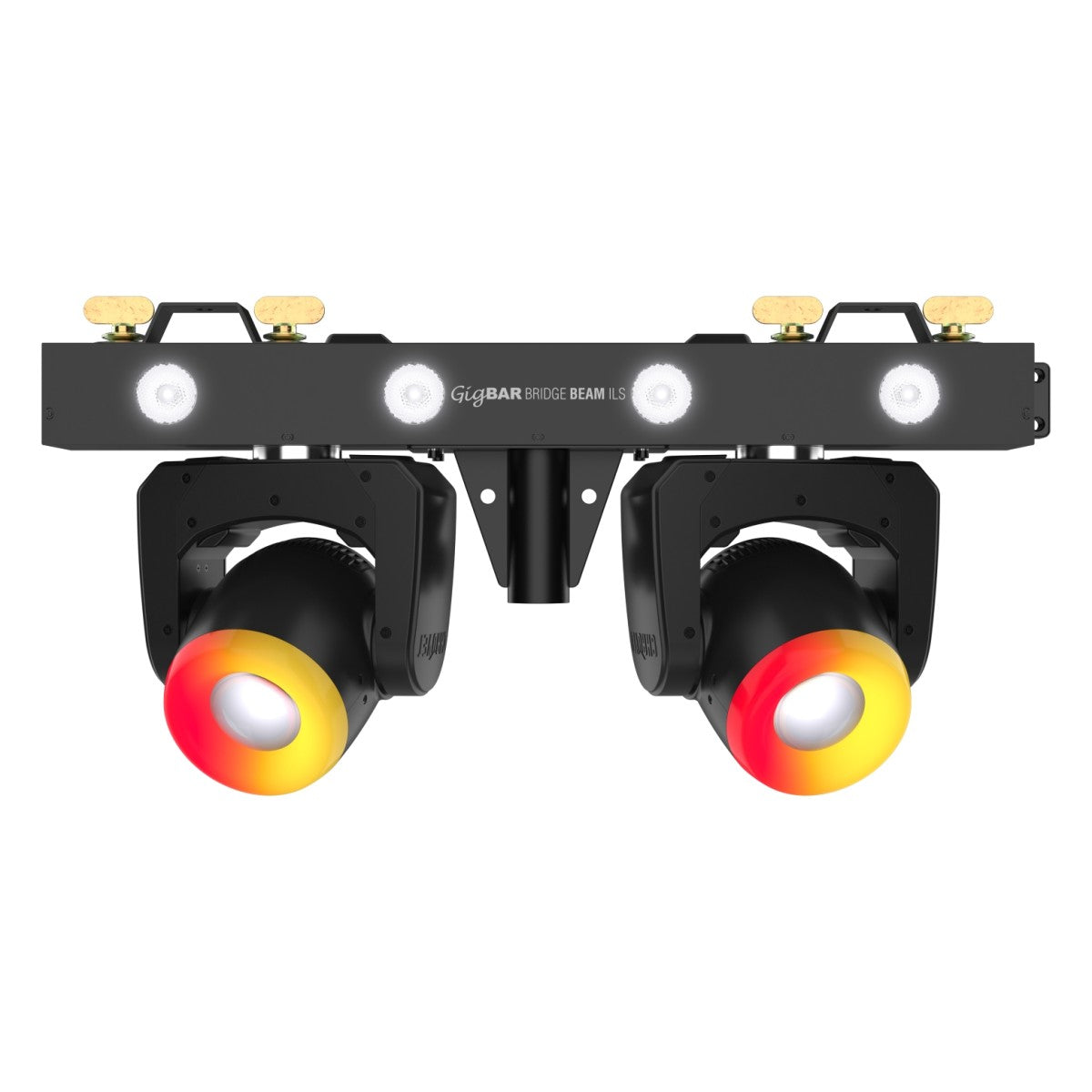

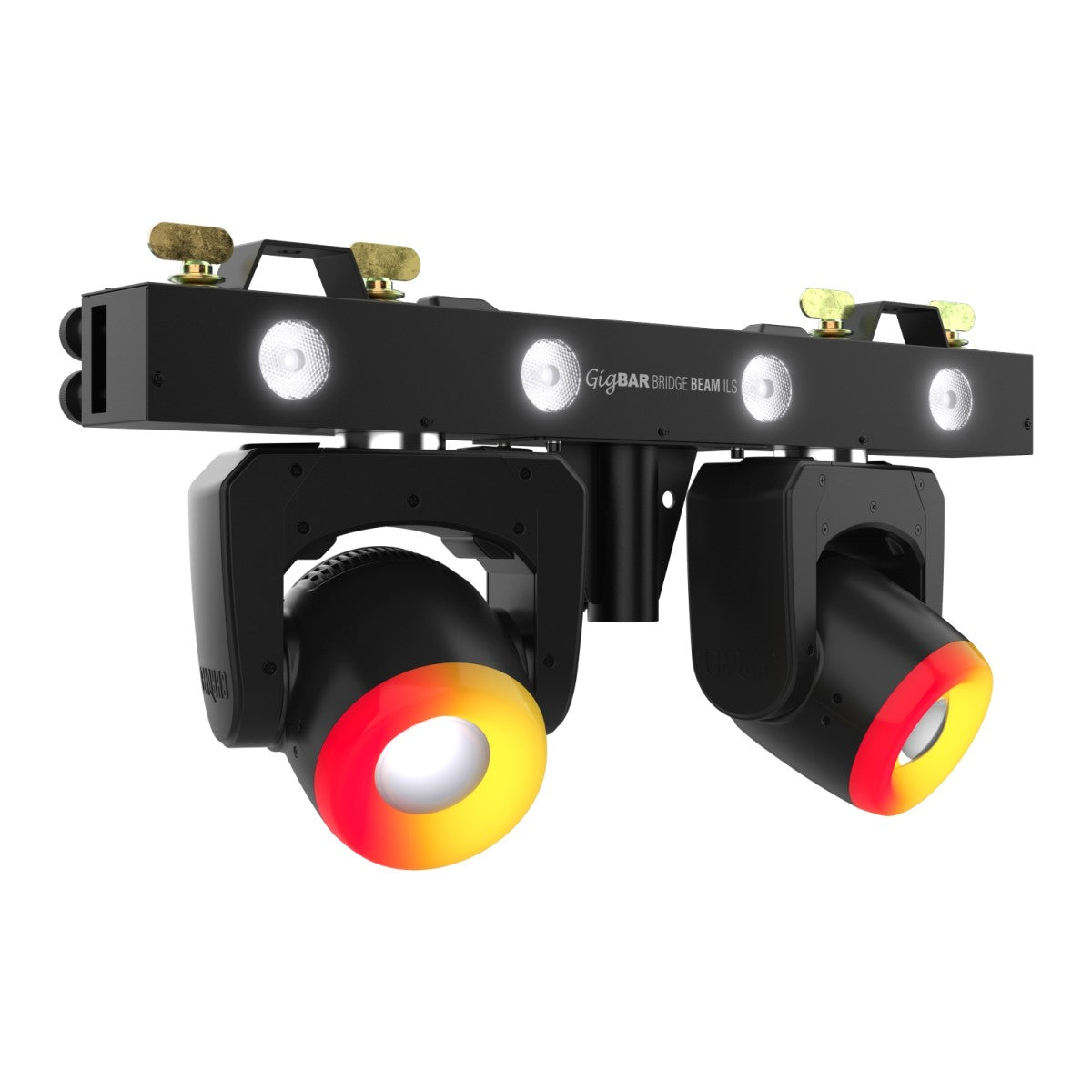

Chauvet DJ GigBAR Bridge Beam ILS
The Chauvet DJ GigBAR Beam ILS is a complete lighting system for DJs, events, and venues needing versatile, all-in-one effects. It combines moving heads, wash lights, and RGBW LED rings on a single bar, giving you a wide range of looks without adding extra fixtures. This makes it easier to cover dancefloors and stages with dynamic lighting from one unit.
More Efficient
Built-in wireless DFI lets you control the system without running DMX cables, while ILS compatibility helps you sync with other fixtures quickly. Totem mode keeps the moving heads focused on the dancefloor, which is useful during busy events. An included RF remote allows easy control of built-in shows, even without direct line of sight.
The main features of the Chauvet DJ GigBAR Beam ILS include:
- Moving heads, washes, and LED rings in one unit
- Wireless DMX and ILS control built into the system
- Totem mode keeps moving heads focused on one area
- RF remote allows quick control of built-in shows
- Full-colour LCD screen simplifies setup and navigation
- Mounts easily to truss or tripods with included bracket
- Power linking reduces cable runs in your setup
- Multiple DMX modes offer flexible control options
Light Source (Moving Heads): 2 x RGBW LEDs 80 W total
Light Source (Wash): 4 x RGBAW+UV LEDs 40 W total
Light Source (Led Ring): 48 x RGBW LEDs 10 W total
Led Lifespan: 50000 hours
Illuminance (Moving Head): 24670 lux at 2 m per head
Illuminance (Wash): 525 lux at 2 m per section
Beam Angle (Moving Head): 5°
Beam Angle (Wash): 20°
Field Angle (Wash): 37°
Pan: 540°
Tilt: 270°
Dmx Channels: 3, 24, or 60
Dmx Connectors: 3-pin XLR
Wireless Range: Up to 183 m
Input Voltage: 100 to 240 VAC 50/60 Hz
Power Consumption: 147 W at 120 V / 144 W at 230 V
Power Linking: 9 units at 120 V, 18 units at 230 V
Dimensions (W x D x H): 635 mm x 65 mm x 290 mm
Weight: 7.5 kg
Approvals: CE, RoHS, FCC
