CHAUVET-DJ

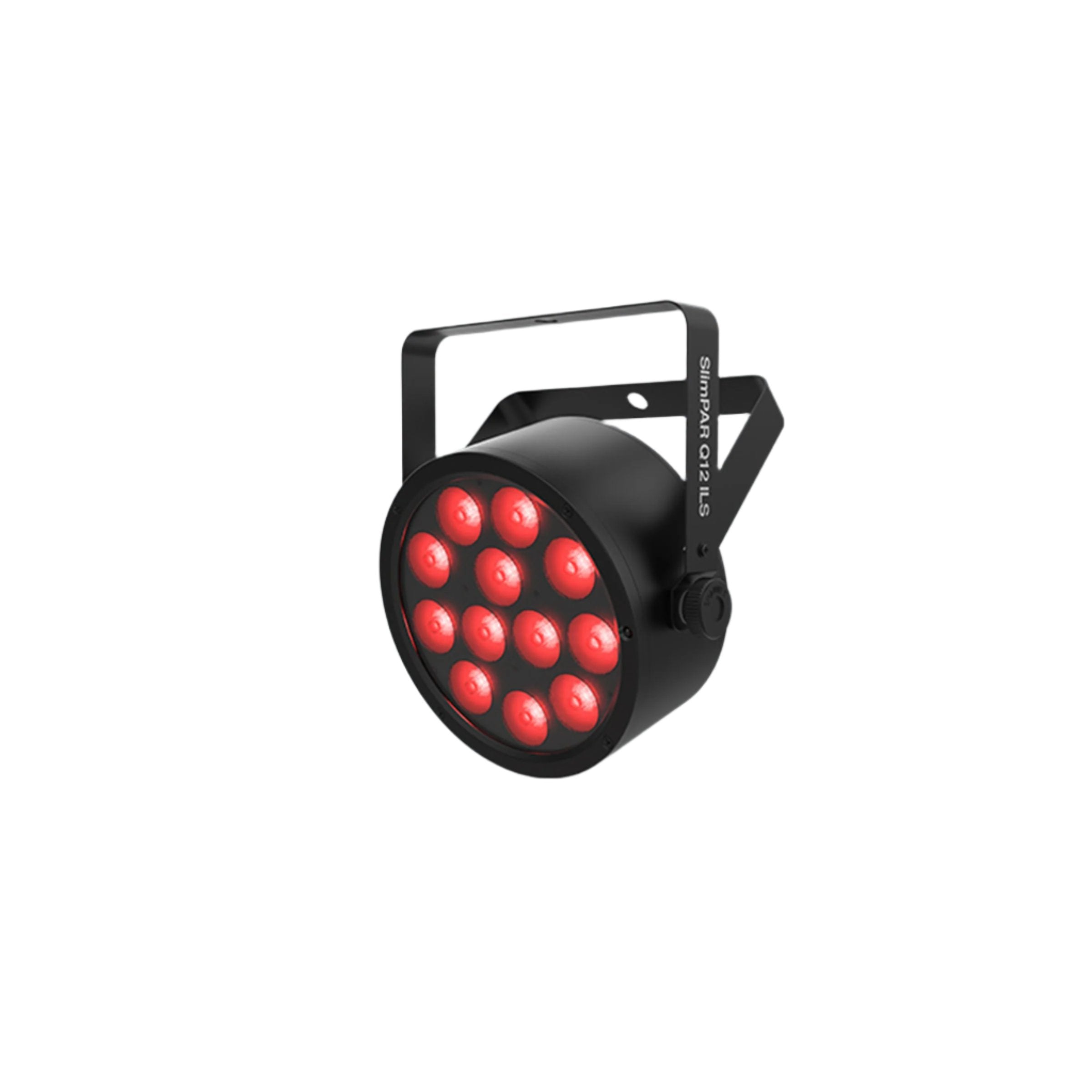

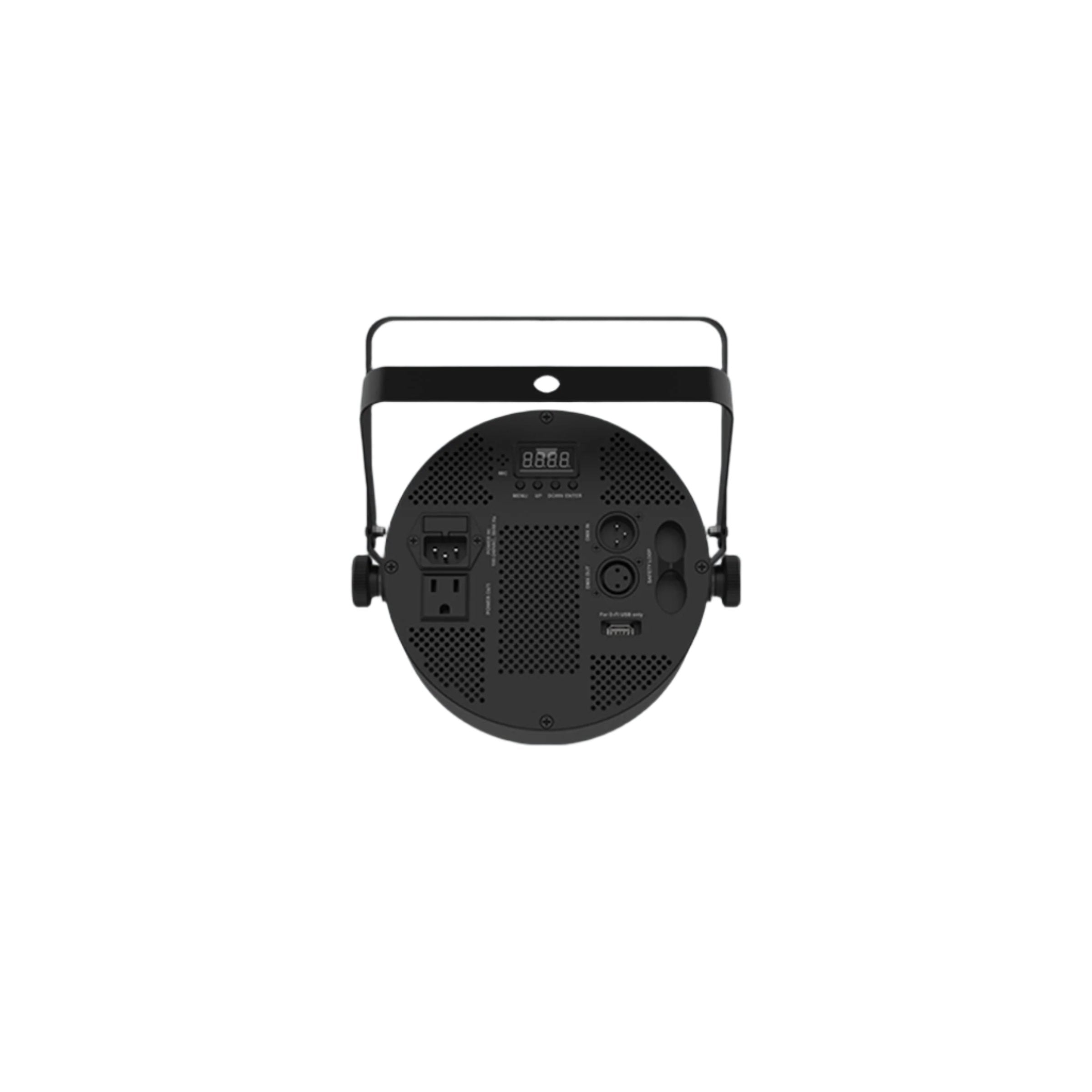

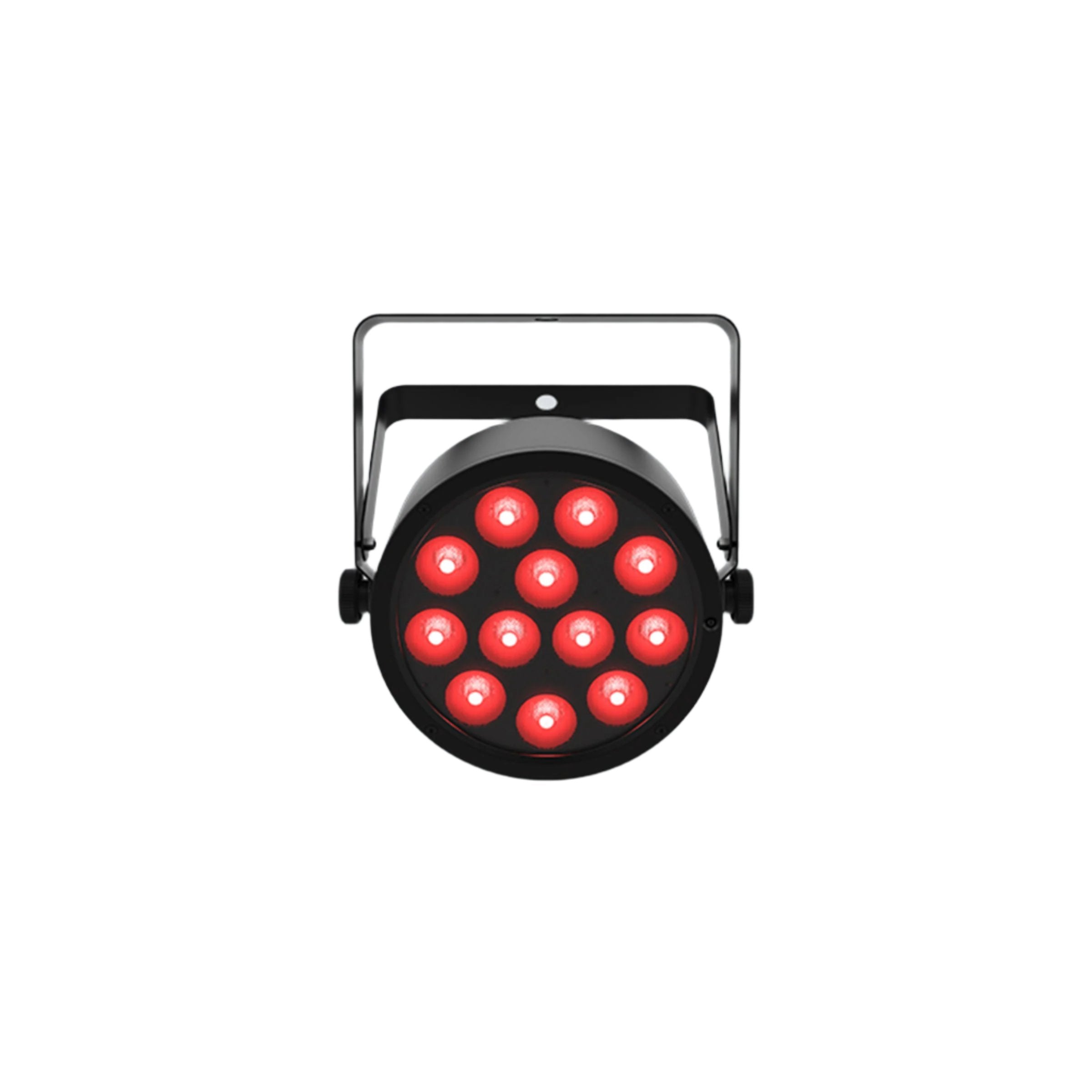

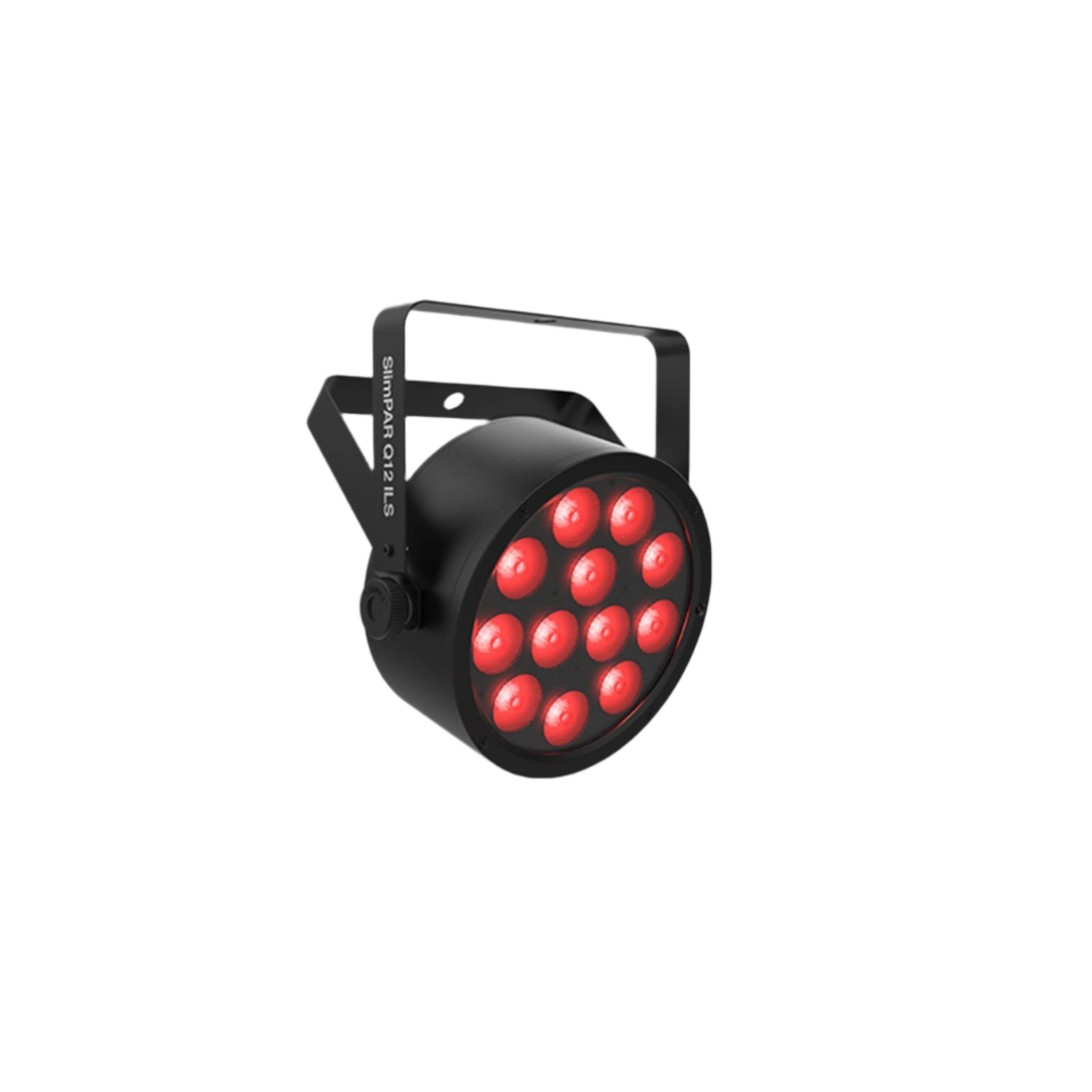

Chauvet SlimPAR Q12 ILS
Chauvet SlimPAR Q12 ILS is a low-profile, high-output quad-color (RGBA) LED Par whose super power is its ILS compatibility for use in the ILS ecosystem that makes creating coordinated light shows across different fixture types easy. But this wash warrior also has D-Fi USB compatibility for wireless Master/Slave or DMX control. But warm wash is what SlimPAR Q12 ILS does best and you can generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs. Convenient access to RGBA color mixing and static colors is available with or without DMX. If you need bright color wash for video production, SlimPAR Q12 ILS features flicker-free operation perfect for on-camera use.
- Main features of the Chauvet SlimPAR Q12 ILS include:
- Low-profile, high-output quad-color (RGBA) LED Par
- ILS compatibility for use in the ILS ecosystem
- D-Fi™ USB compatibility for wireless Master/Slave or DMX control
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- Convenient access to RGBA color mixing and static colors with or without DMX
- Flicker-free operation suitable for on-camera use
- Increase standalone versatility with multiple user-configurable settings
- Save time running cables and extension cords by power linking multiple units
- Easily control static colors and automated programs with the optional IRC-6 remote
- Fits best in the CHS-30 VIP gear bag
- Compact design easily fits inside sticks of TRUSST®
- Specifications
- DMX Channels: 4 or 9
- DMX Connectors: 3-pin XLR
- Light Source: 12 LEDs (quad-color RGBA) 6 W, (2.3 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 17 Hz
- Beam Angle: 17°
- Field Angle: 29°
- Illuminance: 2,684 lux @ 2 m
- Power Linking: 10 units @ 120 V; 18 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
- 55 W, 0.8 A @ 120 V, 60 Hz
- 54 W, 0.5 A @ 230 V, 50 Hz
- Weight: 3.6 lb (1.6 kg)
- Size: 9.7 x 3.6 x 11.5 in (247 x 92 x 293 mm)
- Approvals: CE, RoHS, UKCA
- Optional Controllers: IRC6, D-Fi USB
- WHAT'S INCLUDED
- SlimPAR Q12 ILS
- Power cord
- Quick Reference Guide
