Citronic

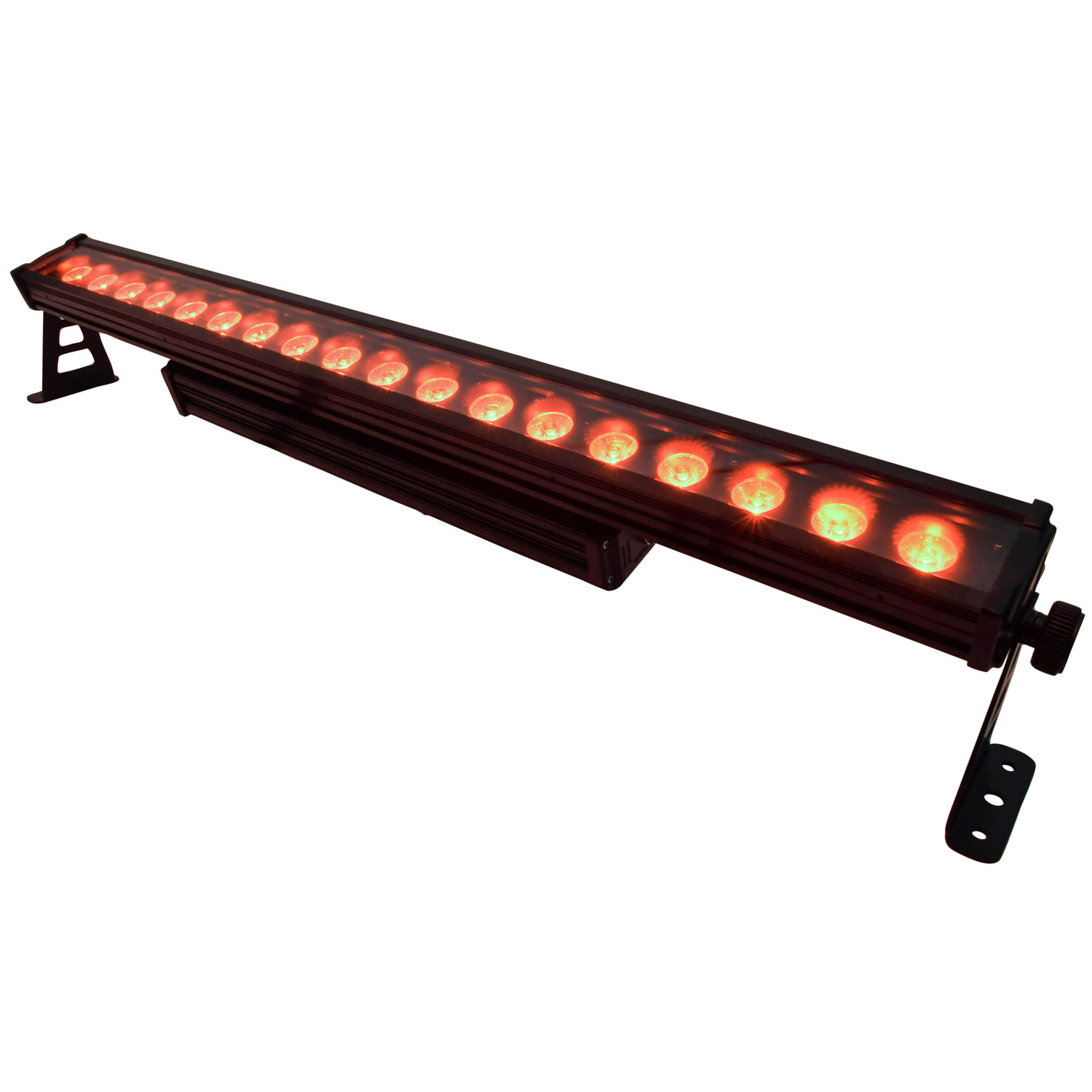

Citronic Aqua-Bar: 18x18W Waterproof RGBWA/UV LED Wall Bar (151610)
The Citronic Aqua-Bar combines premium quality components with a heavy-duty waterproof housing to offer the ultimate outdoor wall wash solution. 18 high output RGBWA/UV LEDs can be controlled automatically from preset internal colour sequences, alternatively the bar can be operated remotely by DMX in either 6, 8, 9 or 12 channel modes if more precise control is required. Supplied with extendable waterproof connections and tilt-adjustable brackets for mounting to walls or ceilings.
- In the Box
- Aqua-Bar main unit
- UK mains plug to waterproof socket extension lead (1m)
- DMX XLR plug to waterproof socket lead (1m)
- 2pcs mounting brackets & thumbscrews
- Waterproof end caps (IEC and XLR)
- User guide
- Power supply: 100–240 Vac, 50/60 Hz
- Power consumption: 324 W
- LED type: 18 × 18 W RGBWA/UV 6-in-1 LEDs
- Luminance (red): 295 lx @ 1 m
- Luminance (green): 603 lx @ 1 m
- Luminance (blue): 700 lx @ 1 m
- Luminance (white): 745 lx @ 1 m
- Beam angle: 25°
- IP rating: IP65
- Modes: Auto, Static, Custom, DMX512, Master/Slave
- DMX channels: 6, 8, 9 & 12 CH

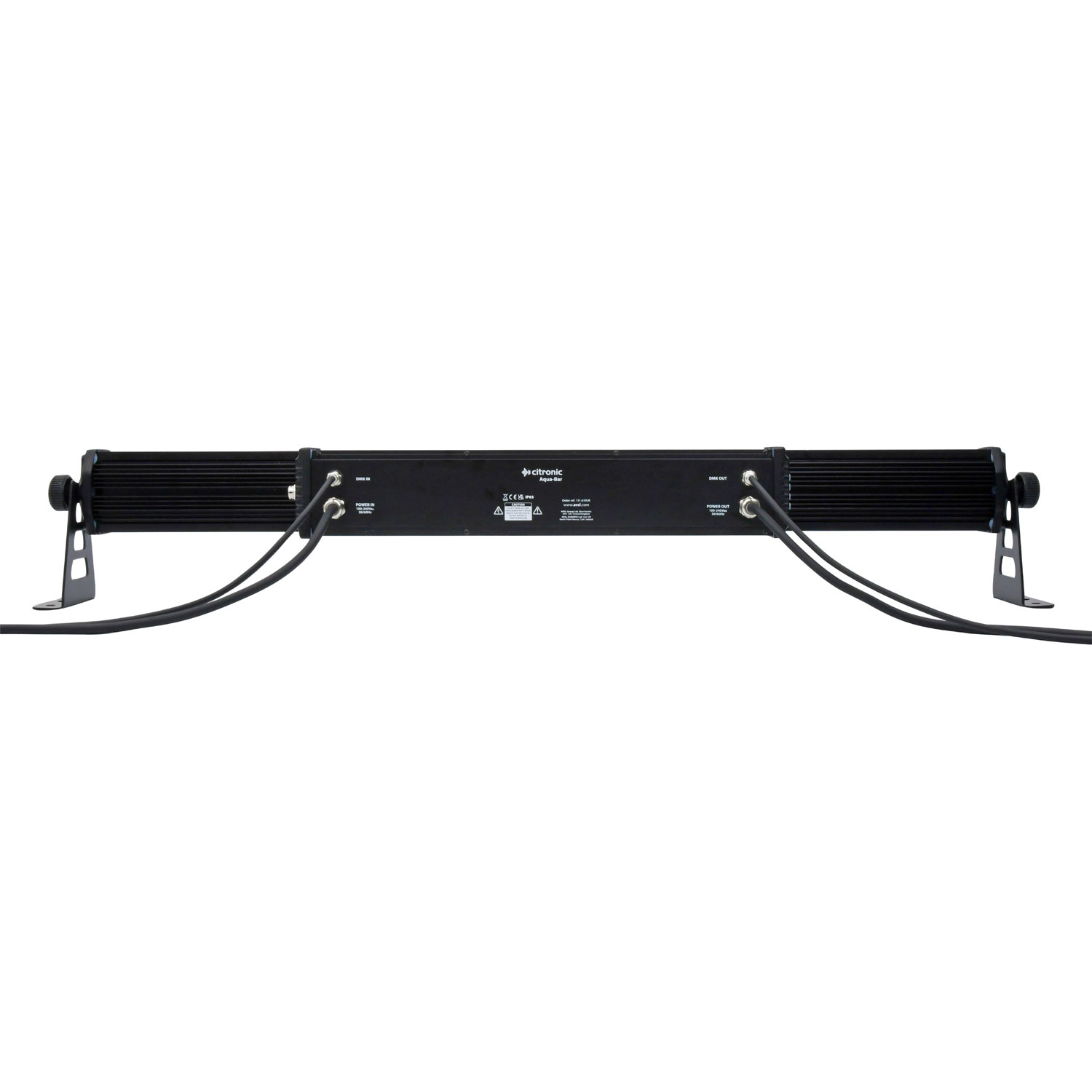

- Connections: IEC Power in/out, DMX in/out
- Dimensions: 1050 × 170 × 110 mm
- Weight: 7 kg
- Powered by 18x 18W 6-in-1 RGBWA/UV LEDs
- Internal auto, static and custom programs
- 6, 8, 9 or 12 channel DMX-512 compatible
- Heavy-duty IP65 waterproof housing
- Ideal for both outdoor and indoor applications where large area colour wash or U/V illumination is required
- Pre-fitted with waterproof 1m IEC power and DMX leads (in and out)
- Supplied with dual mounting brackets for hanging or free-standing
