Crown

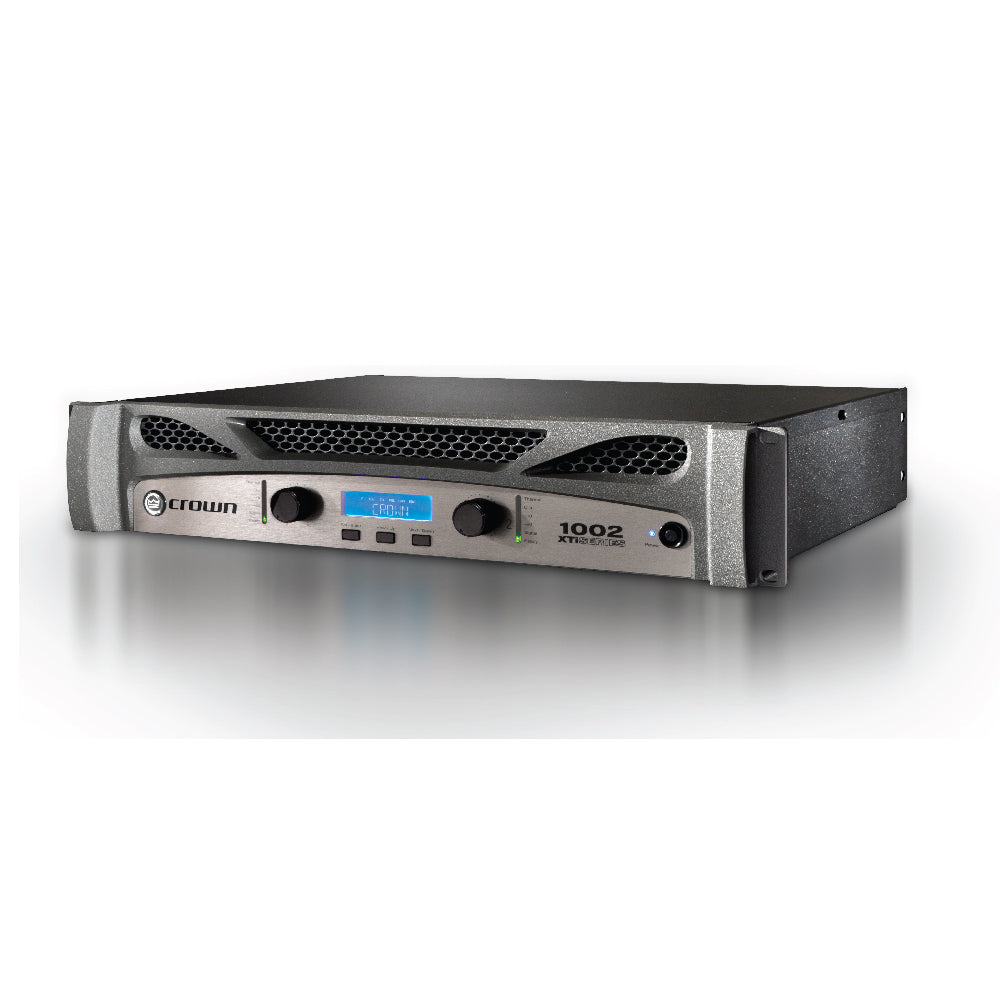

CROWN XTI1002
Quantity:
There's no debate – when you choose Crown's XTi 2 Series, you're choosing one of the most powerful and innovative amplifiers on the market today. That's because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.
Power
2O Stereo (per ch.) - 700W
4O Stereo (per ch.) - 500W
8O Stereo (per ch.) - 275W
8O Bridge-Mono - 1000W
4O Bridge-Mono - 1400W
Techncal information
Input Connectors - XLR, one per channel
Link/Out Connector - Loop-thru signal from input connector for linking another amplifier, one per channel.
Output Connectors - Two Neutrik® Speakon® NL4MP output connectors. Channel-1 Speakon® is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon® connectors).
AC Line Current - 6.8A; no more than 38W at idle
Sensitivity (for full rated power at 4 ohms) - 1.4 Vrms
Frequency Response (at 1 watt, 20 Hz - 20 kHz) - +0 dB, -1 dB
Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms) - 100 dB (A weighted)
Total Harmonic Distortion (THD) -
Damping Factor 20 Hz to 1 kHz - > 500
Crosstalk (below rated power) - 20 kHz - 1 kHz: > 70 db
Input Impedance (nominal) - 20k ohms balanced, 10k ohms unbalanced
Maximum Input Signal - +22 dBu typical
AC Line Voltage and Frequency Configurations - 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz
Dimensions - 19" (W) x 3.5" (H) x 12.25" (D)
Net Weight - 18.5 lbs (8.4kg)
Shipping Weight - 21.5 lbs (9.8kg)
Techncal information
- Peakx Plus™ Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
- Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
- 3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application
- New system monitoring provides software visibility of AC line voltage and power supply temperature
- Integrated cast-aluminum handles for easy handling and enhanced durability
- Locking power cord clip provides a secure connection between the amplifier and power cord
- Updated HiQnet System Architect™ control software
- Increased number of presets to a total of 50; 49 of which are user definable
