ECLER

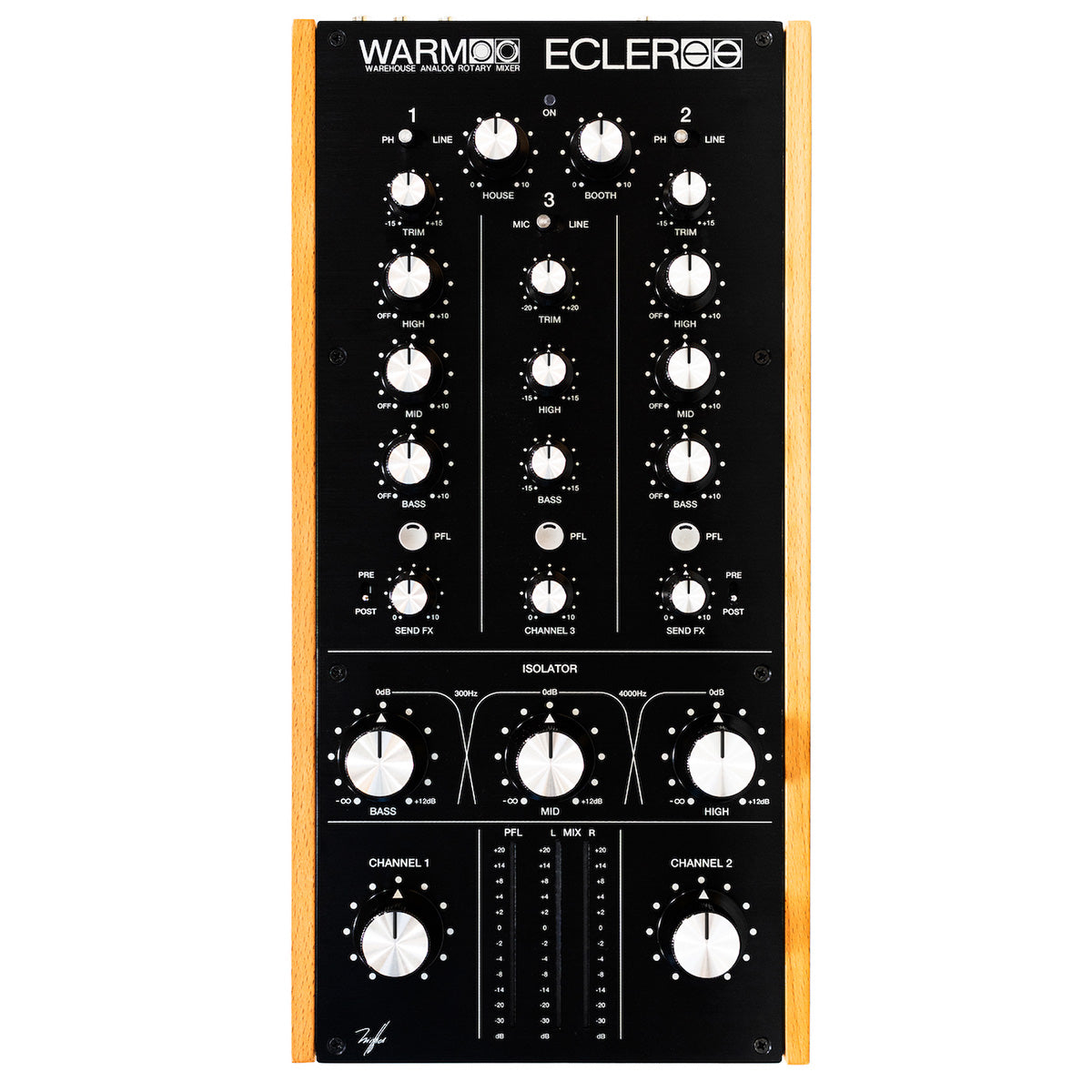

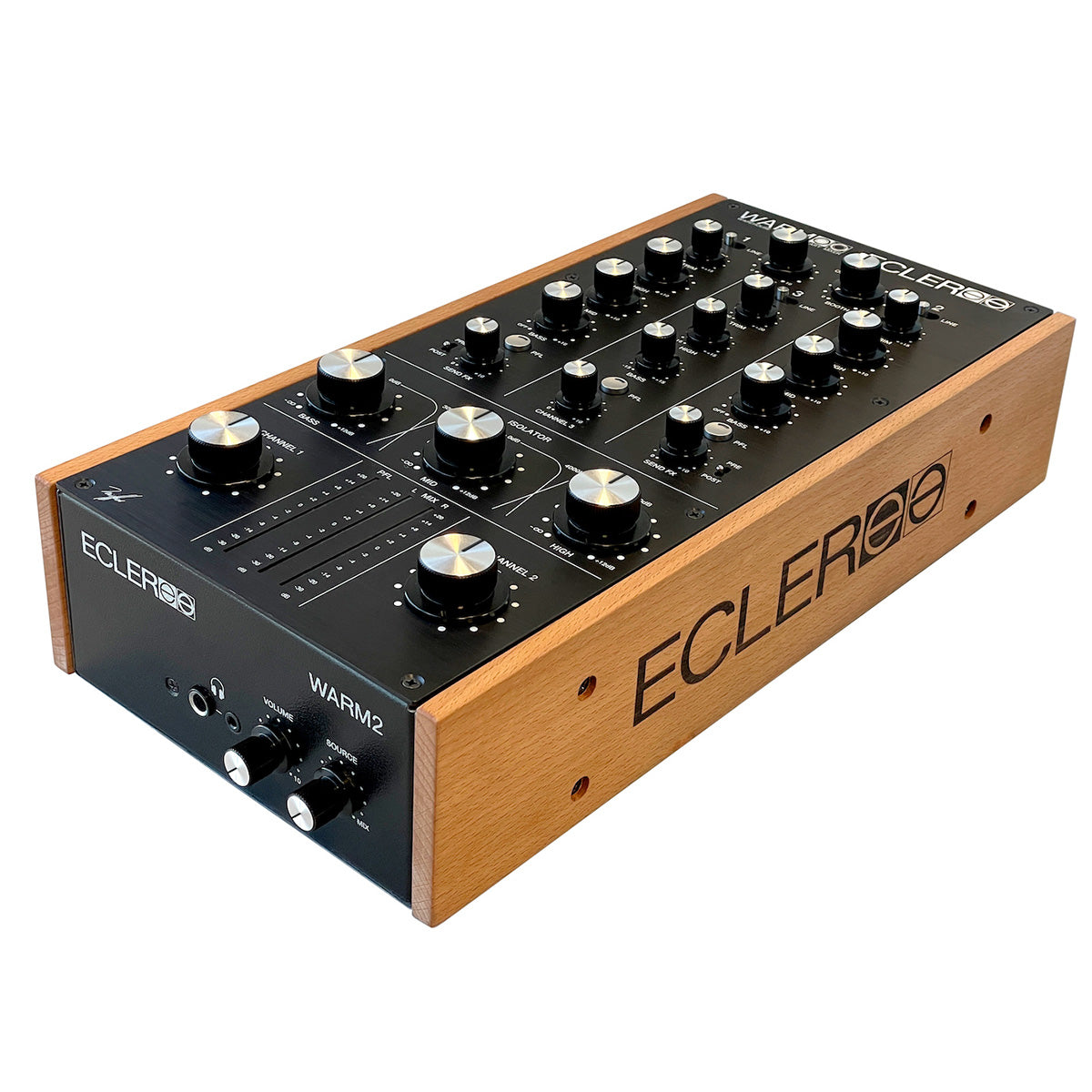

Ecler WARM2 Rotary DJ Mixer
The legendary DJ brand is back!
The Ecler WARM2 is a professional two-channel analogue rotary DJ mixer, designed and manufactured by ECLER in Barcelona. Featuring two phono/line channels and a micro/line channel, classic sharp filters, a 4th order Isolator and a narrow portable format, it will deliver a warm and crystal clear analogue sound.
In addition to its unquestionable audio qualitym the mixer features Alps Blue Velvet potentiometers providing the ultimate precision for the perfect mix, and the 4th order inbuilt isolator will expand your performance possibilities by infusing drama in an acapella track, enhancing musical riffs or creating a tremolo effect by rapidly twisting the knobs.
The WARM2 mixer is easy to transport, and slots neatly between your chosen decks. With a width of 18.5 centimeters, WARM2 is the narrowest rotary mixer on the market. Despite this, it includes interesting features such as: 3-band EQ + Trim, FX Send control and Pre/Post fader selector, and an excellent dynamic and headroom range. WARM2 provides the best analog sound for your dancefloor in a portable format.
Main features of the Ecler WARM2 Rotary DJ Mixer include:
- 2+1 Mixing channels
- 1 MICRO input
- 2 PHONO inputs
- 3 LINE inputs
- Master Output (HOUSE) on XLR and RCA connectors
- Booth Output on RCA connectors

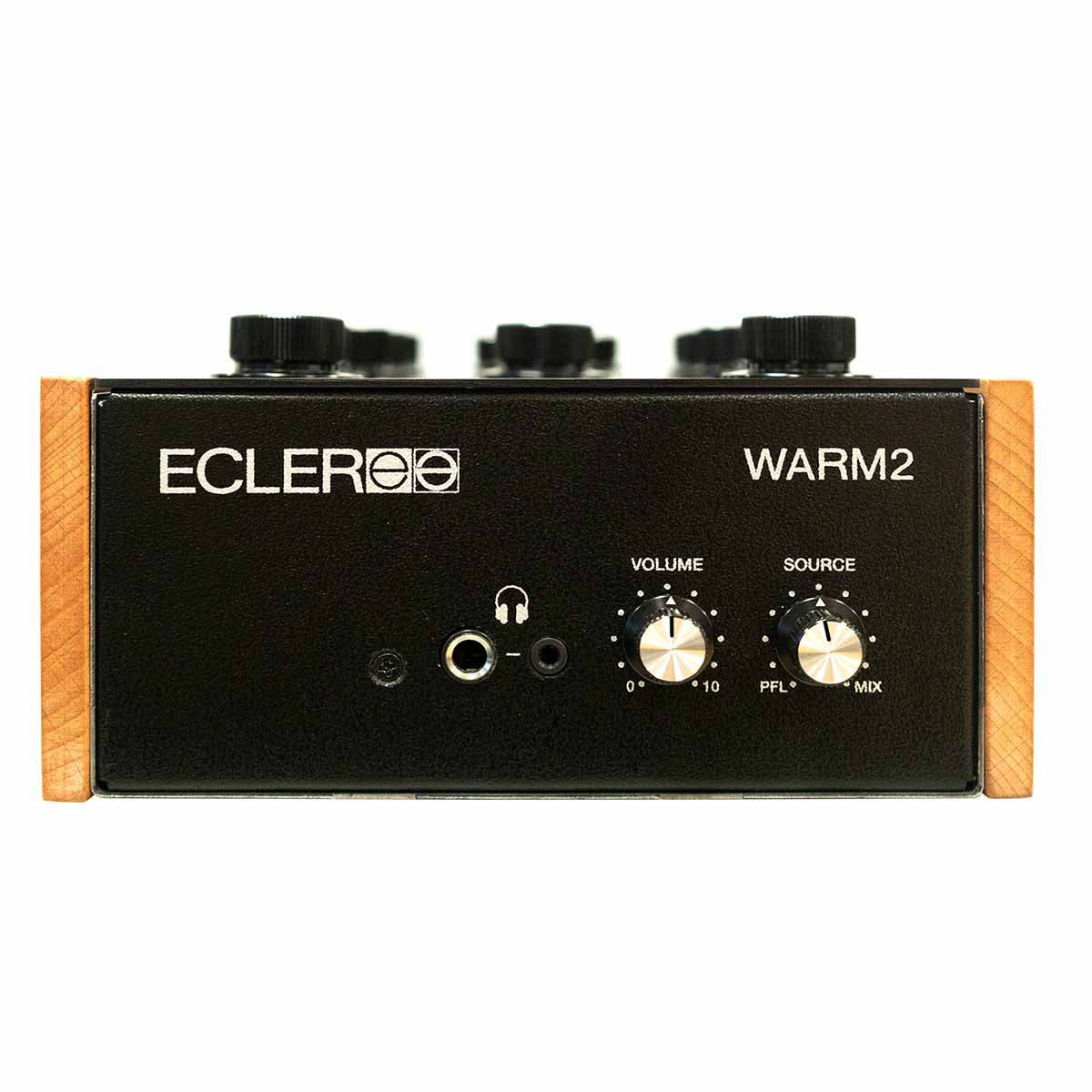

- 6.3mm Jack and 3.5mm mini-jack Headphone Monitor Outputs
- 3 band full cut EQ for main channels and 2 band full cut EQ for MICRO/LINE channel
- 3 bands isolator (300Hz and 4KHz, -∞/+12dB, 4th order 24dB/oct)
- Maximum Output without distortions: 21dBV (23dBu)
- Mechanized from a solid block of aluminum knob, without visible screw. Ecler Unique design
- Alps Blue Velvet Potentiometers
- FX Send control and Pre/Post fader selector
- Screen-printed faceplate by selective anodizing
- Wooden side panels included
Audio Performances | |
Inputs Sensitivity nom/Impedance: | |
LINE : 0dBV/50kΩ PHONO : -40dBV/50kΩ MICRO : -50dBV/>1kΩ FX RETURN : 0dBV/>6kΩ |
|
Outputs Level/Minimum Load: | |
HOUSE (BAL) : 0dBV/600Ω 1V *(+12dB 4V) HOUSE (UNBAL) : 0dBV/2.2kΩ 1V *(+12dB 4V) BOOTH (UNBAL) : 0dBV/2.2kΩ 1V *(+12dB 4V) REC : 0dBV/10kΩ HEADPHONES : 200mΩ/200Ω THD 1% FX SEND : 0dBV/2.2kΩ |
|
Frequency Response: | |
LINE : 10Hz÷30kHz -1dB MICRO : 10Hz÷25kHz -1dB PHONO : RIAA ±0.5dB FX RETURN : 10Hz÷50kHz -1dB |
|
THD-N: | |
LINE : <0.006% MICRO : <0.9% PHONO : <0.08% FX RETURN : <0.005% |
|
CM MR: | |
MICRO : >70dB @ 1kHz | |
Signal Noise Ratio: | |
LINE : >99dB MICRO : >85dB PHONO : >98dB FX RETURN : >100dB |
|
Max Undistorted Output Level: | |
HOUSE (Electr.BAL) : 21dBV (23dBu) HOUSE (UNBAL) : 21dBV (23dBu) BOOTH (UNBAL) : 21dBV (23dBu) |
|
Trim control: | |
INPUTS 1-2 : ± 15dB INPUT 3 : ± 20dB |
|
Tone control Inputs 1-2: | |
BASS : +10/-30dB MID : +10/-25dB TREBLE : +10/-30dB |
|
Tone control Input 3: | |
BASS : ± 15dB TREBLE : ± 15dB |
|
Tone control Isolator: | |
BASS : +12/-70dB MID : +12/-40dB TREBLE : +12/-70dB |
|
Tone Filter cut frequency at -6dB (slope 12dB/oct): | |
BASS : 200Hz MID : 200Hz÷6.8kHz TREBLE : 6.8kHz |
|
Isolator cut frequency at -6dB (slope 24dB/oct): | |
BASS : 300Hz |
|

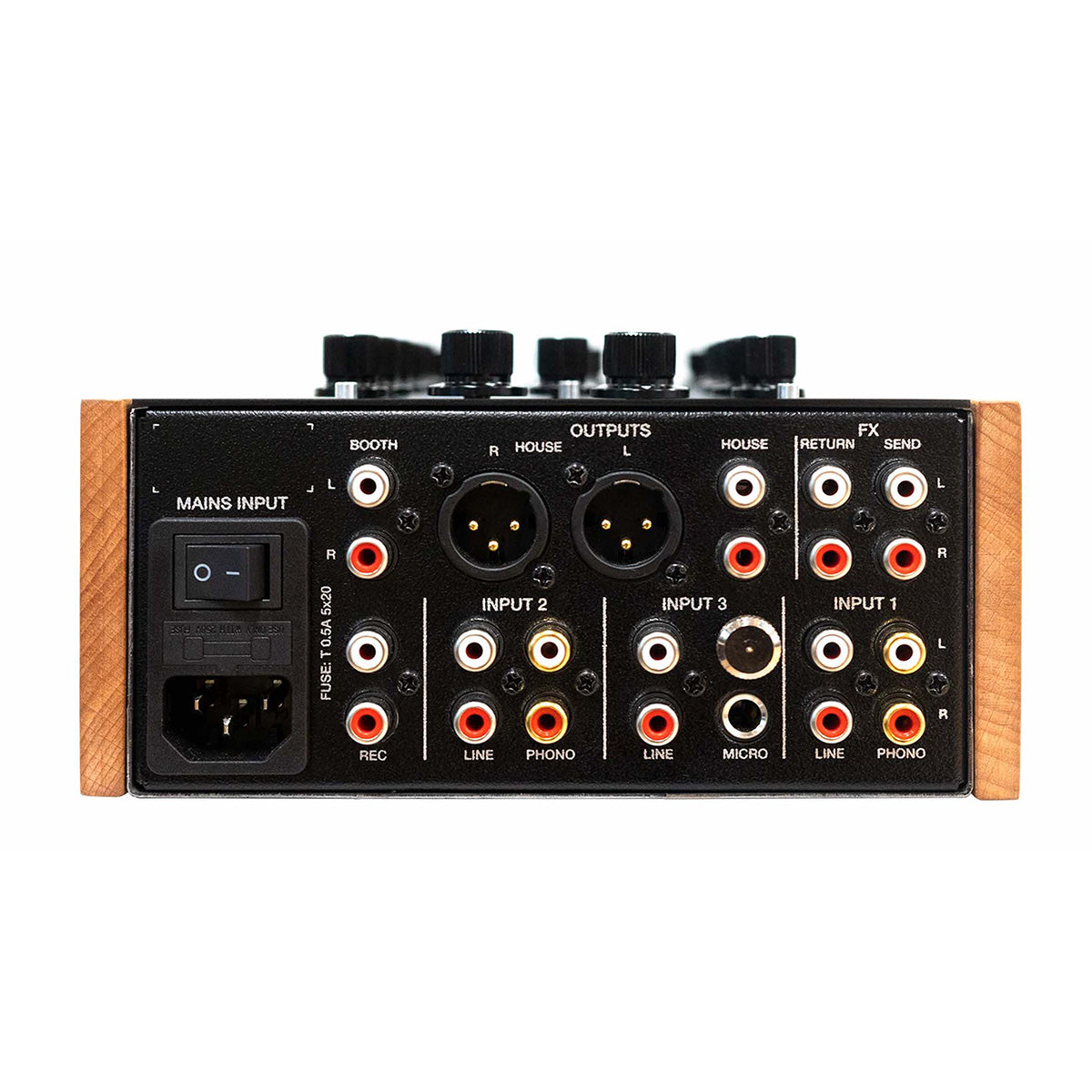

Connectors
|
|
Inputs: | |
LINE 1-2-3 : RCA STEREO PHONO 1-2 : RCA STEREO MICRO 3 : 6.3mm TRS BAL. JACK FX RETURN : RCA STEREO |
|
Outputs: | |
HOUSE (BAL) : XLR STEREO |
|
Miscellaneous
|
|
Control Mode : Rotary with Alps Blue Velvet Potentiometers |
|
Operation
|
|
Operation Temperature : -5˚C - 45˚C / 23˚F - 113˚F
Humidity : 20 - 90% RH (no condensation) |
|
Supply | |
Mains voltage : 90-264VAC 47-63Hz |
|
Mechanical
|
|
Dimensions (without wooden sides) : 400 x 185 x 100mm / 15.7” x 7.2” x 3.9” Weight : 3.6Kg / 7.94 lbs |
- 2+1 Mixing channels
- 1 MICRO input
- 2 PHONO inputs
- 3 LINE inputs
- Master Output (HOUSE) on XLR and RCA connectors
- Booth Output on RCA connectors
- 6.3mm Jack and 3.5mm mini-jack Headphone Monitor Outputs
- 3 band full cut EQ for main channels and 2 band full cut EQ for MICRO/LINE channel
- 3 bands isolator (300Hz and 4KHz, -∞/+12dB, 4th order 24dB/oct)
- Maximum Output without distortions: 21dBV (23dBu)
- Mechanized from a solid block of aluminum knob, without visible screw. Ecler Unique design
- Alps Blue Velvet Potentiometers
- FX Send control and Pre/Post fader selector
- Screen-printed faceplate by selective anodizing
- Wooden side panels included
