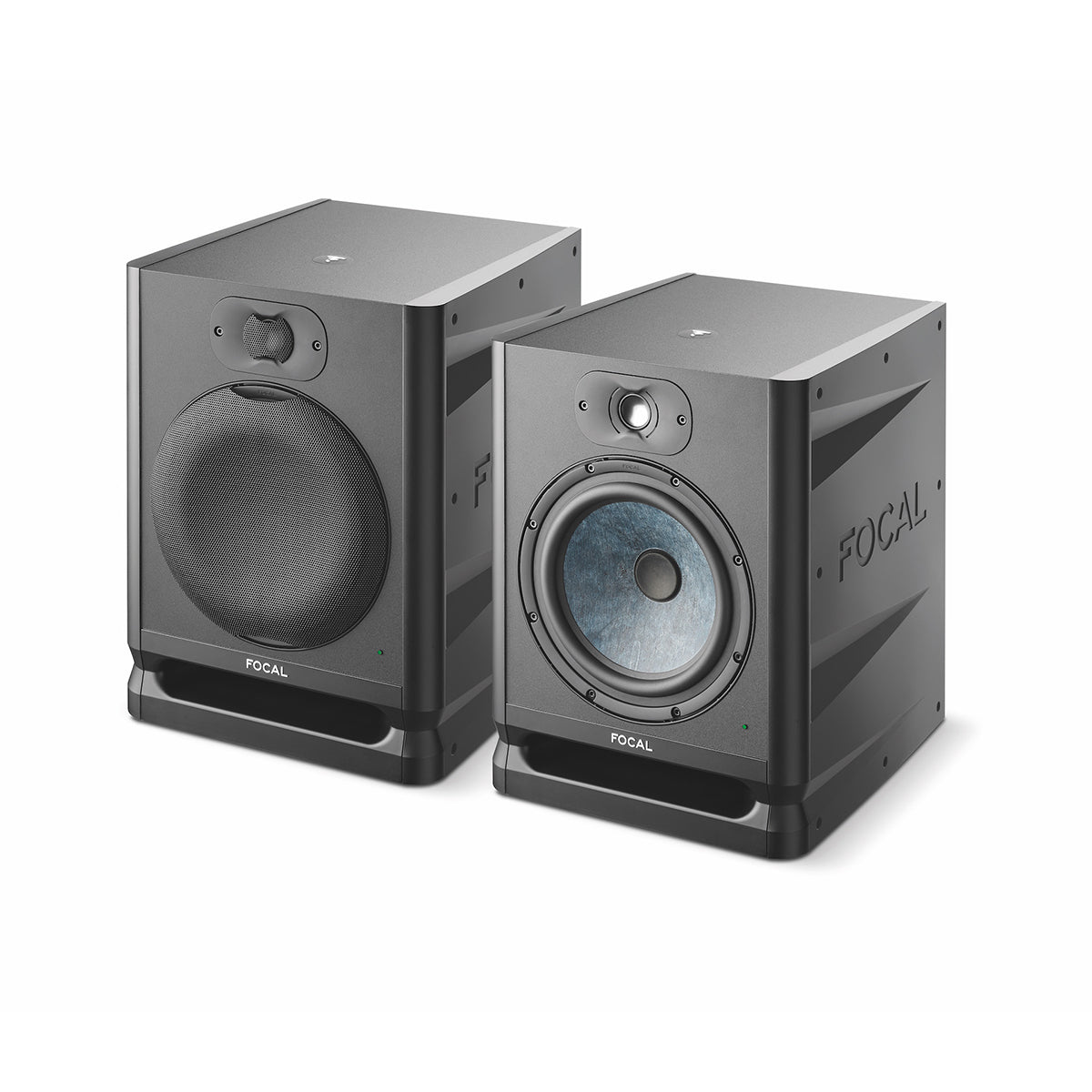

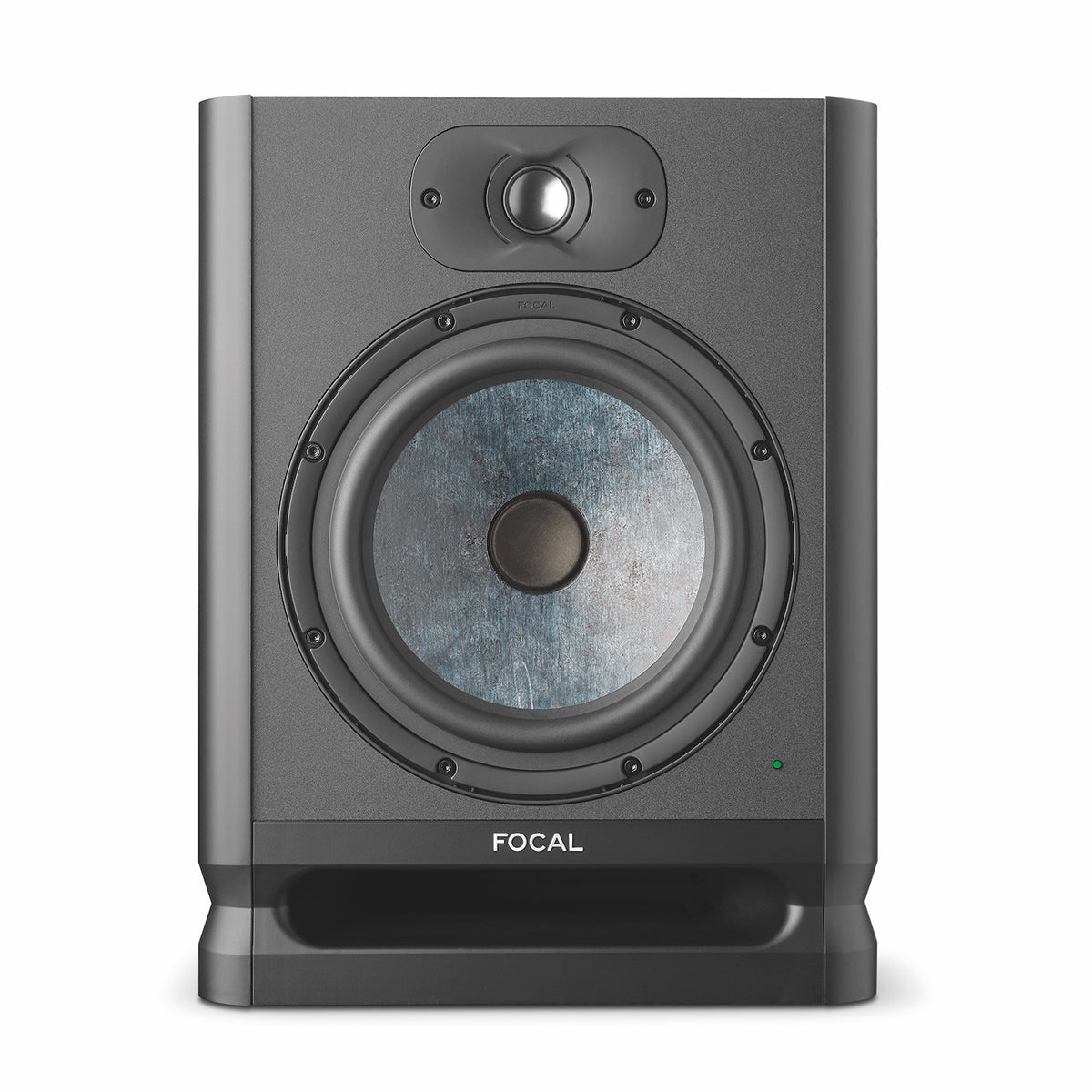

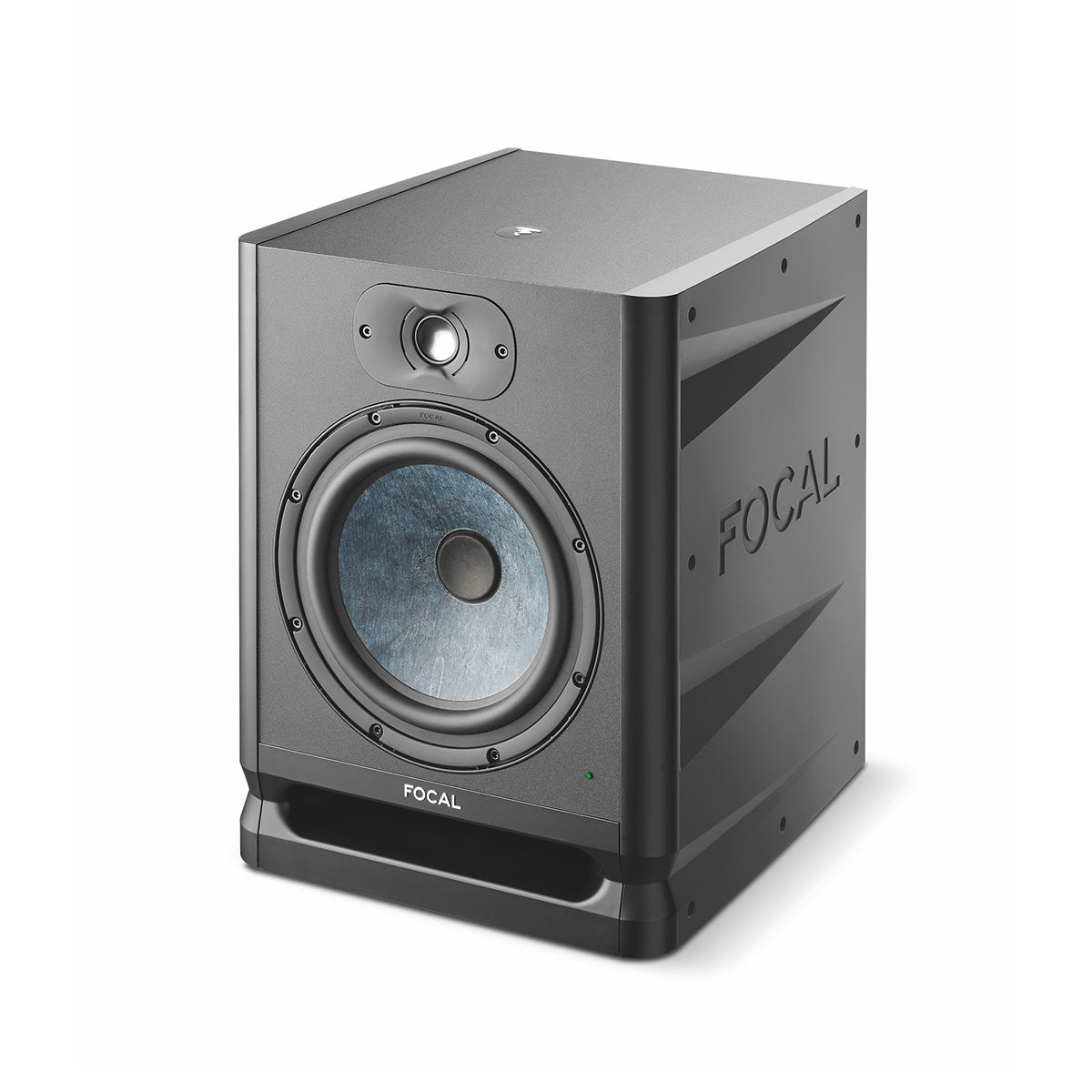

Focal Alpha 80 EVO Studio Monitor (Single)
The new and improved Focal Alpha 80 EVO Studio Monitor takes advantage of Focal’s most cutting edge design technologies to date.
Low-end detail in droves
Furnished with a mighty 8 inch woofer and 1 inch aluminium inverted dome tweeter, Alpha 80 Evo is the perfect fit for producers on the hunt for high SPL as well as a serious low-end extension.
Inline with the 65 and 50 Evo sibling models, the Alpha 80 Evo’s driver features a Slatefibre cone developed in-house at Focal’s manufacturing facility in France. The specially selected materials offer a perfect balance on tonality, dynamic audibility and an overall neutral presentation for the best insight into any project.
Customise your performance

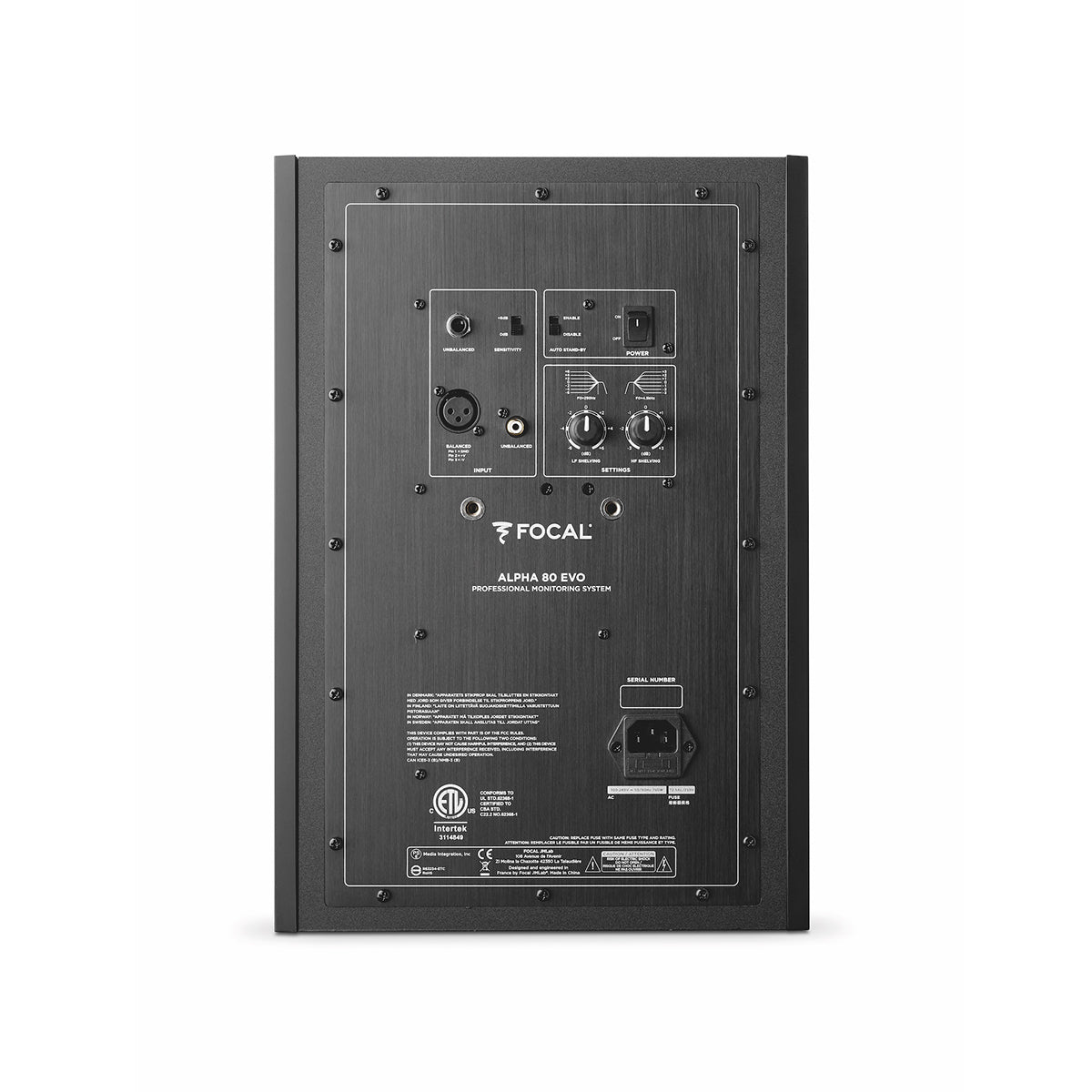

Whilst the Alpha 80 Evo offers remarkably neutral performance, additional high and low frequency EQ customisations can be made on the rear panel where necessary, for example when accommodating for different rooms or mix spaces.
Connectivity is possible for up to three devices via XLR, TRS and RCA inputs and the Alpha 80 Evo can also be mounted on walls using standard bracket fittings.
Main features of the Focal Alpha 80 EVO Studio Monitor include:
Transducer |
|
Woofer:
|
8" (20cm) Slatefiber cone
|
Tweeter:
|
1" aluminium inverted dome
|
Performance |
|
Frequency Response:
|
38Hz - 22kHz (+/- 3dB)
|
Maximum SPL:
|
106dB (peak @ 1m)
|
Impedance:
|
10kOhms
|
Sensitivity:
|
0 – 6dB adjustable
|
Gain:
|
+/-6dB LF, +/-6dB HF
|
Connectors |
|
Inputs:
|
XLR/TRS balanced, RCA unbalanced
|
Power:
|
IEC socket and detachable power cable
|
Power |
|
LF:
|
80W
|
HF:
|
35W
|
Supply:
|
100 - 240V~ (T2AL fuse/250V)
|
Consumption:
|
< 0.5W @ standby
|
Physical Properties |
|
Construction:
|
15mm MDF
|
Finish:
|
Black vinyl and paint
|
Dimensions:
|
390 x 296 x 330mm (HxWxD)
|
Weight:
|
9.8kg
|
- Remarkable tonal balance
- Powerful low-end with low distortion
- 1” inverted dome tweeter
- 8” Slatefibre woofer driver
- 3 inputs: XLR, TRS and RCA
- Inserts for wall fastening
- Connect up to 3 audio sources
- Bass and treble level settings
- Large laminar reflex port
- Automatic disengageable stand-by mode
