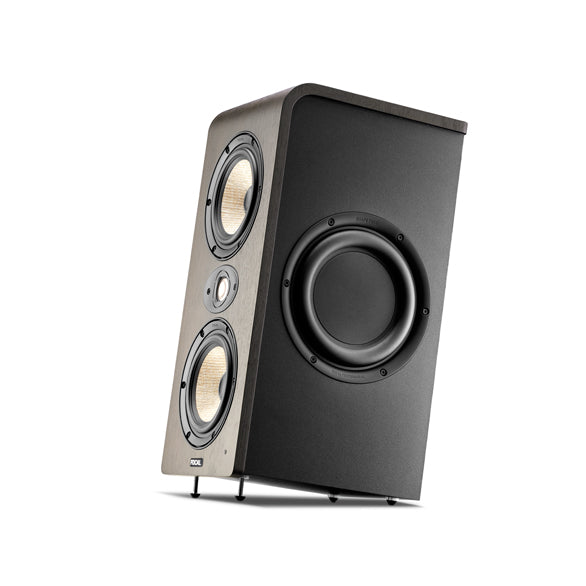

Focal Shape Twin Studio Monitor (Single)
The Focal Shape Twin Studio Monitor features an 8" double passive radiator, dual woofers equipped with a new Flax cone, and the latest “M”-shaped Aluminium/Magnesium inverted dome tweeter. The perfect production/mixing monitor for professionals.
Shape Twin boasts a 2.5-way design with dual 5" flax cone woofers and 1" M-shaped aluminium/magnesium inverted dome tweeter. This gives the monitor a real advantage when it comes to controlling the bass and lower mid-range registers which are the hardest to control in small rooms.
Shape Twin delivers remarkable tonal balance, with very wide and precise stereo imaging. The low frequencies are well defined as well as controlled, and the low-mid and mid ranges provide a true neutral sound. Shape Twin stands out through its excellent rendering over the whole audio spectrum, its broad frequency response in the low end, and its high SPL considering its size.
The nearfield monitor combines an ingenuous design and numerous settings optimised for the acoustics of small listening rooms, and it's compact design makes it easy to integrate even into the most cramped of rooms.
Main features of the Focal Shape Twin Studio Monitor include:
Frequency response (+/- 3dB) | 40Hz - 35kHz | |
Maximum SPL (of musical signals) |
110.5dB SPL (peak at @ 1m) |
|
Electronics | ||
Inputs / Impedance | Type | XLR: balanced 10 kOhms |
RCA connectors | unbalanced 10 kOhms with sensitivity compensation | |
Mid-range |
2 x 80W, class AB | |
High frequency amplifier | 50W, class AB | |
Automatic standby |
Off | Approximately 30 minutes with no signal |
Deactivate standby |
Signal detection > 3mV | |
Power supply | Voltage | 220-240V (fuse T2AL / 250V) or 100-120V (fuse T3.15AL / 250V) |
Connexion | IEC connector and detachable power cable |
|
Settings | High-pass filter | Adjustable Full range 45/60/90Hz |
Bass level | (0 - 250Hz) Adjustable, +/-6 dB | |
Midrange/bass | (160 Hz, Q=1) Adjustable, +/-3 dB | |
Treble level | (4.5 - 35kHz) Adjustable, +/-3 dB | |
Power on/off | On/off switch on rear panel | |
Power consumption in standby | < 0.5W | |
Displays and controls | LED for power on/off and standby | |
Transducers | ||
Woofers | 2 x 5" (13cm) Flax Cone woofers |
|
Tweeter | 1" (25mm) 'M'-shaped Aluminum/Magnesium |
|
Cabinet | ||
Construction | 0.6" (15mm) MDF | |
Finish | Vinyl, real walnut and black paint | |
Dimensions including 4 rubber feet (HxLxD) |
18.8 x 8.3 x 11" (478 x 211 x 279mm) | |
Weight | 24lbs (11kg) |
- Professional nearfield studio monitor
- 2.5-way design
- 8" double passive radiator
- Dual 5" woofers with new Flax cone
- Latest 1" M-shaped Aluminium/Magnesium inverted dome tweeter
- Remarkable tonal balance
- Wide and precise stereo imaging
- Settings optimised for the acoustics of small listening rooms
