Headliner R4 Rotary Mixer + Decksaver Cover

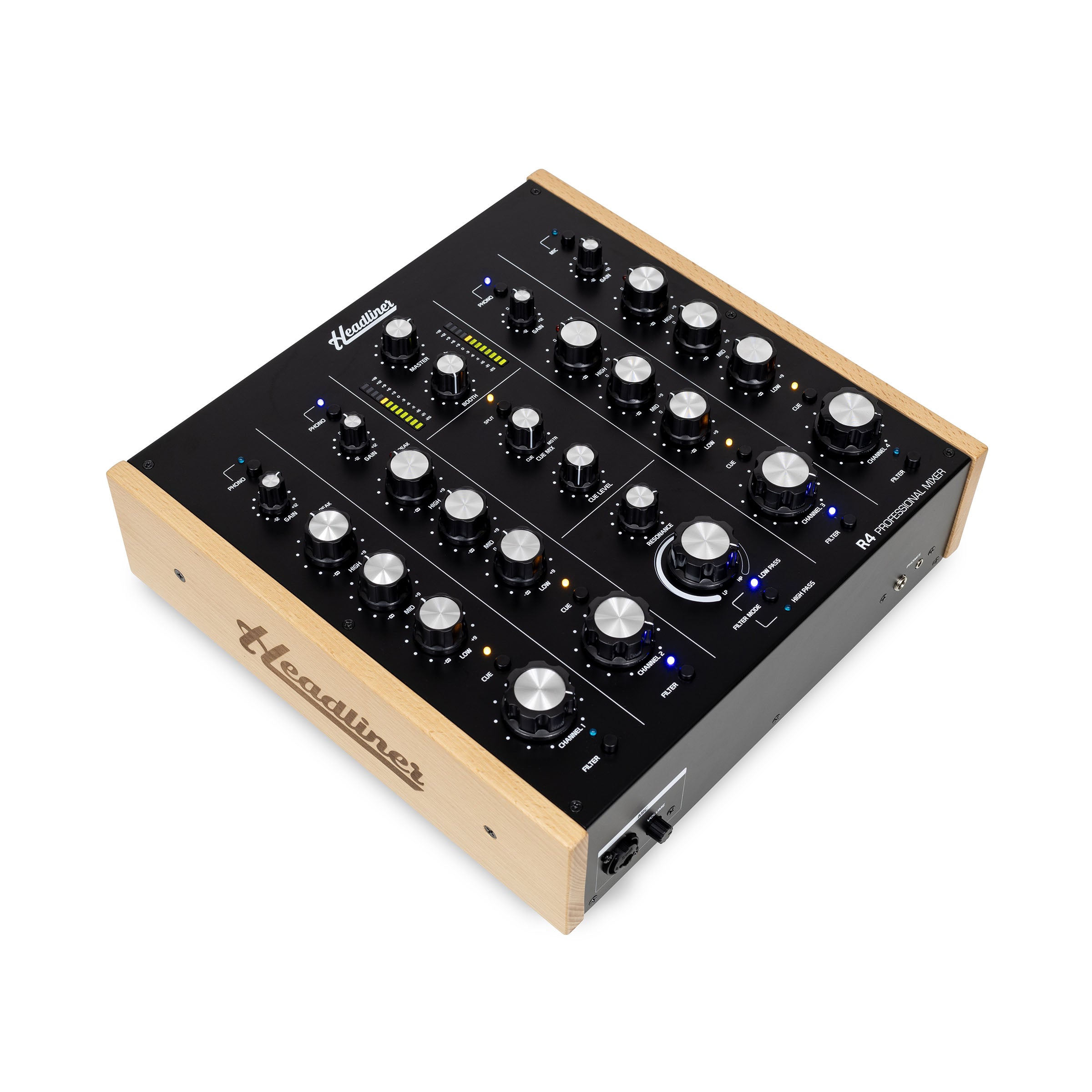

Headliner R4 Rotary Mixer

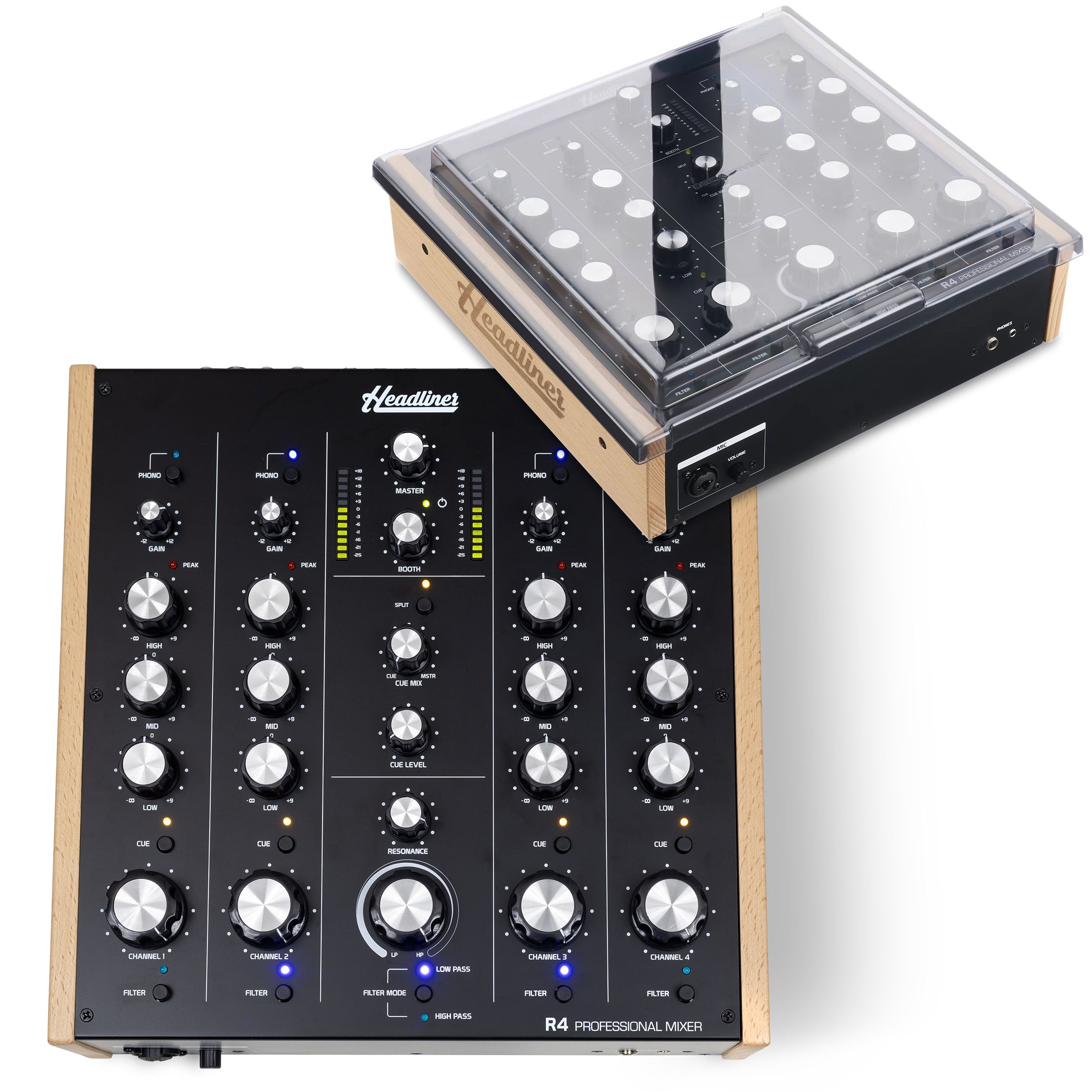

Elevate your DJ experience with the Headliner R4 Rotary Mixer and Decksaver Bundle. The R4 offers 4 channels of analog precision, genuine ALPS potentiometers, and enhanced features for warm, high-quality sound. Perfectly blending affordability and performance, it’s built for pros who demand reliability. Paired with the custom Decksaver, this bundle protects your mixer from dust, spills, and impacts, ensuring your gear stays pristine.
Crafted with four Line inputs, three Phono inputs, and one Mic input on four stereo channels. Each channel boasts essential features like gain control with peak LED, a 3-band isolator EQ, headphone cue selector, generous channel volume knob, and a filter activation switch, granting DJs precise control over their sound.
- Main features of the Headliner R4 Rotary Mixer include:
- Three stereo channels with selectable Line and Phono RCA inputs and one channel with selectable stereo Line and mono Microphone.
- Each channel features Gain control with Peak LED, 3-Band Isolator EQ, Headphones Cue selector with LED, channel volume control, and filter activation switch with LED.
- Master channel features analog filter, headphone monitoring, and output control section.
- Analog filter features selectable High Pass / Low Pass Filter modes with Frequency and Resonance controls.
- Genuine ALPS potentiometers.
- Headphone Cue control section features headphones volume control, headphones mix control (Cue/Master), and split monitor switch.
- High current headphone amplifier with dual 1/4” and 1/8” jacks.
- Independent Master and Booth outputs with volume controls, balanced XLR outputs, and unbalanced RCA outputs.
- Additional Record output with unbalanced RCA jacks.
- Dual LED level meters for the Master output.
- Microphone input with level control on front panel.
- Sturdy metal enclosure with stained wood side panels for a classic look.
- Modular internal construction for superior audio performance.
- External split rail power supply connected via locking Mini XLR connector.
- Push-button power switch on rear panel.
- Measurements: 12.6” x 12.2” x 4.2” (320 x 310 x 106 mm).
- Weight: 7.7lbs (3.5Kg).
-
Microphone Inputs
- Nominal Input Level: -50dBu
- Frequency Response: 20Hz – 20kHz (+/- 0.1dB)
- THD + N: < 0.1%
- Input Impedance: 1.2 kOhm
-
Line Inputs
- Nominal Input Level: -10dBV (-7.8dBu)
- Gain Range: -12dB to +12dB
- Frequency Response: 20Hz – 20kHz (+0/- 0.5dB)
- THD + N: < 0.05%
- Input Impedance: 10 kOhm
-
Phono Inputs
- Nominal Input Level: -40dBu (@1kHz)
- Gain Range: -12dB to +12dB
- Active RIAA equalization
- THD + N: < 0.05%
- Input Impedance: 47 kOhm
- Input capacitance: 100pF
- Single stage Phono Preamp
- Ceramic capacitors
-
Main Outputs
- Nominal Output Levels, balanced: +4dBu
- Maximum Output Level, balanced: +20dBu
- Nominal Output Levels, unbalanced: -10dBV (-7.8dBu)
- Maximum Output Level, unbalanced: +12dBu
- Frequency Response: 20Hz-20kHz (+0/-1.5dB)
- Residual noise: <-86dBu (Line to Master)(A-Weighted)
- Dynamic Range: > 100dB (A-Weighted)
- Crosstalk: < -65dB
- THD + N: < 0.05%
-
Headphone Output
- Maximum Output Level: 70mA/channel into 150Ω
- Minimum Load Impedance: 32 Ohms/channel
-
Power Supply
- Type: External with locking mini-XLR connector
- Input Voltage: 100-240v ~ 50/60Hz
- Output Voltage: +/-15V; 500mA
