HERCULES
Hercules DJControl Inpulse 500
The Hercules DJControl Inpulse 500 DJ Controller is the latest addition from Hercules' hugely popular DJControl Inpulse series. The Inpulse 500 is a 2-channel DJ controller for Serato DJ and DJUCED. It is designed to be the ultimate entry into DJing, refining your skills and playing out!
DJControl Inpulse 500 has all the features, modes and connectors you need to get into the mixing experience instantly. High definition resolution on the large jog wheels, with easy-to-use ring. The controller's audio interface delivers cutting-edge "velvet sound" digital signal processing technology.
The controller is solidly built, with a sturdy metal backing plate on the mixer, rubber RGB pads, non-slip retractable feet, and more. Mixing is easy, thanks to the controller's helpful beatmatch light guides, to stay on track when mixing at the party. Perform smooth, original transitions thanks to the excellent Filter/FX area which controls the effects available in Serato DJ and DJUCED. There's even an aux filter knob to add a filter effect onto an external audio source (smartphone)!
The Inpulse 500 controls are evenly spaced out making it easy-to-use, and features handy retractable feet raising the controller so you can mix easier, run wires underneath, and protect the controller from spilled drinks. The base is also backlit when the feet are extended.
Get Set Up Quickly
Powered via USB, DJControl Inpulse 500 has the master outputs you need to connect your speakers (2 x 1/4” / 6.35 mm jack + 2 x RCA), plus two headphones connectors (1/8” / 3.5 mm stereo mini-jack + 1/4” / 6.35 mm stereo jack).
Main features of the Hercules DJControl Inpulse 500 DJ Controller include:

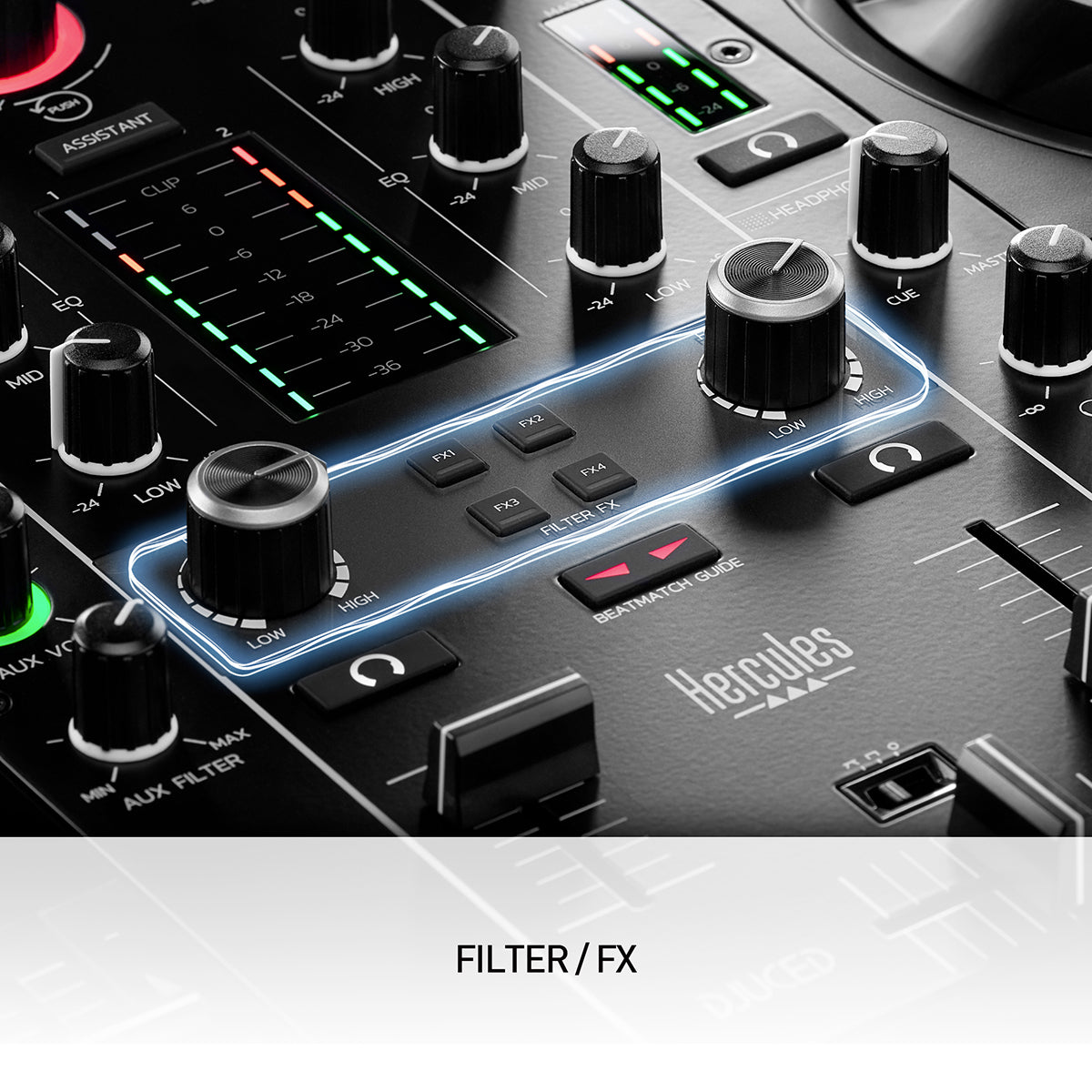

SMOOTH, ORIGINAL TRANSITIONS
The Filter/FX area lets you customize your set with the effects available in Serato DJ and DJUCED. You can even combine the action of the filter on an effect in DJUCED!

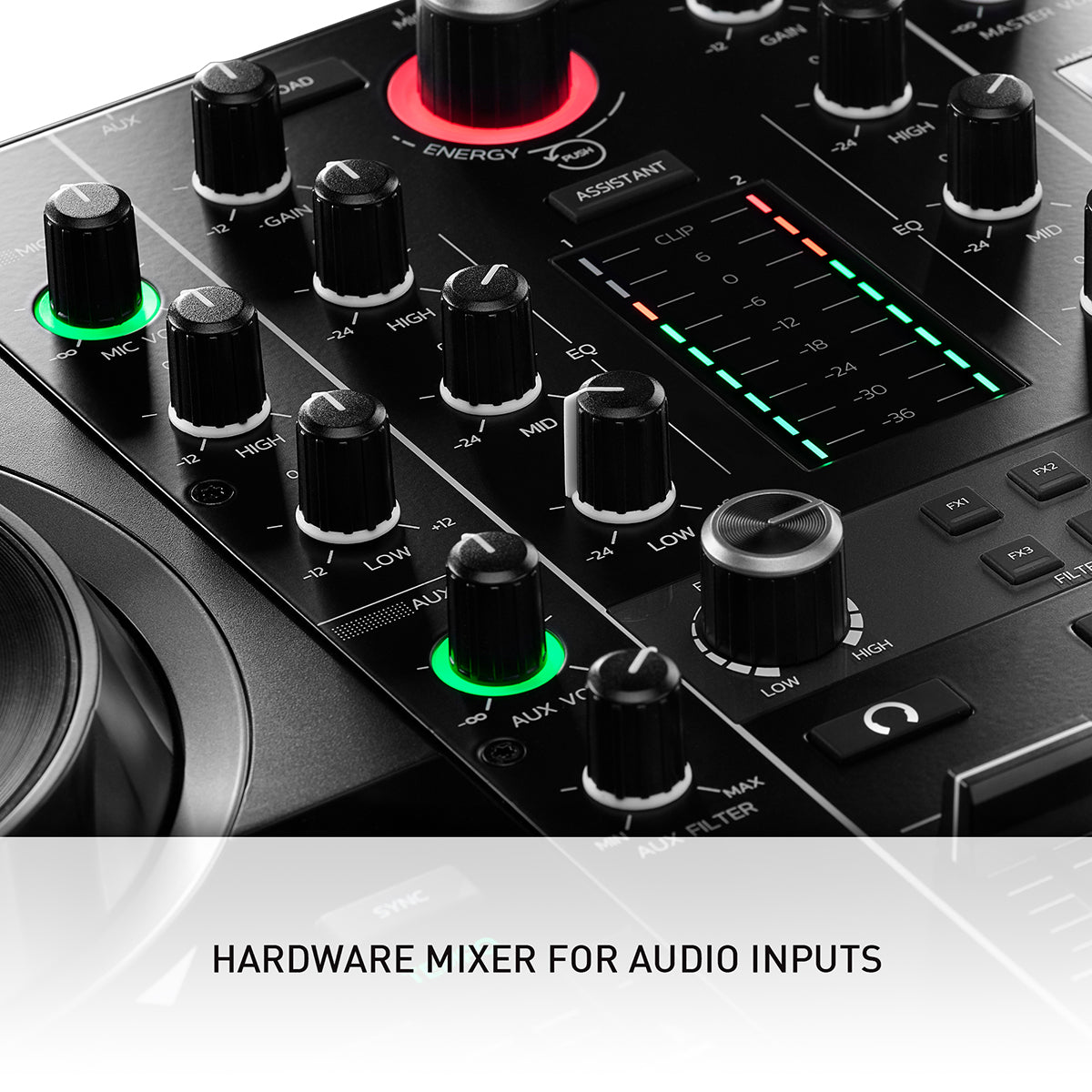

BUILT-IN HARDWARE INPUT MIXER
The AUX FILTER knob lets you add a filter effect onto an external audio source (smartphone, media player, wireless microphone receiver...) —independently of the software! (Inputs: 1/8” / 3.5 mm stereo mini-jack or 2 x RCA)
SOLID RETRACTABLE FEET
DJControl Inpulse 500 is 3.1” / 8 cm tall with its feet extended. Elevate your mixing: run wires underneath, and protect the controller from spilled drinks. The base is backlit when the feet are extended (i.e. folded out).
GET SET UP QUICKLY
Powered via USB, DJControl Inpulse 500 has the master outputs you need to connect your speakers (2 x 1/4” / 6.35 mm jack + 2 x RCA), plus two headphones connectors (1/8” / 3.5 mm stereo mini-jack + 1/4” / 6.35 mm stereo jack).

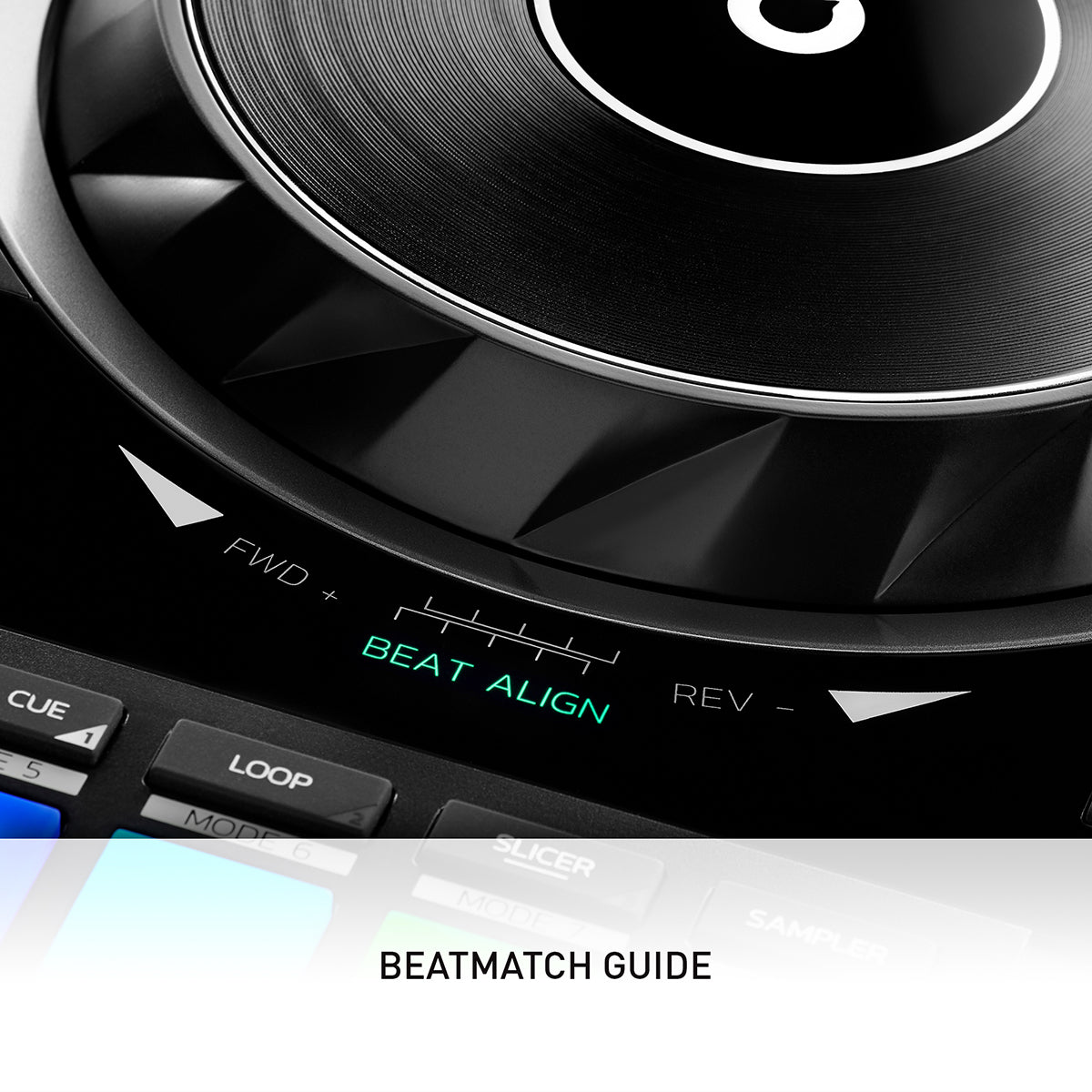

SYNC YOUR TRACKS MANUALLY
It’s easy to manually mix one track into another with the BEATMATCH GUIDE light guides, which are supported by both DJUCED and Serato DJ Lite.
CONNECT YOUR MICROPHONE —EVEN WITHOUT SOFTWARE!
Connect your microphone to the balanced input, and use the High EQ knob and Low EQ knob to adjust your voice so that you can be heard clearly wherever you’re performing.
ASSISTANT
The Intelligent Music Assistant (IMA) in DJUCED suggests well-suited upcoming tracks to be played from your music library, and in Beatport LINK as well (Beatport subscription required).
Enable the Assistant to launch Autoplay in Serato DJ Lite.
ADJUST YOUR CROSSFADER
Easily adjust the amplitude of the crossfader according to your style of music. Use the curve switch to change the crossfader curve directly on the controller (mix, scratch or off)!
A VARIETY OF CONNECTORS
Lets you mix using external sources, without software:
- Microphone input: balanced 1/4” / 6.35 mm jack with volume knob, High EQ knob, Low EQ knob
- Auxiliary input: 2 x RCA + 1/8” / 3.5 mm stereo mini-jack with filter knob
Hardware analog outputs:
- Master output: 2 x 1/4” / 6.35 mm jack + 2 x RCA
- Headphones output: 1/8” / 3.5 mm stereo mini-jack + 1/4” / 6.35 mm stereo jack

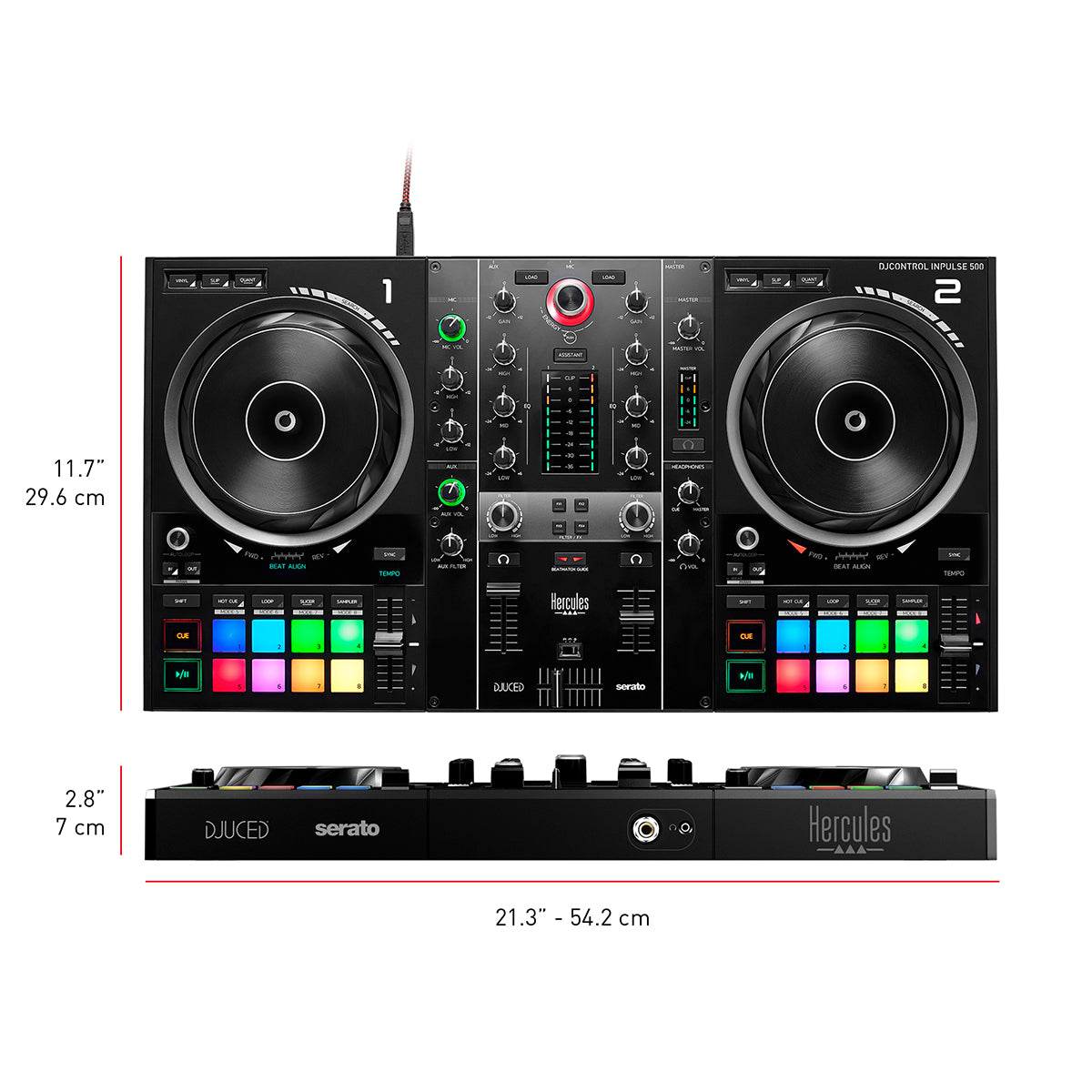

DIMENSIONS/WEIGHT | Body: 21.3 x 11.7 x 2.8” / 54.2 x 29.6 x 7 cm Weight: 7 lb / 3.2 kg Diameter of jog wheels: 5.5” / 14 cm |
AUDIO OUTPUTS AND INPUTS | Master output (speakers): 2 x 1/4” / 6.35 mm jack + 2 x RCA Headphones output: 1/8” / 3.5 mm stereo mini-jack + 1/4” / 6.35 mm stereo jack Auxiliary input: 2 x RCA + 1/8” / 3.5 mm stereo mini-jack Microphone input: balanced 1/4” / 6.35 mm jack Audio resolution: 44.1 kHz / 24-bit |
CONTROLS | Mixing controls Per deck: 1 filter knob, 3 EQ knobs, 1 gain knob, 1 volume fader, 1 VU meter. General: 1 crossfader, master volume knob, headphones volume knob and Cue/Mix knob, microphone volume knobwith High EQ knoband Low EQ knob, auxiliary volume knob and filter knob, master VU meter, filter/effects rack with 4 effects buttons and 2 filter knobs. |
Other controls per deck -Play/Pause, Cue, Shift, Sync, jog wheel with touch detection -8 pads x 8 modes (Hot Cue, Loop, Slicer...) -Vinyl, Slip, Quantize, Loop In/Loop Out buttons |
|
Music library controls Rotary encoder + 2 Load buttons + Assistant button |
|
BEATMATCH GUIDES | Tempo guide: light guide alongside each tempo fader |
Beat Align guide: light guide underneath each jog wheel | |
IMA(INTELLIGENT MUSIC ASSISTANT) | Assistant: instantly suggests the best upcoming tracks to be played from your music library |
Energy: helps you select tracks according to the energy level for your party | |
SOFTWARE | Serato® DJ Lite and DJUCED® |
SYSTEM REQUIREMENTS |
Operating system: Windows®10 / macOS®10.12 or higher Core™ i3, 4 GB RAM, OpenGL 2.0 or higher (for graphics) |
- All-in-one DJ controller
- Large jog wheels with touch detection
- 16 backlit RGB pads with 8 modes
- Vinyl, Slip, Quantize, Loop In/Loop Out buttons
- Filter/FX rack with 4 effects buttons and 2 filter knobs
- 3 EQ knobs and 1 gain knob per deck
- Extendable feet to raise controller off surface
- Serato DJ Lite and DJUCED included
