IKMULTIMEDIA

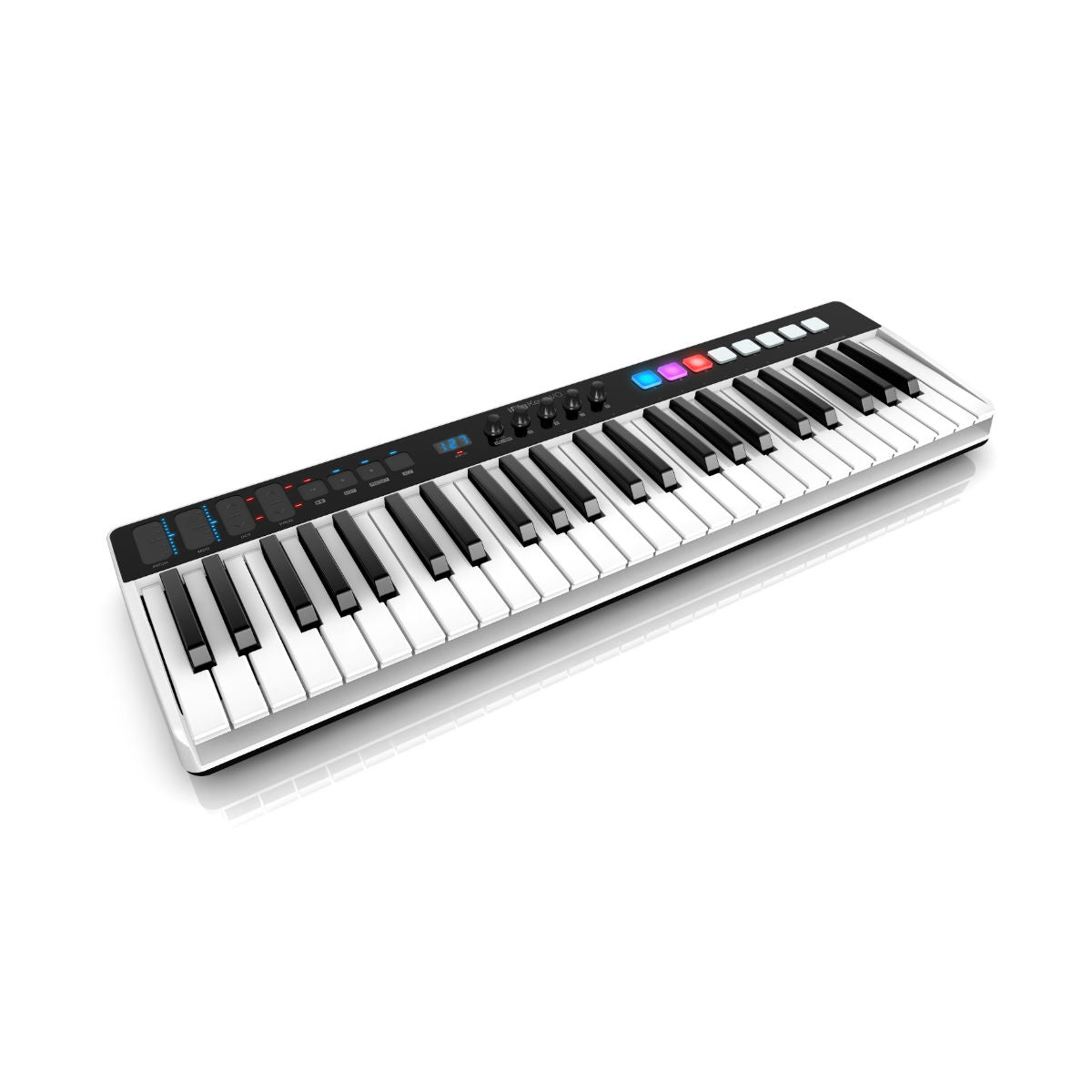

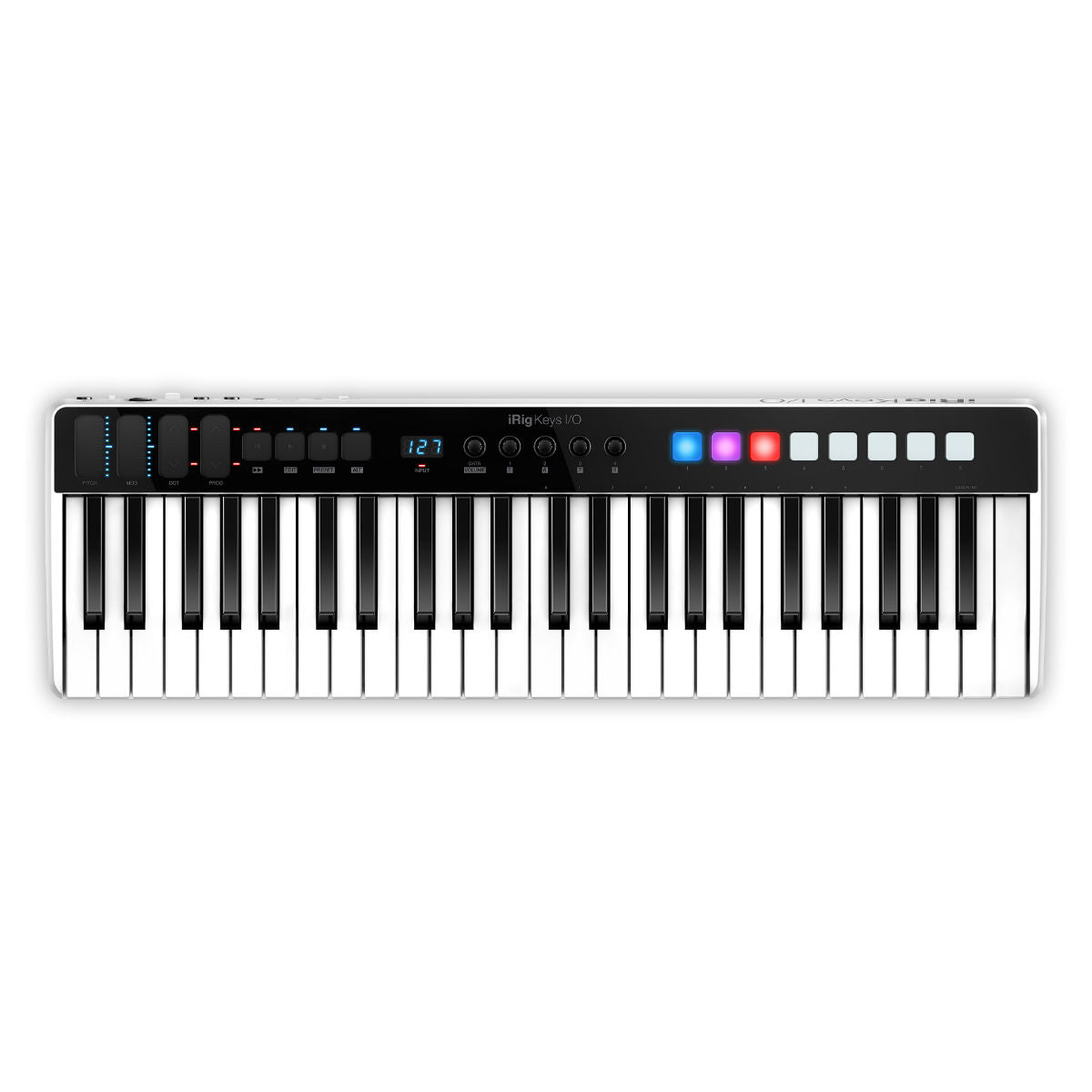

IK Multimedia iRig Keys I/O 49

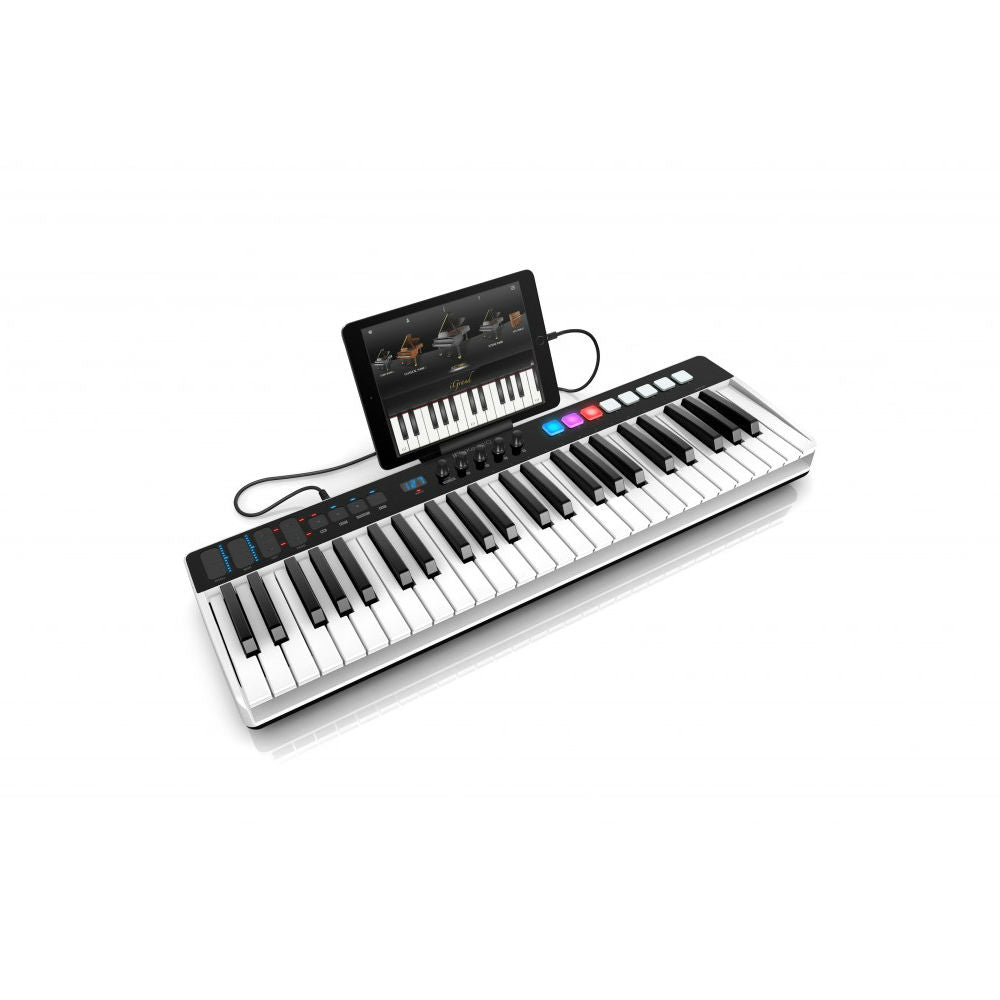

The IK Multimedia iRig Keys I/O 49 is a MIDI controller and audio interface all wrapped into one compact sized keyboard. It features 49 full-size keys, velocity-sensitive drum pads, a host of transport controls & an audio inputs/outputs with 24-bit recording up to 96kHz sampling rate. iRig Keys I/O is designed to work seamlessly with with any iOS device, Mac or PC.
The ultra compact keyboard features velocity-sensitive keys and is easily transportable. Built-into the keyboard is a 24-bit / 96kHz audio interface with a combo mic/line input with phantom power for condenser microphones, stereo outputs, and a minijack headphone output for efficient recording with any DAW or music iOS app. iRig Keys I/O boasts a range of hands-on controls including 2 user-programmable slider strips for pitch and modulation, octave buttons, program change and transport controls. 5 programmable touch sensitive knobs, 8 velocity-sensitive multi-colored assignable pads allow for even more control and playability especially with effects and drums.
Huge software bundle included
The keyboard/interface comes bundled with a huge collection of software instruments and pro studio processors by IK Multimedia worth over £500 including the full version of SampleTank 3 sound and groove workstation, T-RackS 4 Deluxe mix and mastering suite, Syntronik Pro-V vintage synthesizer and Miroslav Philharmonik 2 CE* orchestral workstation for Mac/PC, iRig Keys IO includes 13 full plug-ins (3 instruments and 10 dynamic and EQ audio processors), over 5,000 sounds and 43 GB of samples
iPhone and iPad users can enjoy full version of SampleTank, Syntronik Pro-V and Miroslav Philharmonik 2 collection* included.
Main features of the IK Multimedia iRig Keys I/O 25 include:
Microphone Input
- Microphone Input: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Microphone Input Level: from 6 mVpp to 1.4 Vpp
- Microphone Input Impedance: 3.2 kOhms
- Gain Range: 46 dB
- Phantom Power: +48V ± 4V
- Frequency Response: 20 Hz - 20 kHz +/-1.5dB
- Input Noise: -100 dB RMS
Instrument Input
- Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground
- Instrument Input Level: from 30 mVpp to 6.9 Vpp
- Instrument Input Impedance: 1 MOhms
- Gain Range: 27 dB
- Frequency Response: 20 Hz - 20 kHz +/-1.5dB
- Input Noise: -100 dB RMS
Line Output
- Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
- Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
- Maximum Output Level: +13 dBu into 600 Ohms balanced load
- Frequency Response: from 10 Hz to 21 kHz (+/- 0.2dB)
- Output Dynamic Range: 102 dB(A)
- Output Impedance: 150 Ohms balanced
Stereo Headphone Output
- Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
- Headphone Level Power 100mW into 50 Ohms

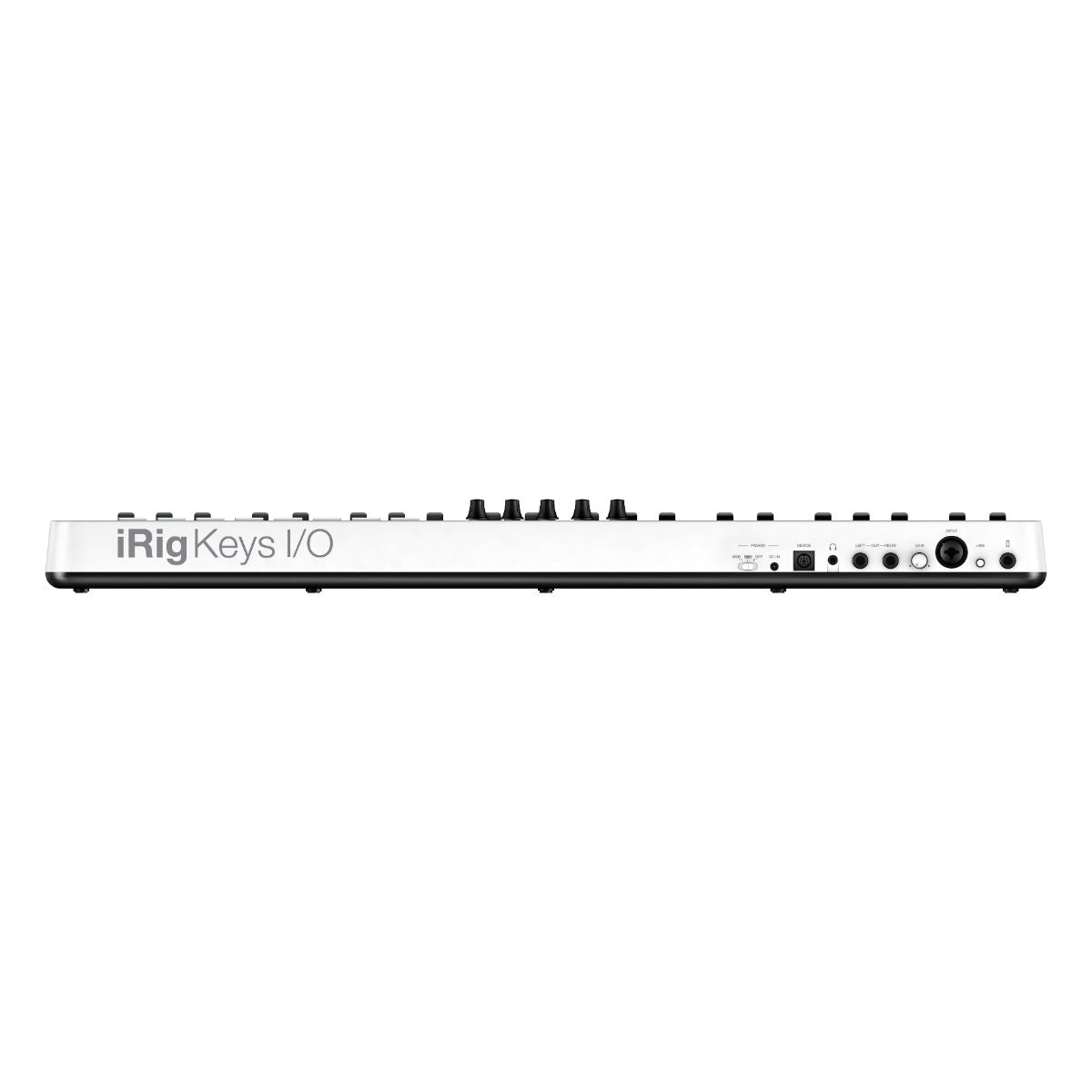

Other Input/Output
- DC barrel: 1x DC barrel. For power and device charging.
- Device Connector: mini-DIN
- External Pedal Input: 1/4" TRS Jack
Common
- Conversion: 16 or 24-bit A/D - D/A
- Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
- Power:
• USB bus powered when used with a computer
• Battery powered (4xAA included) when used with an iOS device
• DC power supply (not included, iRig PSU 3A sold separately)*
Keyboard
- Keys: 25 or 49 (depending on the version) full-size keys with velocity
Pads
- 8 velocity-sensitive multi color assignable pads
Controls
- Slider strips for pitch and modulation (user programmable)
- Octave, program change and transport
- 5 programmable touch sensitive encoders
Package includes
- iRig Keys I/O 49 or 25 keyboard (depending on the version)
- Lightning to Mini-DIN connection cable (60cm/23.62")
- USB to Mini-DIN connection cable (60cm/23.62")

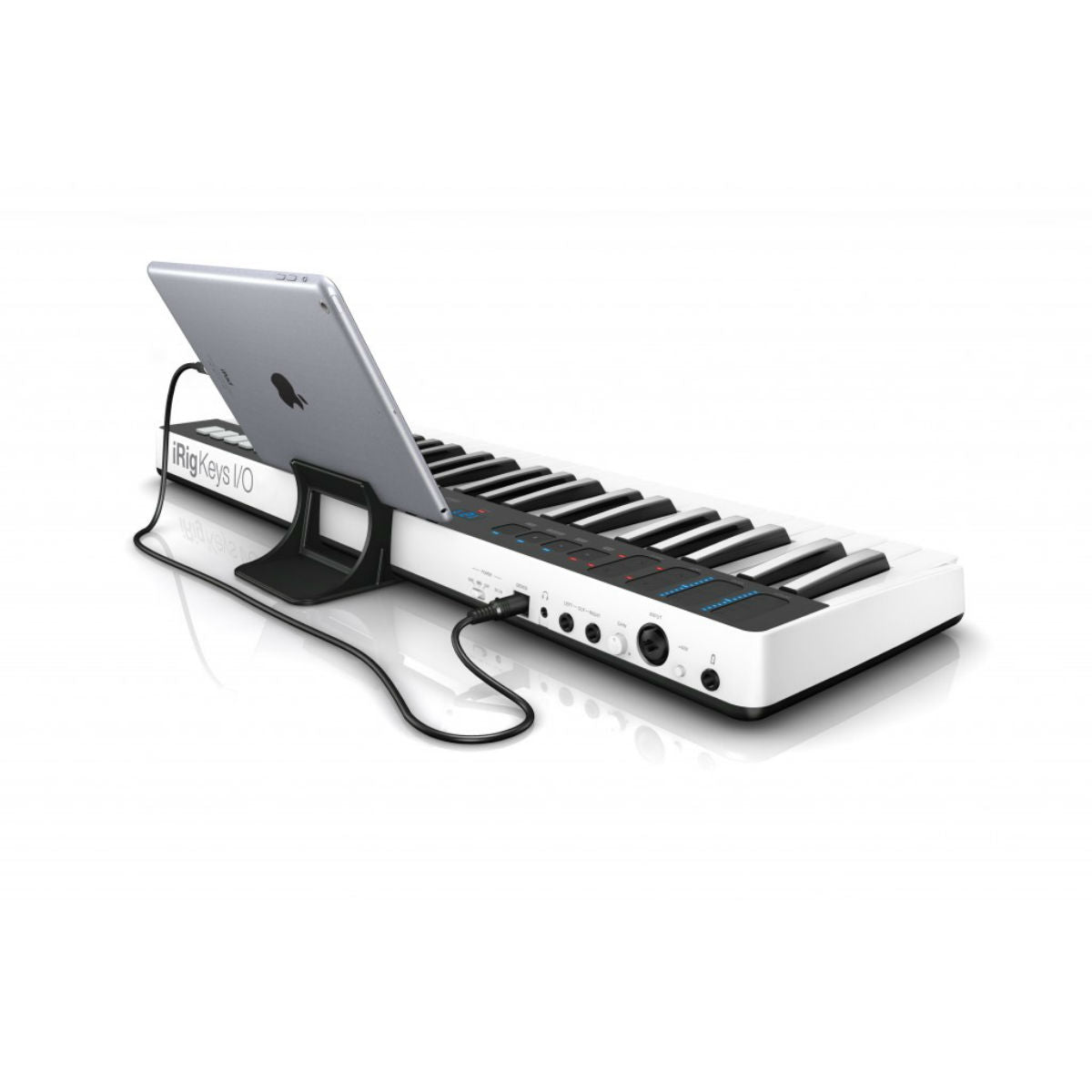

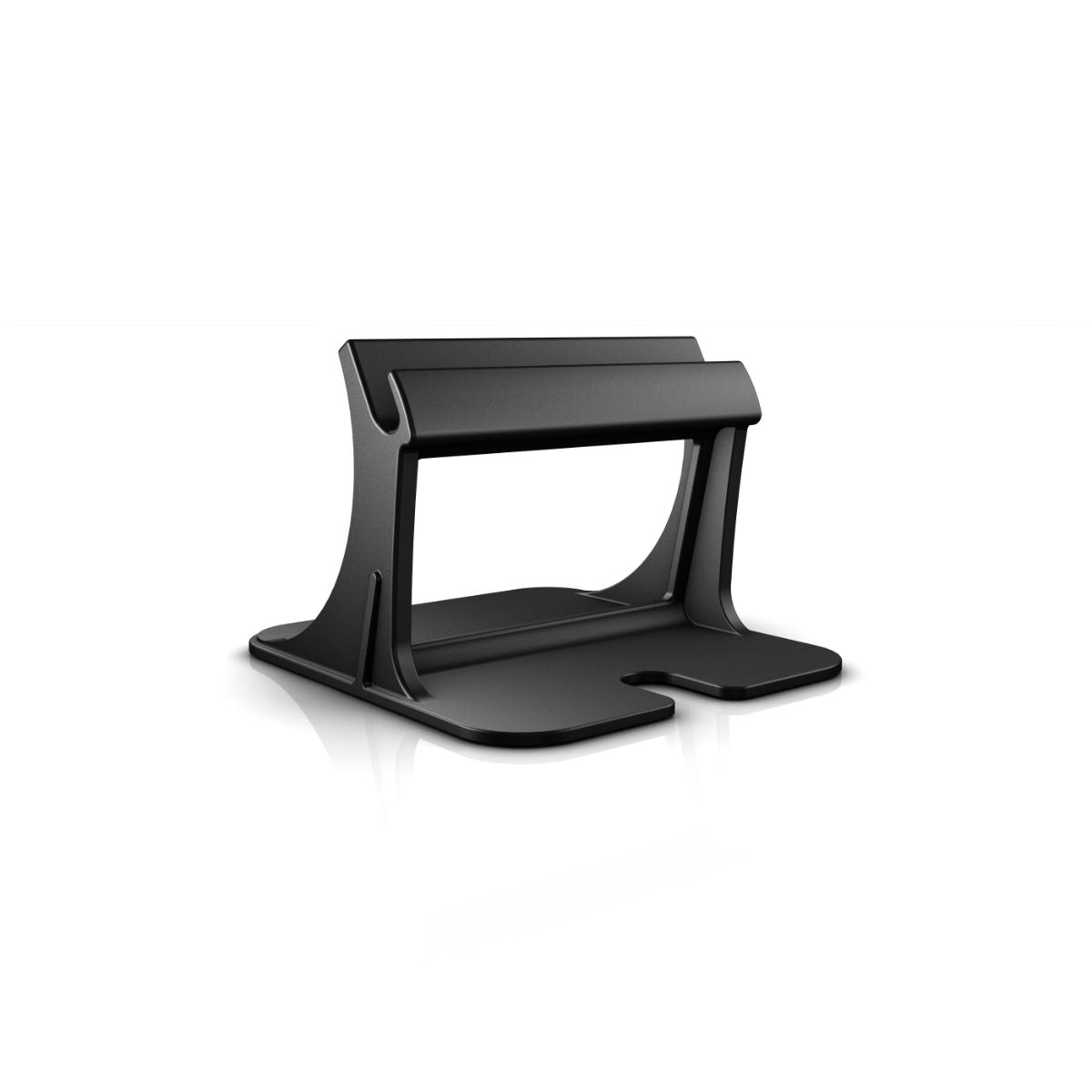

- iPhone/iPad stand
- 4 x 1.5V AA Battery
iRig Keys I/O 49 Dimensions
- Size: 693mm/27.3" x 208mm/8.2" x 65mm/2.6"
- Weight: 2.18kg/76.9oz (batteries excluded)
iRig Keys I/O 25 Dimensions
- Size: 373mm/14.7" x 208mm/8.2" x 65mm/2.6"
- Weight: 1.26kg/44.5oz (batteries excluded)
Compatibility
iOS Devices
Compatible with iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (12.9-inch) 1st Generation, iPad Pro (9.7-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad 4th generation. iOS 6 or later is required.
Computers
Mac®: Mac OS X 10.6 or later. One free USB port.
Windows®: Support using the ASIO4ALL driver on Windows XP/Vista/7/8/10. See our FAQ here for further details.
* Use only the specified AC adaptor
Use only the specified AC adaptor (iRig PSU 3A) and make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. IK Multimedia will not be responsible of any damage caused by usage of any AC adaptor other than the specified one (iRig PSU 3A). The usage of AC adaptors other than the specified one (iRig PSU 3A) could compromise the user experience in terms of: Safety risk, Apple device charging performances, Noise performances.
- All-in-one, fully portable, ultra-compact MIDI controller with 24-bit / 96kHz capable input/output audio interface for iPhone, iPad, Mac and PC
- 49 full size velocity-sensitive, synth-action keys
- Smart, ultra-compact, elegant design
- Easily transportable, fits anywhere
- MFi certified by Apple (“Made for iPhone and iPad”) includes Lightning Cable
- Includes mobile device support stand
