JBL EON710 10" Active PA Speaker with Bluetooth (Pair)
Quantity:

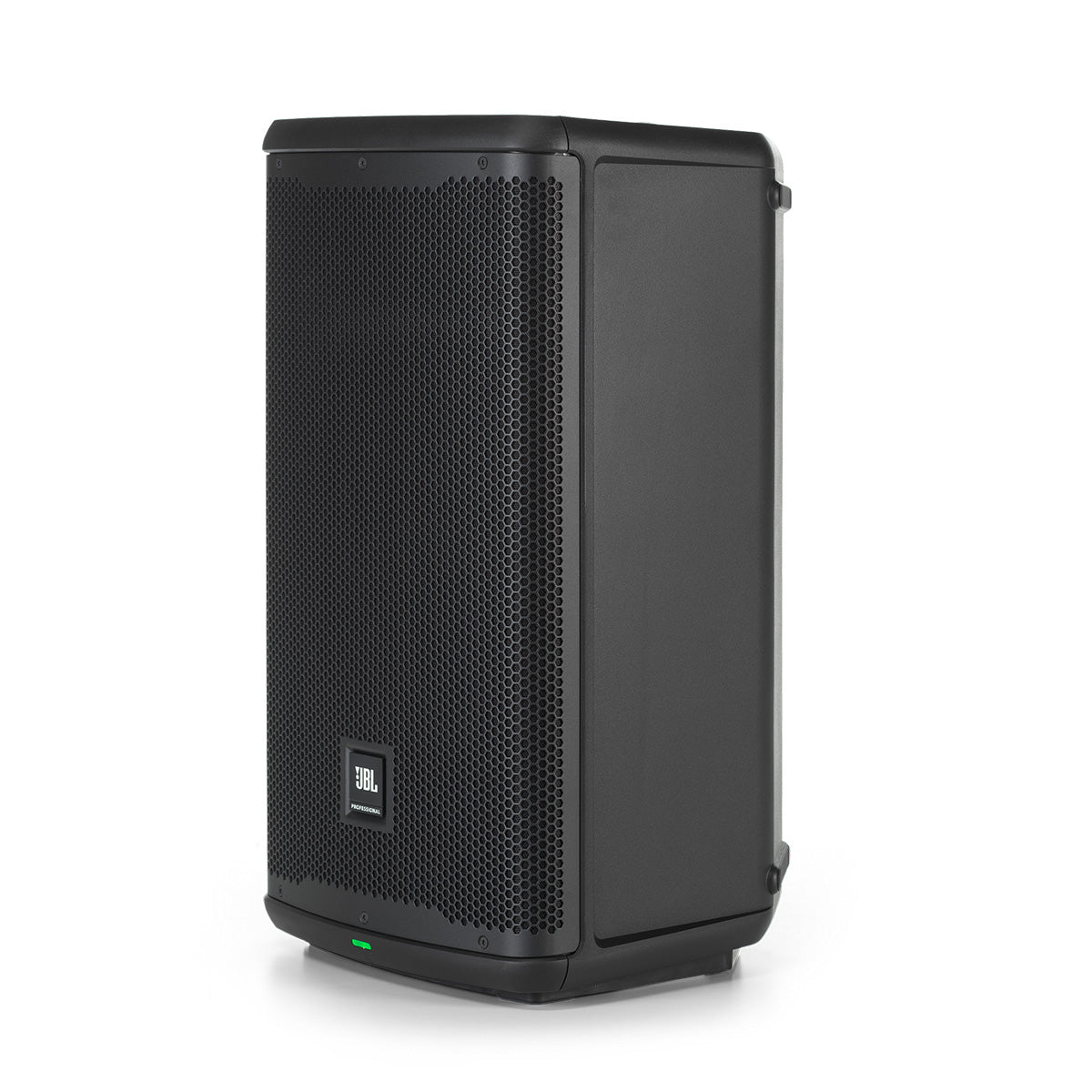

The JBL EON710 10-inch loudspeaker is part of JBL’s new EON700 Series of powered PAs, which represents a major step forward in innovation and technology: JBL engineers used exclusive, state-of-the-art design and measurement techniques to deliver the best-performing loudspeakers in their category, regardless of application.
Specifications
System Type | 10IN Powered Loudspeaker |
Woofer Model | 710G |
Woofer Size | 10" |
Woofer Magnet | Ferrite |
Woofer Voice Coil | 2" |
Tweeter Model | 2414H Compression Driver |
Tweeter Size | 1" |
Tweeter Magnet | Neodymium |
Transducer Impedence | LF 4ohm rated, HF 8ohm rated |
Max SPL | 125dB @1m/4Pi |
Freq Range -10 | 52Hz - 20kHz |
Freq Range -3 | 65Hz - 20kHz |
Hor Dispersion | 110° |
Vert Dispersion | 60° |
Power Rating | 1300W peak / 650 RMS |
AC power input | 100V-120V or 220V-240V |
Cooling | Passive |
LED indicators | 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs |
Input Impedance | 50k/100k un-balanced/balanced |
Input Gain | -∞ to +36db |
Crossover Frequency | 2 kHz |
I/O | 2 XLR Combo Jacks / BT 1 XLR M Thru |
Cabinet | PP+10% Talc |
Grille | 16GA perforated steel with acoustically transparent black cloth backing |
Suspension / Mounting | 4 M10 Suspension points, 36mm Pole Socket, Universal yoke bracket holes |

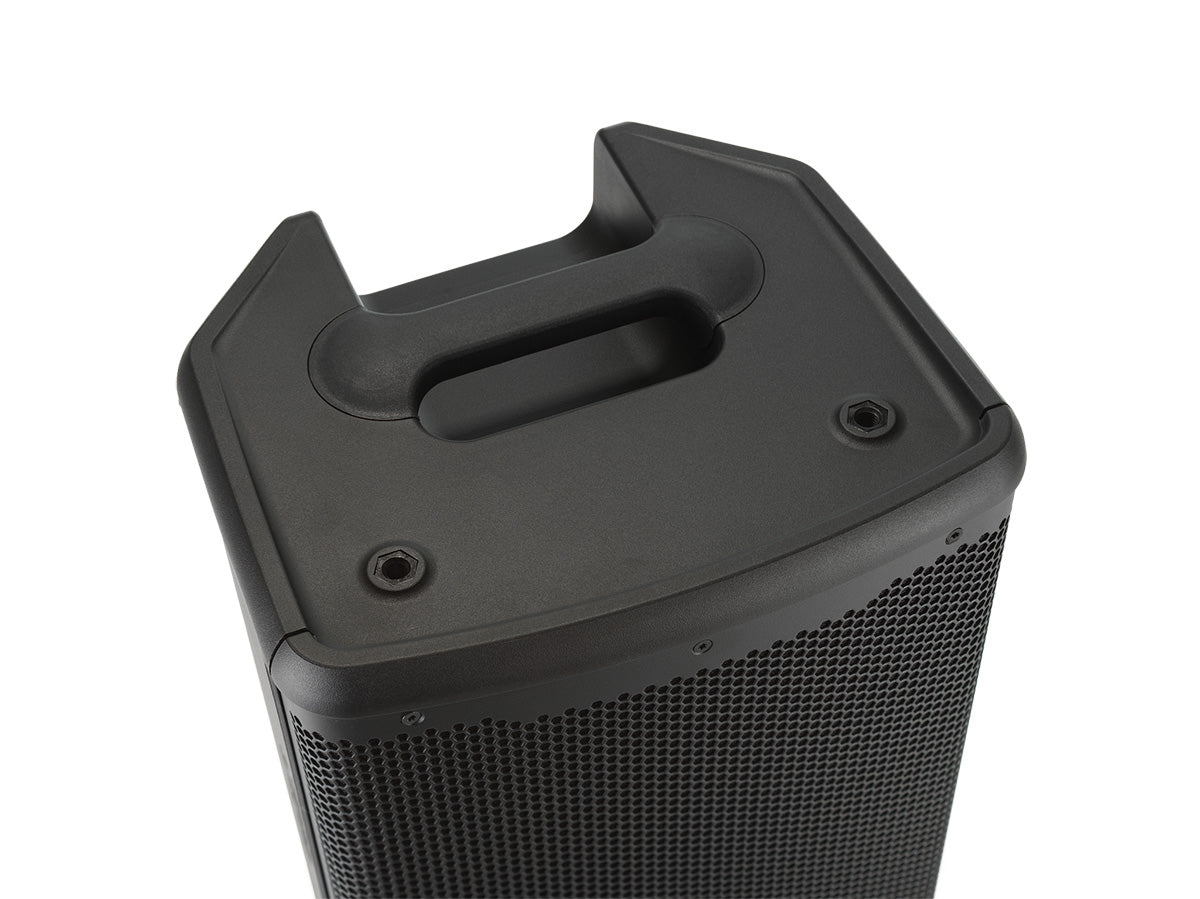

Handles | 1, Cable channel on bottom |
Net Weight | 12kg (26.46 lbs.) |
Gross Weight | 15.2kg (33.51 lbs.) |
Product Dims | HxWxL 587x332x305mm (23.11x13.07x12 in.) |
Shipping Dims | HxWxL 606x439x407mm (23.86x17.28x16.02 in.) |
- Custom-designed 10-inch woofer
- 2414H compression driver
- Power: 1,300W peak / 650W RMS
- Frequency response: 52 Hz–20 kHz (-10 dB); 65 Hz–20 kHz (-3 dB)
- Max SPL: 125 dB
- Dispersion: 110° H x 60° V
- Audio I/Os: 2 XLR Combo, 1 XLR passthrough
- Advanced dbx DSP
- Built-in 3-channel digital mixer
- Universal JBL Pro Connect app control
- Bluetooth 5.0 streaming and control
- Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
- Stackable cabinets allow easy storage
