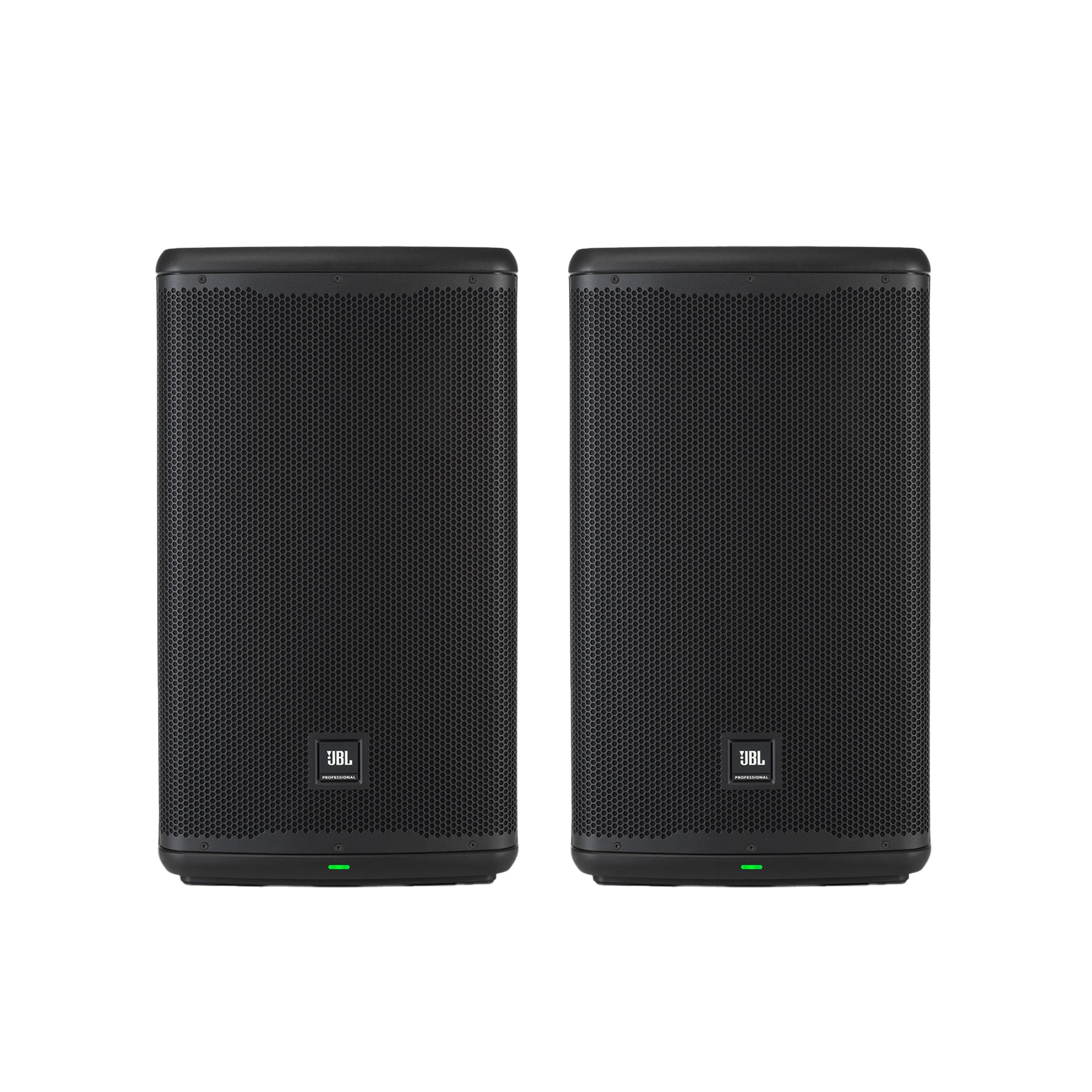

![JBL EON712 12" Active PA Speaker with Bluetooth (Pair)](http://westenddj.co.uk/cdn/shop/files/jbl-eon712-pair.jpg?v=1708098751&width=2400)

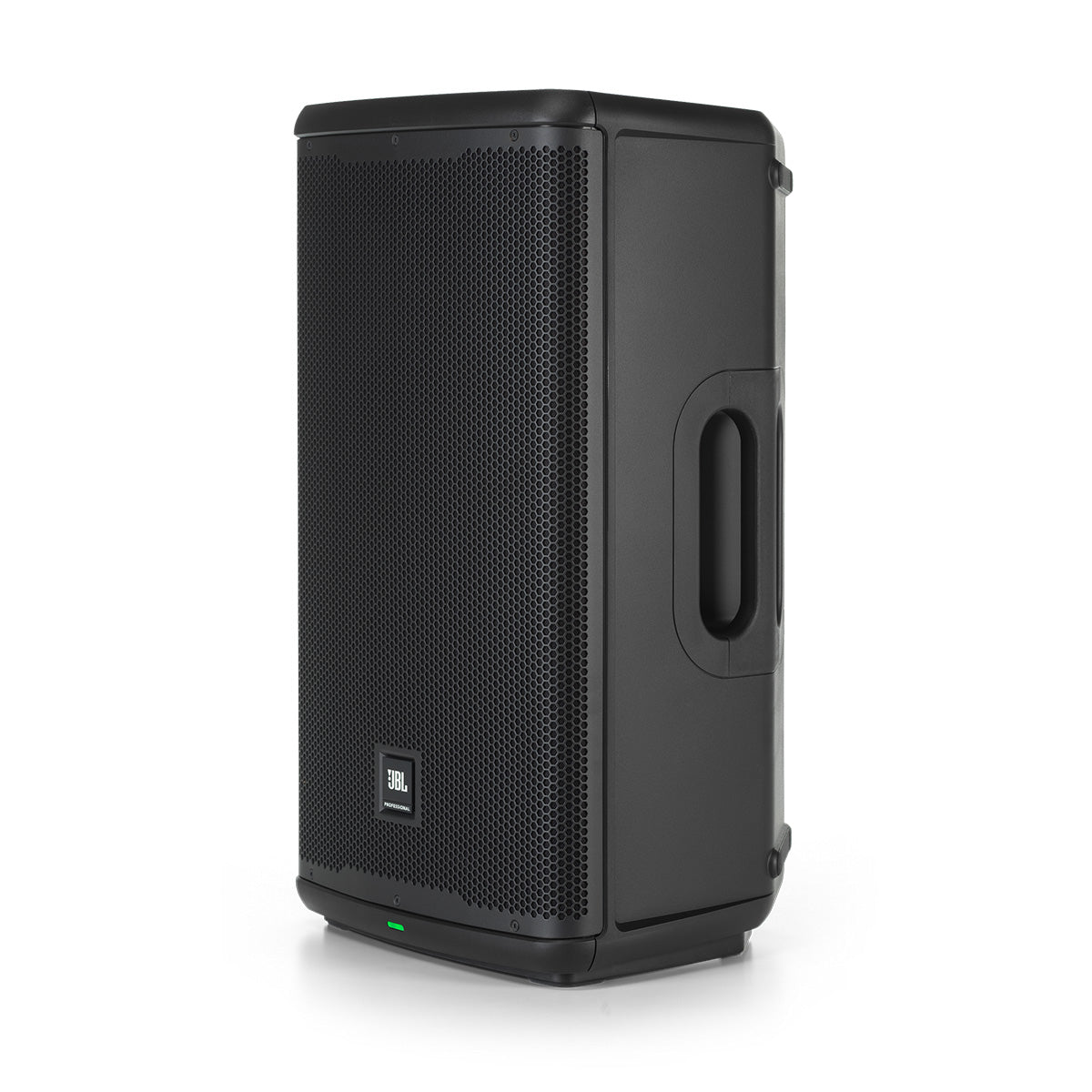

![JBL EON712 12" Active PA Speaker with Bluetooth (Pair)](http://westenddj.co.uk/cdn/shop/files/jbl_eon712_right_3-4_6607fb8d-54dc-4129-bf7f-180c52f36714.jpg?v=1708098751&width=1200)

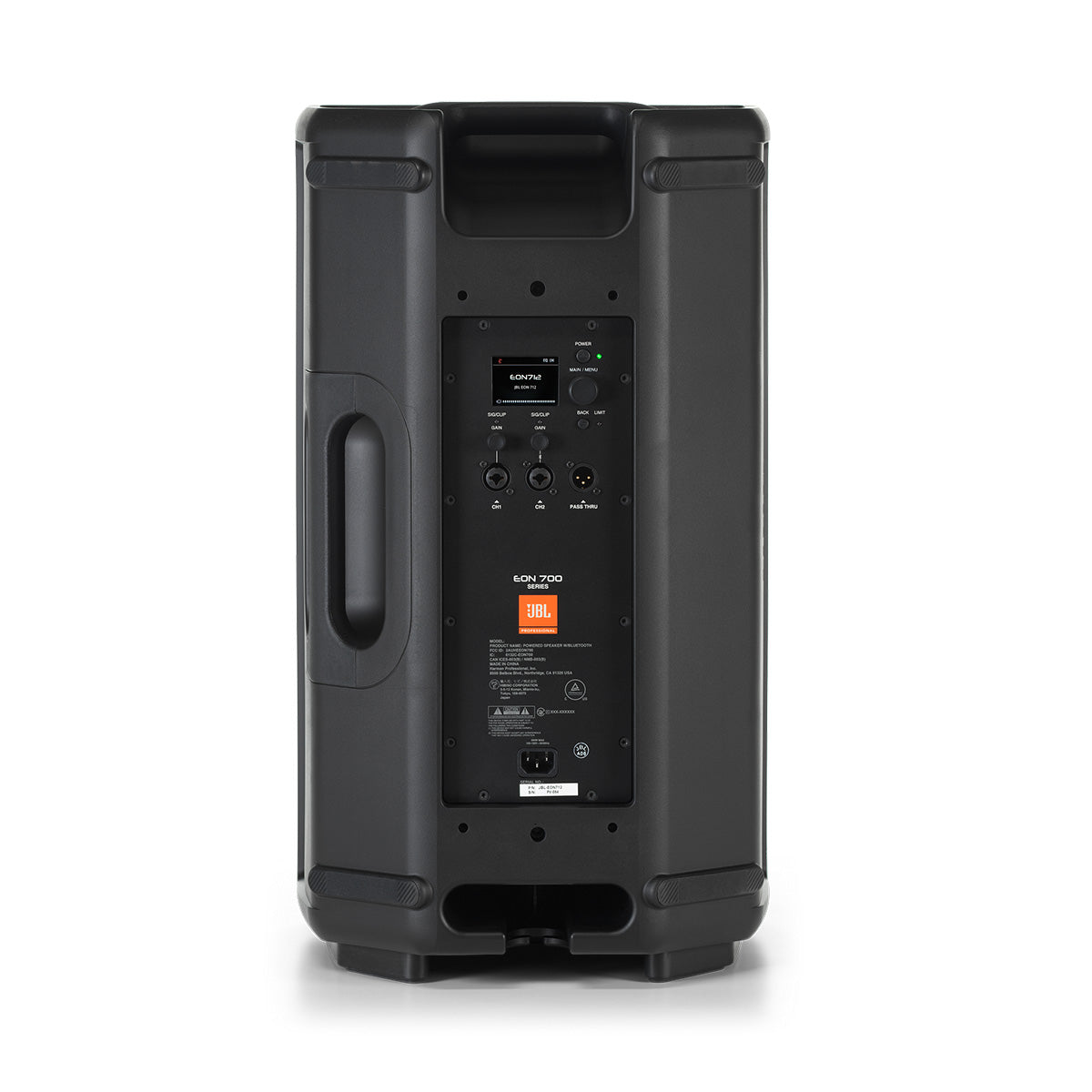

![JBL EON712 12" Active PA Speaker with Bluetooth (Pair)](http://westenddj.co.uk/cdn/shop/files/jbl_eon712_rear_straight_8dfea712-6a86-4af2-a10d-e5fb742c1116.jpg?v=1708098751&width=1200)
![JBL EON712 12" Active PA Speaker with Bluetooth (Pair)](http://westenddj.co.uk/cdn/shop/files/JBL_7_Year_Warranty_EMEA_Product_Sticker.png?v=1738945299&width=2048)

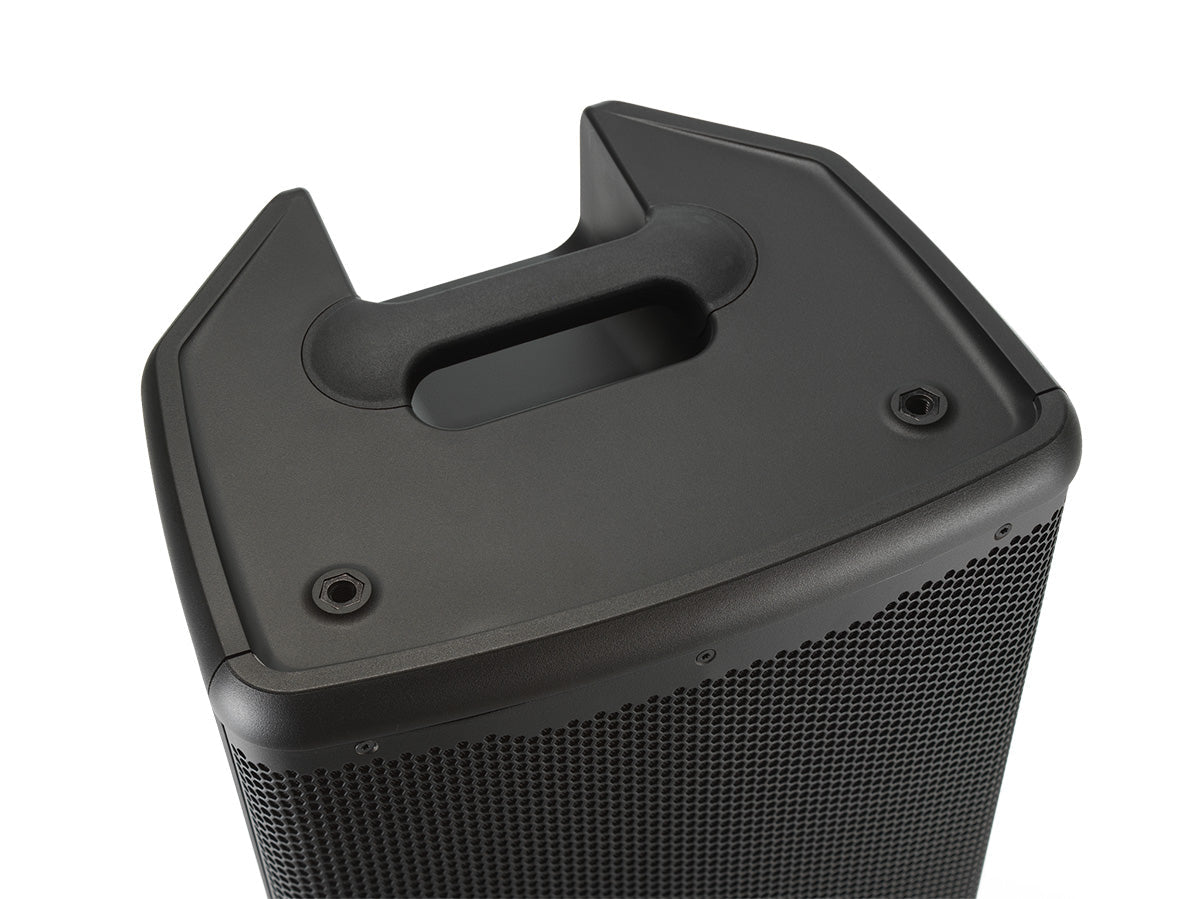

![JBL EON712 12" Active PA Speaker with Bluetooth (Pair)](http://westenddj.co.uk/cdn/shop/files/jbl_eon712_top_handle_detail_61a3d093-16c1-4834-aa6b-499e6e02920c.jpg?v=1738945286&width=1200)
JBL
JBL EON712 12" Active PA Speaker with Bluetooth (Pair)
7-year warranty
JBL Professional now offers a 7-year warranty on selected speakers including this one, effective from the original purchase date. With 75+ years of expertise, JBL ensures superior quality through rigorous testing, including a 100-hour stress test, aging and drop tests, and strict global certifications.
Please note: The extended warranty applies to all components except for batteries, which have a 3-year warranty.
Specifications
System Type | 12IN Powered Loudspeaker |
Woofer Model | 712G |
Woofer Size | 12" |
Woofer Magnet | Ferrite |
Woofer Voice Coil | 2" |
Tweeter Model | 2414H Compression Driver |
Tweeter Size | 1'' |
Tweeter Magnet | Neodymium |
Transducer Impedence | LF 4ohm rated, HF 8ohm rated |
Max SPL | 127dB @1m/4Pi |
Freq Range -10 | 50Hz - 20kHz |
Freq Range -3 | 60Hz - 20kHz |
Hor Dispersion | 100° |
Vert Dispersion | 60° |
Power Rating | 1300W peak / 650 RMS |
AC power input | 100V-120V or 220V-240V |
Cooling | Passive |
LED indicators | 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs |
Input Impedance | 50k/100k un-balanced/balanced |
Input Gain | -∞to +36db |
Crossover Frequency | 2 kHz |
I/O | 2 XLR Combo Jacks / BT 1 XLR M Thru |
Cabinet | PP+10% Talc |
Grille | 16GA perforated steel with acoustically transparent black cloth backing |
Suspension / Mounting | 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes |
Handles | 2, cable channel on bottom |
Net Weight | 14.6kg (32.19 lbs.) |
Gross Weight | 18.4kg (40.57 lbs.) |
Product Dims | HxWxL 670x381x328mm (26.38x15.0x12.91 in.) |
Shipping Dims | HxWxL 684x490x430mm (26.93x19.29x16.93 in.) |
- Custom-designed 12-inch woofer
- 2414H compression driver
- Redesigned high-frequency horn
- Power: 1,300W Peak / 650W RMS
- Frequency response: 50 Hz–20 kHz (-10 dB); 60 Hz–20 kHz (-3 dB)
- Max SPL: 127 dB
- Dispersion: 100° H x 60° V
- Audio I/Os: 2 XLR Combo, 1 XLR passthrough
- Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
- Built-in 3-channel digital mixer
- Bluetooth 5.0 streaming and control
