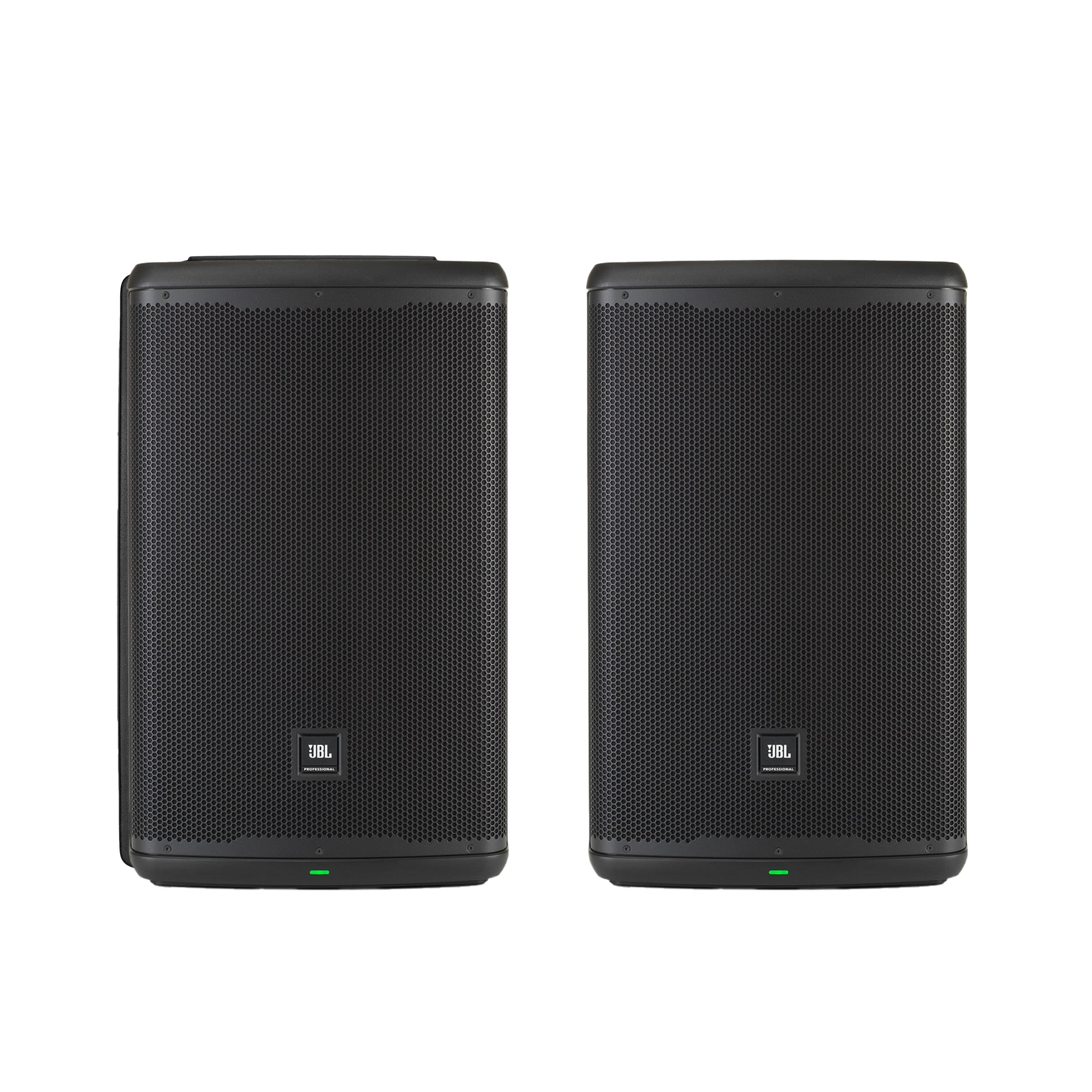

JBL EON715 15" Active PA Speaker with Bluetooth (Pair)
Quantity:
The JBL EON715 is a dynamic 15-inch speaker in the innovative EON700 Series, showcasing groundbreaking technology and design. Through cutting-edge engineering and precision measurements, JBL has created unparalleled loudspeakers that outperform all others in their class and usage.
Specifications
System Type | 15IN Powered Loudspeaker |
Woofer Model | 715G |
Woofer Size | 15" |
Woofer Magnet | Ferrite |
Woofer Voice Coil | 2" |
Tweeter Model | 2414H Compression Driver |
Tweeter Size | 1'' |
Tweeter Magnet | Neodymium |
Transducer Impedence | LF 4ohm rated, HF 8ohm rated |
Max SPL | 128dB @1m/4Pi |
Freq Range -10 | 45Hz - 20kHz |
Freq Range -3 | 55Hz - 20kHz |
Hor Dispersion | 90° |
Vert Dispersion | 60° |
Power Rating | 1300W peak / 650 RMS |
AC power input | 100V-120V or 220V-240V |
Cooling | Passive |
LED indicators | 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs |
Input Impedance | 50k/100k un-balanced/balanced |
Input Gain | -∞to +36db |
Crossover Frequency | 1.9 kHz |

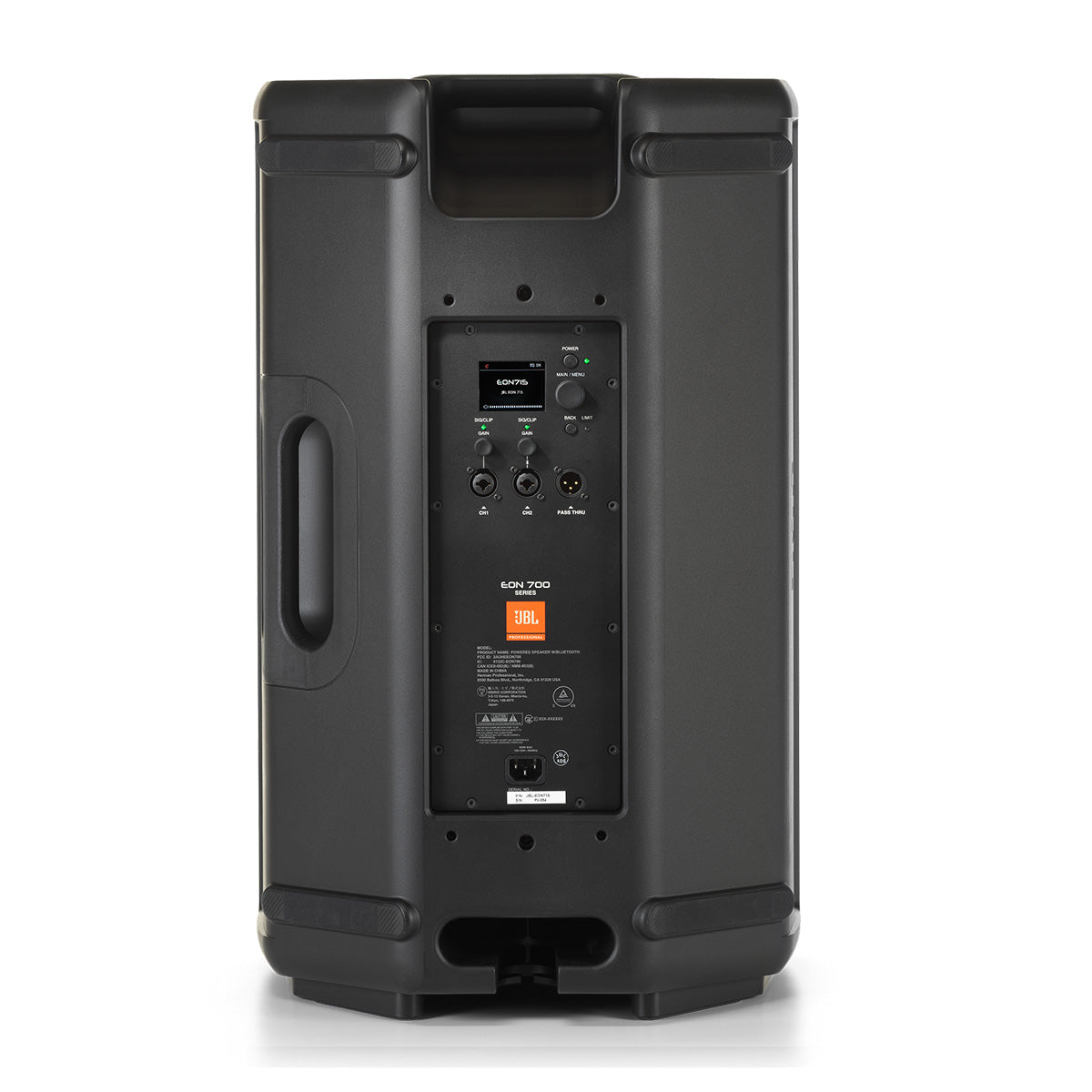

I/O | 2 XLR Combo Jacks / BT 1 XLR M Thru |
Cabinet | PP+10% Talc |
Grille | 16GA perforated steel with acoustically transparent black cloth backing |
Suspension / Mounting | 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes |

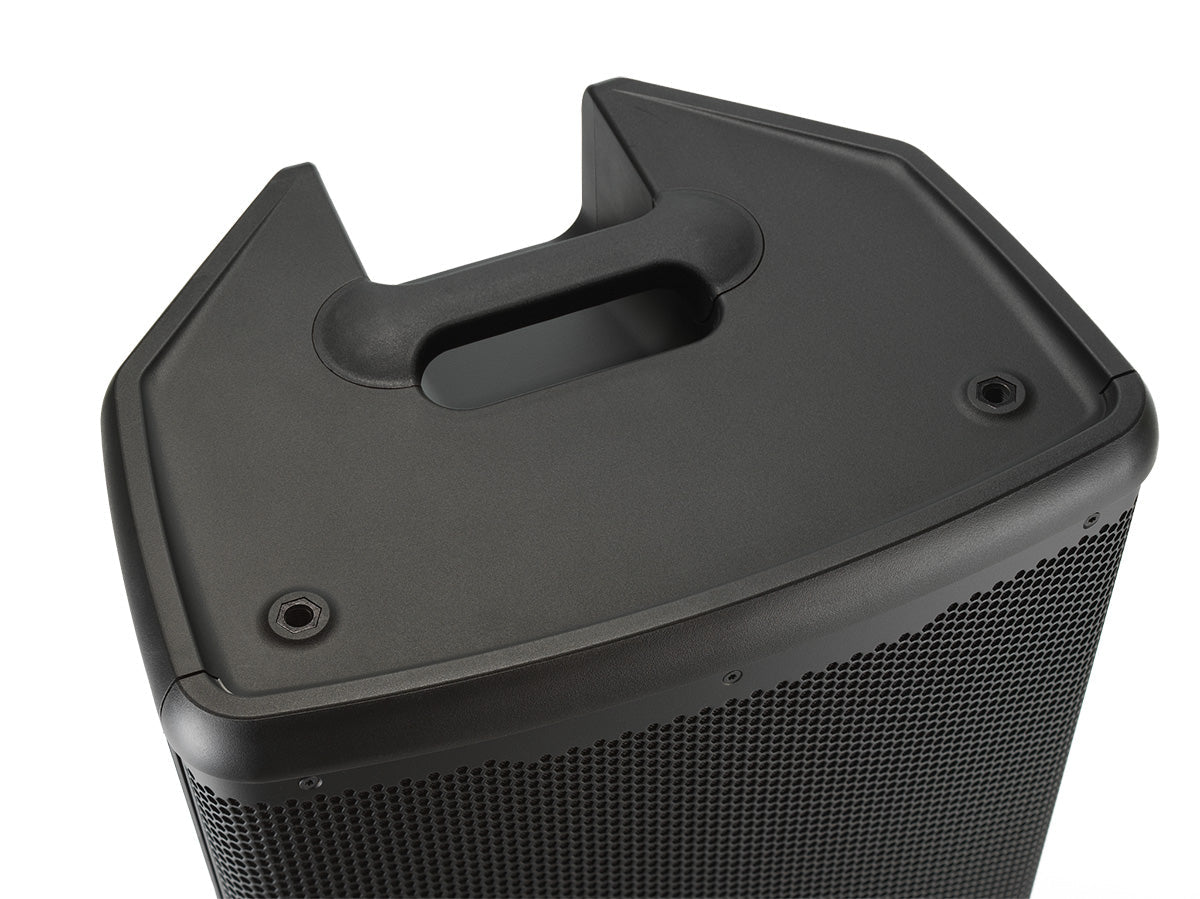

Handles | 2, cable channel on bottom |
Net Weight | 17kg (37.48 lbs.) |
Gross Weight | 21.5kg (47.40 lbs.) |
Product Dims | HxWxL 716x438x358mm (28.19x17.24x11.09 in.) |
Shipping Dims | HxWxL 738x543x458mm (29.06x21.38x18.03 in.) |

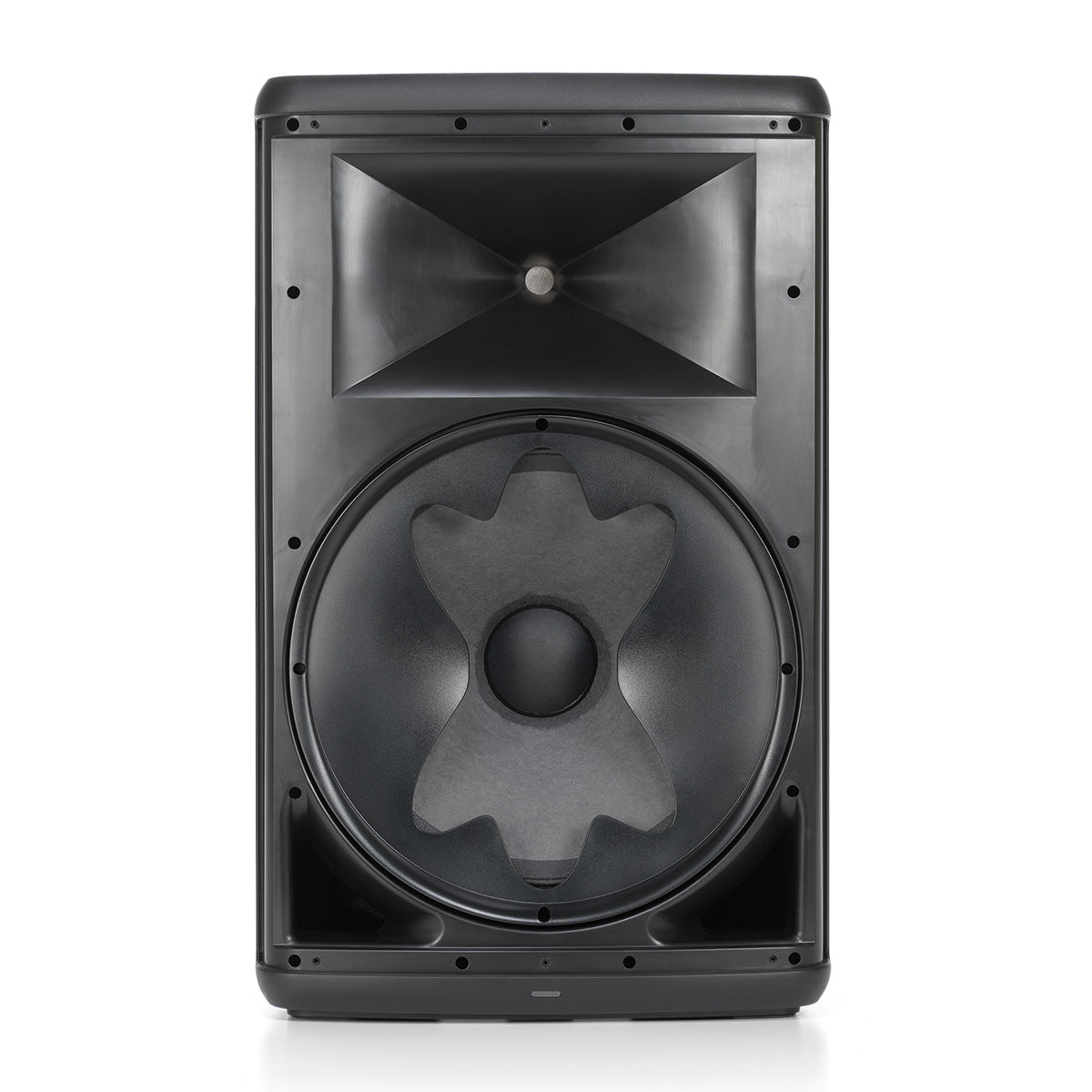

- Custom-designed 15-inch woofer
- 2414H compression driver
- Power: 1,300W peak / 650W RMS
- Frequency response: 45 Hz–20 kHz (-10 dB); 55 Hz–20 kHz (-3 dB)
- Max SPL: 128 dB
- Dispersion: 90° H x 60° V
- Audio I/Os: 2 XLR Combo, 1 XLR passthrough
- Advanced dbx DSP
- Built-in 3-channel digital mixer
- Universal JBL Pro Connect app control
- Bluetooth 5.0 streaming and control
- Stackable cabinets allow easy storage
