JTS

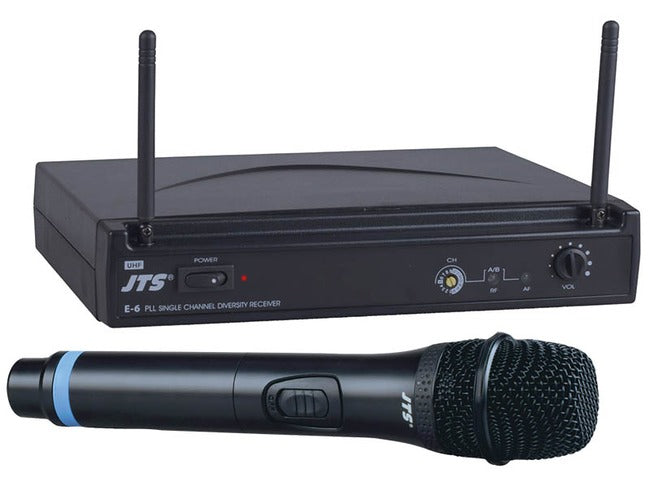

JTS E-6 E-6TH Licence Free Handheld Wireless Microphone
The JTS Professional E-6 + E-6TH is a wireless microphone system that is based on the success of the US-8001D system and provides you with 16 selectable channels alongside an 80-meter operational distance and, as always, RF and AF performance is guaranteed. This affordable microphone system makes going wireless more accessible than ever before and is perfect for schools, theatres, live events, presentations and music venues.
The JTS E-6 is a single channel UHF PLL diversity receiver with 16 preset selectable UHF channels that allows you to easily connect to a carrier frequency of 863 - 865MHz with a single transmitter. Built-in diversity technology prevents RF link dropouts, and an 80-meter working distance ensures you're always connected to the system. The tiny receiver has both balanced XLR and unbalanced 6.3mm Jack outputs, allowing you to connect to a variety of mixers and interfaces. The receiver also has noise mute and pilot tone settings, as well as power on/off controls, channel selection controls, and audio level functions, allowing you to fine-tune the system to your preferences.
The JTS E-6TH is a UHF single channel PLL handheld transmitter microphone with 16 selectable channels, as well as PLL synthesised control and innovative circuitry that ensures a constant transmission signal. Its wider dynamic range, combined with a smooth frequency response, provides you with crystal clear music that is consistent every time you use the system. The E-6TH works on a carrier frequency ranging from 863 – 865MHz and provides you with controls for power on/off and channel select.
E-6 Receiver
- Net Dimension (WxHxD): 210 x 40 x 171mm
- Frequency Preparation: PLL Synthesized Control
- Carrier Frequency: 863 - 865MHz
- S/N Ratio: >105dB(A)
- T.H.D.: <0.6% @ 1KHz
- Display: LED
- Display Contents: Antenna A/B, RF/AF Status Controls: Power On/Off, Channel
- Selecting, Audio Level
- Controls: Power On/Off, Channel Selecting, Audio Level
- Audio Output Level: -12dB
- Audio Output Impedance: 600Ω
- Squelch: Pilot Tone & Noise Mute
- Operation Voltage: 12-18 VDC, 150mA
- Output Connector: 1 Balanced XLR socket / 1 Unbalanced Ø6.3mm phone jack
- Code: 81002
E-6TH Handheld Microphone
- Frequency Preparation: PLL Synthesized Control
- Carrier Frequency: 863 - 865MHz
- RF Outputs: 10mW
- Frequency Deviation: ±48KHz
- LED Display:Low Battery, Power On/Off
- Controls: Power On / Off, Channel Selecting
- Spurious Emissions: <-50dBc
- Frequency Response: 50Hz - 16kHz
- Battery: 2x 1.5V AA
- Code: 81003
- Wireless microphone system
- 1 x E-6 Receiver
- 1 x E-6TH Handheld Microphone
- 16 selectable channels alongside an 80-meter operational distance
- Perfect for schools, theatres, live events, presentations and music venues
