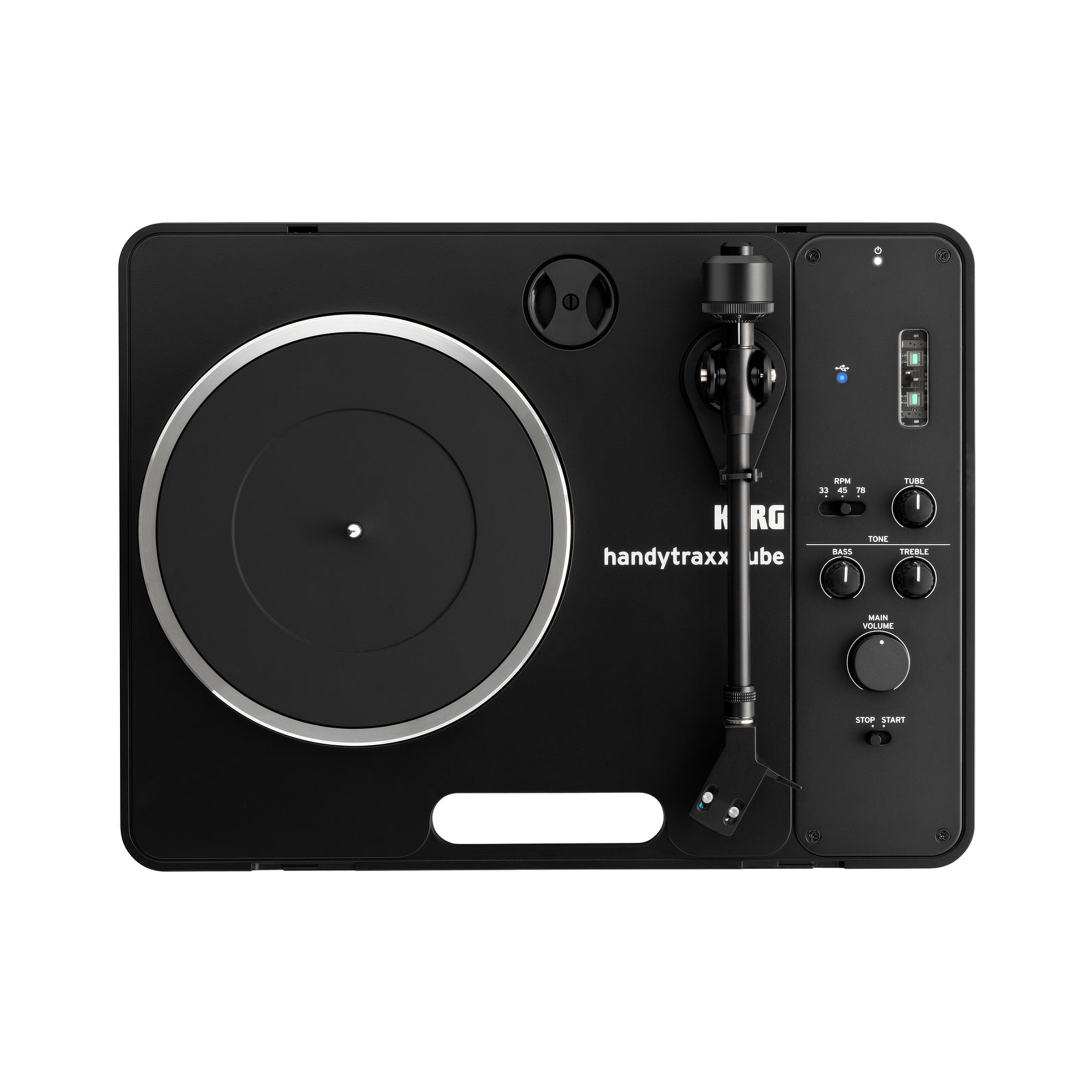

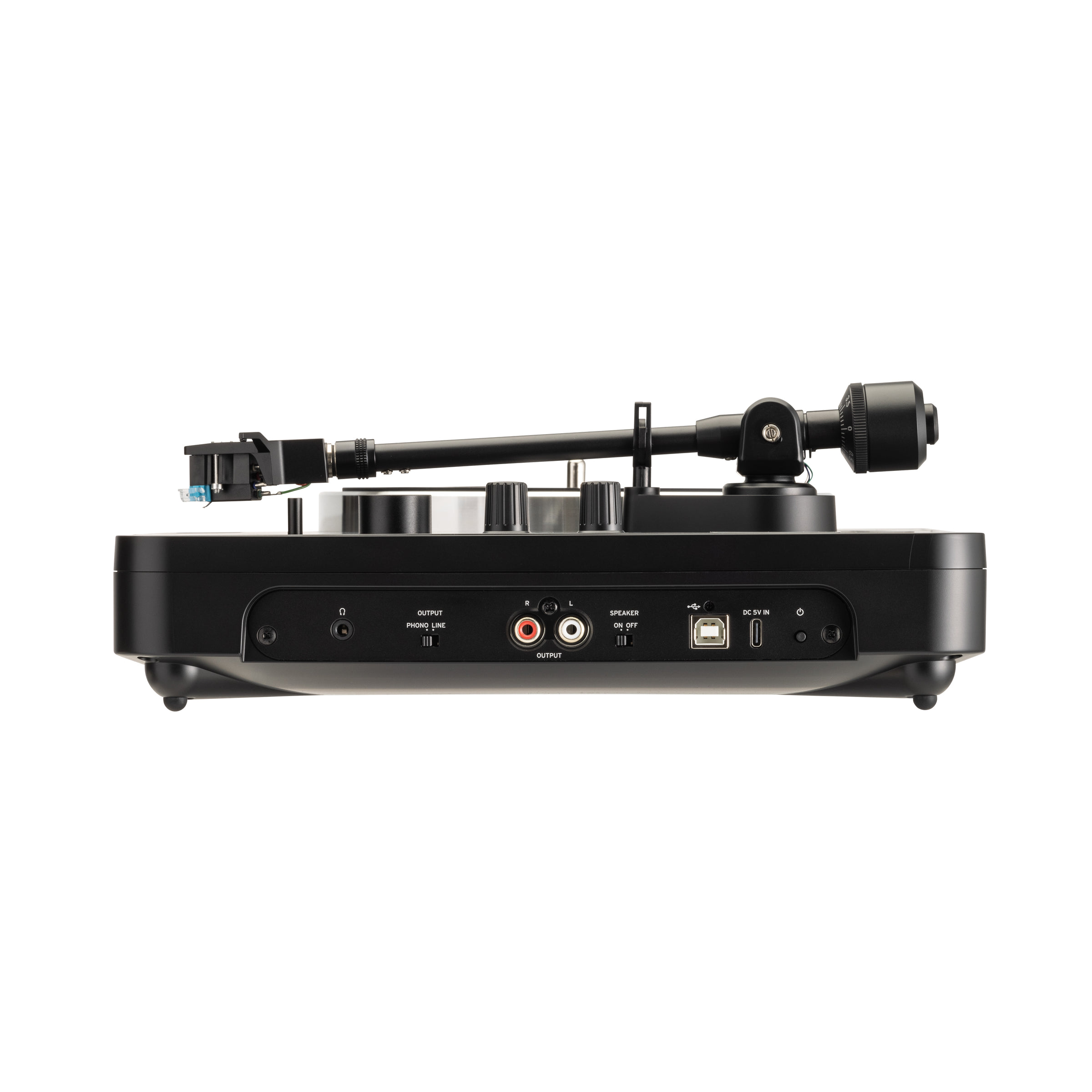

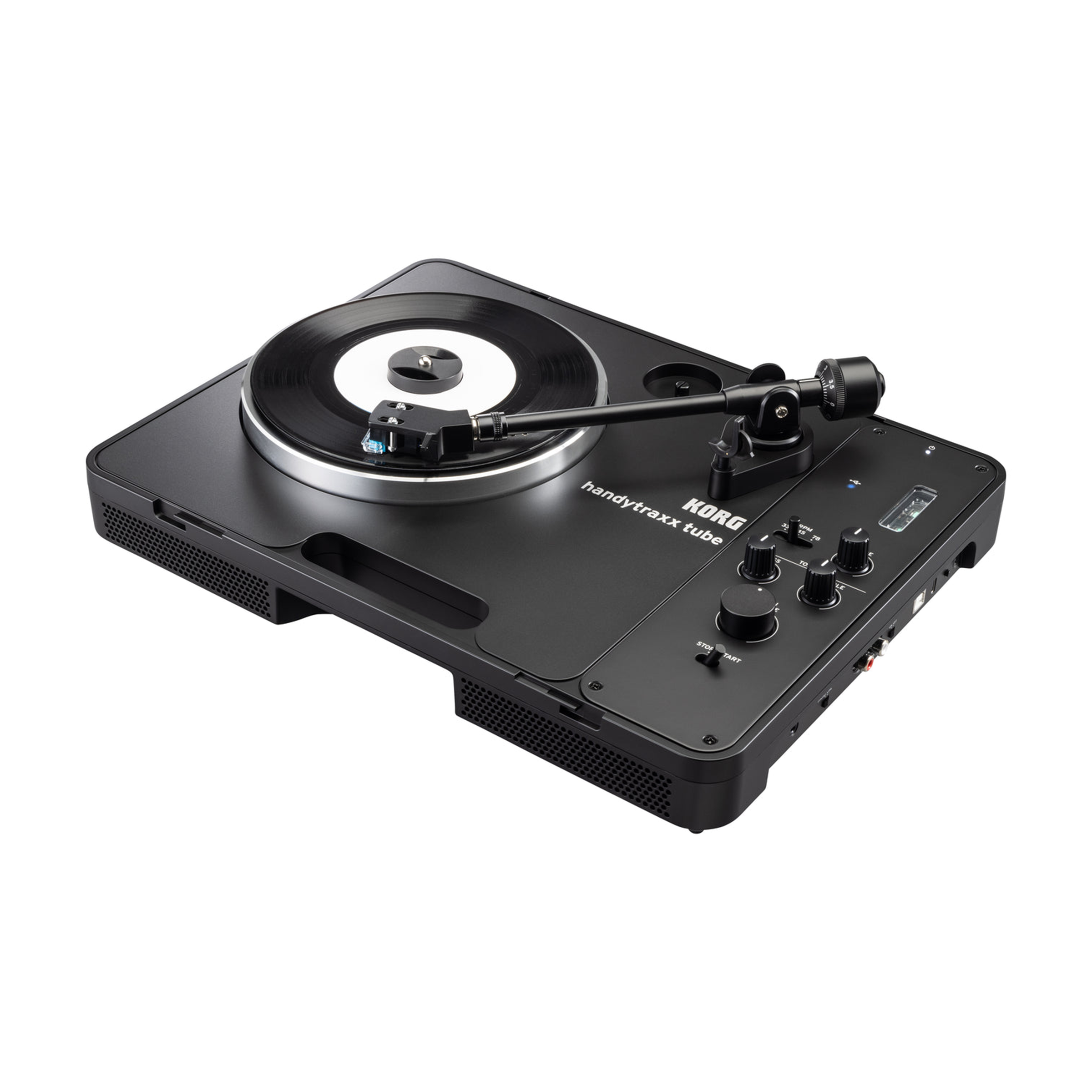

Korg handytraxx tube
Korg handytraxx tube
The Korg handytraxx tube reimagines the portable vinyl experience, blending classic analogue warmth with modern innovation. Designed for vinyl lovers and audiophiles, it features exclusive Nutube vacuum tube technology for rich, harmonic sound and a high-quality JICO MM cartridge for dynamic playback. With a portable design, built-in stereo speakers, and digital conversion capabilities, the handytraxx tube delivers exceptional sound wherever you go.
Whether you’re rediscovering your vinyl collection or exploring new records, it offers the perfect fusion of convenience and high-fidelity audio for music lovers on the move.
- Main features of the Korg handytraxx tube include
- The handytraxx tube combines modern convenience with the timeless allure of analogue records, bridging eras and tastes.
- Portable design with built-in stereo speakers and battery operation delivers warm, rich sound anywhere.
- Features an aluminium die-cast platter for precise and stable rotation, enhancing playback accuracy.
- Balanced tone arm with a universal, replaceable headshell and adjustable counterweight for customizable sound profiles.
- Pre-installed JICO J44A 7 MM cartridge provides dynamic bass and excellent tracking performance out of the box.
- Customizable bass and treble controls allow users to create their desired sound, maximizing tonal richness.
- Built-in stereo speakers deliver clear and balanced audio with a flat response and optimal volume.
- Integrated phono amplifier with Korg’s Nutube vacuum tube technology adds warm harmonics and depth to records.
- TUBE control lets users fine-tune harmonics for a tailored listening experience.
- Supports both line output for standard stereo systems and phono output for external equalizer use, offering flexibility.
- Portable power options include an AC adapter or six AA batteries for on-the-go convenience.
- Comes with a protective dust cover to ensure durability and readiness for travel or home use.
- Features a headphone jack and a speaker on/off switch for flexible listening options, including late-night use.
- Allows vinyl-to-digital conversion via USB, compatible with recording software like Audacity for digitizing collections.
- JICO-manufactured cartridges and styluses are highly acclaimed for their precision and craftsmanship, maximizing analogue sound quality.
- Designed for seasoned audiophiles and newcomers, providing an all-in-one player that requires no additional amps or speakers.
- Drive System: Belt drive system (with CPU controlled rotation compensation function)
- Drive Motor: DC Servo Motor
- Rotation Speed: 33-1/3, 45, 78 RPM
- Platter: Aluminium Die-Cast
- Wow and Flutter: < 0.15% (WTD) at 3kHz
- Signal-to-Noise Ratio (S/N Ratio): > 70dB (DIN-B)
- Cartridge Type: MM Type Stereo Cartridge (JICO J44 A7)
- Output Level:
- Phono: 230mV (1kHz, 5cm/sec)
- Line: Max 2.3Vp 2 THD 1%
- Headphones: Max 80mW (32 ohms) THD 1%
- Speakers: Max 2.5W (THD 1%, 4Ω) x2
- PHONO Preamp:
- Gain: Standard Value 38dB
- Equalizer Characteristics: RIAA
- Tone Control:
- Bass: 130Hz, ±8dB
- Treble: 5.5kHz, ±8dB
- Tube Control: Gain: 0 ~ 6dB
- USB Audio: Output: 2ch, PCM 44.1kHz/48kHz 16-bit, USB 2.0 (Full Speed)
- Power Consumption: 2.35W
- Power Supply: AC Adapter, Six AA Batteries (Alkaline or Nickel-Metal Hydride Batteries)
- Weight: 2.8kg
- External Dimensions:
- 370 x 280 x 118mm
- 370 x 286.25 x 118 mm (including cover projections)
- Included Items:
- AC Adapter
- AC Adapter Replacement Plugs (5 types)
- Dust Cover
- Platter
- Belt
- Record Mat
- EP Adapter
- Headshell
- Cartridge (pre-installed on headshell)
- Counterweight
- Platter Securing Cap
