Korg handytraxx tube J
Korg handytraxx tube J
The Korg handytraxx tube reimagines the portable vinyl experience, blending classic analogue warmth with modern innovation. For those seeking an even richer Hi-Fi experience, this exclusive tube J model features JICO’s state-of-the-art Clipper cartridge, offering unparalleled playback quality. Designed for vinyl lovers and audiophiles, it features exclusive Nutube vacuum tube technology for rich, harmonic sound. With a portable design, built-in stereo speakers, and digital conversion capabilities, the handytraxx tube J delivers exceptional sound wherever you go.
Whether you’re rediscovering your vinyl collection or exploring new records, it offers the perfect fusion of convenience and high-fidelity audio for music lovers on the move.
- Main features of the Korg handytraxx tube J include
- The handytraxx tube J bridges the gap between modern digital convenience and the timeless allure of analogue records.
- Portable design with built-in stereo speakers and battery operation delivers a rich, warm sound anywhere.
- Features an aluminium die-cast platter for precise and stable rotation, enhancing playback accuracy.
- Balanced tone arm with a universal, replaceable headshell and adjustable counterweight for customizable sound profiles.
- Equipped with JICO’s state-of-the-art Clipper cartridge for unparalleled Hi-Fi playback quality.
- Customizable bass and treble controls maximize tonal richness and enhance the unique characteristics of analogue records.
- Built-in stereo speakers deliver clear and balanced audio with a flat response and optimal volume for immersive listening.
- Integrated phono amplifier with Korg’s Nutube vacuum tube technology adds warm harmonics and lifelike depth to records.
- TUBE control lets users fine-tune harmonics for tailored listening experiences.
- Supports both line output for standard stereo systems and phono output for external equalizer use, offering flexibility.
- Portable power options include an AC adapter or six AA batteries for on-the-go convenience.
- Comes with a protective dust cover for durability and readiness for travel or home use.
- Features a headphone jack and a speaker on/off switch for flexible listening options, including late-night use.
- Allows vinyl-to-digital conversion via USB, compatible with recording software like Audacity for digitizing collections.
- The exclusive “Tube J” model celebrates Hi-Fi audio excellence through collaboration with JICO.
- JICO is renowned for high-quality record styluses, cartridges, and analogue products, maximizing sound quality with meticulous craftsmanship.
- Drive System: Belt drive system (with CPU controlled rotation compensation function)
- Drive Motor: DC Servo Motor
- Rotation Speed: 33-1/3, 45, 78 RPM
- Platter: Aluminium Die-Cast
- Wow and Flutter: < 0.15% (WTD) at 3kHz
- Signal-to-Noise Ratio (S/N Ratio): > 70dB (DIN-B)
- Cartridge Type: JICO’s state-of-the-art Clipper cartridge
- Output Level:
- Phono: 230mV (1kHz, 5cm/sec)
- Line: Max 2.3Vp 2 THD 1%
- Headphones: Max 80mW (32 ohms) THD 1%
- Speakers: Max 2.5W (THD 1%, 4Ω) x2
- PHONO Preamp:
- Gain: Standard Value 38dB
- Equalizer Characteristics: RIAA
- Tone Control:
- Bass: 130Hz, ±8dB
- Treble: 5.5kHz, ±8dB
- Tube Control: Gain: 0 ~ 6dB
- USB Audio: Output: 2ch, PCM 44.1kHz/48kHz 16-bit, USB 2.0 (Full Speed)
- Power Consumption: 2.35W
- Power Supply: AC Adapter, Six AA Batteries (Alkaline or Nickel-Metal Hydride Batteries)
- Weight: 2.8kg
- External Dimensions:
- 370 x 280 x 118mm
- 370 x 286.25 x 118 mm (including cover projections)
- Included Items:
- AC Adapter
- AC Adapter Replacement Plugs (5 types)

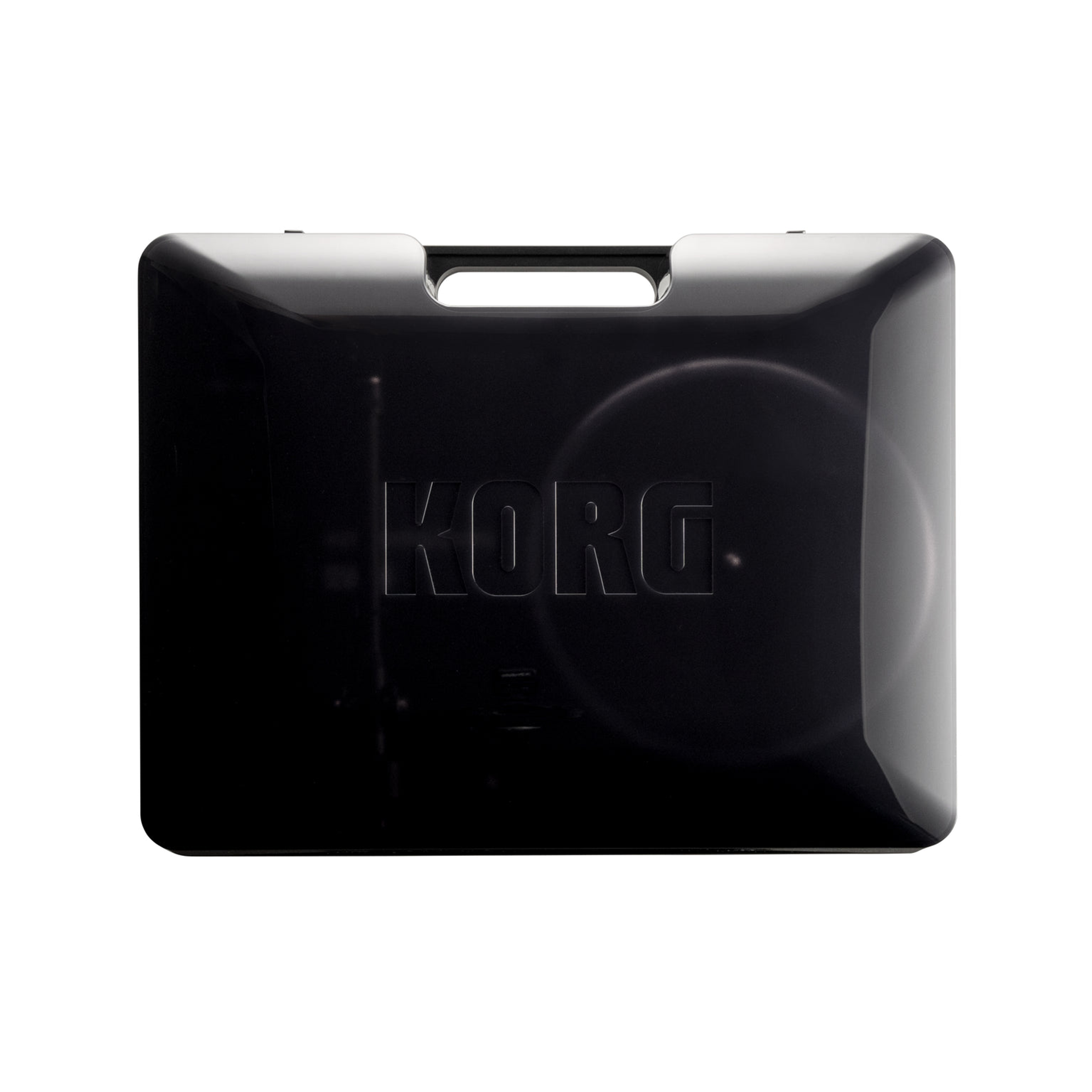

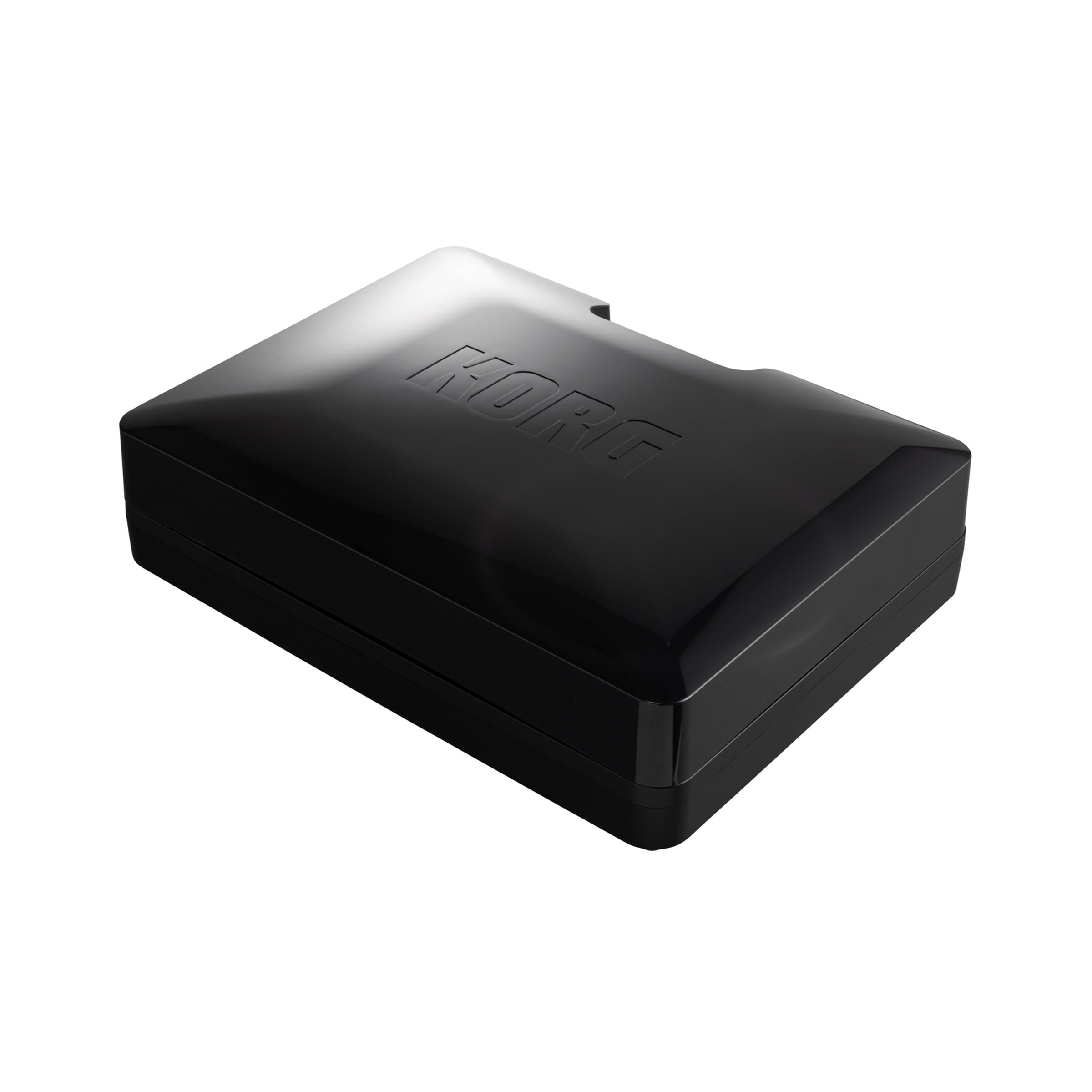

- Dust Cover
- Platter
- Belt
- Record Mat
- EP Adapter
- Headshell
- Cartridge (pre-installed on headshell)
- Counterweight
- Platter Securing Cap
