KORG

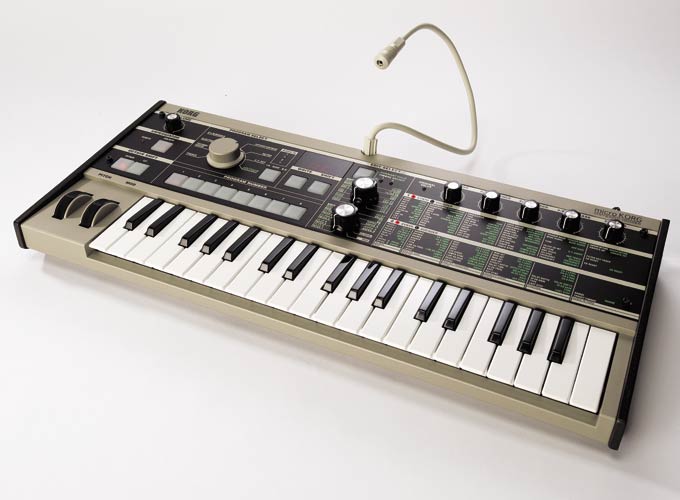

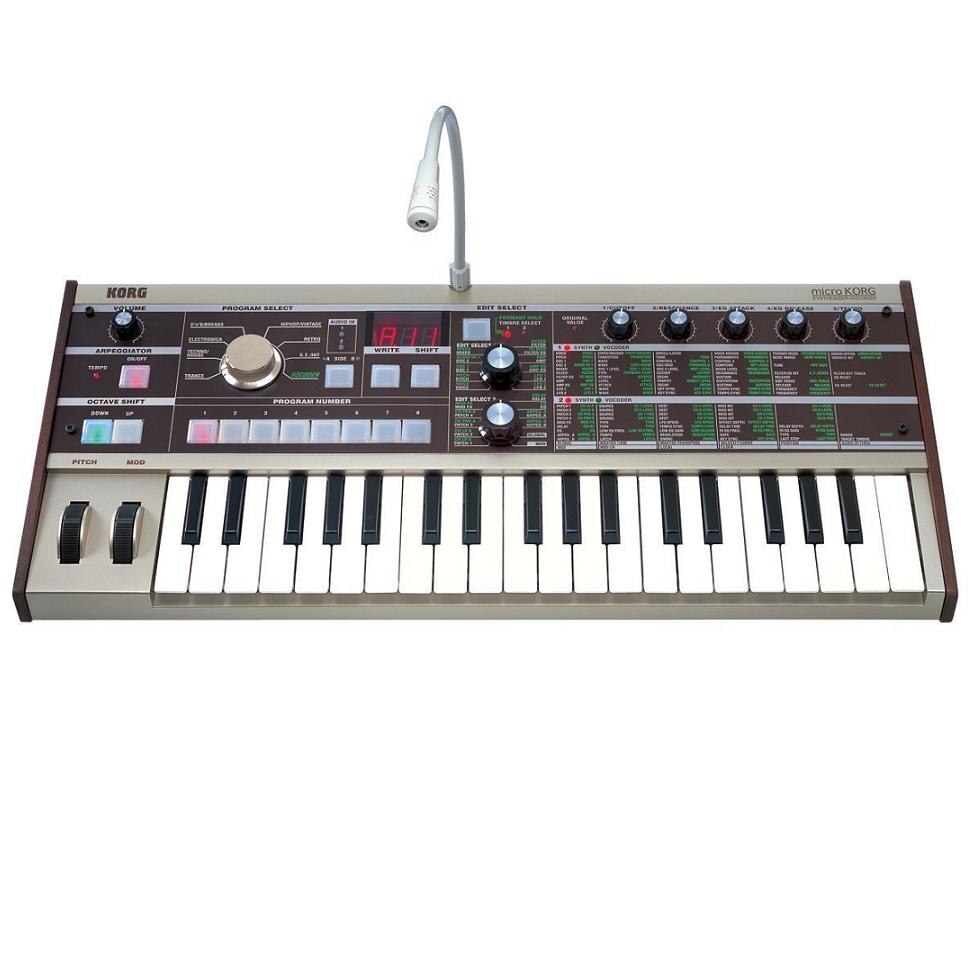

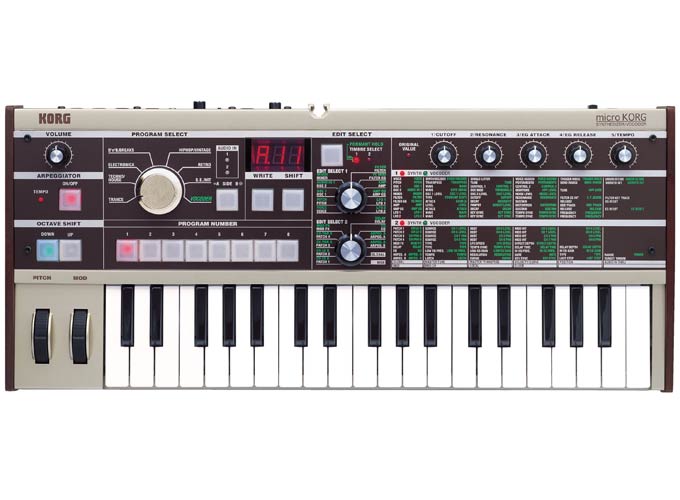

KORG microKORG 37 Key USB MIDI Controller
Sound Generation Method:
Analog Modeling Synthesis System
Synthesizer Program:
Multi Timbral:
2 (max, Normal/Dual Mode)
Voices:
4 voices
Sound Source:
2 Oscillator + Noise Generator,
Multi Mode Filter (-24dB/oct LPF, -12dB/oct LPF/BPF/HPF),
EG x2,
LFO x2,
Virtual Patch x4
Vocoder Program:
Voices:
4 voices
Sound Source:
1 Oscillator + Noise Generator,
EG x1,
LFO x2,
8 Channels vocoder,
Level and pan of each channel can be edited,
Formant Shift function
General Specifications:
Programs:
128 programs
Effects:
Modulation effects (3 types),
Delay (3 types),
Equalizer
Arpeggiator:
6 types
Keyboard:
37 Keys (mini-keyboard, velocity sensitive)
Inputs:
AUDIO IN 1, and 2
Level switch:
LINE/MIC,
[AUDIO IN 1, 2 (LINE)],
[AUDIO IN 2 (MIC)]
Outputs:
L/MONO, R and
Headphones
MIDI:
IN, OUT and THRU
Display:
3 characters x1 line with 8 segment LED
Power Supply:
DC 9 V (AC adapter), or
six AA alkaline batteries (sold separately)
Power Consumption:
6.4 Watt maximum
Dimensions:
20.63"(W) x 9.13"(D) x 2.76"(H)
524mm(W) x 232mm(D) x 70mm(H)
Weight:
4.85 lbs.
2.2 kg
- A true synthesizer with an analog modeling tone generator
- Powerful-sounding oscillator section
- Knife-sharp filter section
- An amp section with great presence and distortion
- EG and LFO add subtle tonal movement
- Versatile and distinctive vocoder
