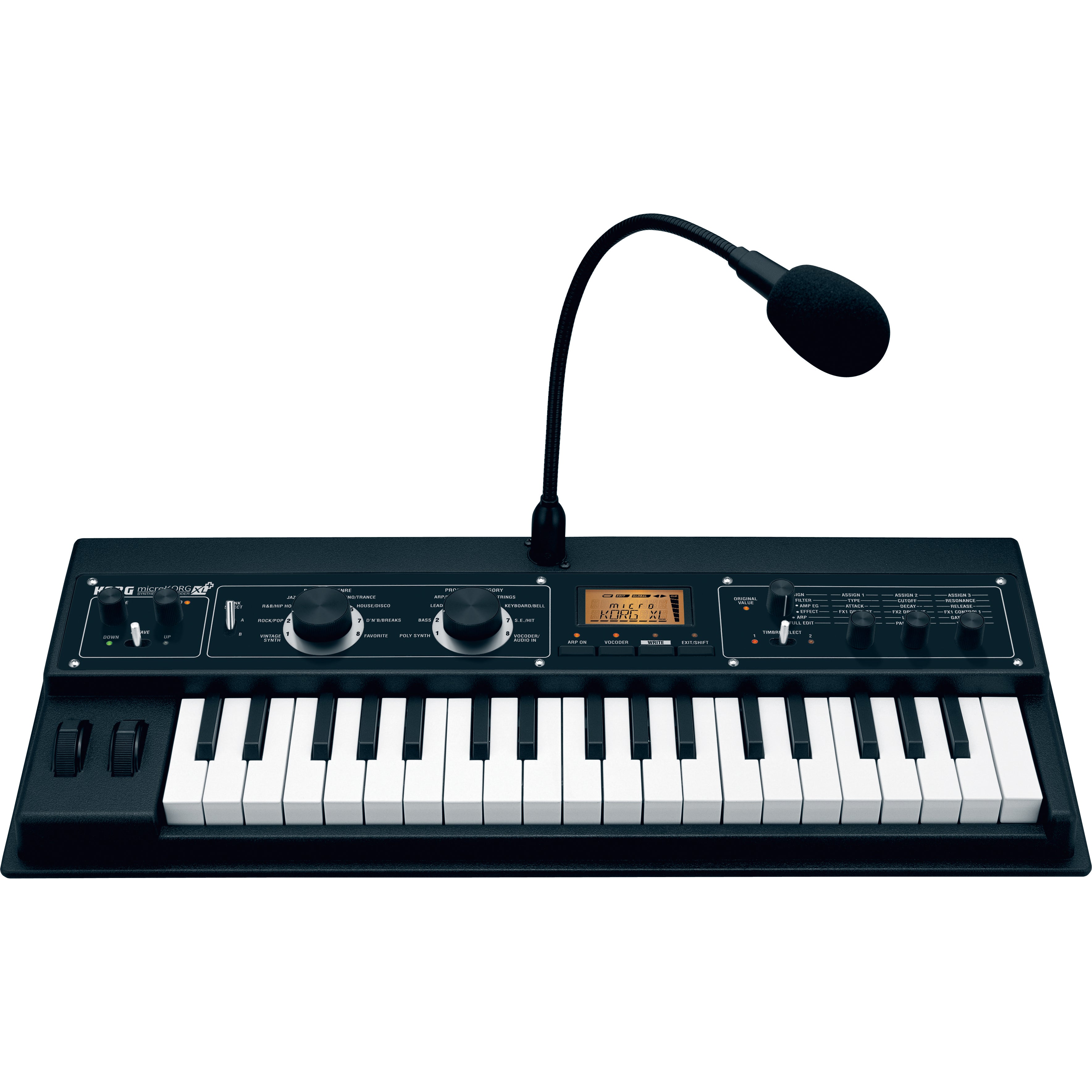

KORG microKORG XL+ Synthesizer / Vocoder
The MicroKorg XL+ features more than ever before with the inclusion of additional rich and beautiful analogue modelled synthesizer sounds taken from the renowned M1 and Vox organ as well as Korg's legendary stage piano and electric piano sounds. In addition, the Korg MicroKorg features some old-school sounds reminiscent of the mighty Mellotrons including flutes and strings. All 128 preset sounds come ready to use and offer a vast choice to suit all genres and keyboardists.
Following the grand tradition of the MicroKorg XL, Korg's MicroKorg XL+ offers two large knobs controlling the "music genre" and instrument category letting you choose the perfect sound more intuitively than ever before. In addition the MicroKorg XL+, just like its predecessor can be used as a vocoder function and comes with a gooseneck microphone. The vocoder is based around a 16-band filter bank and is capable of creating the "classic" vocoders sounds, but can also produce some impressive out of this world sounds by shifting filter frequencies or panning the sound.
Underneath it's retro-looking new design, the Korg MicroKorg XL+ boasts Korg's renowned MMT (Multiple Modelling Technology) to produce a vast array of deep, rich and lush sounds akin to analogue synthesis. Centred on 2 powerful and flexible oscillators, MMT is capable of producing a vast array of fat and powerful sounds complemented by impressive modulation techniques such as Variable Phase Modulation (VPM), cross modulation or unison to expand the sonic palette MicroKorg XL+. In addition the MicroKorg XL+ features two powerful and independent effect engines inspired by the legendary Kaoss Pad series, offering 17 flexible and rich effects including delay, reverb, ring modulation and grain shifter. Adding to this impressive functional keyboard, effects can be synch'd to MIDI.
The MicroKorg XL+'s new and improved keybed features 37 micro keys offering a better playing feel , making it easier to play chords and fast movements. Just like its predecessors, the MicroKorg XL+ compact and battery powered design are truly a gift for the gigging musician. What's more the Microkorg XL+ features a USB socket allowing for the connection to a computer, the deep editing of sounds through the editor software, and the download of many presets featured on Korg's legacy MS2000 and MS2000B as well as the original MicroKorg keyboard.
- Tone Generator System
- MMT (Multiple Modeling Technology)
- Program
- Multi Timbral
- Maximum 2 (when using Layer, Split, or Multi)
- Voice polyphony
- Maximum 8 voices (when using Vocoder, it is 4 voices)
- Synth
- 2 oscillators + noise generator
- Oscillator 1
- Waveform: 8 types (Sawtooth, Pulse, Triangle, Sine, Formant, Noise, DWGS, Audio In), Modulation: Waveform, Cross, Unison, VPM
- Oscillator 2
- Waveform: 4 types (Sawtooth, Pulse, Triangle, Sine)
Modulation: Ring, Sync, Ring+Sync
- Waveshape
- Type: Drive, Decimator, HardClip, OctSaw, MultiTri, MultiSin, SubOSCSaw, SubOSCSqu, SubOSCTri, SubOSCSin, LevelBoost,
- Multimode Filters
- Filter 1: -24 dB/oct LPF ~ -12 dB/oct LPF ~ -12 dB/oct BPF ~ -12 dB/oct HPF ~ Thru, Filter 2: LPF, HPF, BPF (swichable)
- Vocoder
- 16 channel vocoder, adjustable level and pan for each channel, Formant Shift function, Formant Hold function
- Keyboard
- 37 notes (Natural Touch mini-keyboard, velocity sensitive)
- Controller
- Pitch bend wheel, Modulation Wheel
- Effects
- Timbre
- 2 band EQ
- Master effect
- 2 units, 17effect algorisms.
- Arpeggiator
- Six types: UP, DOWN, ALT1/2, Random, Trigger, Individual step on/off function
- Programs
- 128 programs (A/B banks x 8 genres x 8 category)

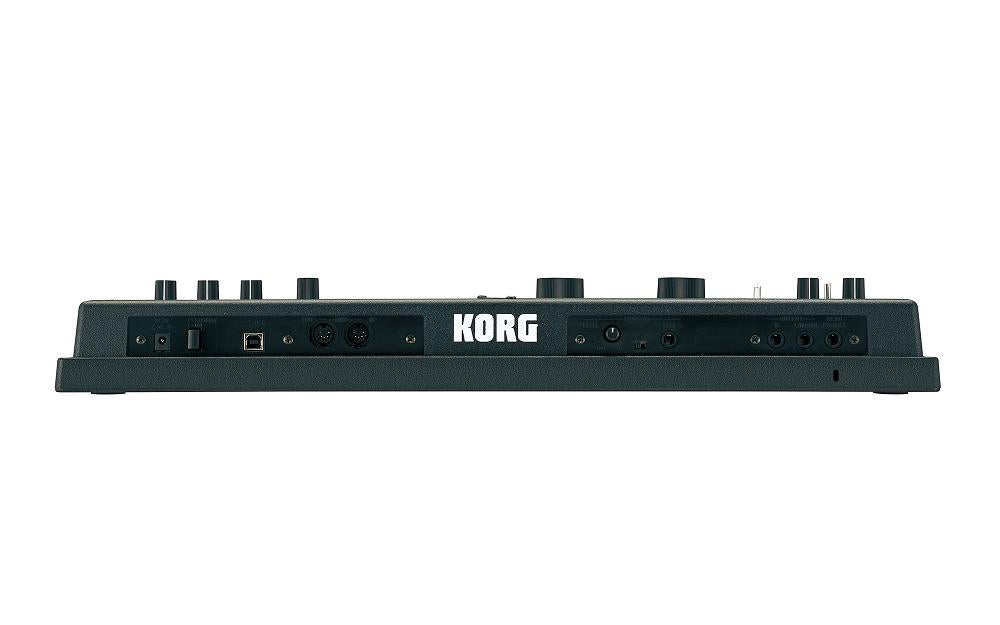

- Inputs
- [AUDIO INPUT 1] (1/4” phone jack, unbalanced, with MIC/LINE switch) – Rear Panel
[AUDIO INPUT 1 (MIC)] (XLR jack / balanced) – Front Panel
- Outputs
- [L/MONO, R] (1/4” Standard phone jacks / unbalanced)
[Phone] (1/4” Stereo Standard phone jacks)
- MIDI
- IN, OUT
- USB
- Type B
- Display
- Custom LCD
- Power Supply
- DC 9 V (AC adapter), or six AA alkaline batteries (sold separately)
- Battery Life
- Approx. four hours (with alkaline batteries)
- Dimensions
(W) x (D) x (H) - 556 x 231 x 73mm / 21.89" x 9.09" x 2.87"
- Weight
- 2.0 kg/4.41 lbs. (without batteries and included microphone)
- Accessories
- AC adapter, Gooseneck Microphone,
- Optional accessories
- SC-micro MSG
- Mobile Monitor Amplifier
- MMA-130
It provides a DC9V output jack that can provide power to one of a number of Korg instruments like microKORG XL+)
microKORG XL+ Sound Editor Operating requirements
- Windows
- Computer
- A computer that satisfies the operating requirements of Microsoft Windows XP/Vista/7 and is equipped with a USB port
- Operating system
- Microsoft Windows XP SP3 (32 bit)
Windows Vista SP2 (32bit, 64bit)
Windows 7 SP1 (32bit, 64bit)
- Mac
- Computer
- An Apple Macintosh computer that satisfies the operating requirements of Mac OS X and is equipped with a USB port and an Intel or Power PC processor
- Operating system
- Mac OS X version 10.5 or later (“Intel” Only),
* All product, company, and standard names are trademarks or registered trademarks of their respective holders. | |
* Appearance and specifications of products are subject to change without notice. |
- Even more vintage sounds, including the KORG SGproX piano, M1 and VOX organs and well-known “Tape” instruments
- New yet nostalgic - black panel "new vintage" design
- Vocoder with included gooseneck microphone
- A powerful Kaoss effects engine – the kind of effects that you would expect from Korg
- Korg's proprietary Natural Touch mini-keyboard, designed with an emphasis on playability
- Battery powered operation is supported for increased portability
