Laserworld CS-3000RGB Laser

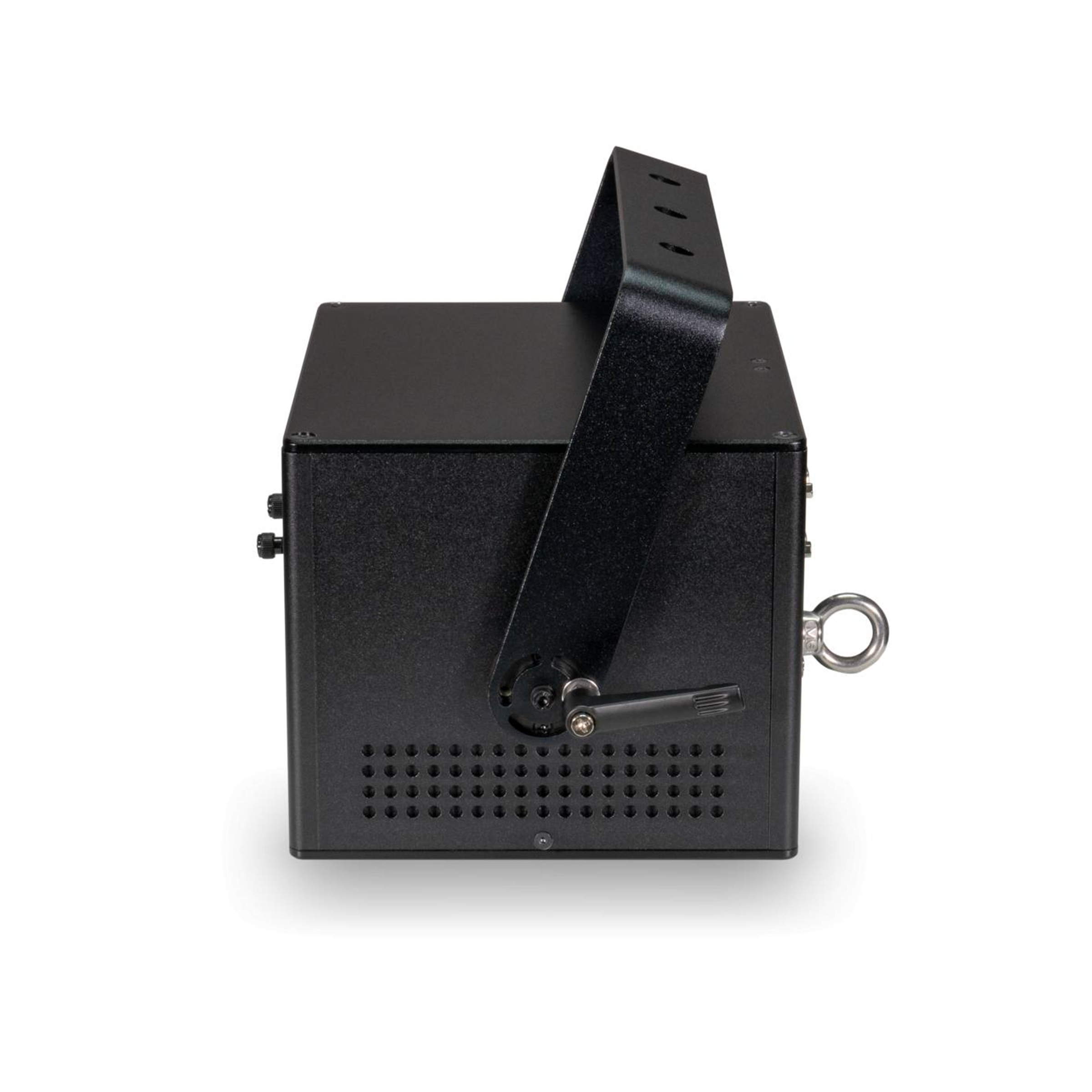

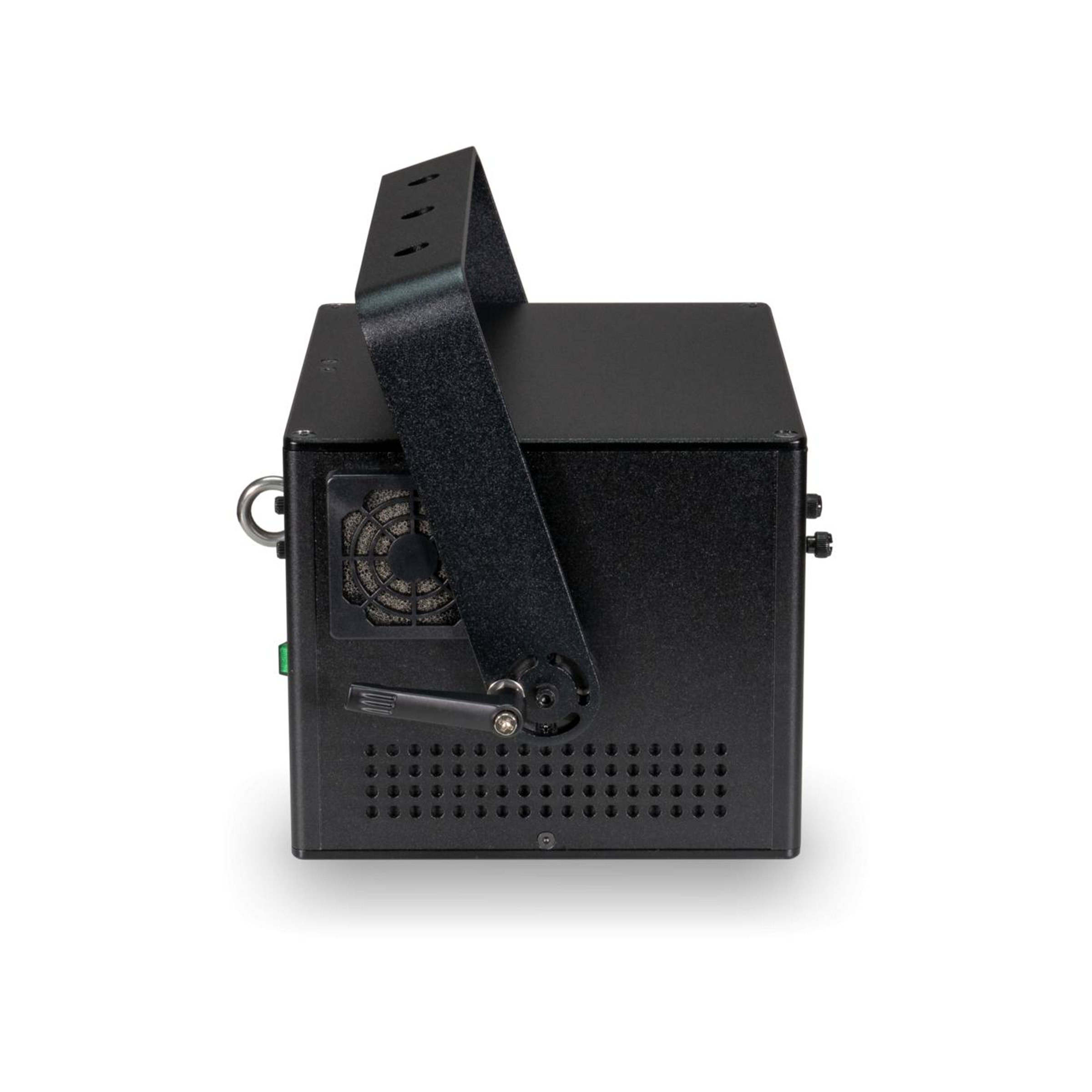

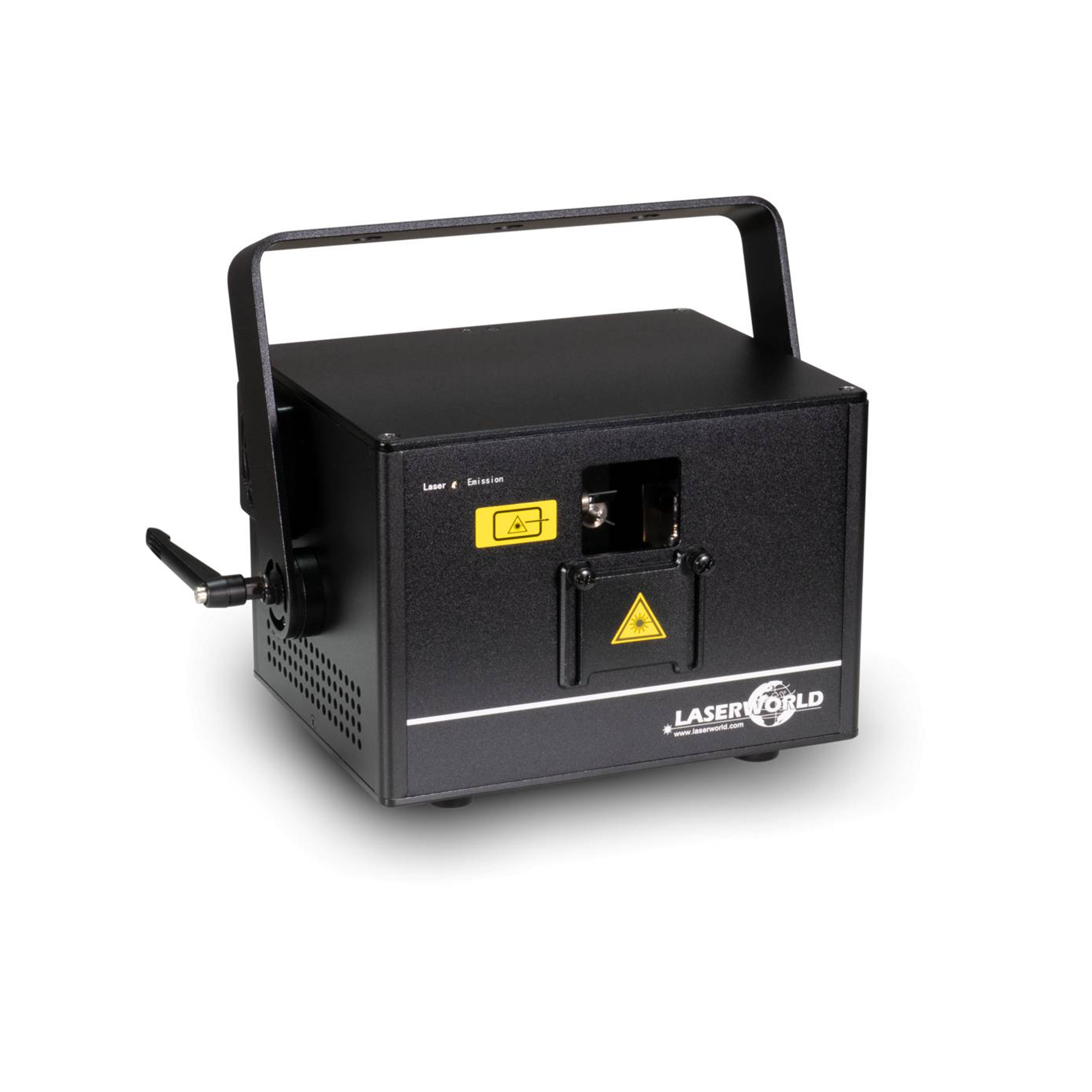

The Laserworld CS-3000RGB Lasercomes with a completely new designed compact housing, which is light weight and has a stable bracket. The solid bracket allows for different mounting positions: a hanging as well as a standing installation is possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations at a truss or at the ceiling.
- Main features of the Laserworld CS-3000RGB Laser
include:
- 3'000 mW analog modulated RGB laser system
- DMX controllable, master-slave operation possible
- Diode-only laser system
- Computer controllable via ILDA
- Sound-to-light and stand-alone mode

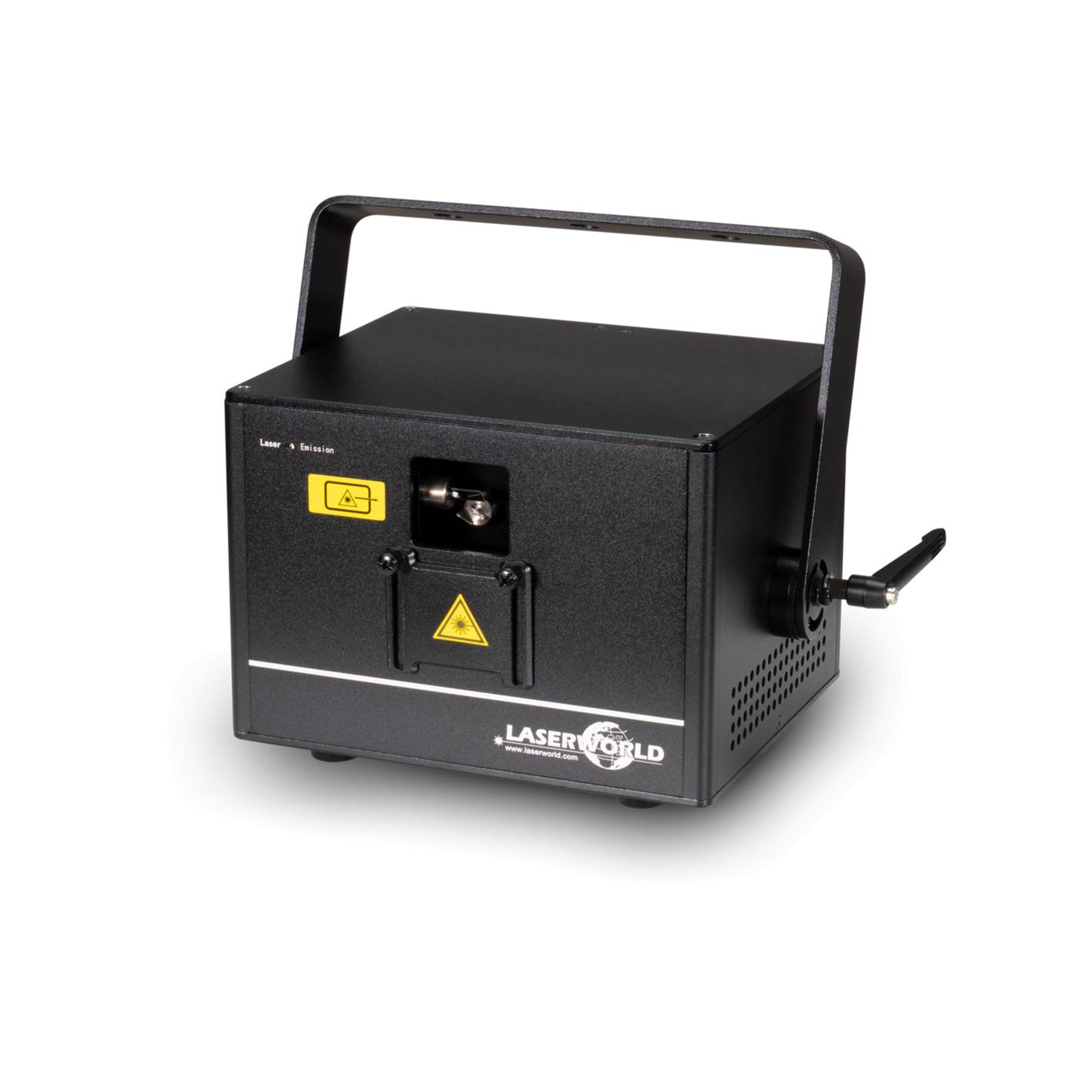

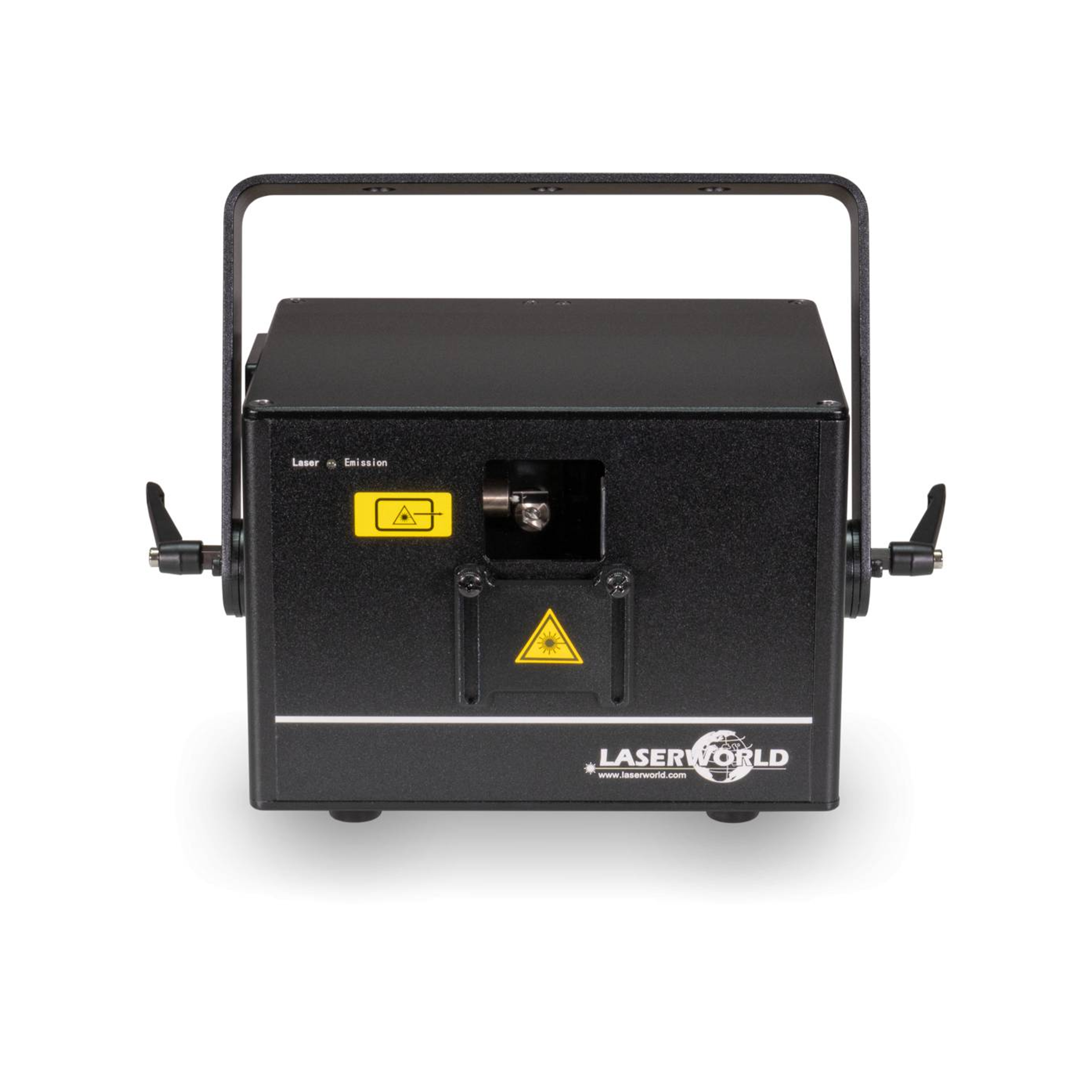

- Front panel laser beam masking plate
- Capable of basic graphics, texts and logos
- Several hundred colors, including white
- 30kpps at 8° scanners
- 360° mounting bracket
The Laserworld CS-3000RGB is a analog modulated pure diode multi color RGB laser system with a guaranteed output power of 3'000 mW. The red laser source has an output power of 800 mW / 638 nm, the green 900 mW / 520 nm and the royal-blue laser source has an output power of 1'500 mW / 450 nm. The laser sources ensure brilliant colors and powerful laser beams. The projector has very good beam specifications with ca. 4 mm / 1.1 mrad. The galvo system has a scan speed of up to 30kpps at 8°.

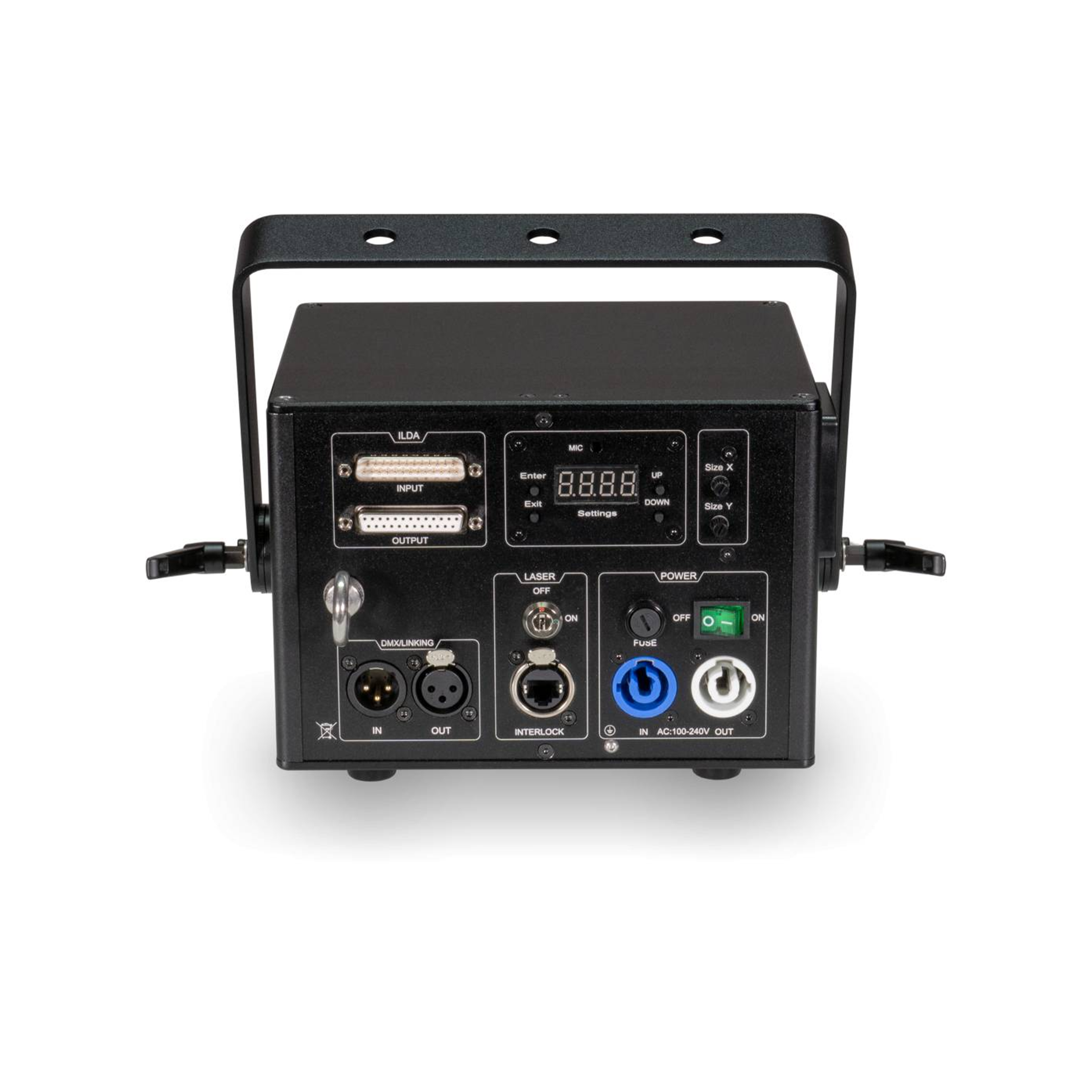

Pattern size can be set by two rotary buttons (X and Y axis) on the rear side of the housing. The sensitivity of the microphone can be adjusted via the integrated display.
Through DMX, in the automatic mode as well as in the sound-to-light mode ca. 130 (layers, tunnels, fences, waves, etc.) can be projected in different colors and in various speed. If the automatic mode is active, the pre-programmed patterns run without assistance and in the sound-to-light mode, the laser system projects according to the sound.
Next to the modes mentioned above, this laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector) project the same patterns like the master projector.
The Laserworld CS-3000RGB is computer controllable through a professional ILDA interface. Thus custom or pre-programmed lasershows, logos, texts or own graphics and animations can be shown in combination with a laser control software.
There are safety features like a key switch, an interlock connector and an on-off switch.
The Laserworld CS-3000RGB is ideal for small to semi-professional applications and is perfectly suitable in bars, small to medium sized clubs and discos as well as for mobile DJs, private use and in any other party location.
- Guaranteed Power: 3'000 mW
- Power Red: 800 mW / 638 nm
- Power Green: 900 mW / 520 nm
- Power Blue: 1'500 mW / 450 nm
- Beam Specifications: ca. 4 mm / 1.1 mrad
- Scanner: 30 kpps at 8°
- Max. Scan Angle: 40°
- Laser Source: Diode
- Laser Class: 4
- Operation Modes: sound-to-light, DMX, ILDA
- Basic Patterns: ca. 130 (layers, tunnels, fences, waves, etc.)
- Accessories: power cable, manual, interlock, key
- Power Supply: 85 V - 250 V AC, 50/60 Hz
- Power Consumption: 46 W
- Dimensions: 200 x 165 x 141 mm
- Weight: 4.0 kg
- EAN / MPN: 7640144995997
