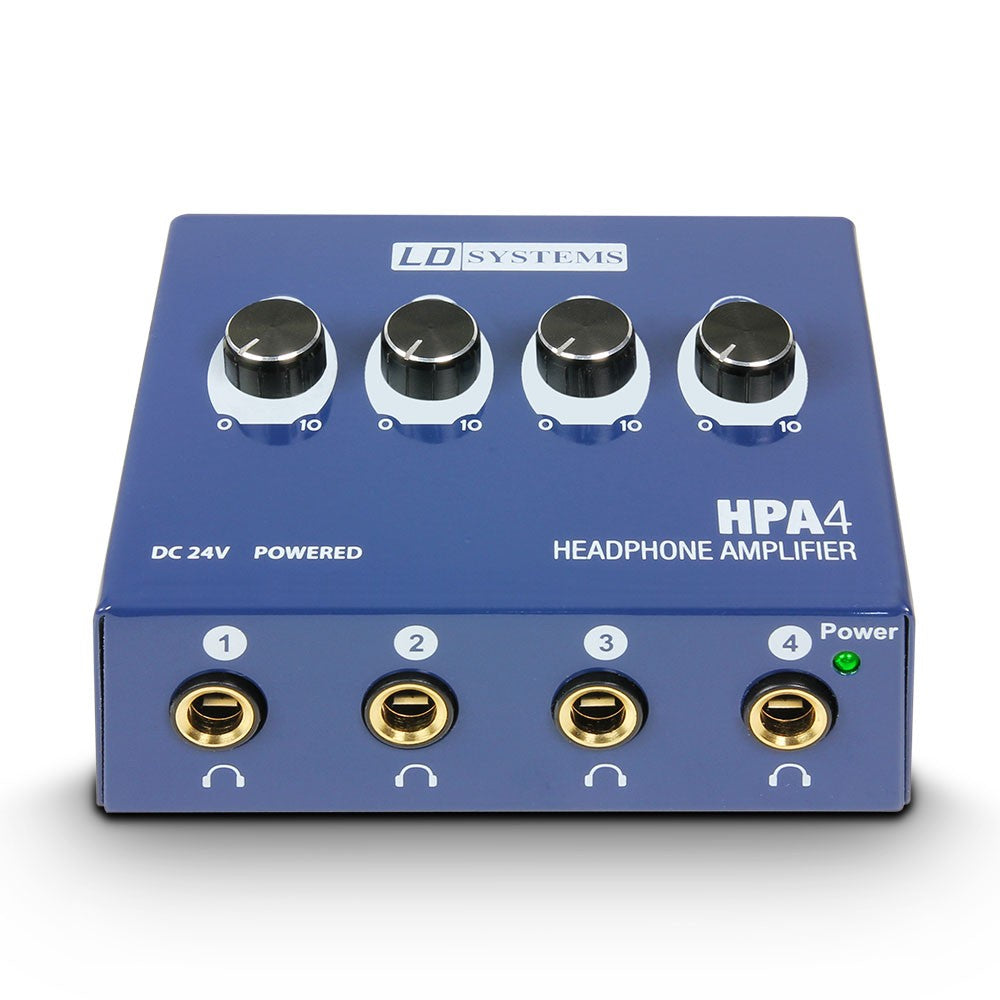

LD Systems HPA4 4-Channel Headphone Amp
The LD Systems HPA4 is a compact and powerful headphone amplifier which can handle up to 4 headphones and has an output power with no equal in its class. That means high volume with no distortion. With these features the LDHPA4 is an essential tool for every project- and home studio.
Product type | Headphone Amp: |
Inputs | 2 |
Input connectors | 6.3 mm TRS, RCA |
Input impedance | 1 k Ohm(s) |
Outputs | 2 |
Output connectors | 6.3 mm jack |
Power output | 4 x 100 mW |
Minimum connected impedance | 10 Ohm(s) |
Frequency response | 20 - 20.000 Hz |
Controls | 4 x headphone volume, Mono/stereo switch |
Indicators | Power |
Operating voltage | External Power Supply |
Operating voltage | 24 V DC |
Cabinet material | Metal |
Cabinet surface | painted |
Width | 94 mm |
Height | 48 mm |
Depth | 82 mm |
Weight | 0,27 kg |
Accessories (included) | Power supply |
- Max. Output Power: 4 x 100 mW
- Input Impedance: 1 kohm
- Minimum Load per Channel: 10 ohms
- Input Connectors: 2 x RCA, 6,3 mm Phone Jack Stereo
- Output Connectors: 4 x 6,3 mm Phone Jack Stereo
- Controls: 4 x Headphone Volume Control, Mono / Stereo Switch
- Indicators: Power LED
- Power Requirement: 24 V External AC Adapter (included)
